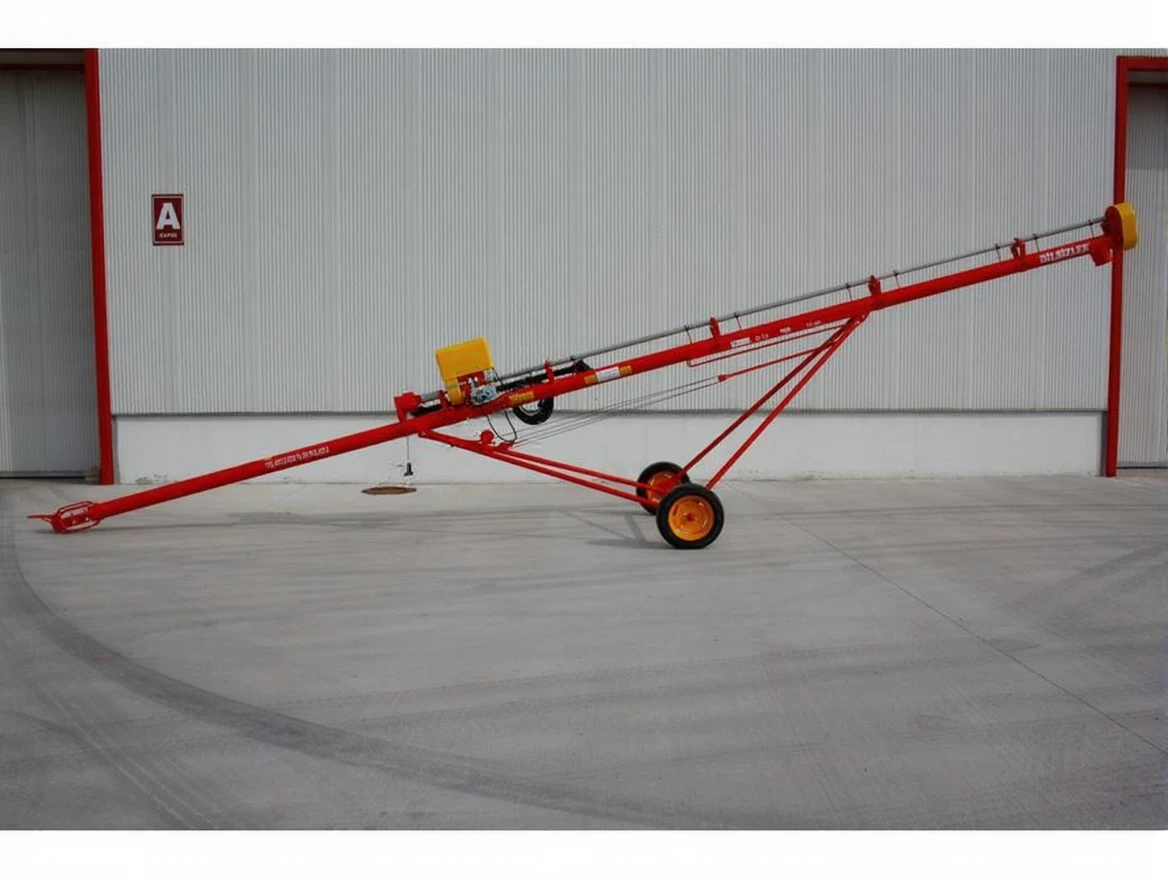

⌀14 (10100mm) Electric Motor and Tail Shaft Driven Agricultural Spiral Conveyor
| Brand | Dilsizler |
|---|---|
| Model Type |
⌀14'lük 10mt |
Dilsizler ?14 (10100mm) Electric Motor and Tail Shaft Driven Agricultural Spiral Conveyor

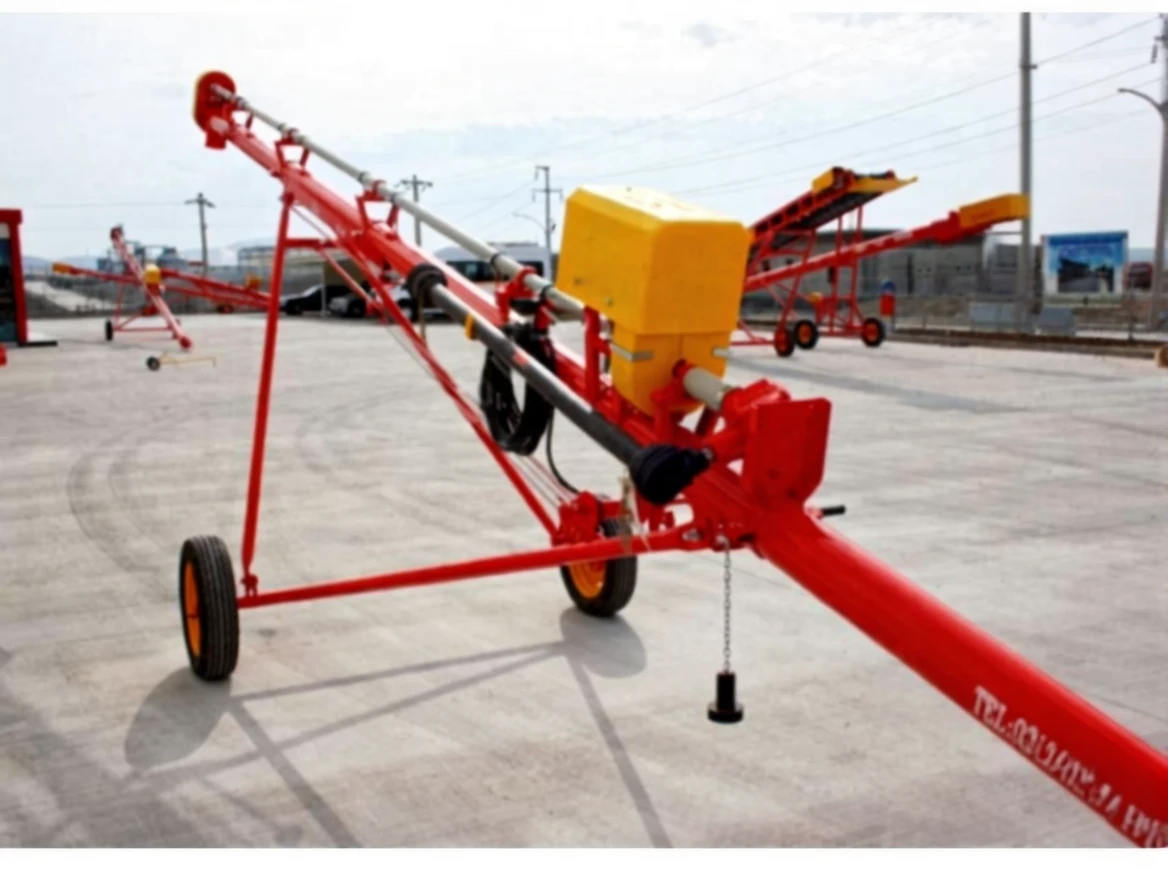

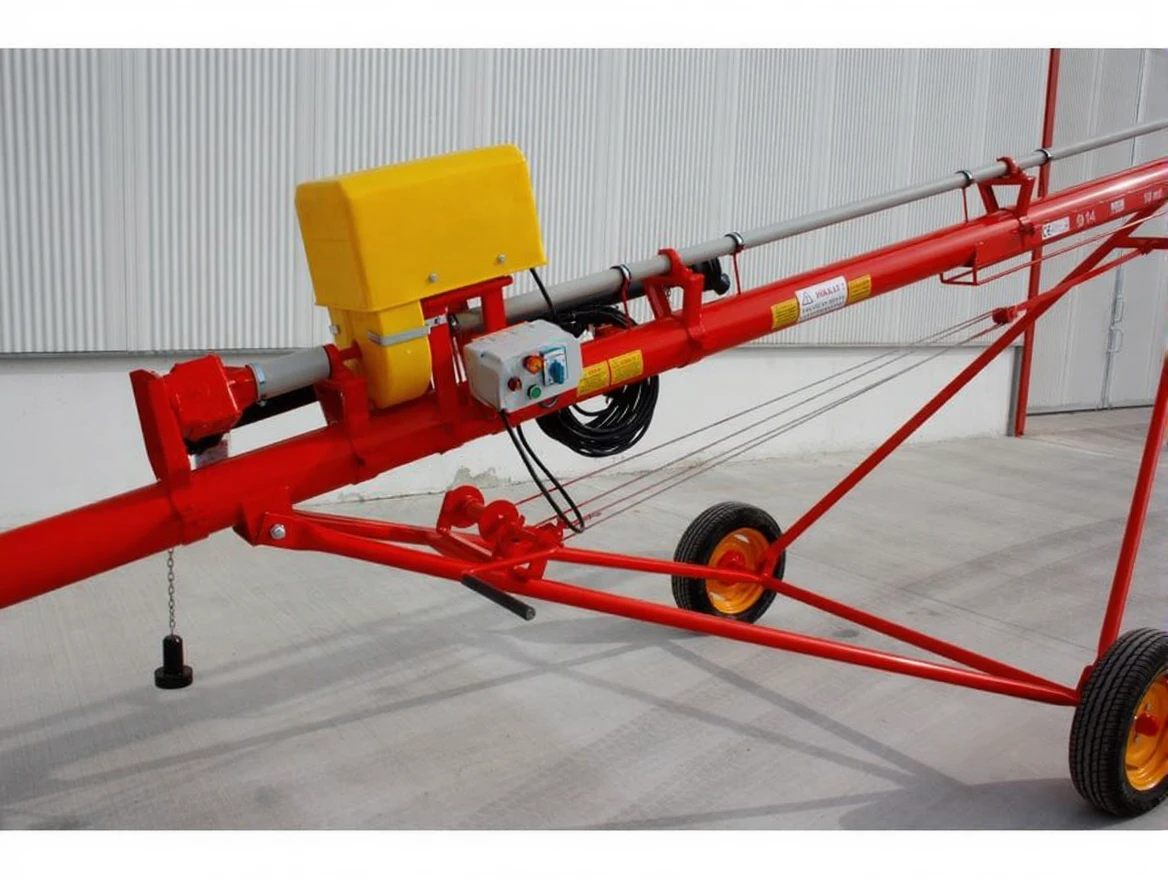

"Electric Motor and Tail Shaft Driven Spiral Conveyors" operate with 220 volts electrical energy and tractor tail shaft. The electric motor transfers motion to the spiral blade through the first belt pulley system, transmission shaft, and the second belt pulley system. As the blade rotates, it pulls the product from the rear end of the pipe through the suction mouth, enabling transportation, loading, and stacking to the desired location through the discharge mouth at the front. Additionally, it can be operated with a tractor tail shaft. These are commonly used by Agricultural Credit Cooperatives and farmers.

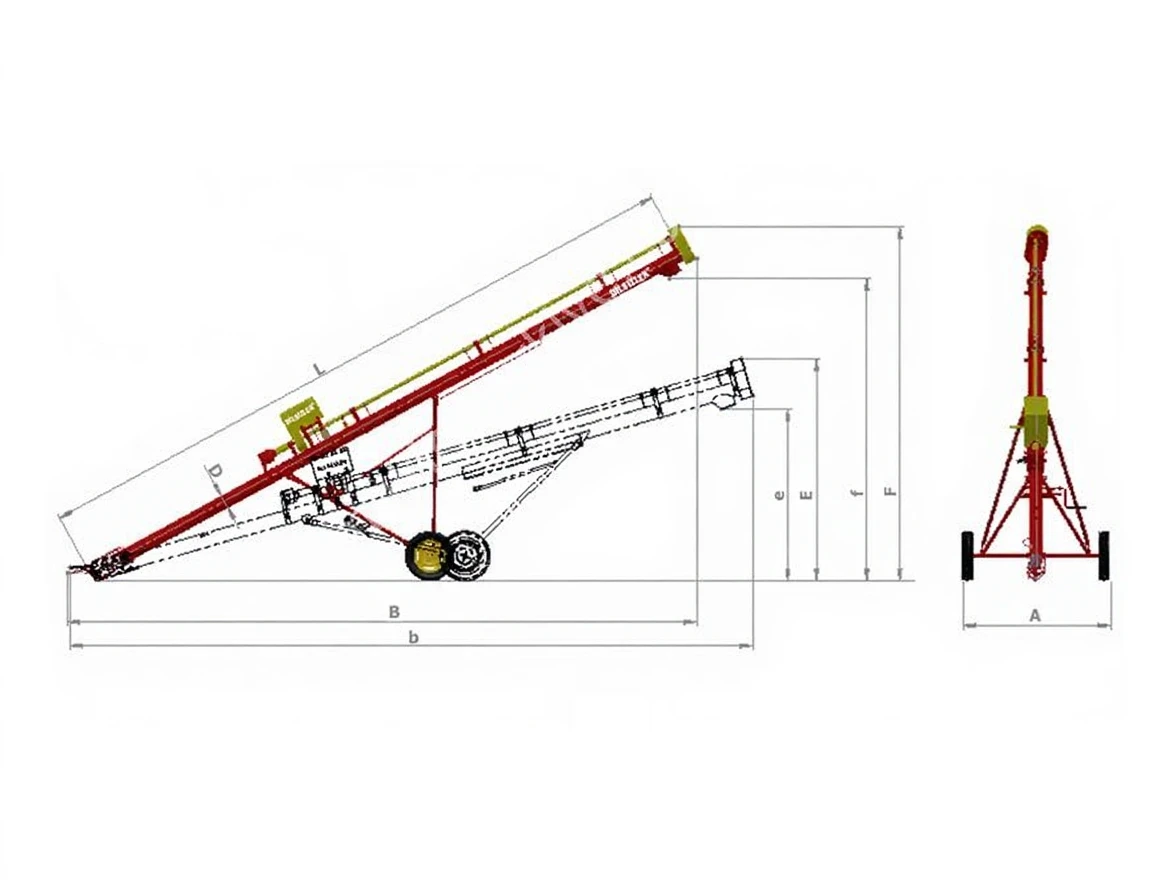

Technical Specifications of Electric Motor and Tail Shaft Driven Agricultural Spiral Conveyors:
|
Model |
Power/HP |
Energy |
Carrying Capacity |
Total Weight |
D |
L |
A |
b |
B |
Min. Operating Position |
Max. Operating Position |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Ø 14' x 6m |
3 hp |
220 V |
Grain: 18 tons/hour |
310 kg |
139.7 |
6000 |
1580 |
6100 |
5410 |
e: 1800, E: 2390 |
f: 3260, F: 3880 |
|
Ø 14' x 8m |
4 hp |
220 V |
Seed: 9 tons/hour |
352 kg |
139.7 |
8000 |
1780 |
8130 |
7460 |
e: 1800, E: 2350 |
f: 3500, F: 4090 |
|
Ø 14' x 10m |
4 hp |
220 V |
|
388 kg |
139.7 |
10000 |
1880 |
10100 |
9470 |
e: 2400, E: 2990 |
f: 4100, F: 4680 |
Note: Our measurements are in millimeters 'mm'.
