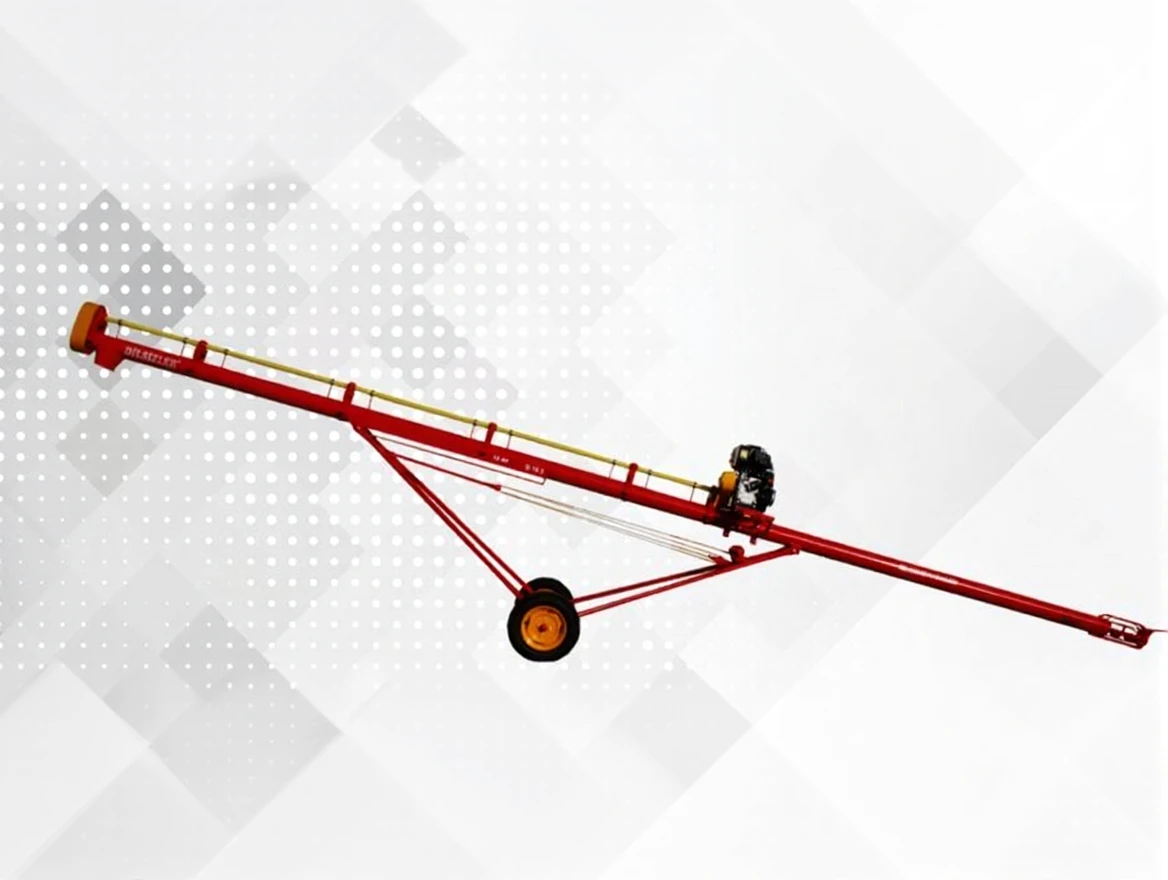

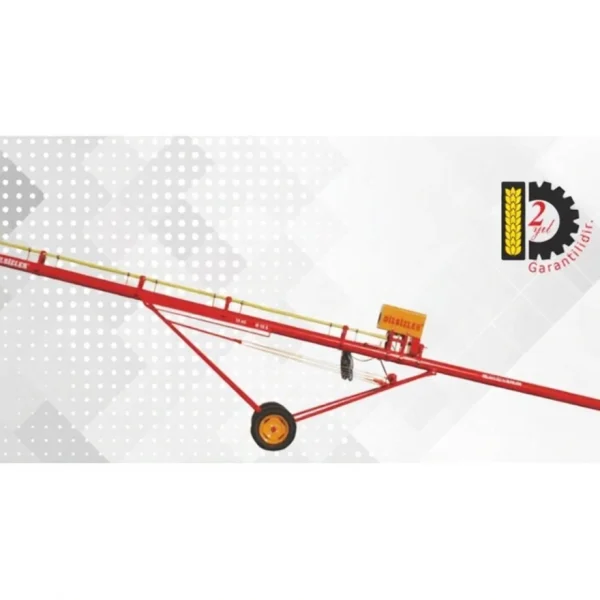

⌀19.2/(10100mm) Diesel Engine Driven Agricultural Auger

Brand Dilsizler
Model Type

⌀19.2'lik 10mt

Description

Dilsizler ?[ PHONE HIDDEN ]mm) Diesel Engine Driven Agricultural Auger

"Diesel and Gasoline Engine Driven Agricultural Augers" operate with the motion coming from internal combustion engines coupled to the machine. The engine coupled to the machine transfers the motion to the auger leaf through the first belt pulley system, the transmission shaft, and the second belt pulley system. As the leaf rotates, it pulls the product from the rear of the pipe through the suction mouth and transports, loads, and stacks it to the desired location through the discharge mouth at the front. This machine can operate using fuel in locations without electricity dependency, using internal combustion engines, and is recommended for fields and areas without electrical energy. It is used by Agricultural Credit Cooperatives, Grain Merchants, and Farmers.

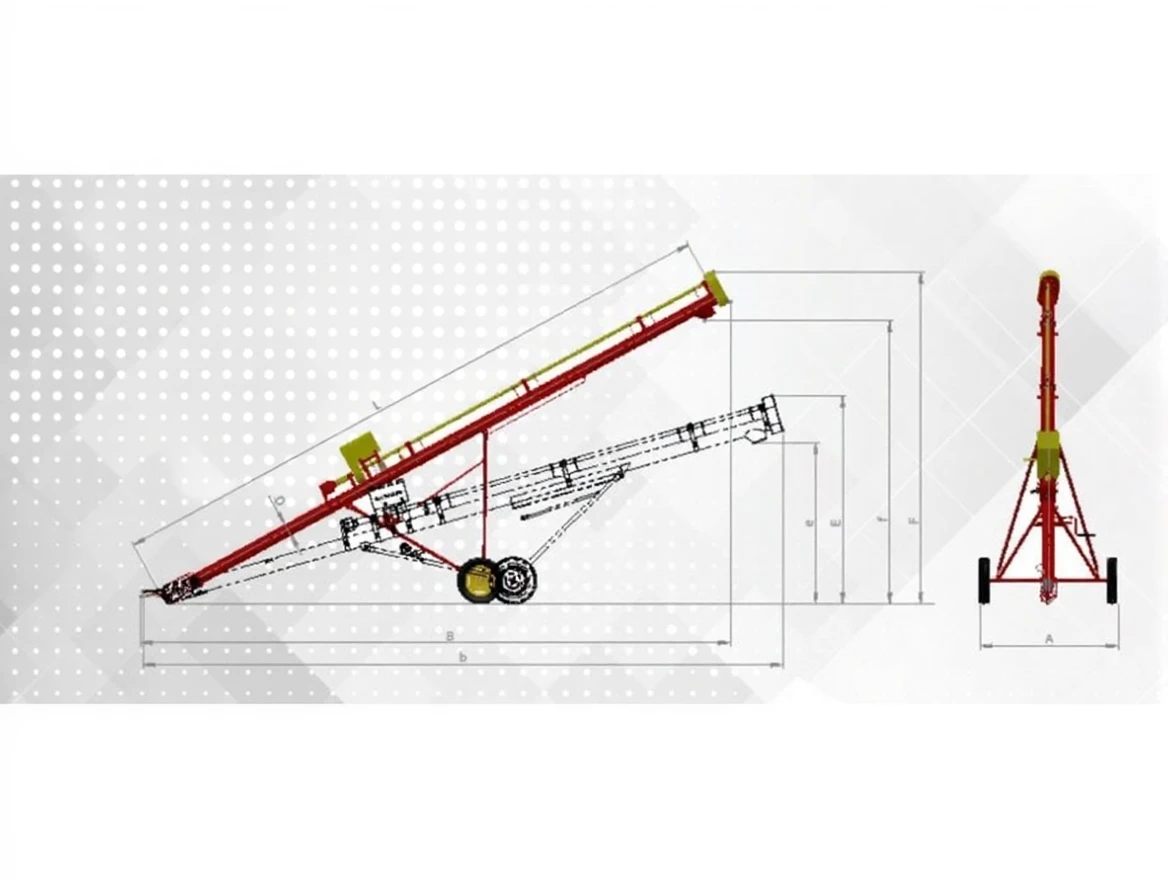

MODELS POWER/HP ENERGY TRANSPORT CAPACITY TOTAL WEIGHT D L A b B MIN. WORKING POSITION MAX. WORKING POSITION
      GRAIN SEED           e E
Ø 16.5' 8m 10 hp *** 30 tons/hour 15 tons/hour 320 kg 165 8000 2080 8310 7780 1700
Ø 16.5' 10m 10 hp *** 30 tons/hour 15 tons/hour 380 kg 165 10000 2080 10200 9480 2300
Ø 16.5' 12m 10 hp *** 30 tons/hour 15 tons/hour 460 kg 165 12000 2080 12120 11350 2600
Ø 19.2' 10m 10 hp *** 50 tons/hour 25 tons/hour 440 kg 190 10000 2080 10100 9340 2200
Ø 19.2' 12m 12 hp *** 50 tons/hour 25 tons/hour 510 kg 190 12000 2080 12200 11400 2500
Ø 22' 12m 13 hp *** 70 tons/hour 35 tons/hour 750 kg 219.1 12000 2080 12140 11450 2450
Ø 27' 12m 17 hp *** 90 tons/hour 45 tons/hour 805 kg 273 12000 2080 12200 11470 2400

"Not: Our measurements are in millimeters 'mm'."
