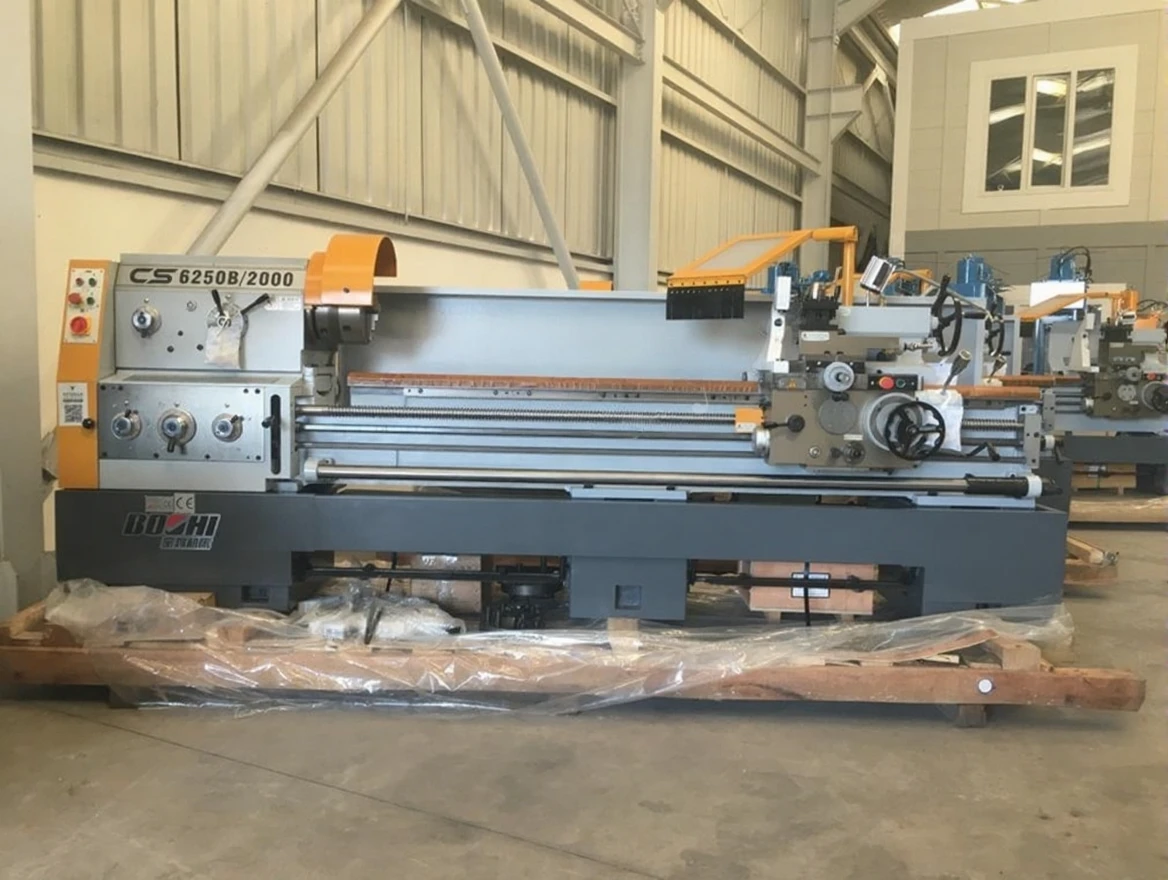

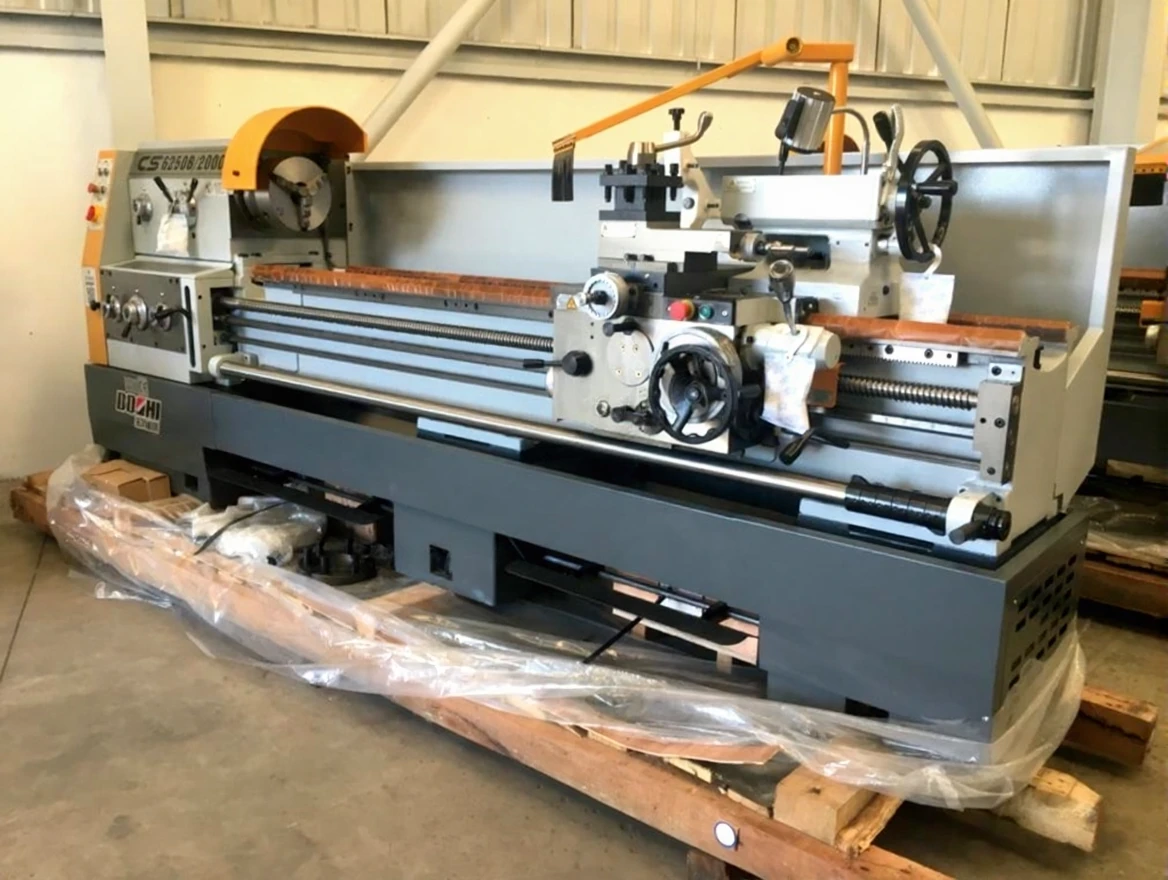

⌀500 2 Meter 85 Fenermili Universal Lathe

⌀500 2 Meter 85 Fenermili Universal Lathe

Baoji CS6250B Universal Lathe Capacity

It has a processing capacity of 500mm over the bench, 300mm over the support, and 710mm in the bridge gap. The Fenermili is 105mm, and the distance between centers is 2000mm.

Baoji CS6250B Universal Lathe Standard Accessories

3-legged chuck, shutter chuck, free-standing chuck, swivel chuck, spare chuck flanges, traveling center, fixed center, lubrication pump, chip guard, fixed center, 4-way tool holder chuck housing, cooling system, counter center taper adjustment, chuck tool box, foot-operated brake pedal.

Technical Specifications  Baoji CS6250B Universal Lathe

TECHNICAL SPECIFICATIONS             UNIT  CS 6250 B

CAPACITY

Turning Diameter Over Bed    mm      500

Turning Diameter Over Support   mm      300

Turning Diameter When Workpiece is Out mm      710

Workpiece Length     mm      240

Distance Between Centers mm      2000

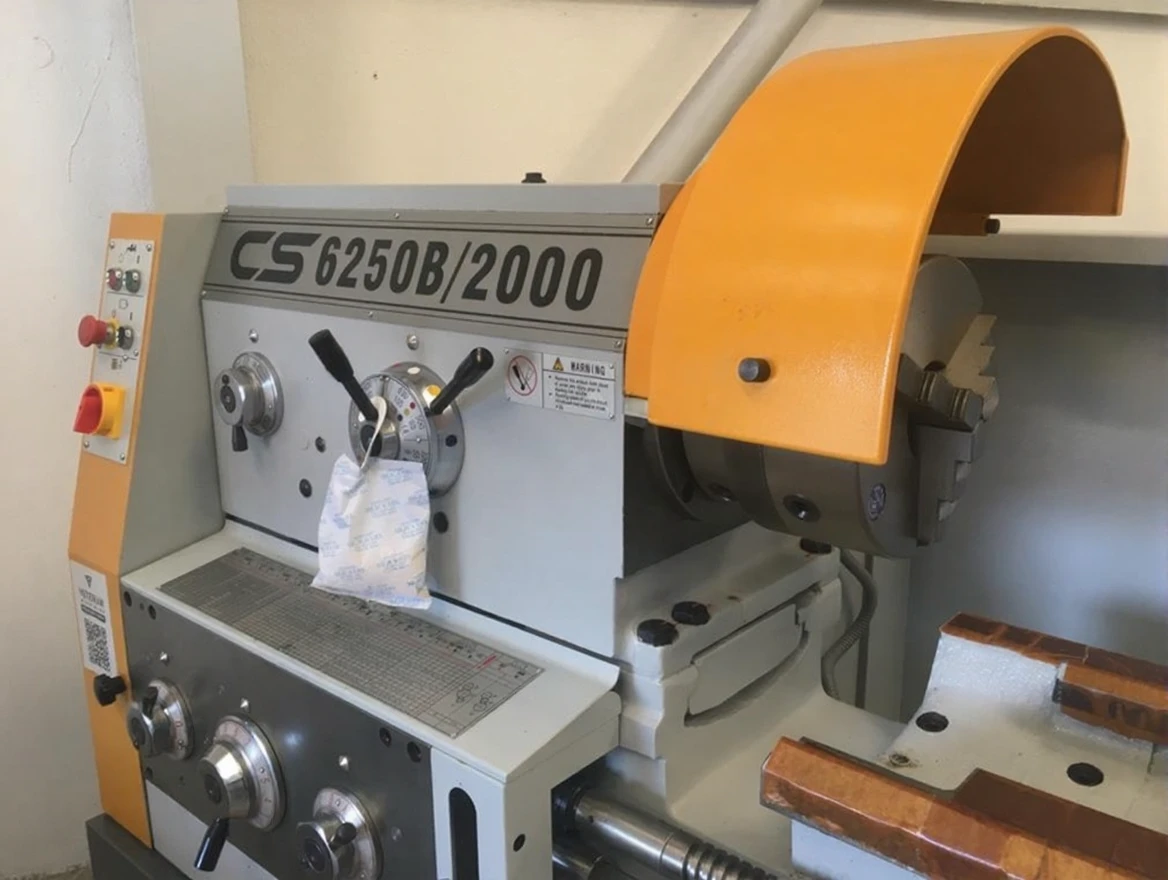

FENER MİLİ

Fener Mili Tip             mm      ISO702/II No:8 camlock

Fener Mili Hole Diameter               mm      ø 82

Fener Mili Taper        metric 90

Spindle Speed Range              rev/min            9.01.2000

Number of Spindle Speeds                24

FEED RATES

Longitudinal Feed Range         mm/rev           0.028 ~ 6.43 ; (93 types)

Transverse Feed Range             mm/rev           0.012 ~ 2.73 ; (93 types)

Metric mm      0.5 ~ 224 ; (48 types)

Inch      t.p.i       72 ~ 1/8 tpi ; (46 types)

Module mm      0.5 ~ 112 ; (42 types)

DP         DP         56 ~ 1/4 DP ; (45 types)

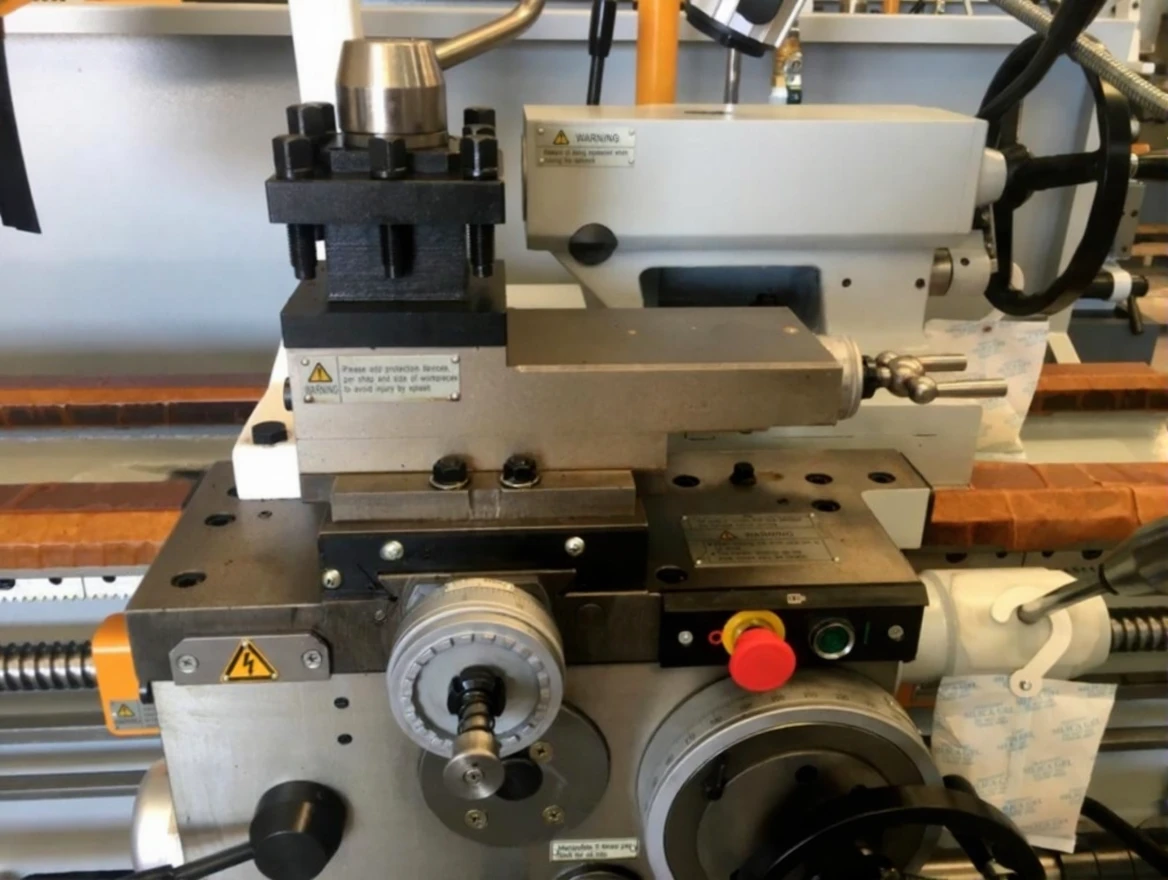

SLIDE

Transverse Feed Distance        mm      320

Tool Holder Feed Distance mm      145

Slide Size mm      25 x 25

CENTER

Center Pin Diameter         mm      75

Center Pin Movement mm      150

Center Pin Taper                   Morse No:5

OTHER

Main Motor       kw         7.5

Fast Motor and Water Motor Power           kw         0.3 — 0.12

Length            mm      [ PHONE HIDDEN ]

Width            mm      975

Height         mm      1270

Net Weight     kg          2800
