⌀660 2 Meter 105 Spindle Universal Lathe

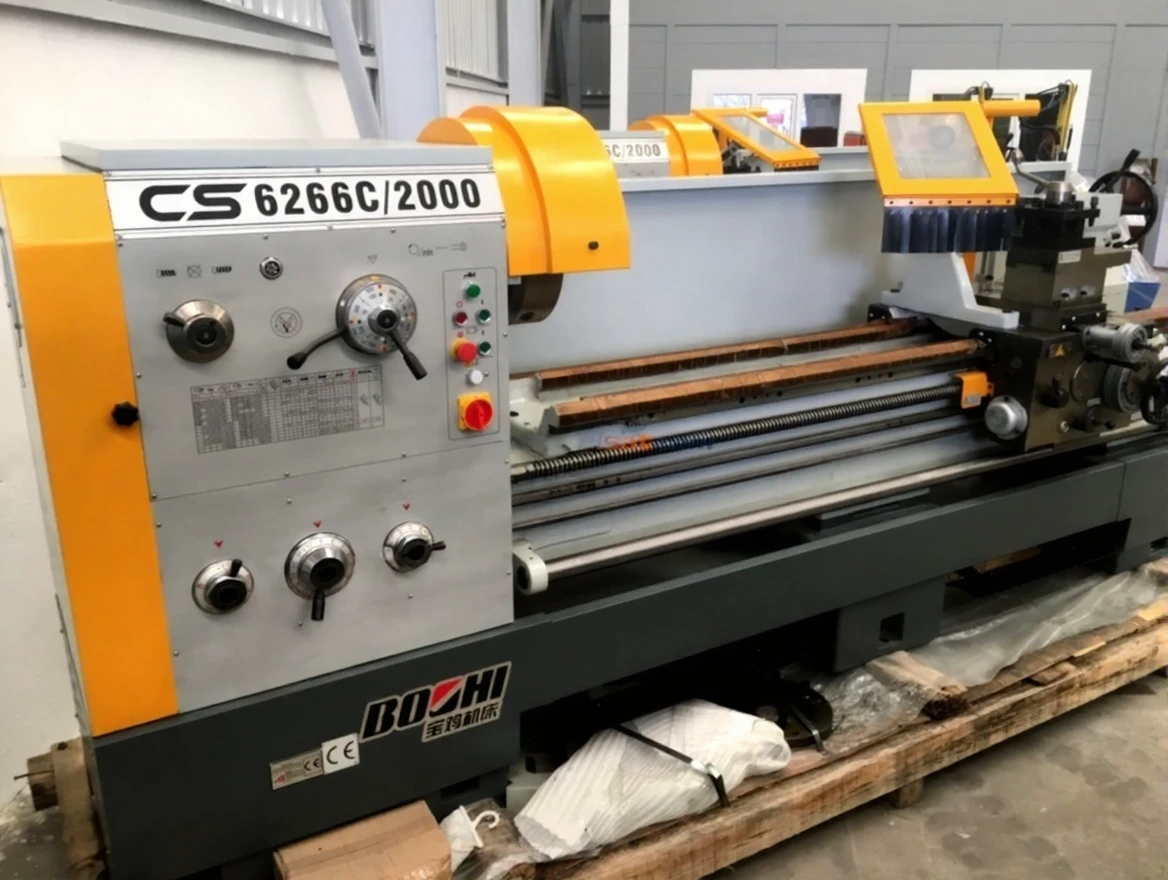

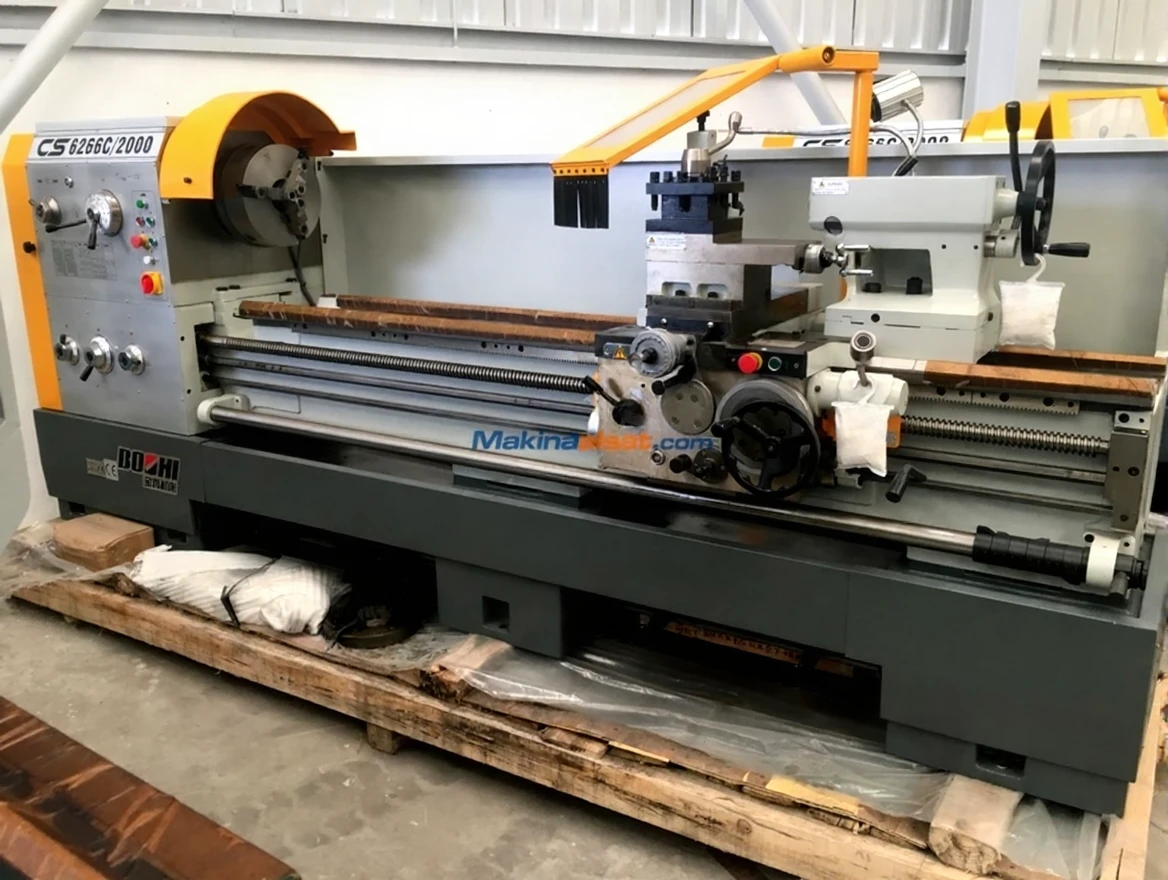

Baoji CS6266C Universal Lathe

Baoji CS6266C Universal Lathe Capacity

It has a processing capacity of 660mm over the bench, 420mm over the support, and 870mm in the bridge gap. The spindle is 105mm, and the distance between centers is 2000mm.

Baoji CS6266C Universal Lathe Standard Accessories

3-jaw chuck, Sliding chuck, Free-standing chuck, Swivel chuck, Spare chuck flanges, Traveling center, Fixed center, Lubrication pump, Chip guard, Fixed center, 4-way tool holder Chuck housing, Cooling system, Tailstock taper adjustment, Chuck Tool box, Foot-operated brake pedal.

Technical Specifications  Baoji CS6266C Universal Lathe

TECHNICAL SPECIFICATIONS             UNIT  CS 6266 C

CAPACITY

Turning Diameter Over Bed    mm      660

Turning Diameter Over Support   mm      420

Turning Diameter When Part is Out mm      870

Part Length     mm      240

Distance Between Centers mm      2000

SPINDLE

Spindle Nose             mm      ISO702/II No:8 camlock

Spindle Hole Diameter               mm      ø 105

Spindle Taper        metric 113

Spindle Speed Range              rev/min            36 – 1600

Number of Spindle Speeds                12

FEEDS

Longitudinal Feed Range         mm/rev           0.063 ~ 2.52 ; (65 types)

Cross Feed Range             mm/rev           0.027 ~ 1.07 ; (65 types)

Metric mm      1 ~ 14 ; (22 types)

Inch      t.p.i       28 ~ 2 tpi ; (25 types)

Module mm      0.5 ~ 7 ; (18 types)

DP         DP         56 ~ 4 DP ; (24 types)

TAILSTOCK

Cross Feed Distance        mm      310

Tool Holder Feed Distance mm      145

Tailstock Size mm      25 x 25

CENTER

Center Pin Diameter         mm      75

Center Pin Movement mm      150

Center Pin Taper                   Morse No:5

OTHER

Main Motor       kw         7.5

Fast Motor and Water Motor Power           kw         0.3 — 0.12

Length            mm      [ PHONE HIDDEN ]

Width            mm      975

Height         mm      1450

Net Weight     kg          3250
