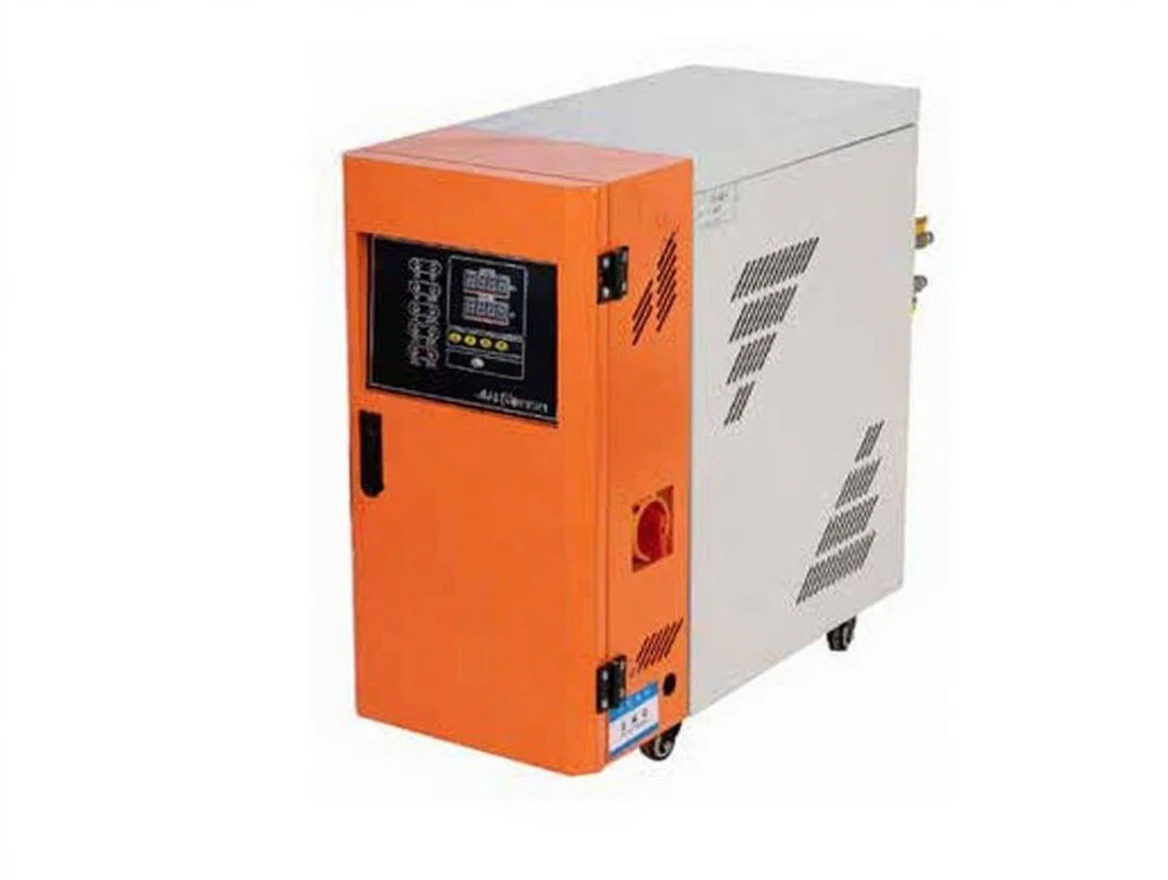

0.37 kW Water Type Mold Conditioner

0.37 kW Water Type Mold Conditioner

Products produced with plastic injection machines can be faulty due to the lack of adjustment in mold temperatures. Especially in the production of engineering plastics that require high strength and aesthetics, the precision and control of mold temperature is very important.

Productions made in molds that are not at the appropriate temperature can lead to surface and shape defects, low strength values in products, incomplete products, measurement discrepancies, etc. Unnecessary increases in injection pressure are observed due to the molding surface not being at the appropriate temperature.
The Water Type Mold Conditioner eliminates this and many similar problems and ensures product measurement precision.

GENERAL FEATURES

• Working temperature up to 90°C.

• PID controlled ±0.5°C temperature precision.

• High-efficiency Regenerative Turbine Pump.

• Models with heating power of 6-9-12-24 and 36 kW.

• Stainless and heat-resistant copper pipe preferred inside the device.

• Pump pressure gauge.

• Audible and LED alarm warnings (phase reversal, pump overload, high temperature, low water).

• Automatic water filling feature.

• Technological and practical design allows easier access to internal units.

Technical Specifications Kaplan Injection 6KM

Temperature Transfer: Clean Water
Temperature Capacity: 90°C
Cooling Method: Direct Water
