Ø 0.5 – 4 mm Electric Pneumatic Rivet Press

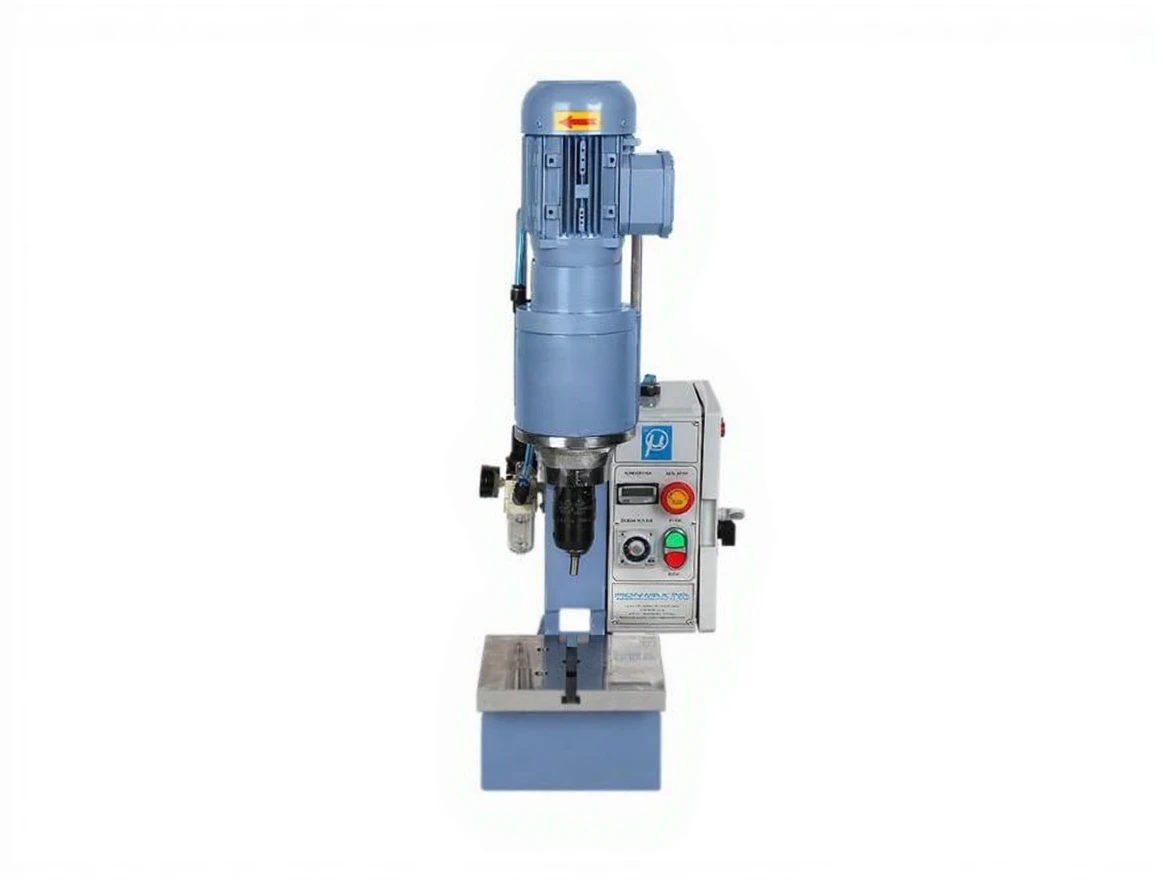

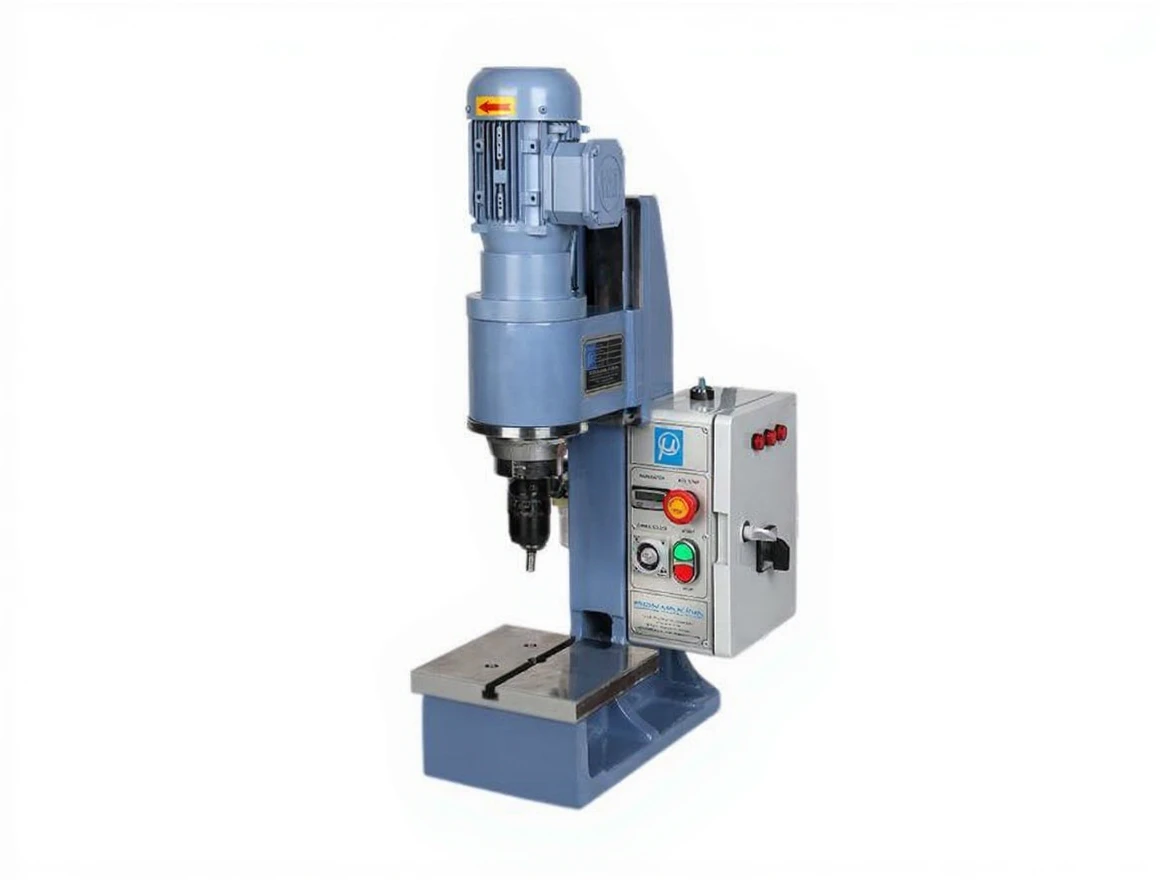

Ron Mikron EPM-400 Ø0.5 – 4 mm Electro-Pneumatic Rivet Press

AVAILABLE IN ALL STANDARD MODELS

• Working stroke adjustable with 0.05 mm precision.

• Stroke counter available.

• Although controlled by an electric foot pedal, a dual-hand control button can be optionally installed.

• Air conditioner available.

• Process speed adjustable thanks to air restrictor.

• Body height adjustment available.

• If desired, the rivet unit can be independently mounted at different positions and hard-to-reach automation systems.

TECHNICAL FEATURES

• Riveting Capacity (Ø, mm) (st 37): 0.5 – 4 mm

• Air Pressure (Bar): 5 – 6 Bar

• Working Stroke: 0 – 30 mm

• Riveting Time: 0.5 – 6 sec

• Motor Power: 0.25 kW – 1400 rpm

• Electrical Feed (V, Hz): 380 V – 50 Hz

• Weight: 85 kg

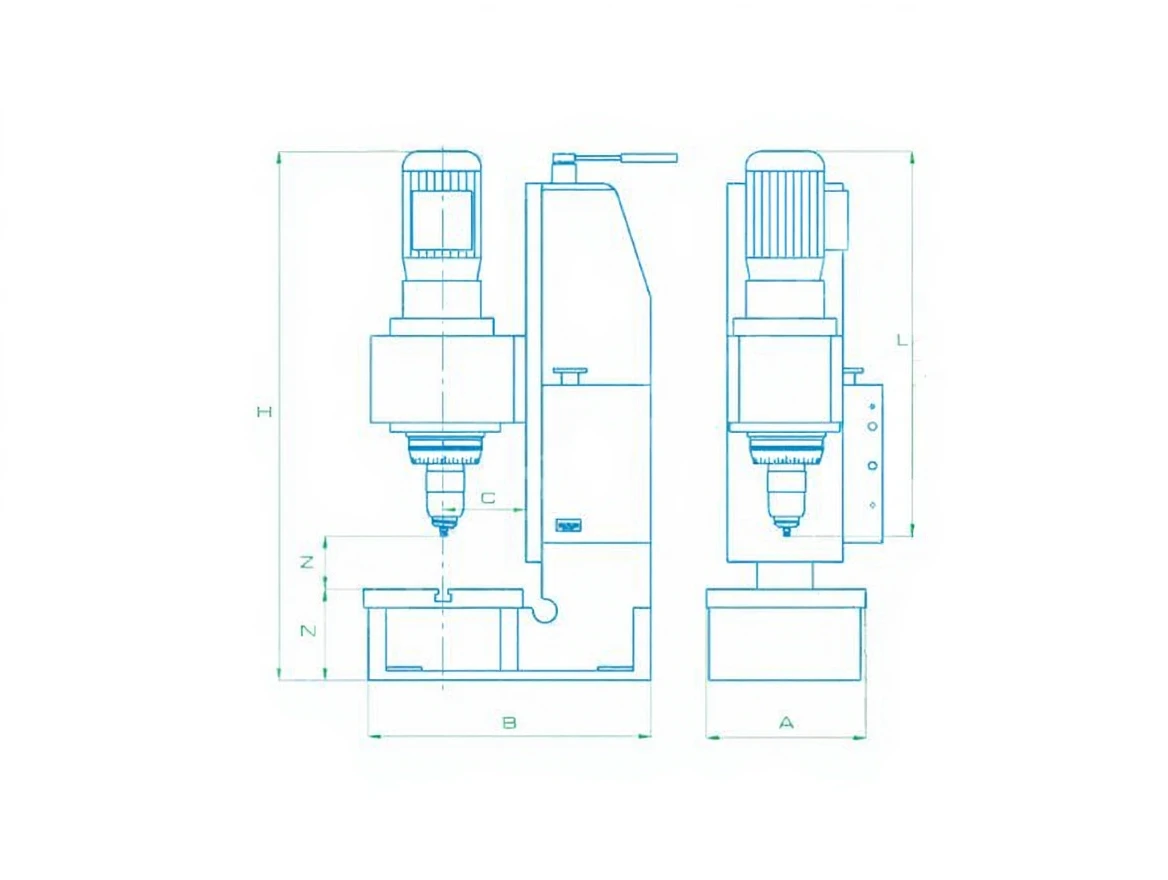

EPM 400 SIZE

• A: 295 mm

• B: 390 mm

• C: 150 mm

• H: 900 mm (max)

• Z (min-max): 120 – 265 mm

• Box/Crate Dimensions: 30 × 400 × 800 mm
