1.0 Ton Lityum Akülü Forklift
| Model Type |
TCL101 |
|---|

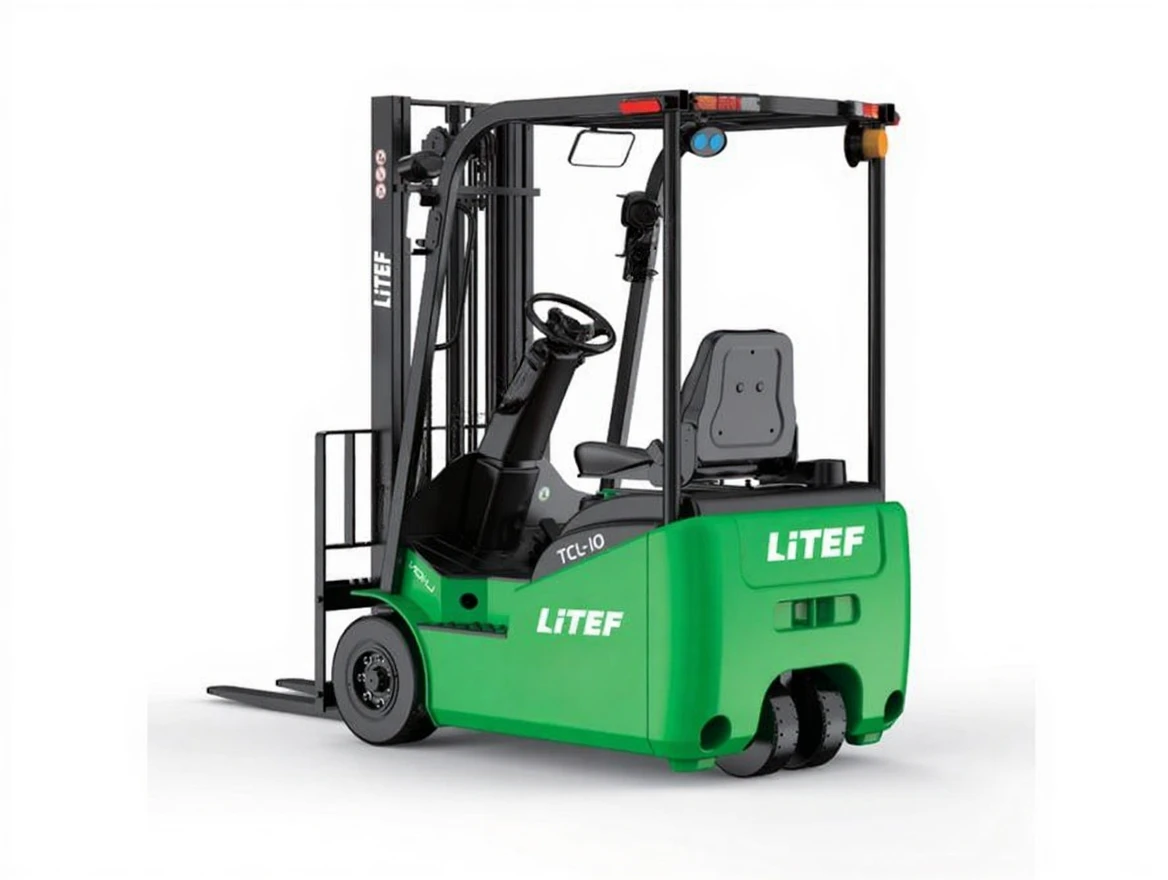

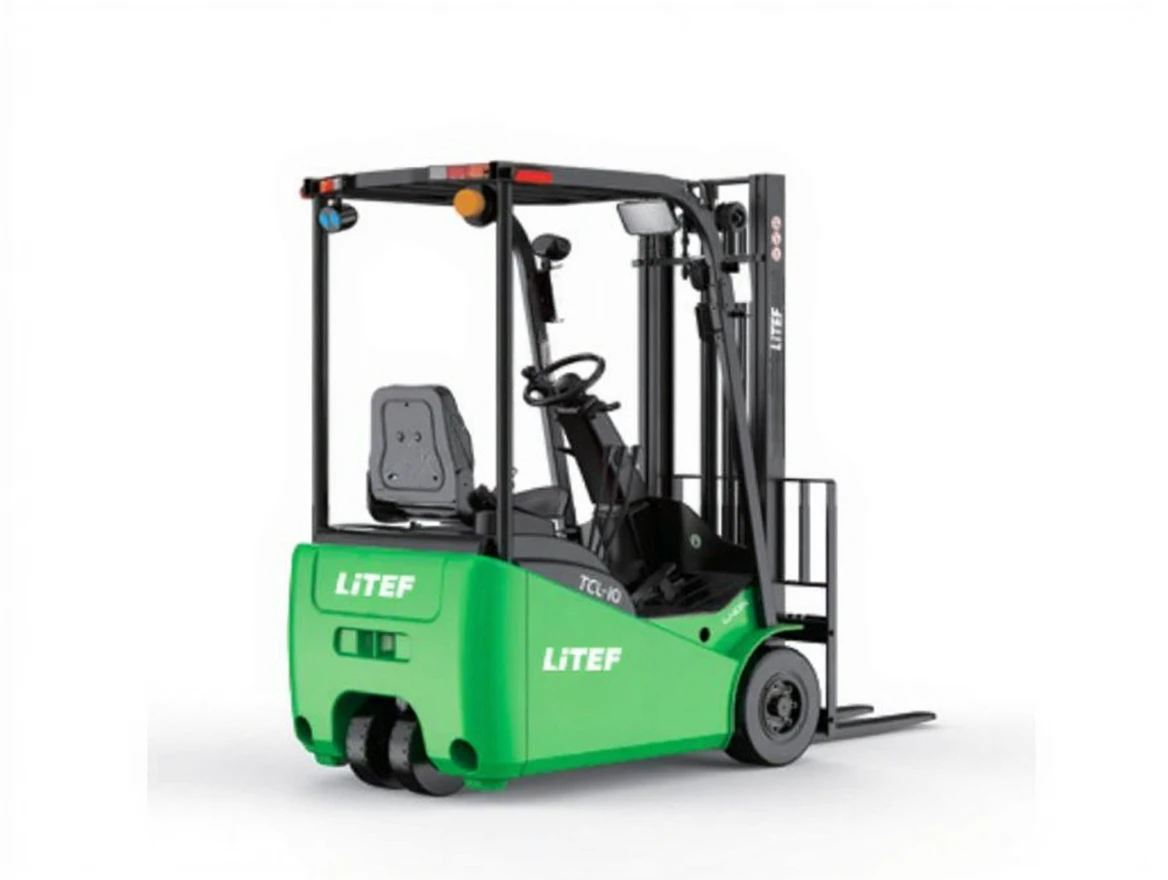

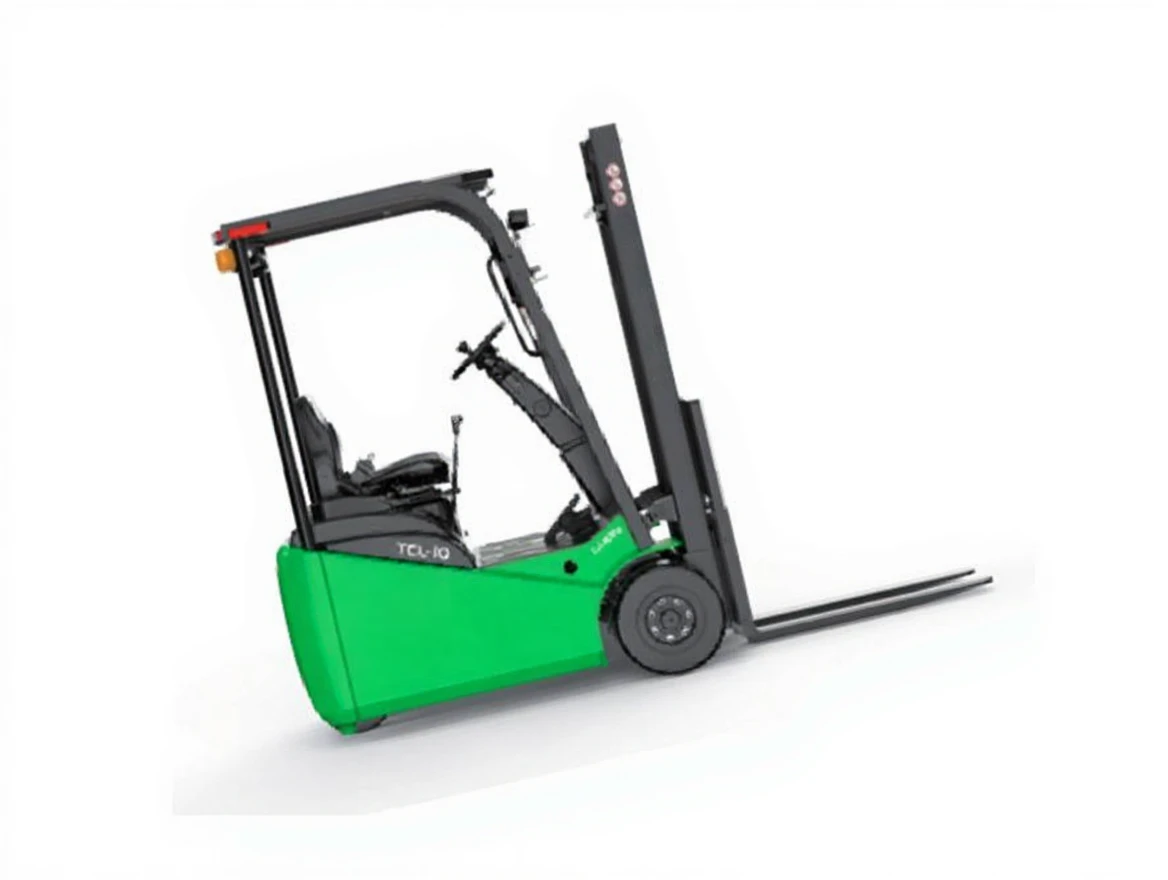

TCL101 Electric Forklift 1.0T
Compact and Powerful
With less than 2 tons of service weight and a protective cage height of less than 2 meters, it offers high agility.
About TCL101
The TCL101 is EP’s most compact and practical electric dual motor 3-wheel electric forklift with a 1.0-ton load capacity. Its small size, dual motor system, and protective cage height of less than 2 meters provide high agility and allow it to operate in narrow aisles, mezzanines, and freight elevators.
The lithium-powered TCL101 combines maneuverability, comfort, efficiency, and safety, making it ideal for various transportation tasks in cramped spaces and different floors.
Applications
Versatile Use: In the food industry, logistics centers, heavy goods or containers, and retail environments… when things get tight, the TCL101 is the solution.
This lightweight and compact electric forklift is ideal for indoor use in narrow aisles, mezzanines, and freight elevators. It provides excellent space-saving solutions for intensive storage.
Detailed Features
Compact Size with Wide Legroom
With a service weight of less than 2 tons, compact size, and a protective cage height (h6) < 2000mm, the TCL101 is ideal for use in mezzanines and freight elevators, such as crowded storage and heavy vehicles in narrow spaces. It also offers optional foldable forks to provide increased versatility that fits into the smallest spaces.
Despite its compactness, the TCL101 prioritizes operator comfort with ergonomic design and provides a 464mm wide legroom for a comfortable working experience.
Dual Motor for High Agility and Performance
The dual motors provide precise steering to the TCL101 and allow it to turn in place with its 3-wheel design. Both contribute to a 1422mm smaller turning radius, offering excellent maneuverability in crowded environments. It can quickly move pallet trucks at a maximum speed of 13km/h, ensuring operational efficiency.
Enhanced Efficiency and Operating Time with 80V Li-ion Battery and PMSM Technology
Equipped with a 80V Li-ion battery and an integrated charger as standard, the TCL101 supports maintenance-free opportunity charging. Additionally, the TCL101 utilizes advanced Permanent Magnet Synchronous Motor (PMSM) technology compared to traditional motors, providing 10-15% energy savings and extending operating time by 10%.
Automatic Parking Brake and Turning Speed Control for Safe Operation
The TCL101 features an automatic parking brake that prevents the forklift from accidental rolling back when parked on a slope. Additionally, it is equipped with turning speed control for working safety and stability even in the tightest corners.
Technical Specifications
| Feature | Value |
|---|---|
| Load Capacity | 1000 kg |
| Lifting Height | 3000 mm |
| Service Weight | < 2000 kg |
| Protective Cage Height | < 2000 mm |
| Turning Radius | 1422 mm |
| Maximum Speed | 13 km/s |
| Legroom | 464 mm |
| Battery Voltage | 80V Li-ion |
| Motor Type | Çift PMSM Motor |
| Charger | Integrated (Standard) |
| Energy Saving | %10-15 |
| Operating Time Extension | %10 |
