1.150 Kg 42 No 130 mm Et Kıyma Makinası

Brand Yılmaz Et Makinaları
Model Type

4233 TR

Description

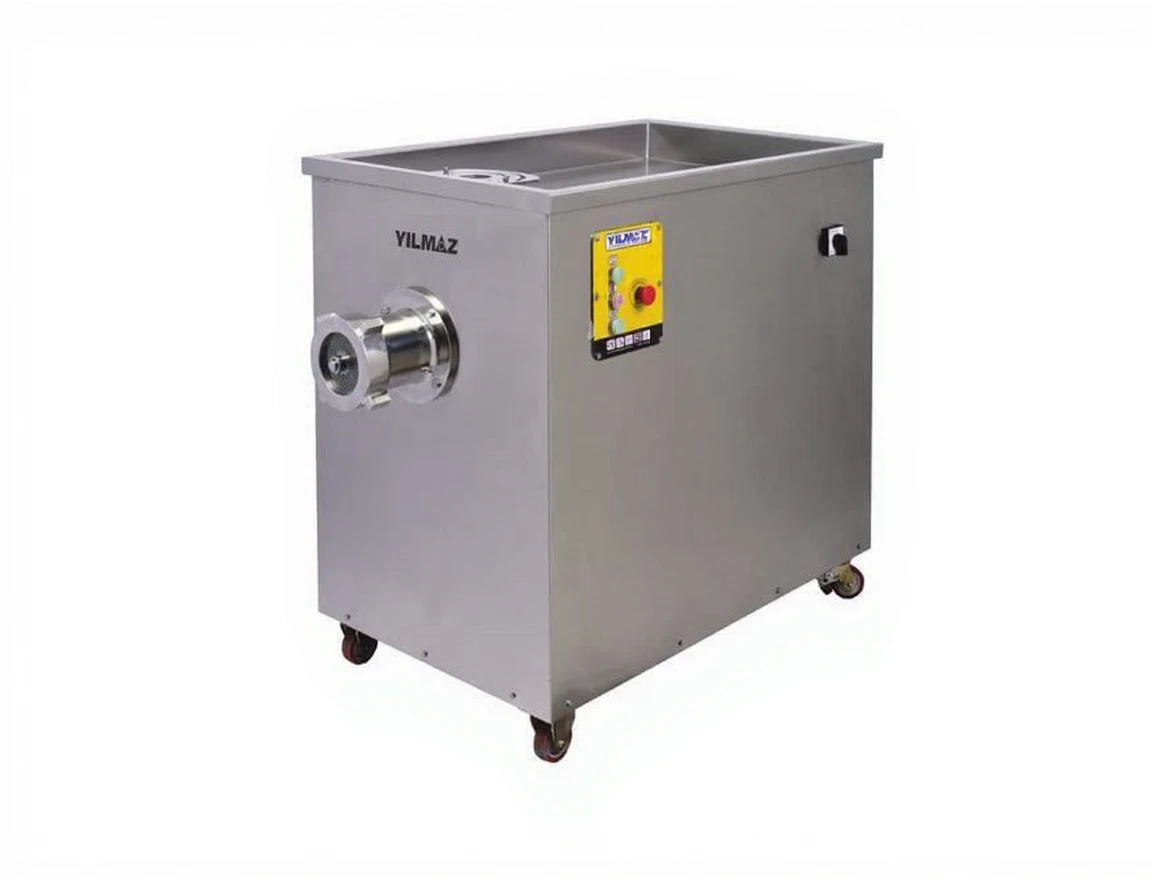

1.150 kg 42 No 130 Mm Meat Grinder


Product Advantages:

  • The machine is equipped with 2 (two) contactors as motor protectors.
  • The machine has a high-efficiency helical gear system with a monoblock cast body reducer.
  • 304 quality stainless steel is used in all connection equipment of the meat processing units in the machine.
  • 304 quality stainless steel sheet is used in the upper tray (meat loading hopper) and body.
  • Heat-insulating insulation is applied to the bottom surface of the upper tray.
  • The upper tray has a hand protection device made of 304 quality stainless steel with a thickness of 5 mm.
  • There is a carrying handle on the back cover of the machine.
  • The casing (meat outlet hopper), auger (screw or ball), nut (nut), and meat inlet throat are made of 304 quality stainless steel casting.
  • There is a stainless steel wrench to loosen the nut.
  • There are forward-reverse-stop buttons and an emergency stop button for emergency situations.
  • For easy movement of the machine, there are 2 fixed and 2 swivel wheels.
  • It operates with a 1 mirror and 1 blade system.
  • There is a lubrication system for external lubrication of the machine’s clutch bearing.
  • There is a protective guard wire on the underside of the machine to prevent non-heating pests from entering.
  • There is an oil and flame-resistant electrical connection cable on the machine.
CODE INOX 4233 TR
CAPACITY 1,150 Kg / H
MOTOR POWER 7.5 Kw. 10Hp 400 Volt 50 Hz.
MIRROR / BLADE 1 / 1
WIDTH/LENGTH/HEIGHT 750 x 1350 x 1115 mm
WEIGHT 348 kg
