1 Liter Liquid Semi-Automatic Packaging Filling Machine

Technical Specifications

✓ Number of filling rollers on the machine: 1
✓ The machine is a volumetric filling machine that works with a pneumatic system.
✓ The grammage setting is easily adjusted and recorded using the dial and numerator.
✓ He takes the product to be filled directly from the manufacturing boiler.
✓ Prevents bacterial growth and contamination thanks to its high surface smoothness and argon welding technology.
✓ Sealing elements are manufactured from teflon, viton or polyethylene material, depending on the chemical properties and temperature of the material to be filled.
✓ The parts on the machine are connected to each other with tri-clamps.
✓ Nozzle, valve and filling plunger are designed for easy cleaning.
✓ Can be easily disassembled without using any tools.

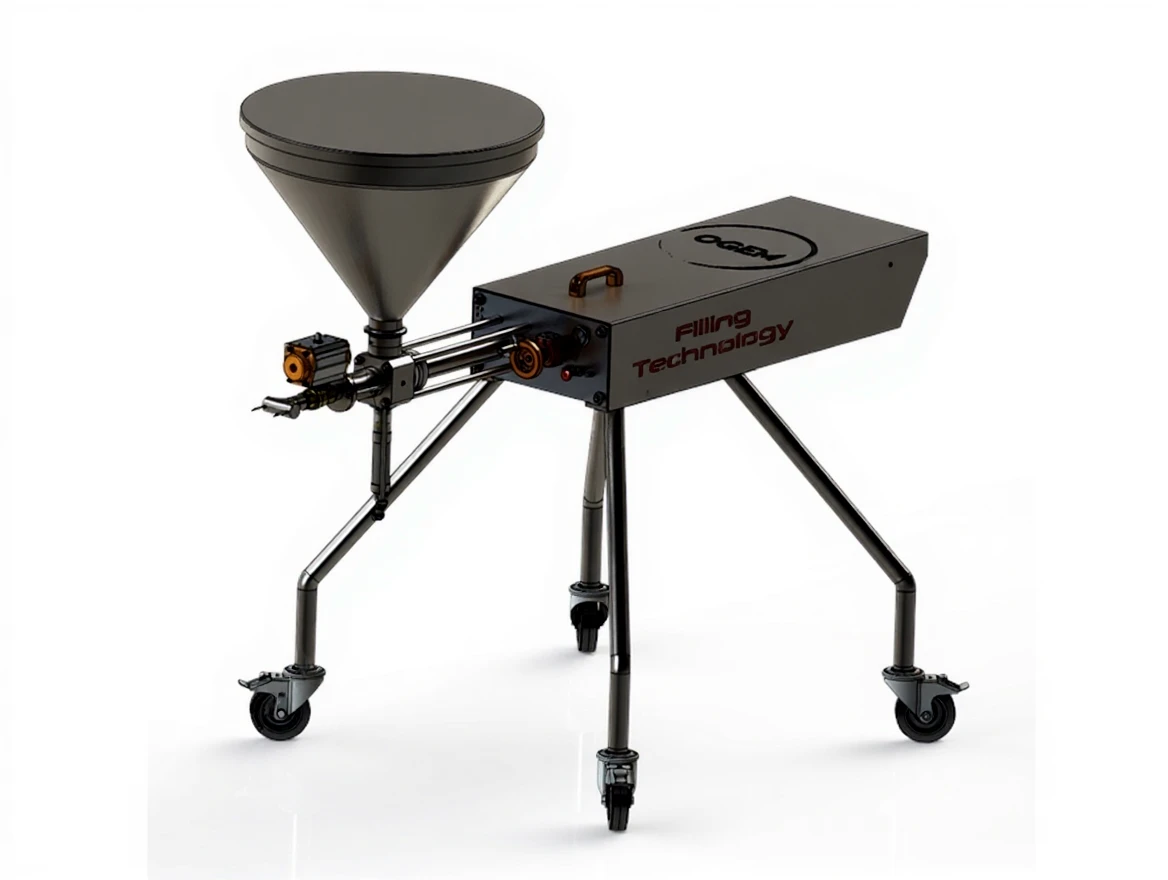

✓ Depending on the product, interchangeable filling nozzles for liquid, viscous or granular are available.
✓ There is a filling tray platform to place the packages during the filling process, this platform can be easily adjusted up and down according to the size of the package.

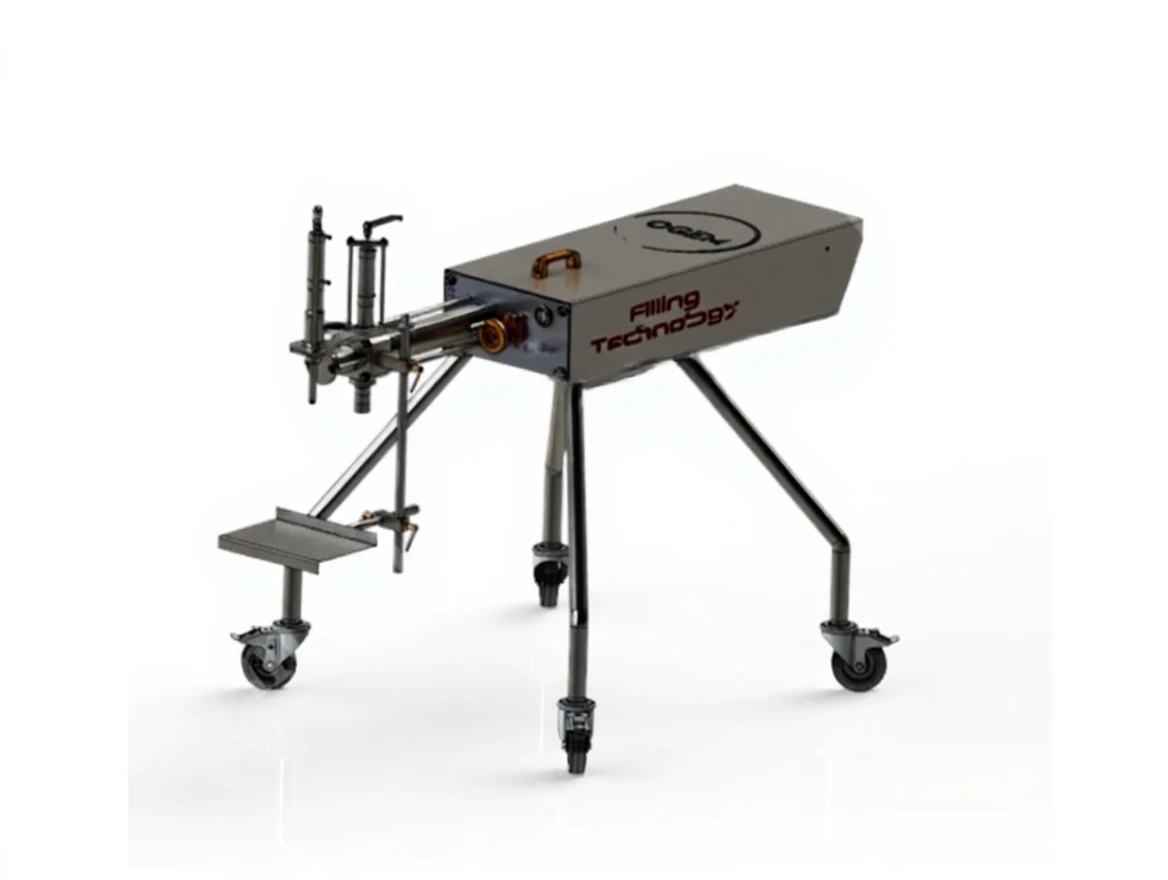

✓ The machine stands on a stainless steel frame supported by 4 wheels.
✓ Thanks to its wheels, it is ready for filling easily and quickly at any desired location.

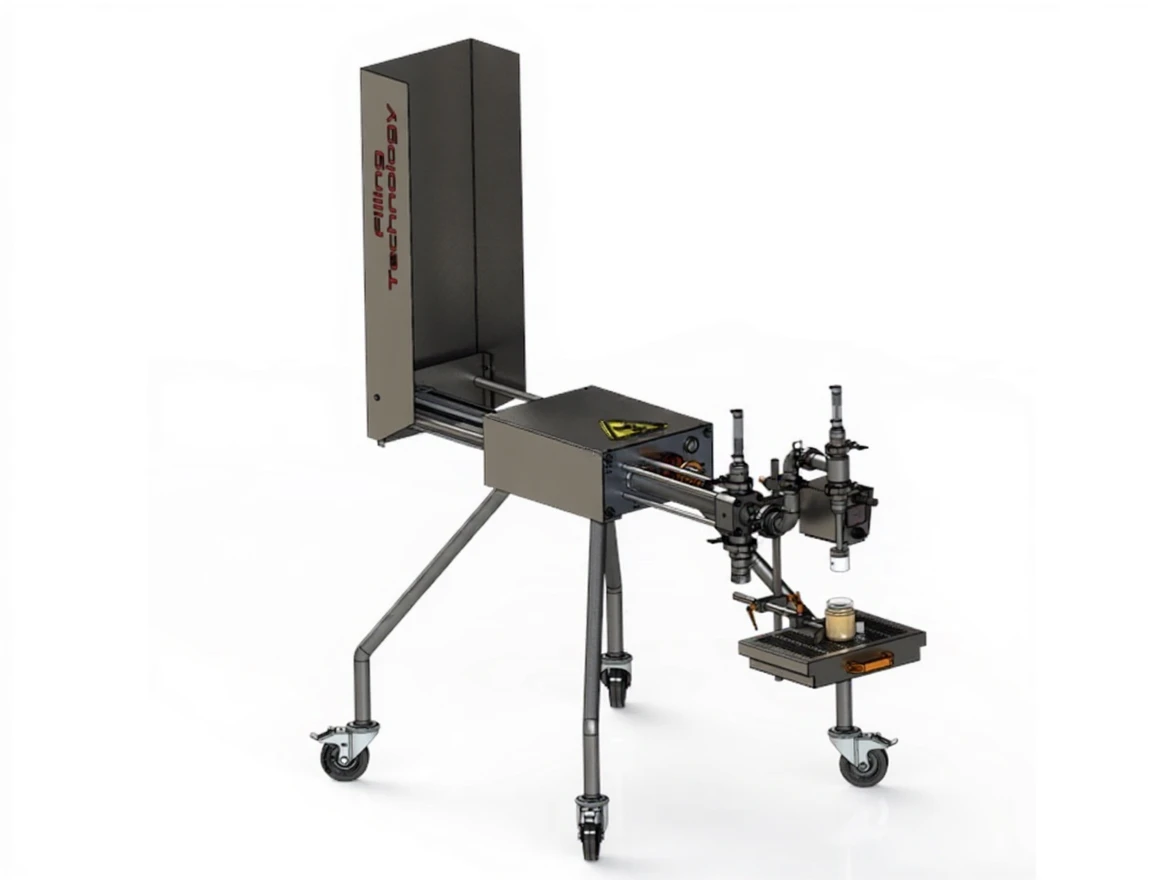

✓ Table-top and wheeled models are available.
✓ The machine operates with 6-8 bar air.
✓ No electrical or electronic systems are used in the machine.
✓ All surfaces that the product to be filled touches are made of 316 quality stainless steel.
✓ The outer surface, casing sheets and feet are made of 304 quality stainless steel and aluminum.

Areas of Use

Food and Beverage:
Olive oil, Sunflower Oil, Boza, Turnip, Vinegar, Liquid sauces, Tomato Paste, Appetizers, Sauce, Ayran, Yoghurt Jam, Honey, Marmalade, Pomegranate syrup, Fruit juice, Kefir, Ayran, Lemonade etc…

Chemistry and Cosmetics:
Liquid detergent, Liquid hand soap, Liquid dishwashing detergent, Gel detergent, Softener, Cologne, Bleach, Disinfectant, Shampoo, Liquid fertilizer, Soap, Shampoo, Lotion, Cream, Jelly, Medical Liquids etc…

Mineral oil:
Engine oil, Fuel additive, Antifreeze, all mineral oils, etc…

Paint:
Paint, Solvent, Thinner, Solvent based paint, etc…

Number of filling capacities

SINGLE PISTON
WEIGHT RANGE

5 – 50 ml                  = 2000 pieces
15 – 150 ml                = 1800 pieces
50 ml – 500 ml      = 1500 pieces
50 ml – 1,000 ml = 800 pieces
