1 Ton Elektrikli Halatlı Vinç
| Brand | Şeker Makina |
|---|---|
| Model Type |
S-HV1T |
Description
1 Ton Electric Wire Rope Hoist

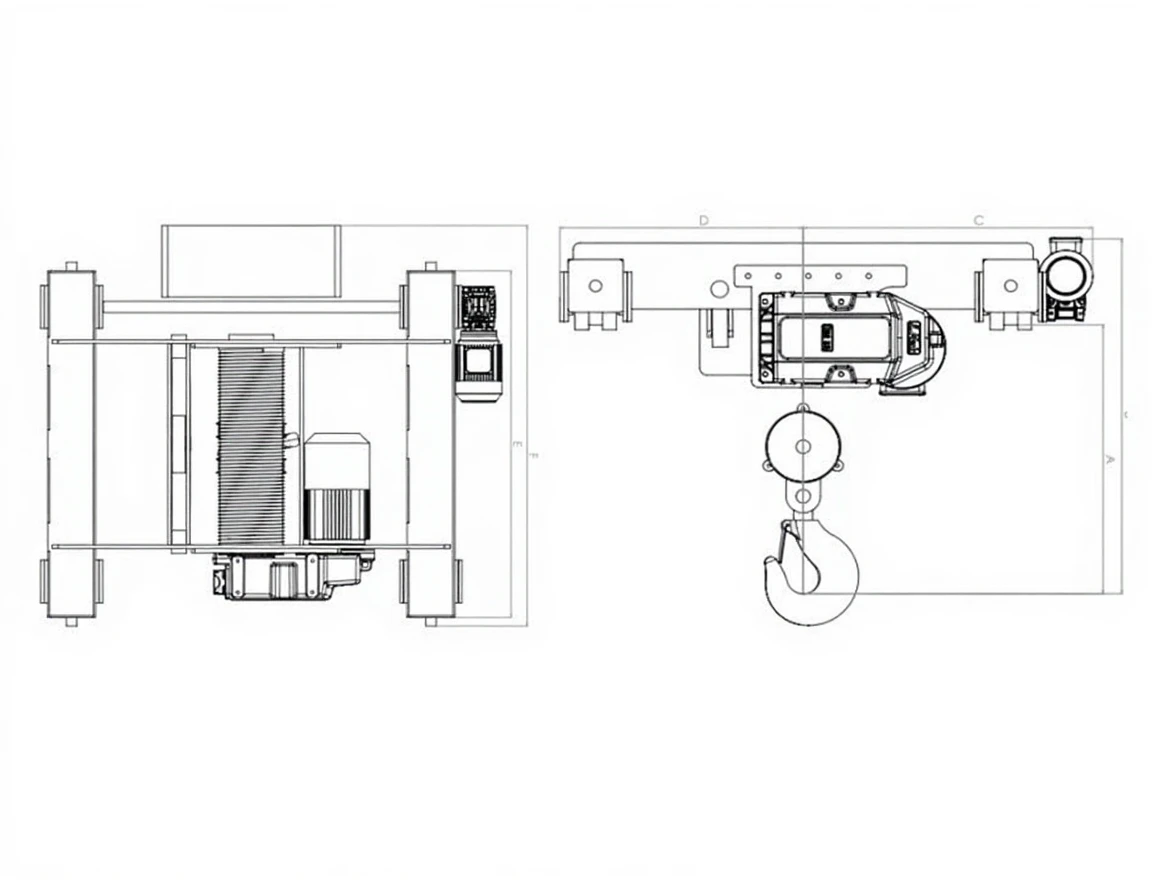

| Capacity | Lifting Height | A | B | C | D | E | F |
| 6m | 50 cm | 60 cm | 60 cm | 60cm | 120 cm | 150 cm | |
| 1-3 Ton | 10 m | 50 cm | 60 cm | 60 cm | 60 cm | 140 cm | 170 cm |
| 15 m | 50 cm | 60 cm | 60 cm | 60 cm | 140 cm | 170 cm | |
| 6 m | 55 cm | 70 cm | 60 cm | 60 cm | 120 cm | 150 cm | |
| 5-10 Ton | 10 m | 55 cm | 70 cm | 70 cm | 70 cm | 140 cm | 170 cm |
| 15 m | 55 cm | 70 cm | 70 cm | 70 cm | 140 cm | 170 cm | |
| 6m | 60 cm | 75 cm | 70 cm | 70 cm | 120 cm | 150 cm | |
| 15-30 Ton | 10 m | 60 cm | 75 cm | 70 cm | 70 cm | 140 cm | 170 cm |
| 15 m | 60 cm | 75 cm | 70 cm | 70 cm | 140 cm | 170 cm |
| Capacity | Equipment | FEM Class | Lifting Height | Lifting Speed | Lifting Motor Power | Wire Rope Diameter | Travel Speed | Travel Motor Power |
| 1,000 kg | 2/1 | 3m | 3/20 m | 7 m/min | 1.5 kw | 8×19 | 12 m/min | 0.37 kw |
| 2,000 kg | 2/1 | 3m | 3/20 m | 7 m/min | 2.2 kw | 8×19 | 12 m/min | 0.55 kw |
| 3,000 kg | 2/1 | 3m | 3/20 m | 8 m/min | 4 kw | 10×19 | 12 m/min | 0.75 kw |
| 5,000 kg | 4/1 | 3m | 3/20 m | 4 m/min | 4 kw | 10×19 | 12 m/min | 0.75 kw |
| 10,000 kg | 4/1 | 3m | 3/20 m | 4 m/min | 7.5 kw | 12×19 | 10 m/min | 1.1 kw |
| 15,000 kg | 4/1 | 3m | 3/20 m | 3.6 m/min | 11 kw | 14×19 | 8 m/min | 1.1 kw |
| 30,000 kg | 4/1 | 3m | 3/20 m | 3.6 m/min | 18 kw | 18×19 | 8 m/min | 1.5 kw |
