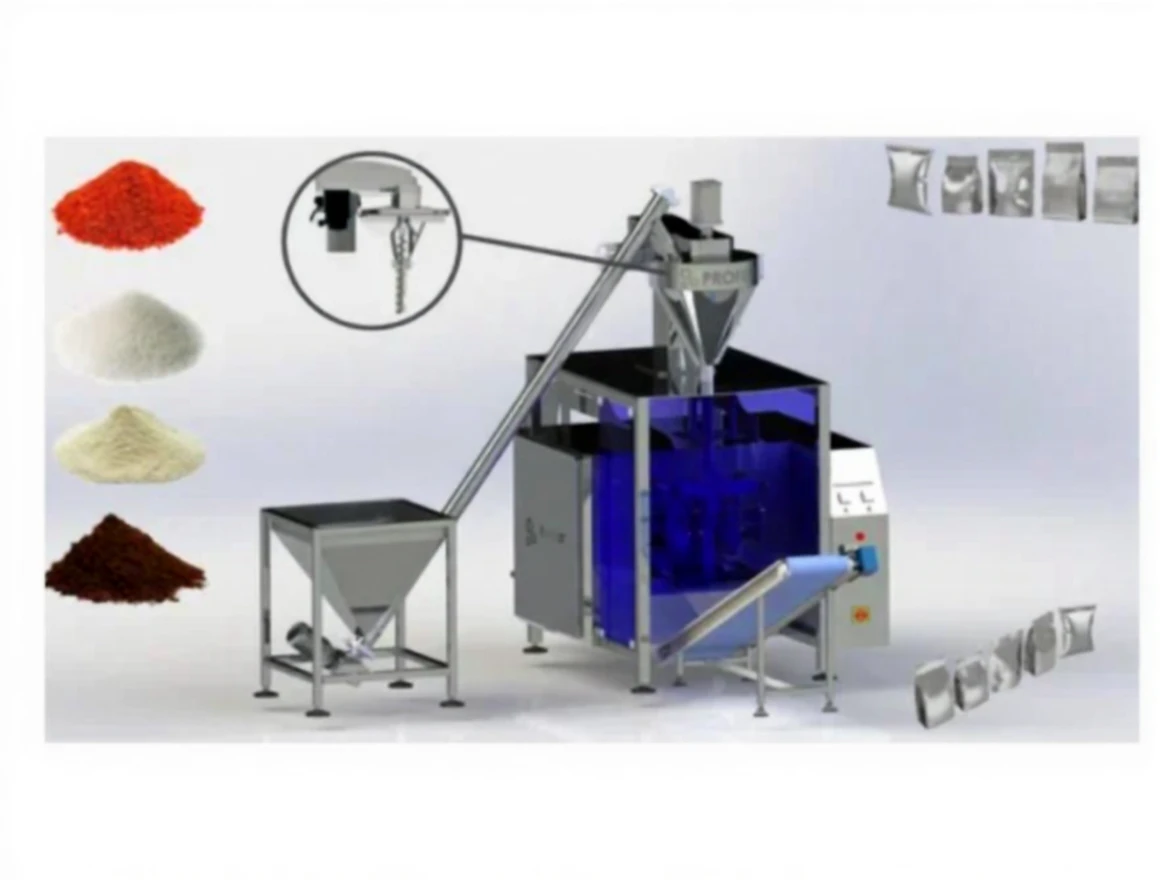

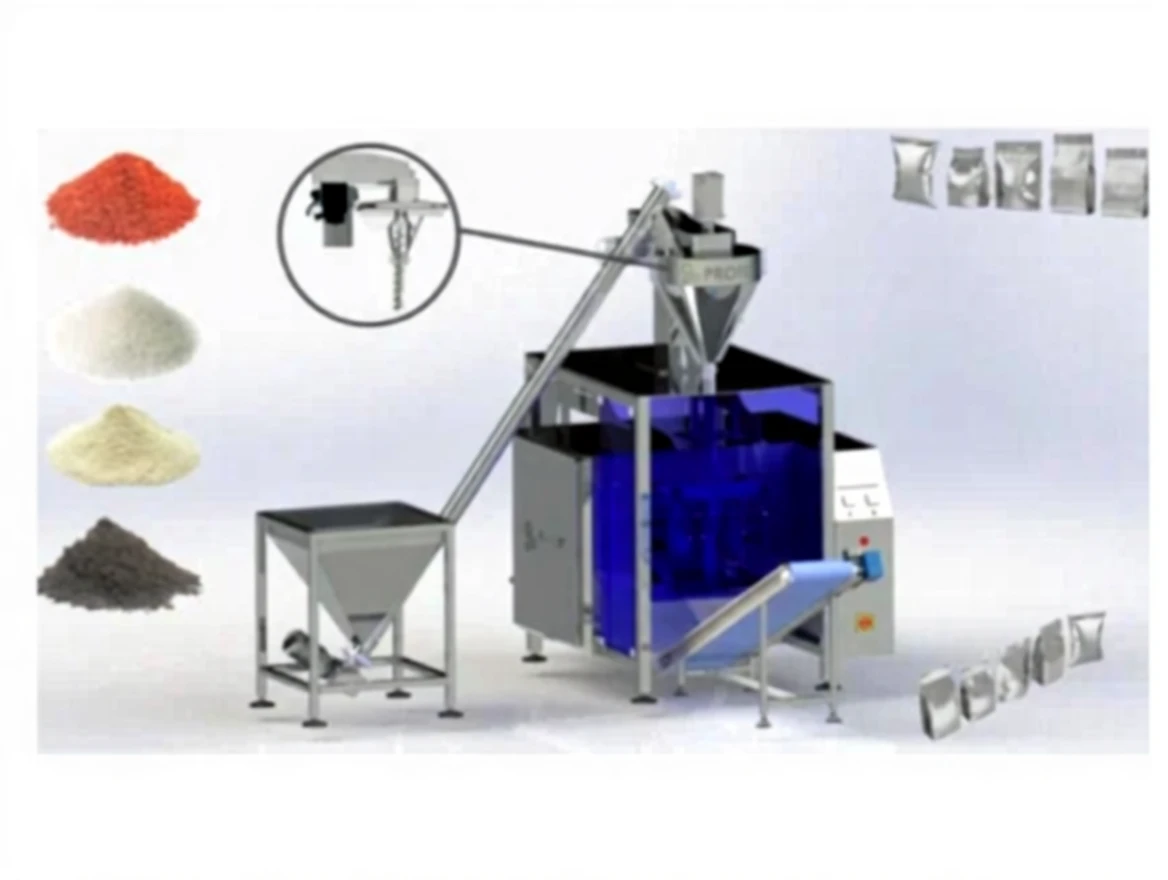

10-1000 g (20-40 Pieces / Minute) Fully Automatic Screw Filling and Packaging Machine
| Brand | Profest Makina |
|---|---|
| Model Type |
PRO-P100 |
10-1000 Gr (20-40 Pieces / Minute) Fully Automatic Screw Filling and Packaging Machine
Profest Machine PRO-P100 Vertical Packaging and Filling Machine: Every type of non-free-flowing powder such as spice, coffee, cream, milk powder, starch, paprika, chili powder, additives, cocoa, powdered sugar, coconut, vanilla, mint, cumin, baking soda, agricultural powder pesticides, cement, plaster, joint filler, powder chemicals and fine granular products can be filled easily with precise screws. The product weight is adjusted by controlling the rotation of precise screws. It is compatible with many packaging materials (Aluminum Foil, 0PP+OPP, 0PP+PE, Metallize+AL+PE.) Packaging capacity can vary between 20 packages/minute and 50 packages/minute depending on the type of product, packaging foil type, package size, and weight. It can work with all electronic weighing systems. Vertical Packaging comes with a simple menu and touch HDMI control panel for adjusting the bag size and speed settings. It operates with a controllable heat printing PID system.
MACHINE FEATURES
Stainless (304-316L) and aluminum materials in the machine’s interior and exterior Colorful Touch Screen Control
PLC control system
Low Maintenance Cost, Easy to use
Collar, pipe and screw production according to the characteristics of the products
Automatic bag size and weight adjustment.
Working with photocell or without photocell Different Sealing and Cutting Types Hot Printing Jaws.
Easy Format Change
Plexiglass cabin
All safety devices, emergency stop
OPTIONAL FEATURES
The machine can be optionally equipped with an external feeding elevator, front delivery belt, hot and cold date printing coding device, vertical edge bonding machine for sitting package (3-4 side stitch), and bellows attachment. PRO-V100 has undergone final compliance tests in accordance with European standards. Regular and economical spare parts, 24/7 fast service. Our machines are produced in compliance with food regulations.
APPLICATIONS
Pulses, rice, lentils, confectionery, pasta, food grains, popcorn. Used in the packaging of tea, chips, crackers, etc.
Technical Specifications
CONTROL: PLC
CONTROL SCREEN: HDMI
OPERATING SYSTEM: PNEUMATIC & SERVO
PACKAGING WEIGHT: 10GR – 1000GR
PACKAGING SPEED: 20 PCS – 40 PCS
SENSITIVITY: 1GR – 3GR
ELECTRIC CONSUMPTION: 7.8kW
ELECTRICITY: 380/50HZ/60HZ
MACHINE WEIGHT: 700 KG
PACKAGING MAT.: OPP+PE,Metallize+AL+PE
PACKAGE DIMENSIONS: MIN.60MM-MAX.350MM
AIR USAGE: 6BAR – 300 LT
MACHINE DIMENSIONS: 270X250X180CM
