10-30 A Plasma Cutting Machines
| Brand | Ex-Trafire |
|---|---|
| Model Type |
30HD |
Description

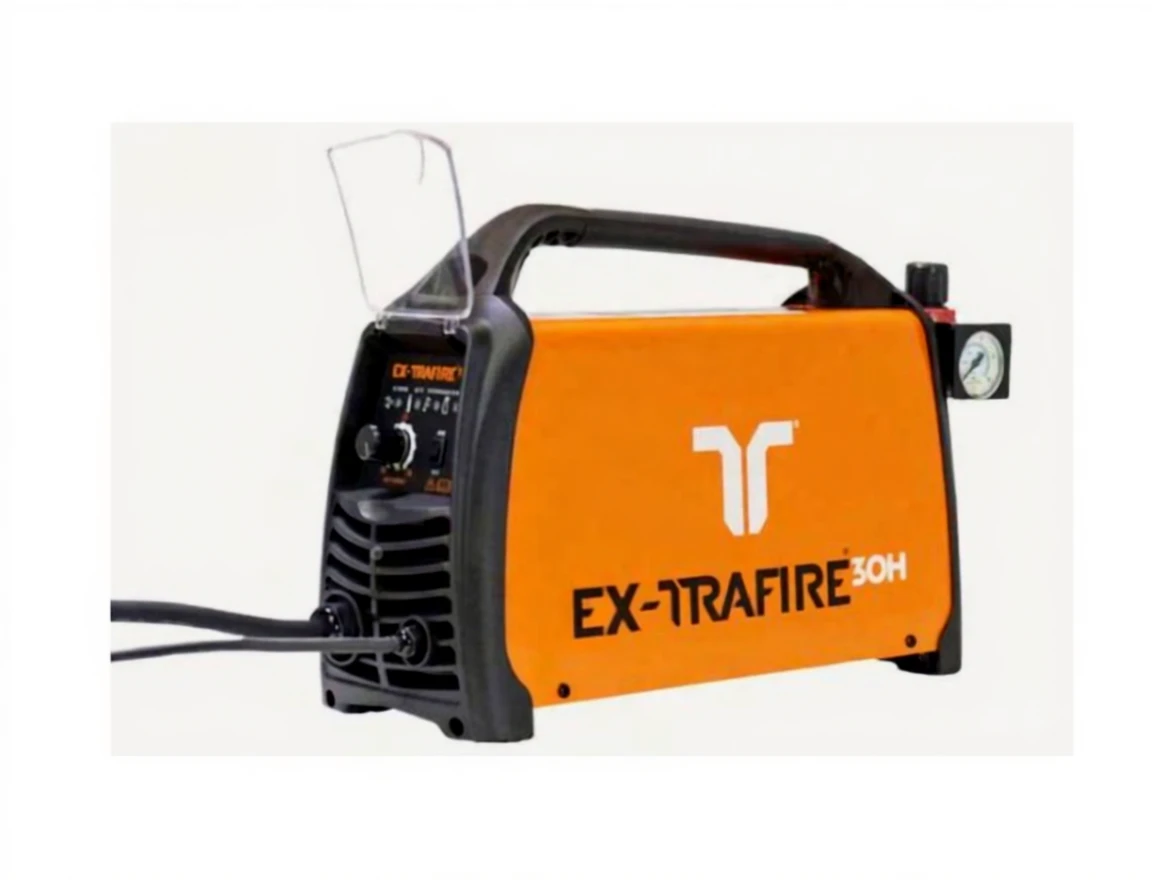

Ex-Trafire 30H Plasma Cutting Machine
10-30 A 30H Plasma Cutting Machine
Cutting Capacity
Severance [mm]: 10+ (1)
Recommended [mm]: 8 (1)
Piercing [mm]: 8 (1)
Cutting Current
Recommended [mm]: 8 (1)
Piercing [mm]: 8 (1)
Cutting Current
Provides flexible usage with cutting current varying between 10–30A.
Duty Cycle (40°C):
Duty Cycle (40°C):
%100 @21A – 88.4V
%60 @25A – 90V
%35 @30A – 92V
Input
Input
Input Voltage (VAC) [V/Hz]: 220-240 VAC 50/60
Compressor Air Flow:
Compressor Air Flow:
Provides sufficient air flow for cutting at 4.5 bar pressure at 48 lpm.
Machine Features
Machine Features
Dimensions (W×L×H) [mm]: 165x480x290
Weight [kg]: 10.5
Weight [kg]: 10.5
FHT-EX® 30H RTX offers flexibility to the user with hand and machine torch options.
Ex-Trafire 30H Technical Specifications
Severance [mm] 10+(1)
Recommended [mm] 8(1)
Piercing [mm] 8(1)
Cutting current [A] 10–30
DUTY CYCLE (40°C)
Recommended [mm] 8(1)
Piercing [mm] 8(1)
Cutting current [A] 10–30
DUTY CYCLE (40°C)
%100 @21A – 88.4V
%60 @25A – 90V
%35 @30A – 92V
INPUT
Voltage (VAC) [V/Hz] 220-240 VAC 50/60
Compressed air flow [lpm/bar] 48/4.5
Pressure (max.) [bar/psi] 10/145
MACHINE DATA
Dimensions W×L×H [mm] 165x480x290
Weight [kg] 10.5
FHT-EX® 30H RTX
Compressed air flow [lpm/bar] 48/4.5
Pressure (max.) [bar/psi] 10/145
MACHINE DATA
Dimensions W×L×H [mm] 165x480x290
Weight [kg] 10.5
FHT-EX® 30H RTX
