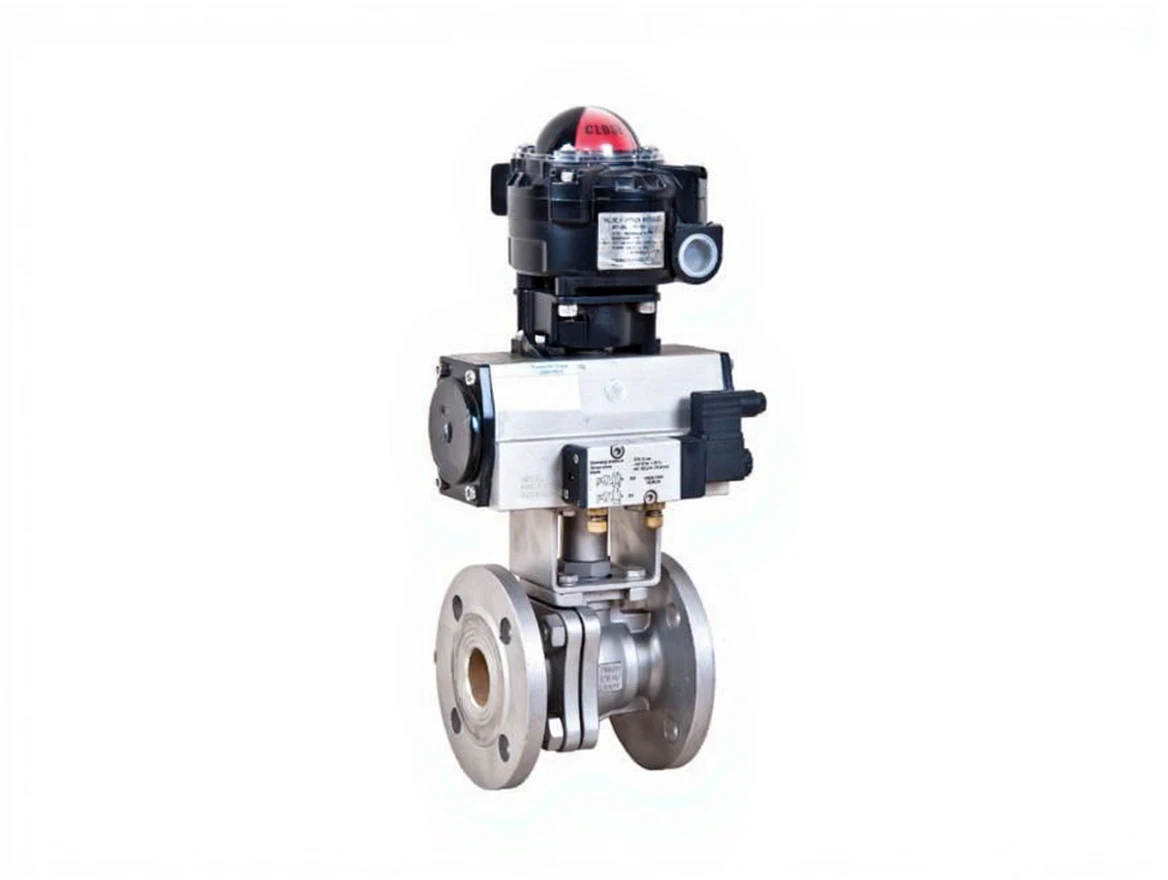

½’’ – 10’’ Pneumatic Ball Valve

The pneumatic ball valve, commonly used in industrial automation systems, ensures fast and reliable flow control with its actuator operated by compressed air. This valve, produced in the range of ½’’ – 10’’ diameter, has a pressure class of ANSI 150 – ANSI 900 and can be used in a wide range of applications.

It provides automatic flow control in oil, natural gas, chemical, energy, and water systems, offering high efficiency and requiring minimal human intervention.

Technical Specifications

• Diameter Range: ½’’ – 10’’

• Pressure Class: ANSI 150 – ANSI 900

• Material: Stainless Steel, Carbon Steel, or Cast Steel

• Connection Type: Flanged, Threaded, or Socket Weld (SW/BW)

• Actuator Type: Double Acting or Single Acting Pneumatic Actuator

• Operating Principle: Full bore ball valve with quick opening/closing mechanism

• Applications: Automation systems, chemical processes, water and gas pipelines, power plants, oil and refinery facilities

It allows remote control thanks to the pneumatic actuator and ensures efficient flow management with its fast opening/closing feature.
