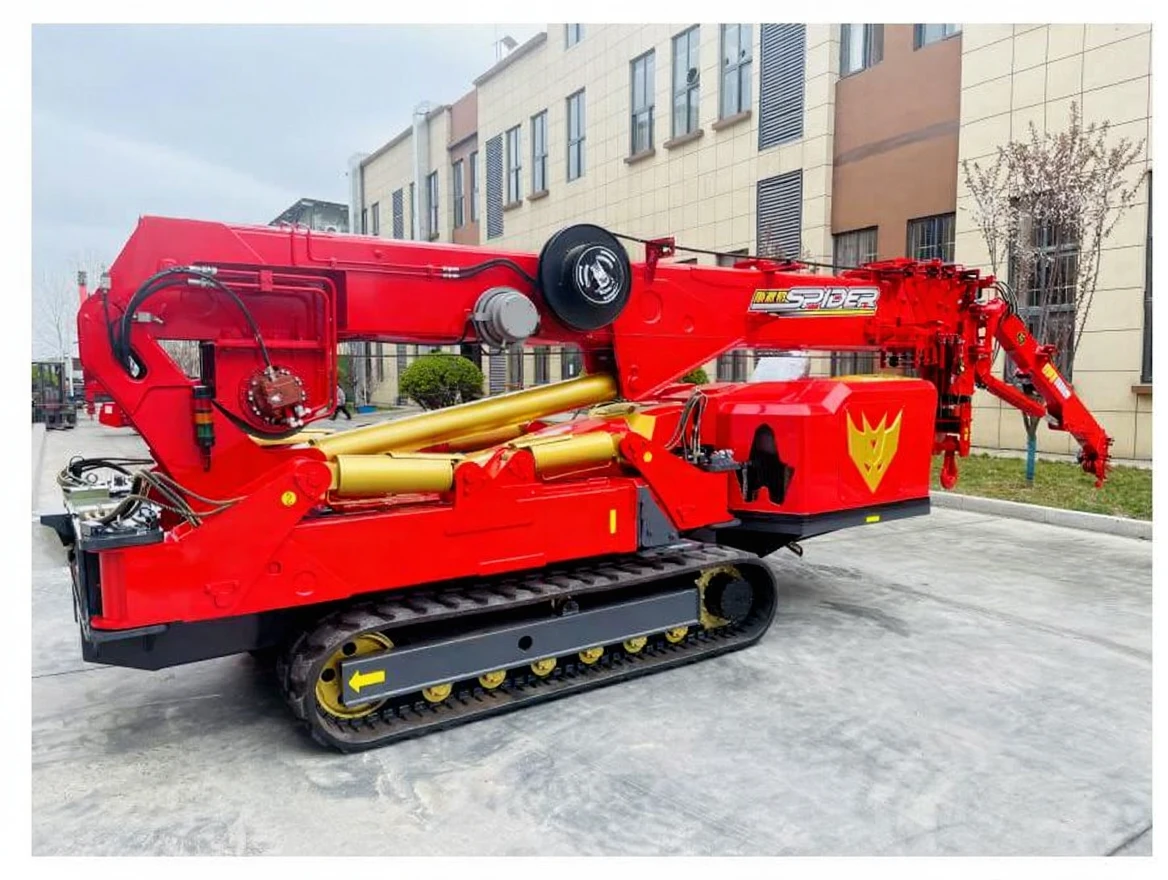

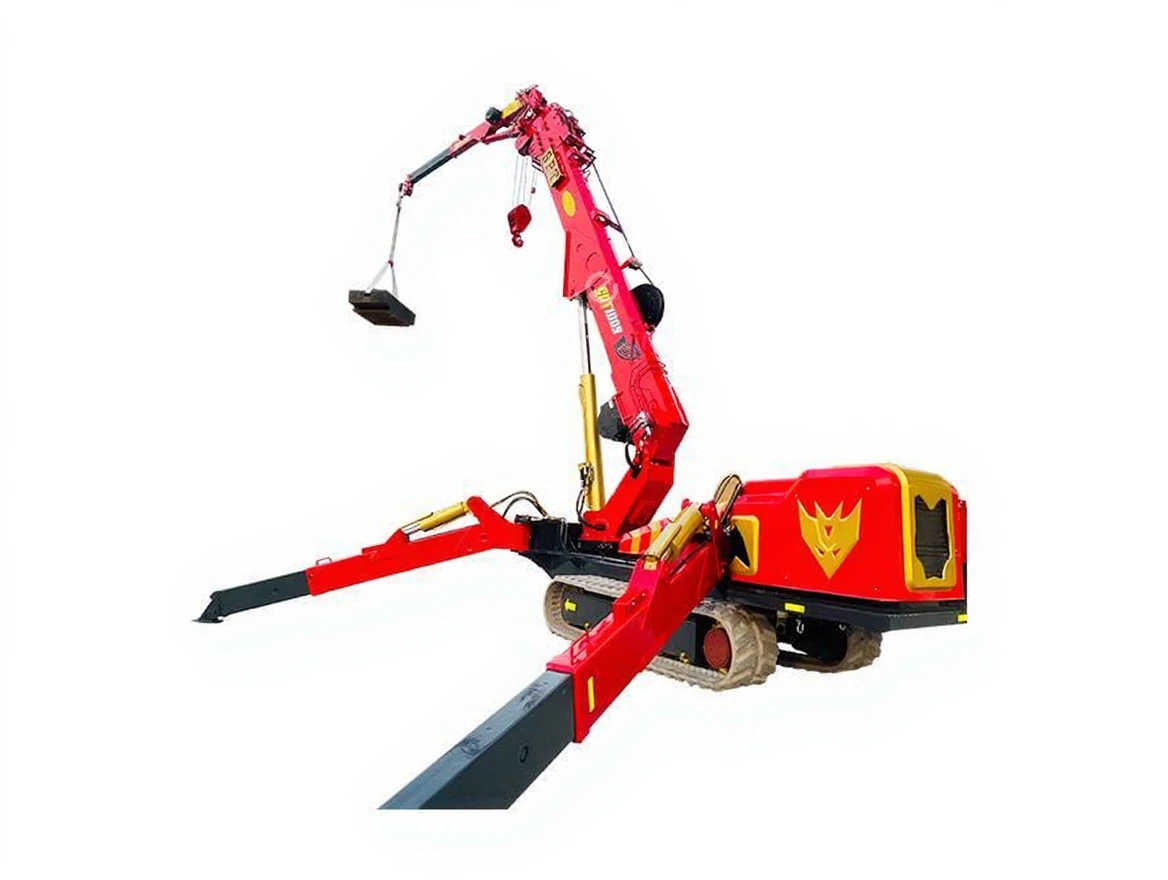

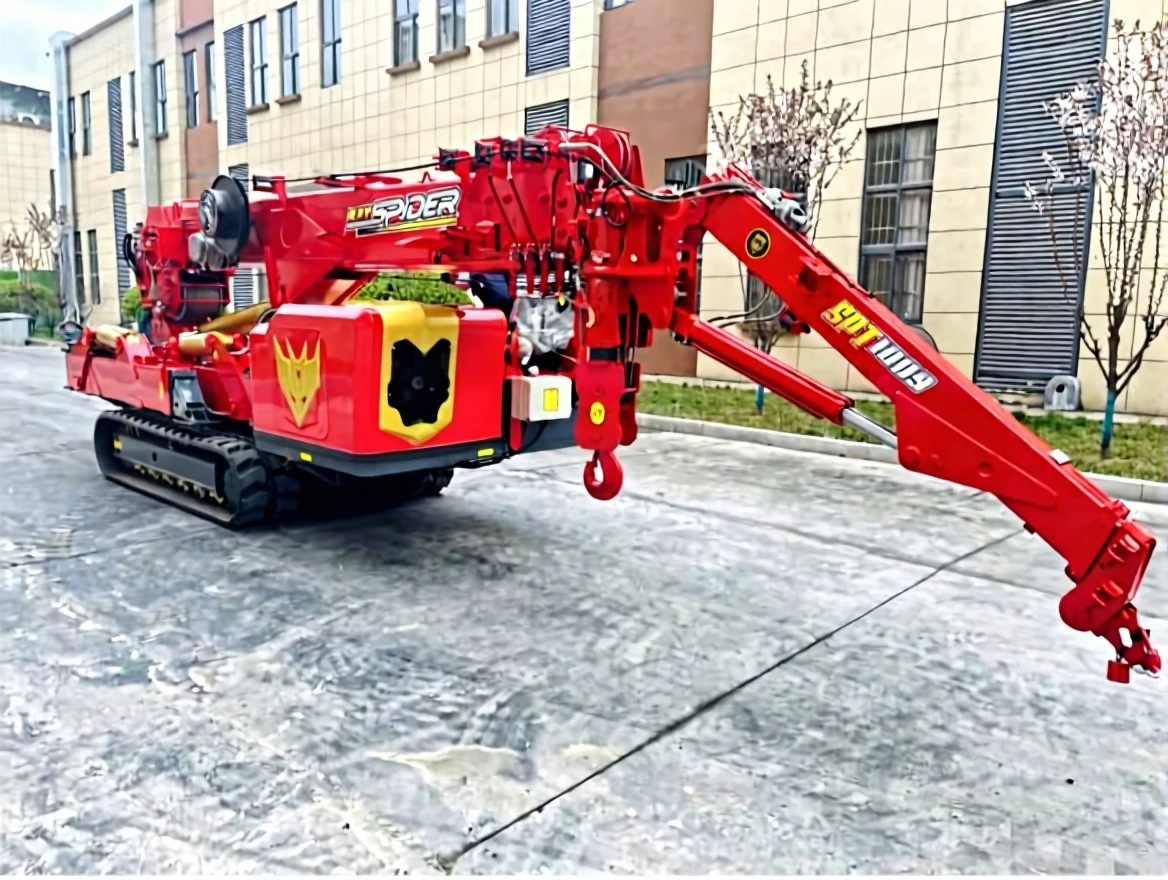

10 Ton 2.5 Mt Spider Crane

Model

SPT1009

Capacity

10.0t×2.5m

Working Radius

23.0m

Ground Lifting Height

25.0m

Underground Lifting Height

20m×4.7t (6 fall) 30m×4.7t (4 fall)

62m×3.2t (2 fall) 125m×1.5t (1 fall)

Winch Device

Hook Speed

0-12m/min (6 fall) 0-18m/min (4 fall)

Rope Type

Φ10mm×150m

Telescopic System

Boom Form

5 section boom, hexagonal box construction

Boom Length/Time

6.0m-19.6m/130sec

Up and Downs

Boom Angle/Time

0-80°/80sec

Slew System

Slew Angle/Speed

0-360° (continuous)/120sec

Outrigger

Outrigger Active Form

Manual+Hydraulic

Maximum Extended Dimensions (mm)

6850 (Length) X 7100 (Front) X 6970 (Back)

Traction System

Walking Way

Hydraulic motor drive, 2 speed

Walking Speed

0-2.0km/h

Grade Ability

23° (42%)

Ground Length×Width

2235mm×400 mm

Ground Pressure

67kpa (0.68 kgf/cm²)

Electric Motor

Voltage

AC380V (Optional)

Power/Speed

15kw/1440 min-1

Sound Level

Rated speed ≤78dB(A) (1m)

Diesel Engine

Model

4TNV88C (YANMAR)

Type/Displacement

4 cylinder water cooled/2.19L

Rated Output

29.1kw/2400 min-1

Starting Method

Electric

Operating Temperature

-5°C~40°C

Fuel/Volume

Diesel/60L

Battery Capacity

12v 190AH

Specific Fuel Consumption

239g/kW-h

Sound Level

Rated speed ≤92dB(A) (1m)

Applied Regulation/Altitude

EPA-Tier4, EC stage V/1200m

Operate System

Type of Operation (Crane, Walk, Outrigger, Accelerator)

Wireless Remote Control and Dual-axis Joystick Controller

Operating Characteristic

Full Proportional Control and Proportional Joystick Control

Dimension

Length×Width×Height

6380mm×1780mm×2480mm

Weight

12100kg
