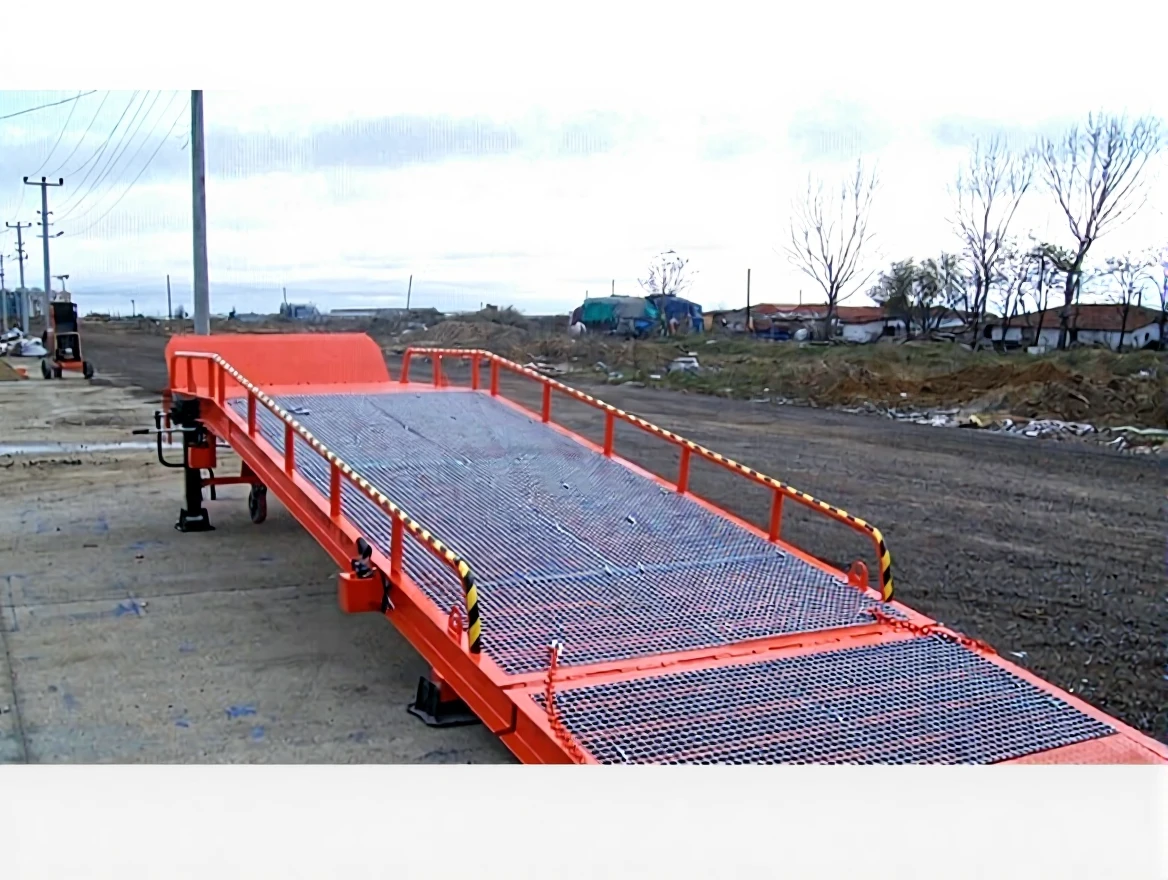

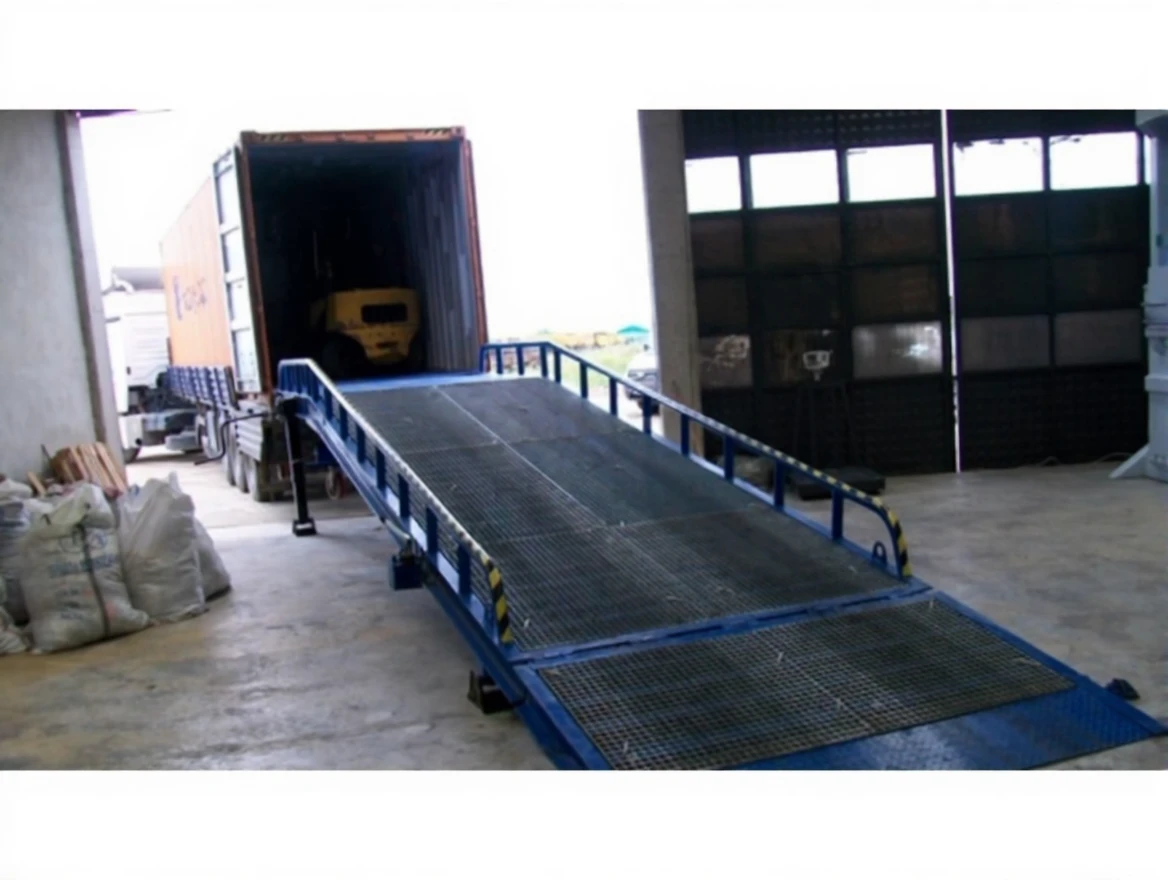

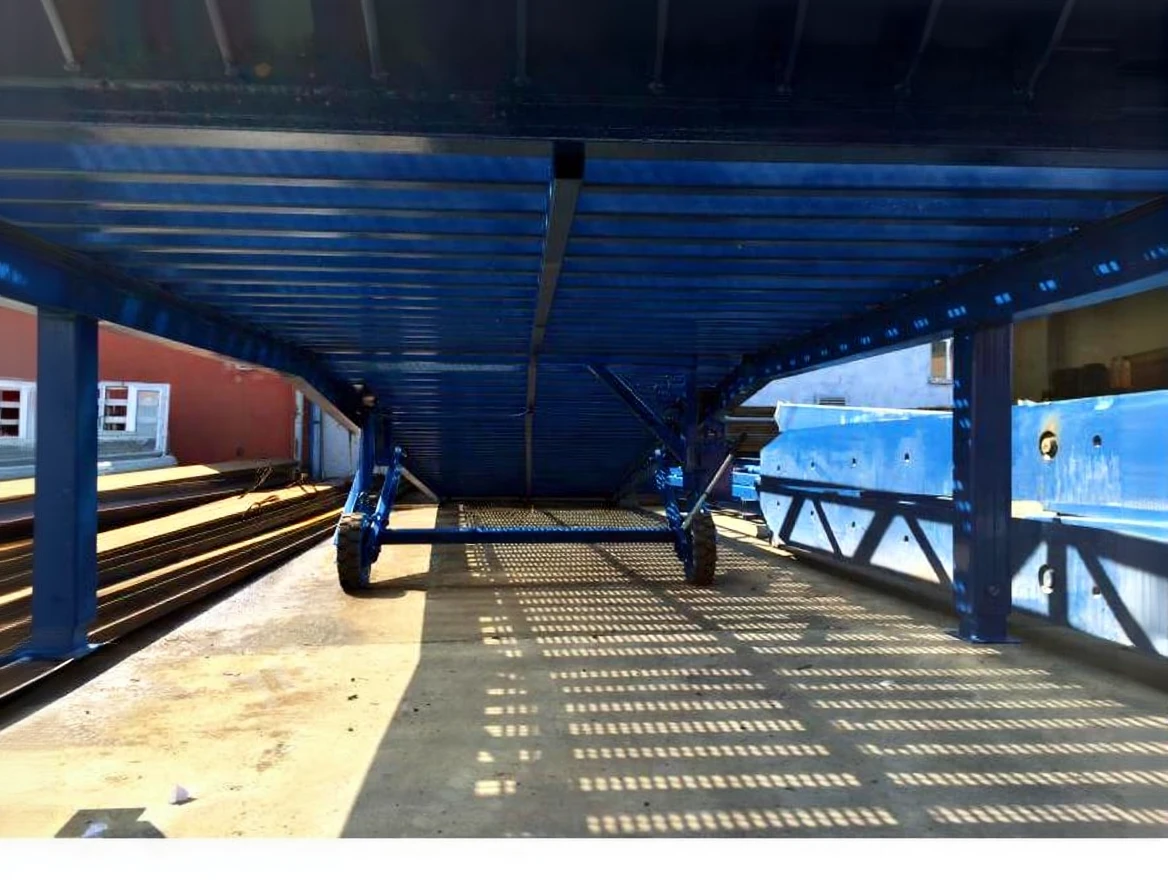

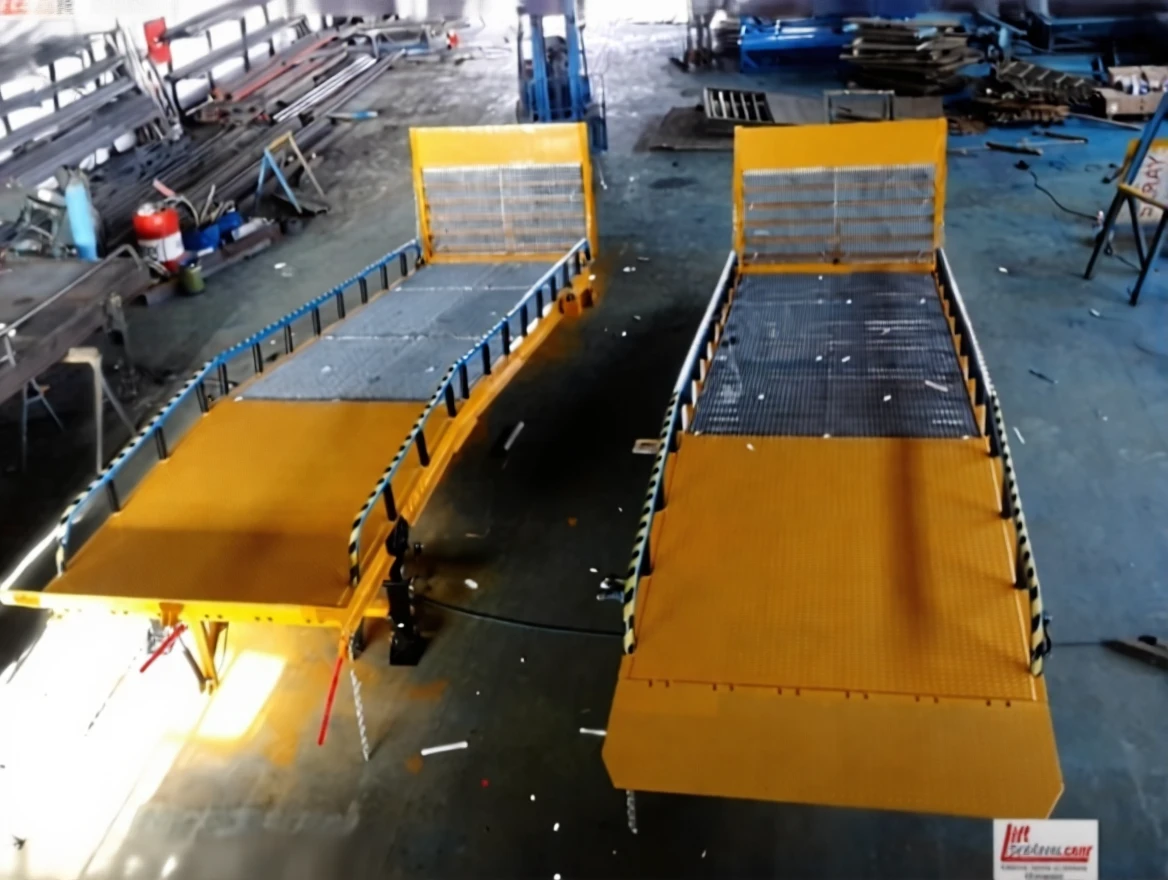

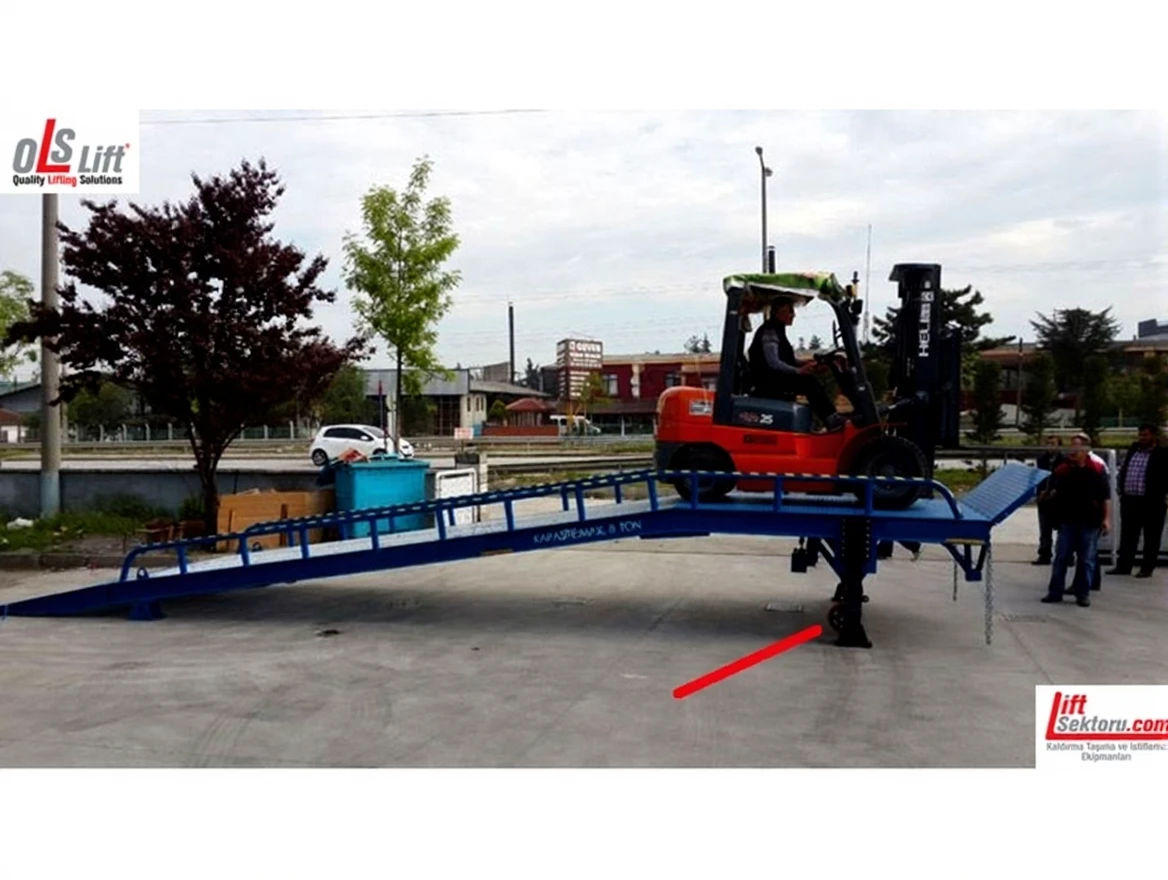

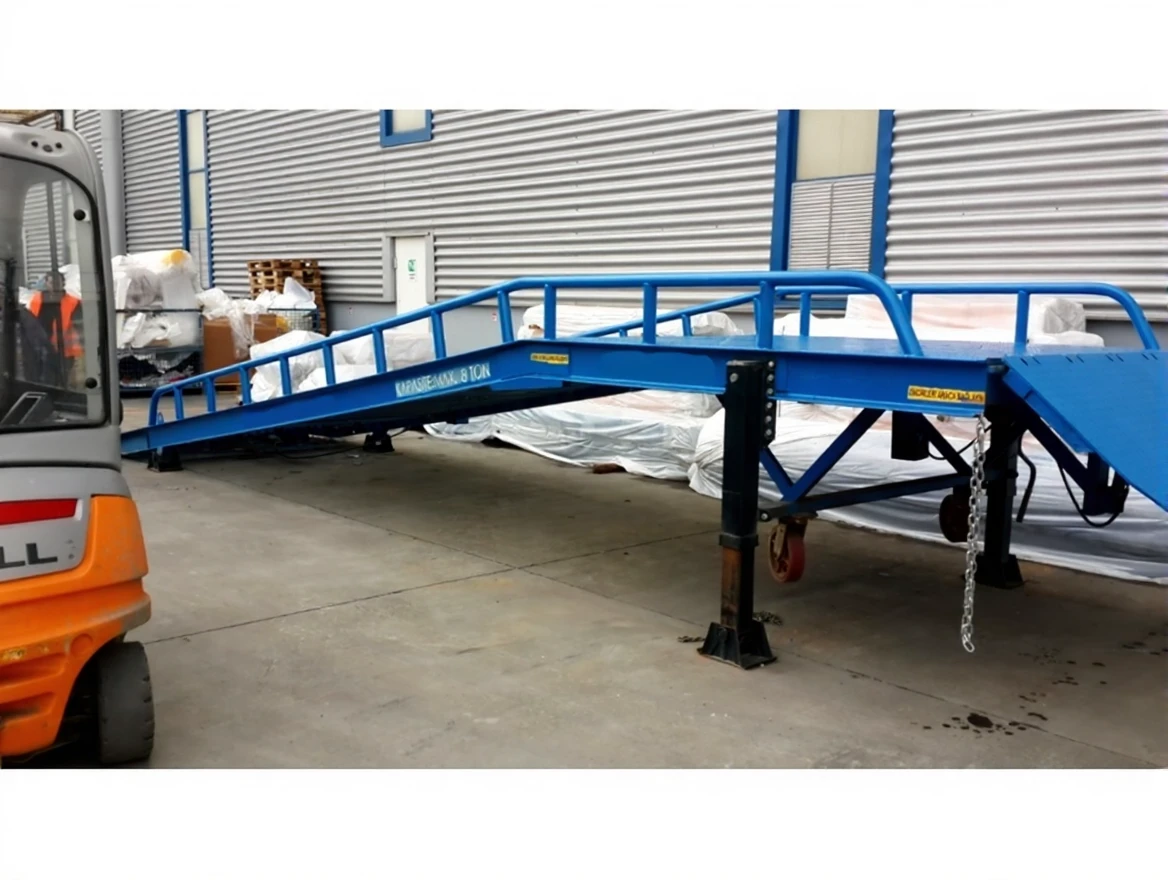

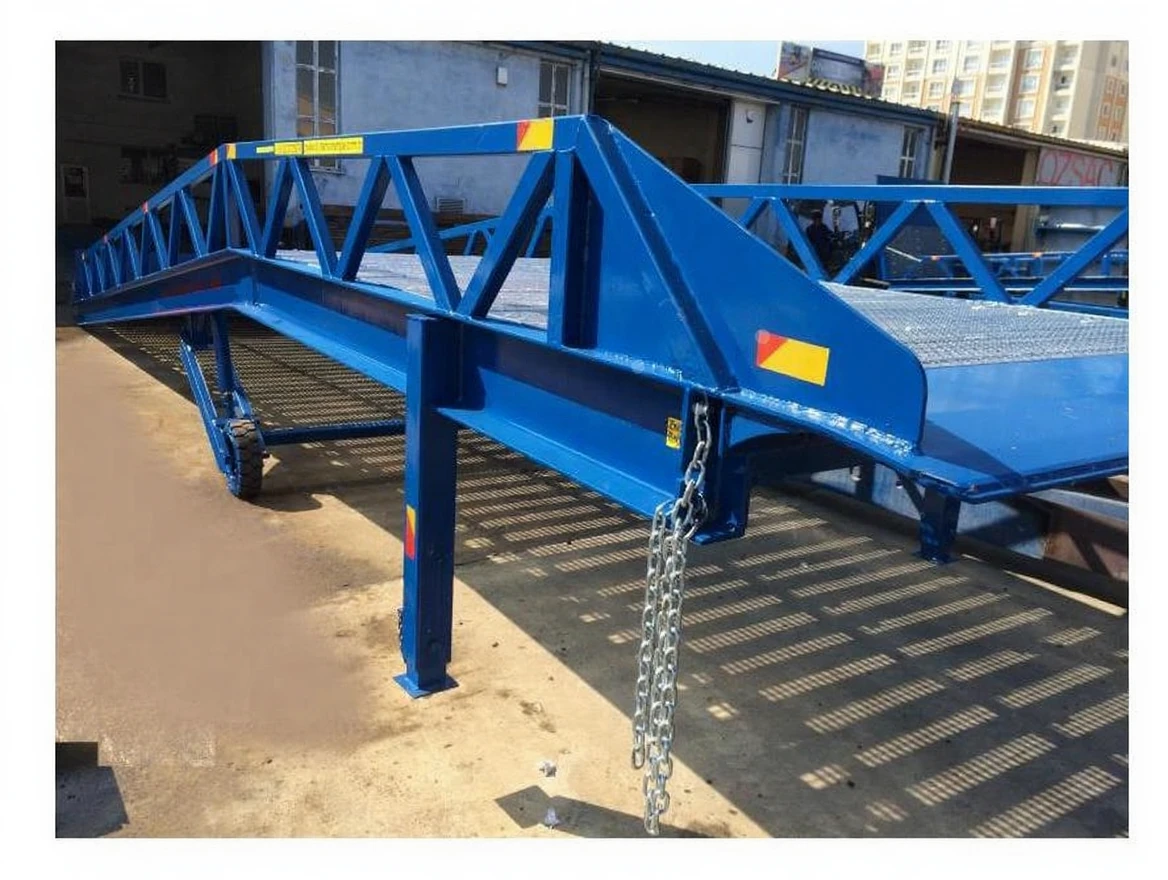

10 Ton Portable Loading Ramp

Olslift

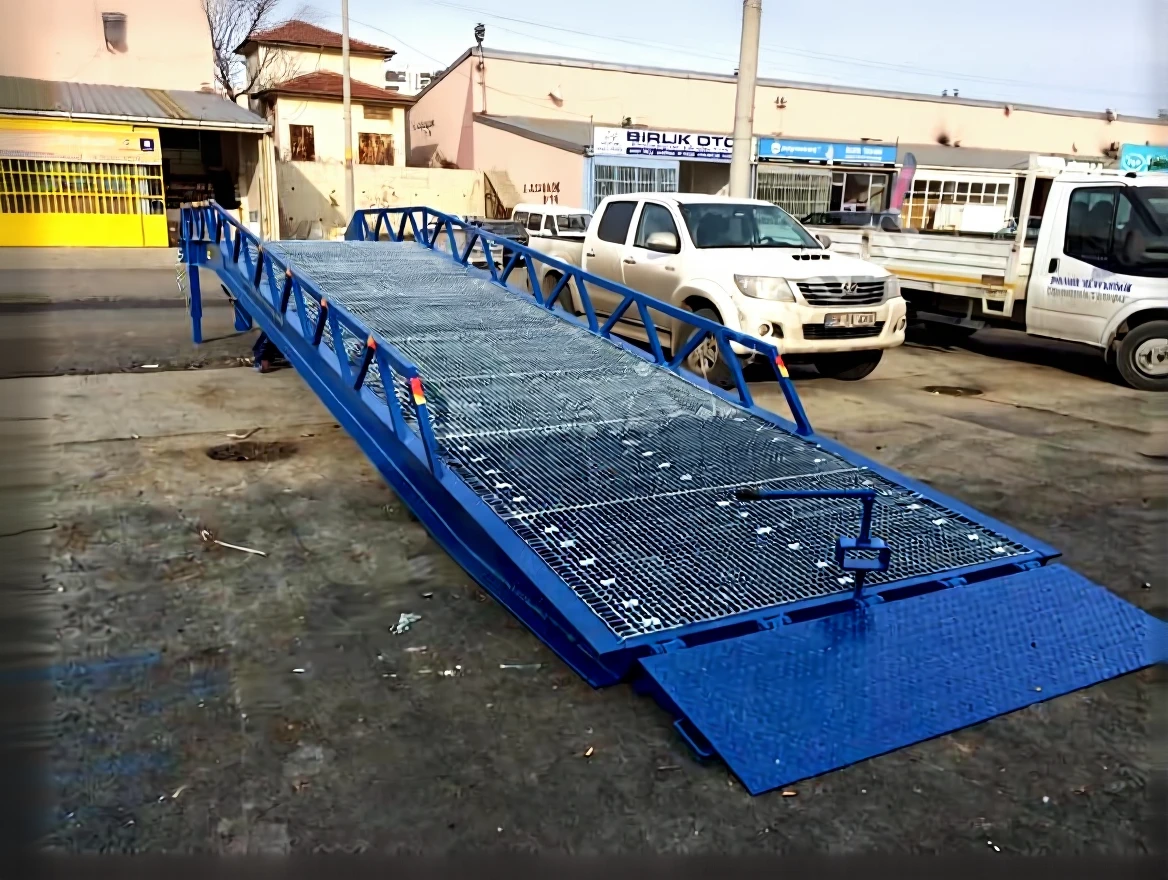

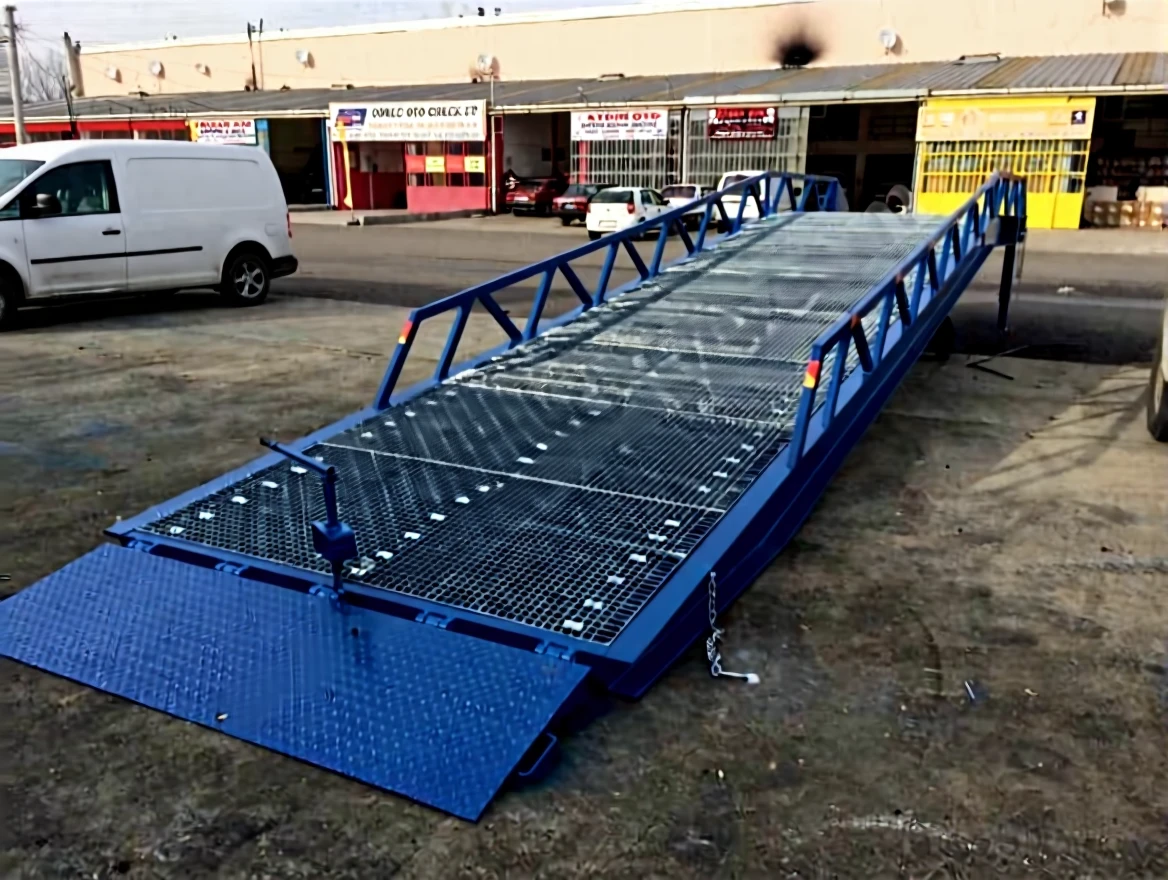

10 Ton Portable Loading Ramp

TECHNICAL SPECIFICATIONS​

Ramp dimensions: 2000 X 10,200 MM

Maximum lifting distance: +1600 MM

Minimum lowering distance: +1000 MM

Stroke: 600 MM

Maximum load capacity: 10,000 KG

Operating temperature: -10 + 40 DEGREES

Ramp color: Blue

Platform top material: 6/8 tear drop patterned sheet

Tongue material: 12/13 tear drop patterned sheet

Tongue movement + Tail Movement: Via hydraulic hand pump

Tongue stroke: +350 mm; – 150 mm

Climbing material and flat part: 3 x 30 hot-dip galvanized serrated grating

PICTURES AND VIDEOS WILL BE SENT TO CUSTOMERS WHO REQUEST – PRODUCTION IS MADE IN SPECIAL SIZES

2 YEAR WARRANTY

DELIVERY TIME  : 2-3 WEEKS
