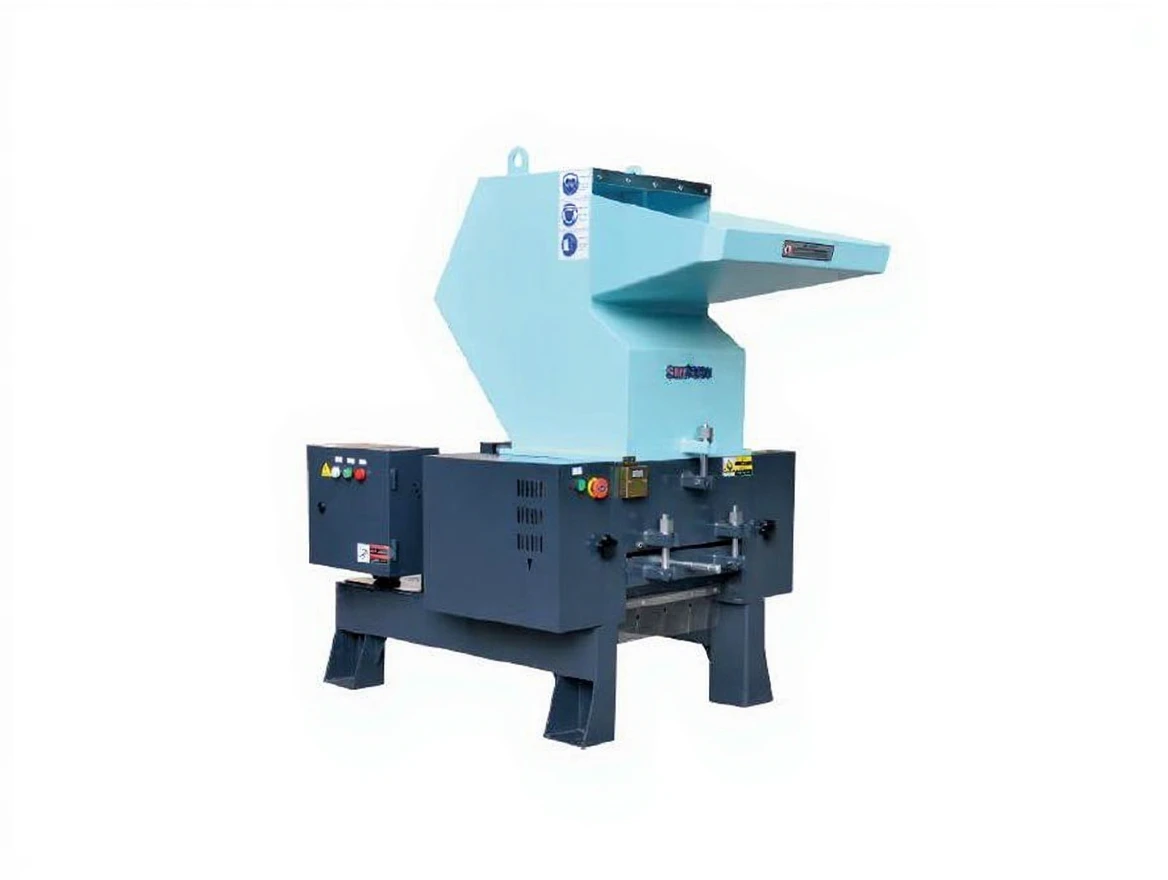

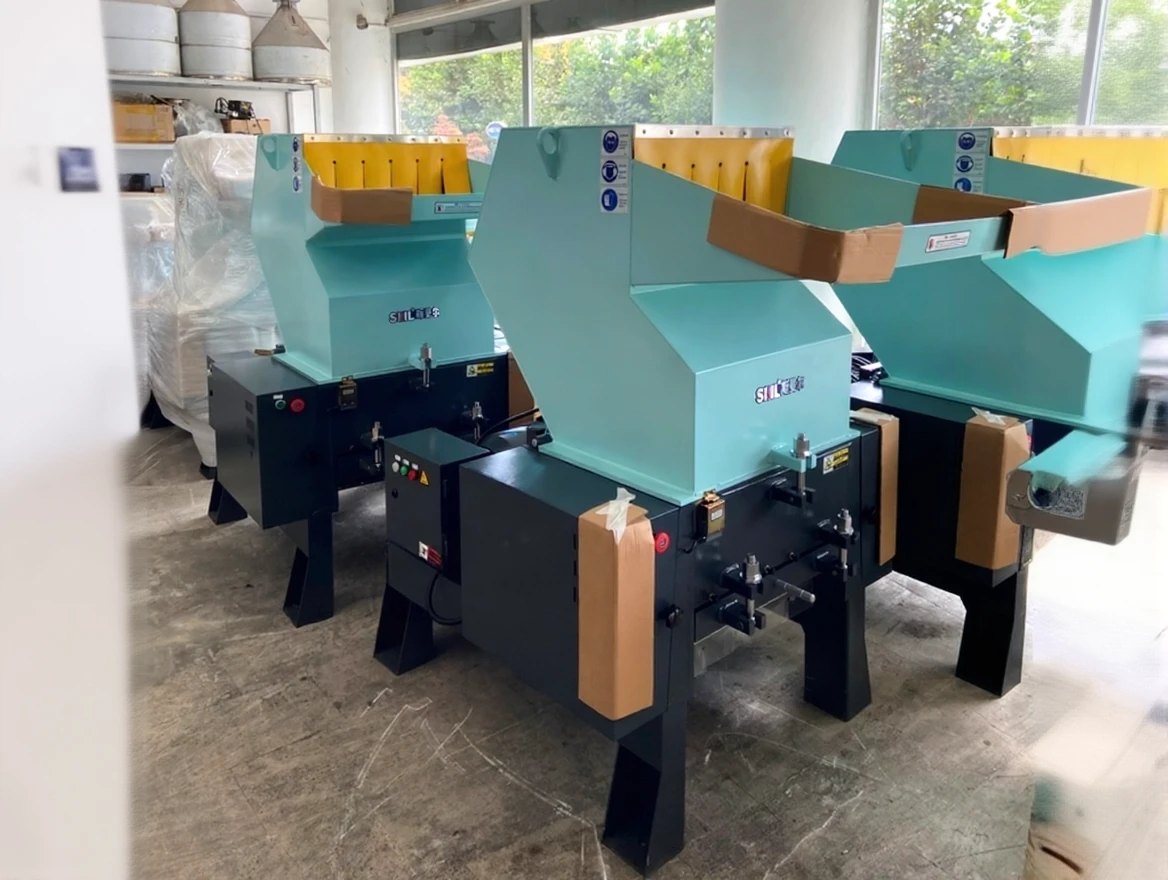

100-150 Kg / Hour Capacity Plastic Crushing Machine

Brand SML
Model Type

SG-230F

Description

SG 230F

Plastic Crushing Machine with 100-150 Kg / Hour Capacity

•The device is valid for the centralized pulverization of all types of plastics, including injection molding, blow molding, and extrusion molding waste.

•The structure of the crusher is compact for ease of use, easy cleaning, and maintenance, which increases operational efficiency.

•The outer surface is covered with thermal insulation materials. It is equipped with a vibration-damping foot to effectively absorb the vibrations generated during grinding.

•The blades are made of high-quality steel with high strength and good wear resistance for special processes.

•The versatile safety guarantee can be used iteratively to ensure operator safety.

•Double-layer sound insulation has been applied at the grinding chamber and loading entrance.

•This machine series is suitable for the centralized grinding of plastic products.

model Hopper Calibration (mm) Crushing Capacity
(Kg/h)
Rotary Blade
(Quantity)
Fixed Blade
(Quantity)
Motor
(kw)
External Dimensions (L×W×H) Weight (kg)
SG-230F 200×230 100-150 3×2 2×1 4 920×610×1050 250
SG-300F 200×300 150-200 3×3 2×1 5.5 950×470×1190 400
SG-400F 235×400 200-250 3×4 2×1 7.5 980×840×1300 500
SG-500F 290×500 300-350 3×5 2×2 11 1100×1020×1530 950
SG-600F 320×600 350-450 3×6 2×2 15 1200×1110×1690 1300
SG-800F 540×810 450-600 3×4 2×2 22 2200×1500×2300 2100
SG-1000F 660×1000 600-1000 3×5 2×3 30 2300×1750×2650 2500
SG-1200F 800×1200 800-1200 3×6 2×3 45 2700×2100×3100 3500
