100 Cubic Meters / Hour New Generation Stationary Concrete Batching Plant

Fabo Makina Compact-110 100 Cubic Meters / Hour New Generation Stationary Concrete Batching Plant

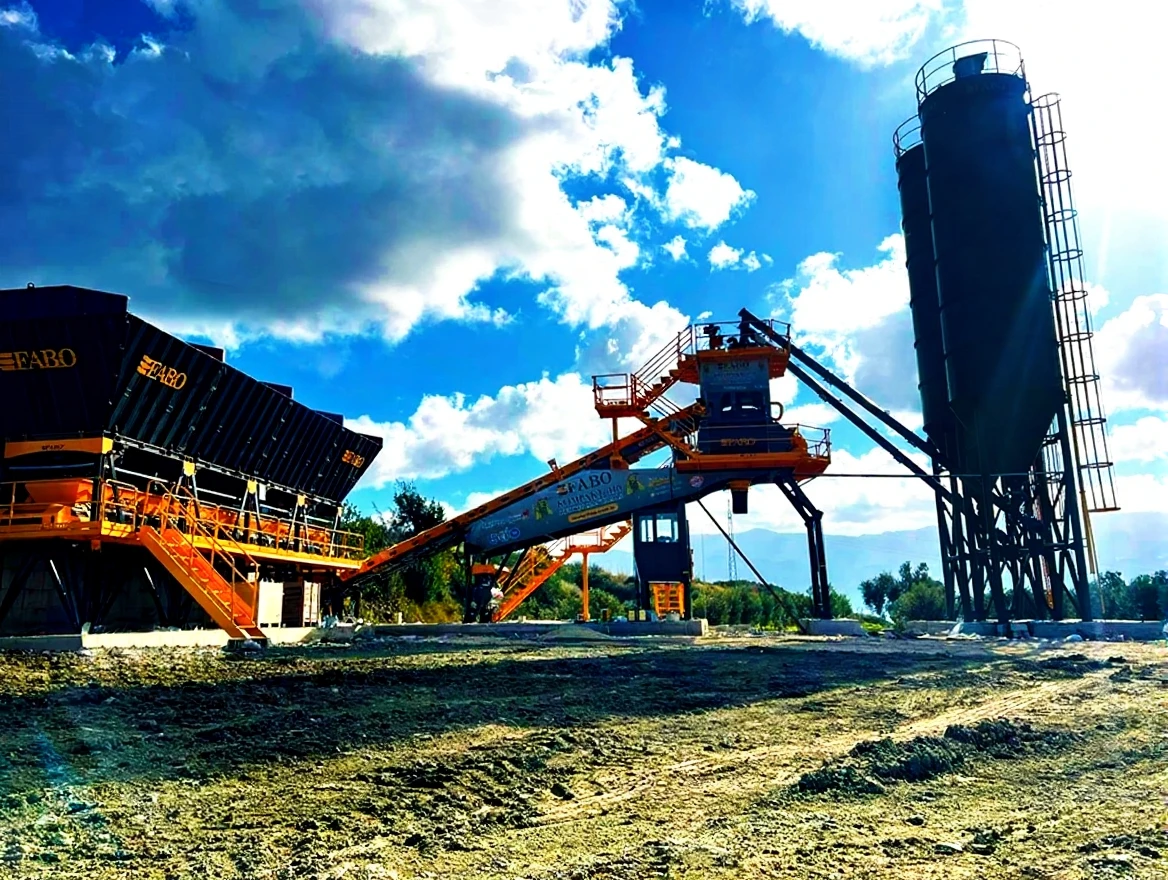

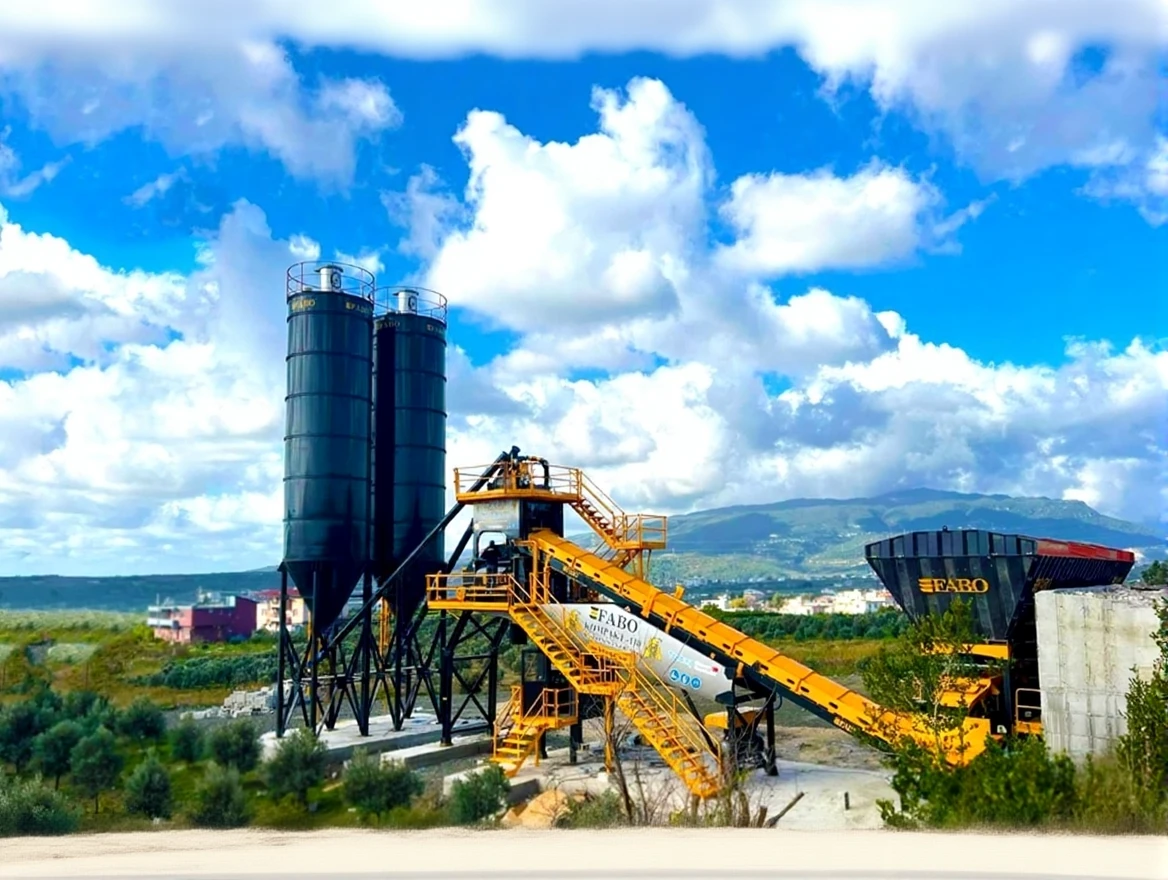

FABOMIX COMPACT series stationary Concrete batching plants provide satisfaction at every level needed with practical and effective solutions. Stationary Concrete plants can easily and efficiently achieve high-capacity production of a homogeneous concrete mixture.

FABOMİX compact Series has an easy operating system and the lowest investment costs. In addition, the facility ensures proper utilization of corporate resources, thus saving time will translate into greater profits.

.

TECHNICAL SPECIFICATIONS:

Model: Compact 110

Production capacity: 100 m3

Mixer type: Twinshaft-2 m3

Aggragate bunker: 4×20 m3

Cement weighing: 900 kg

Additives weighing: 40 kg

Water weight: 700 liters

Cement silo is optional.

Compact 110 consists of:

* Aggregate Storage Hopper

* Aggregate Weighing Chamber

* Aggregate Transfer Conveyor

* Twinshaft Mixer

* Mixer Chassis, Walking Platforms, Ladders

* Water Weighing Chamber

* Cement Weighing Hopper

* Additive Weighing Chamber

* Air Compressor

* Cement Screw Conveyor

* Bolted Cement Silo

* Top filter, Safety valve and accessories

• Control Cabinnet

* PC and Automation System

* Control and power panel

* All our products are made with care and are covered by a 1 year warranty!

* Installation and operator Training free
