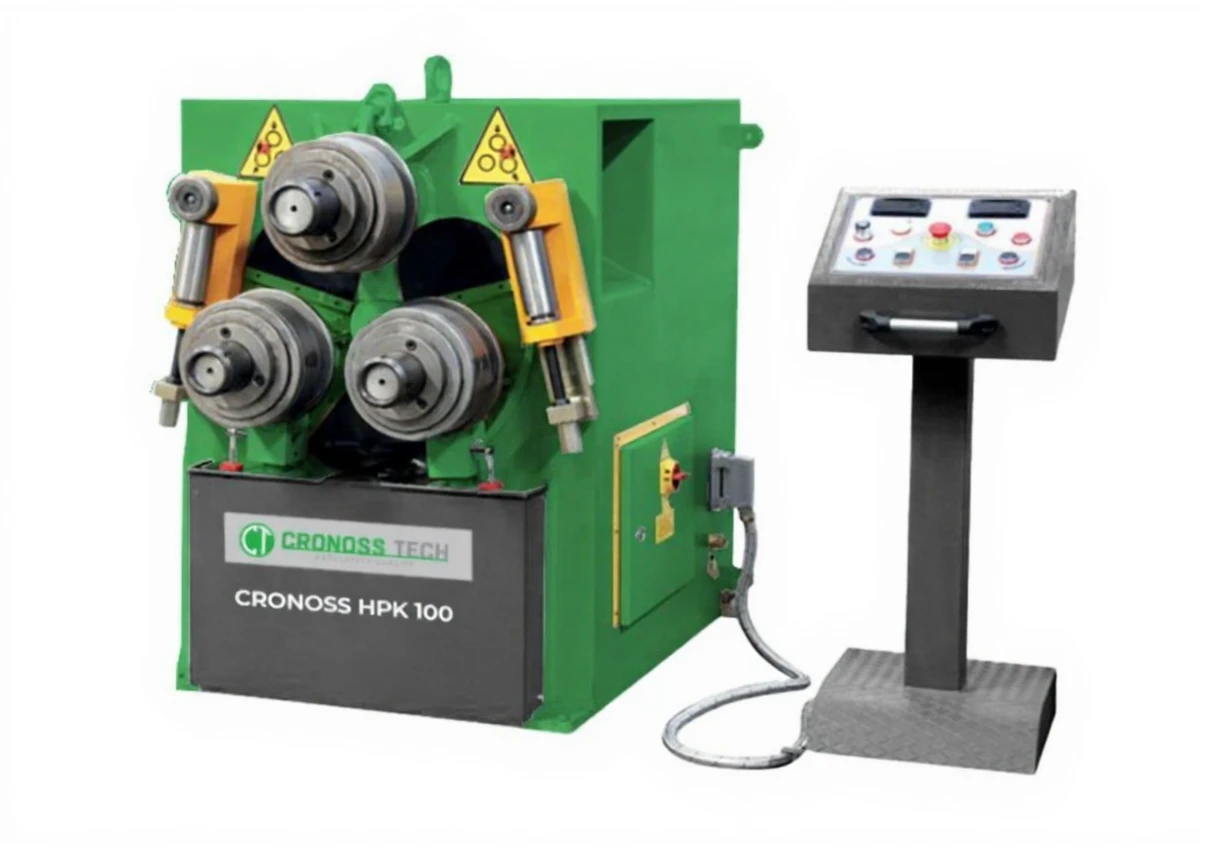

100' Hydraulic Profile and Pipe Bending Machine
| Brand | Cronosstech |
|---|---|
| Model Type |
PKH 100 |
Description
| STANDARD EQUIPMENT | ||
| Welded steel construction body | ||
| Three roller motor driven | ||
| Hardened and ground shafts made of special high-strength material | ||
| Horizontal and vertical working position | ||
| Hardened standard roller balls | ||
| Movable control panel separate from the body | ||
| Mechanical manual side supports movable in 3 directions | ||
| Precise bending with motor with brake | ||
| Digital indicators (2 pieces) | ||
| OPTIONAL EQUIPMENT | ||
| Pipe and profile bending roller balls | ||
| Optional 2-axis hydraulic side supports | ||
| Automation with NC control | ||
| TECHNICAL SPECIFICATIONS | ||
| Roller Shaft Diameter | : | 100 mm |
| Roller Ball Diameters | : | 315 mm |
| Working Speed | : | 7 m/min |
| Motor Power | : | 7.5 kw |
| Length | : | 2000 mm |
| Width | : | 1450 mm |
| Height | : | 1700 mm |
| Weight | : | 3650 kg |
