100 Kg / Hour Mini Chocolate Molding Line
| Brand | Akaygam |
|---|---|
| Model Type |
MML100 |
Description

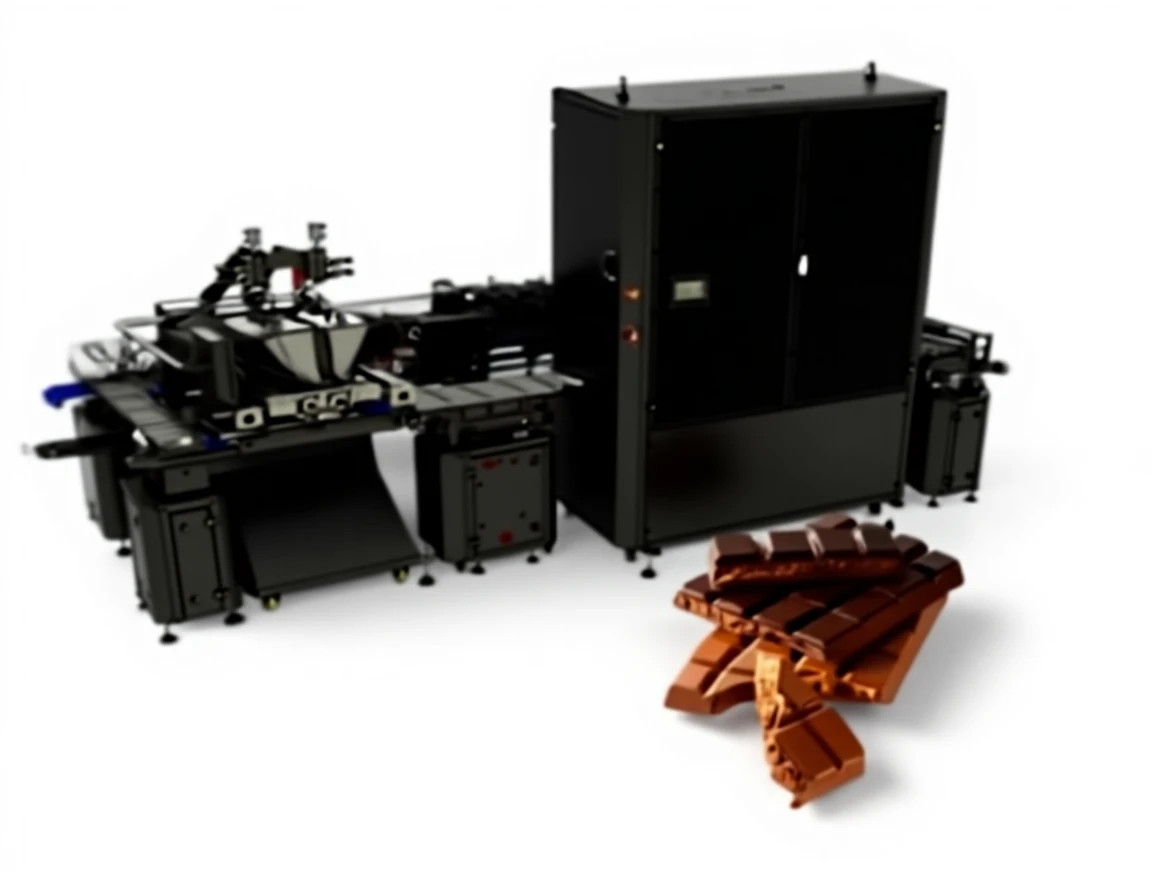

Akaygam MML100
100 Kg / Hour Mini Chocolate Molding Line
Completely made of AISI304 grade stainless steel, engineering plastics and aluminum.
PID controlled dry heating elements.
Chocolate depositor with servo driven vertical motion.
Chocolate suction / outpouring controlled by servo motors.
All variables can be adjusted on HMI, no need for mechanical adjustment.
Cooling tunnel insulated with CFC free rubber.
Vertical type cooling tunnel can fit 108 molds inside.
Air conditioner with semihermetic compressor.
Molding line with demolding feature. Required min.
The number of polycarbonate molds is 150pcs.
Polycarbonate mold dimensions 175 x 275.
Production capacity 100kg./h. Total power consumption 380V 10.2KW
