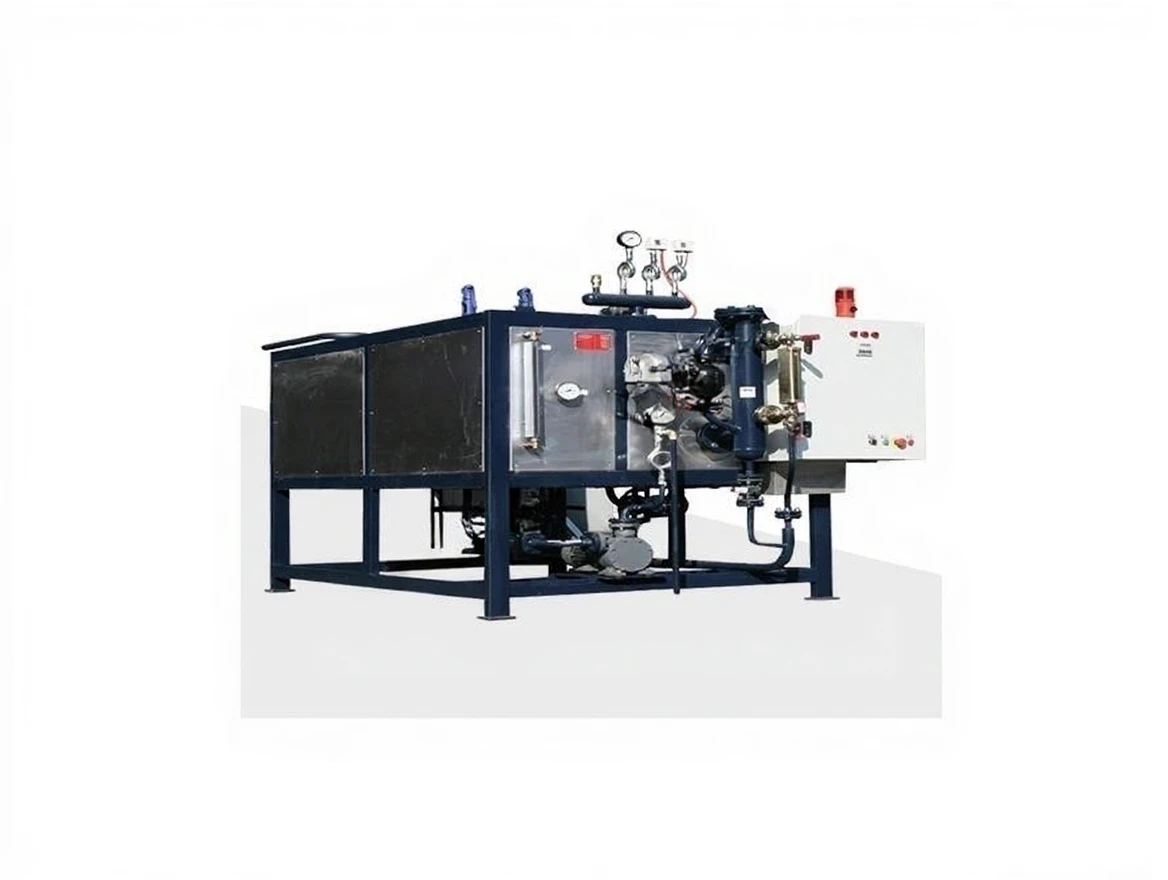

100 Kw Electric Steam Generator
| Brand | Universal |
|---|---|
| Model Type |
E-BÜ 100 |
100 Kw Electric Steam Generator
Universal Boiler
GENERAL FEATURES
-
Takes up little space and produces economical steam in a very short time.
-
Manufactured according to heavy-duty conditions. Not easily affected by hard and turbid waters.
-
Operates automatically and safely. Has sequential safety systems.
-
Works without requiring excessive information, maintenance, and supervision.
-
To prevent heat loss, the exterior of the steam generator is insulated and covered with non-corrosive, non-decaying colored galvanized sheet in humid environments.
-
It is a compact unit with a feed water pump, water purification unit, condensate tank, and electrical panel.
DESIGN
-
An ideal steam producer for dry cleaning, confectionery, and knitting workshops that need steam in small capacities.
COMPONENTS
-
Steam generator
-
Boiler fittings
-
Safety systems
-
Feed water (condensate) tank and fittings
-
Boiler automatics
-
Automatic water softening device
-
Water filter
-
Electrical panel and installation
|
Type |
Steam Capacity kg/h |
Electrical Resistance Capacity kW |
Feed Water Pump Power kW |
Operation Pressure bar |
Steam Outlet diameter DN |
Appr. Weight kg |

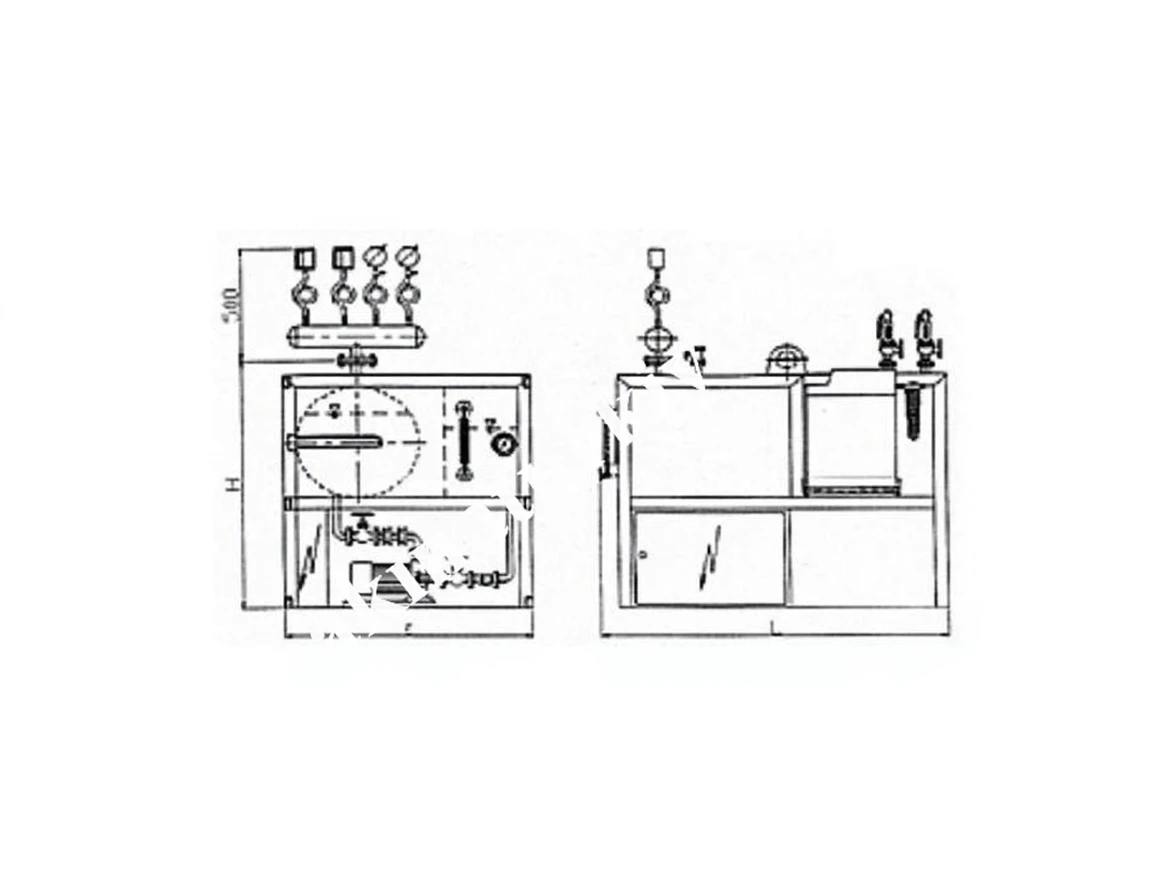

Width (E) mm |
Length (L) mm |
Height (H) mm |
|
E-BÜ-100 |
143 |
10 x 10 |
1.5 |
6 |
25 |
570 |
1250 |
2000 |
1500 |
