100 Litre / Hour Water-Cooled Chiller

Brand Mayso Soğutma
Model Type

MYS-WT – 100

Description

100 Litre / Hour Water-Cooled Chiller

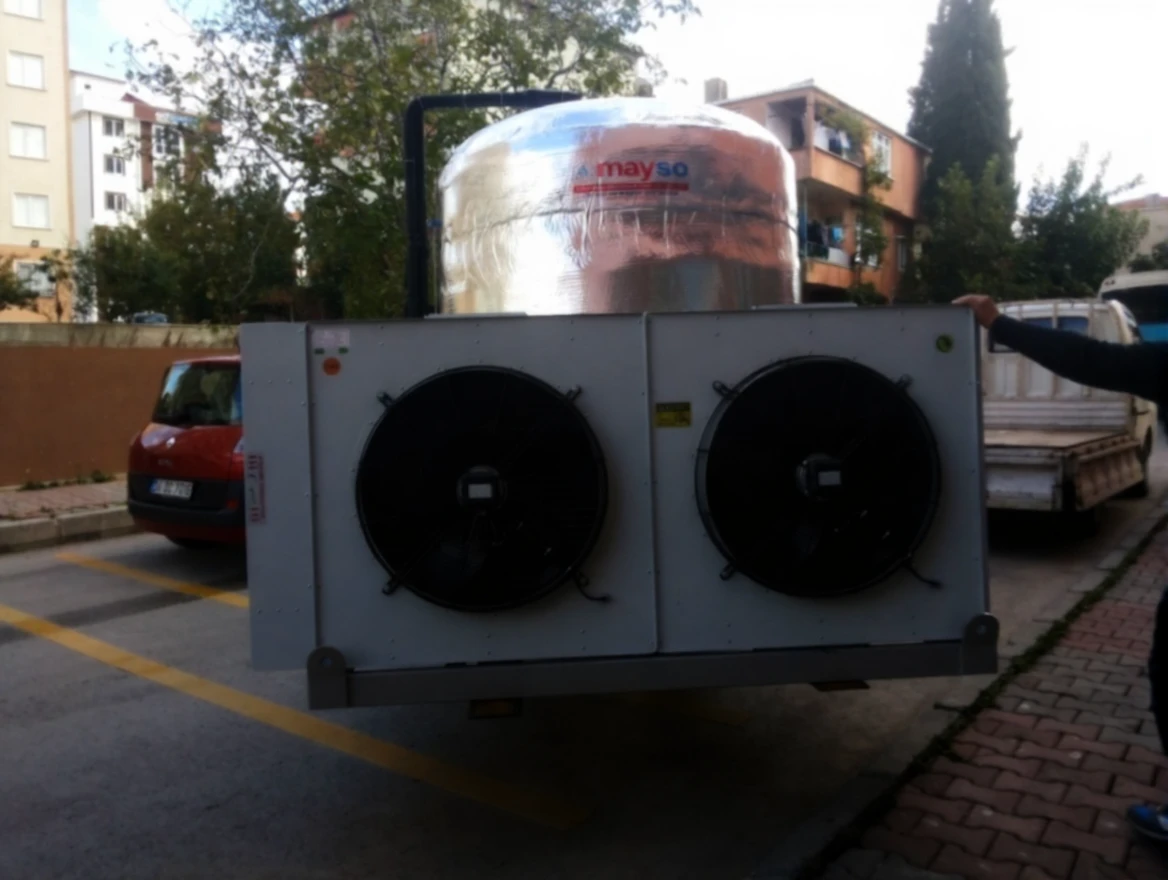

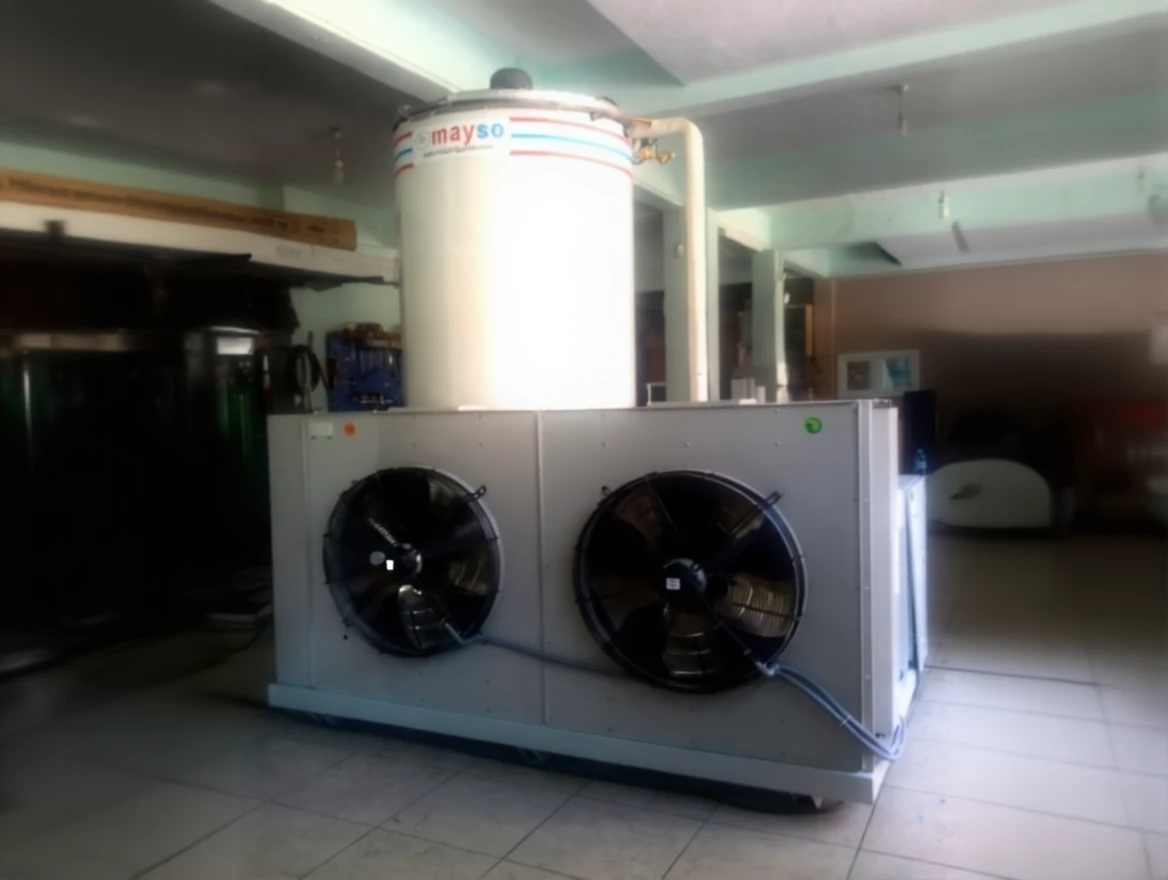

The MYS-WT – 100 Water-Cooled Chiller produced by Mayso Cooling is a highly efficient device that can be used in various industries requiring cold water. This device is particularly effective in areas such as baked goods production and ice machines.

Features:

  • Cooling Capacity: This water cooling device, with a capacity of 100 litres/hour, is ideal for cooling dough water in the production of baked goods and for pre-cooling the water inlet of ice machines.

  • Efficient Cooling: The water cooling device has the capacity to cool water down to +1°C. This feature allows the device to meet all types of industrial cooling needs.

  • Flexible Usage Areas: The device can be used efficiently not only for baked goods or ice machines but also in all other sectors that require cold water. This shows that the device offers a very versatile solution.

Advantages:

  • High Efficiency: The device provides high efficiency with low energy consumption. This helps businesses reduce their energy costs.

  • Versatile Use: Designed to be suitable for use in baked goods, ice machines, and many other sectors.

  • Custom Production Options: The device’s features can be customized according to the special water needs of customers.

  • Compact Design: Can be easily installed in places with space constraints and operates efficiently.

Usage Areas:

  • Baked Goods Sector: Used for cooling dough water.

  • Ice Machine Systems: Effective in pre-cooling water to enhance ice quality.

  • Other Sectors: Can be used in any sector that requires cold water, such as food processing, chemicals, and pharmaceuticals.

The Water-Cooled Chiller combines low energy consumption with high efficiency, making industrial cooling processes more efficient. This device can be safely used in any sector that requires cold water.

Mayso Cooling MYS-WT – 100 Technical Specifications

Machine Model

MYS-WT / 100

Hourly Water Cooling Capacity

100 Litres / Hour

Water Inlet Temperature

28 °C

Water Outlet Temperature

1 °C

Cooling Capacity

3380 Watts

Refrigerant

R404A

Compressor Type

Hermetic

Total Power Consumption

1.9 kW

Total Current Draw

6.5 Amps

Power Input

1 PHASE / 220V / 50 Hz

Evaporator Temperature

-5

Condenser Temperature

45 °C

Condenser Cooling Type

Air-Cooled

Evaporator Type

Coil Type

Tank Capacity

500 Litres

Water Tank Type

Cylindrical Polyethylene

Tank Insulation Type

Rubber Foam

Machine Dimensions

135x90x120 cm

Machine Weight

130 Kg
