100 M³ Kapasiteli Endüstriyel Mobil Tank
| Brand | ErichHahn |
|---|---|
| Model Type |
MT-100 |

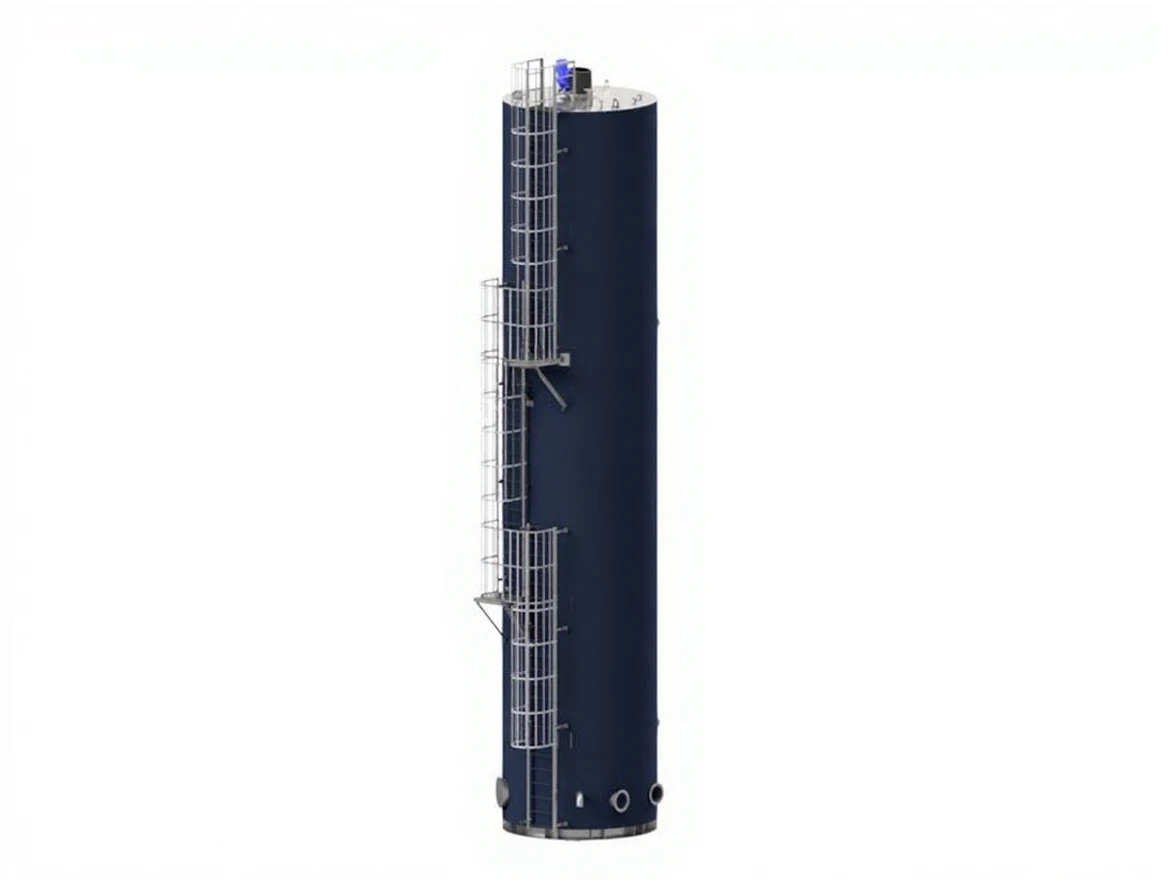

ErichHahn MT-100 Industrial Mobile Tank
ErichHahn MT mobile tanks are designed to actively heat and store heavy oil, ensuring transport while maintaining quality. Mobile tanks can also be used as process tanks in the oil, gas, chemical, food, and other industries. They have a small footprint and can be easily transported by road.
ErichHahn MT Advantages
MT-М series tanks come equipped with a mixer, instrumentation, control panel, heating system, insulation, and service platforms.
Control Cabin
The tank is provided with a local control cabin. This cabin allows for monitoring and controlling the instrumentation in the field, or remote control can be provided by integrating the cabin with the APCS.
Mobile Tank Options
• Electric heaters to increase product temperature
• Electric actuated covers for remote process control
ErichHahn MT-100 Technical Specifications
|
Instrumentation |
|
|
Operating environment |
Viscous and solidifying liquids |
|
Max. operating temperature of the environment, °C |
200 |
|
Tank capacity, m³ |
100 |
|
Inner diameter, mm |
3000 |
|
Height, mm |
16410 |
|
Weight, kg |
13000 |
|
Tank loading type |
Top |
|
Tank unloading type |
Bottom |
|
Overflow protection device |
Provided |
|
Mixer |
|
|
Vertical |
– |
|
Steel structure parameters |
|
|
Number of tank courses |
9 |
|
1-2. course thickness, mm |
8 |
|
3-4. course thickness, mm |
6 |
|
5-11. course thickness, mm |
5 |
|
Roof covering thickness, mm |
5 |
|
Base thickness, mm |
10 |
|
Insulation |
|
|
Wall insulation thickness, mm |
150 |
|
Roof insulation thickness, mm |
200 |
|
Coating material |
Polymer coated steel sheet |
|
Heating system |
|
|
Main heating |
|
|
Oil heater |
Provided |
|
Heat transfer fluid |
Hot oil |
|
Oil pipeline connection, mm |
50 |
|
Max oil temperature at 0.6 MPa, °C |
200 |
|
Additional heating |
|
|
Heating elements |
– |
|
Level gauge |
Provided |
|
Max level alarm |
Provided |
|
Sampling device |
Provided |
|
Temperature gauge (for heavy oil) |
Provided |
|
Electric actuated valve, DN, mm |
150 (optional) |
|
Bimetallic thermometer |
Provided |
|
Vent pipe |
Provided |
|
Control panel |
Provided |
|
Country of Origin |
Turkey |
