100 m3 / Hour Mobile Concrete Plant

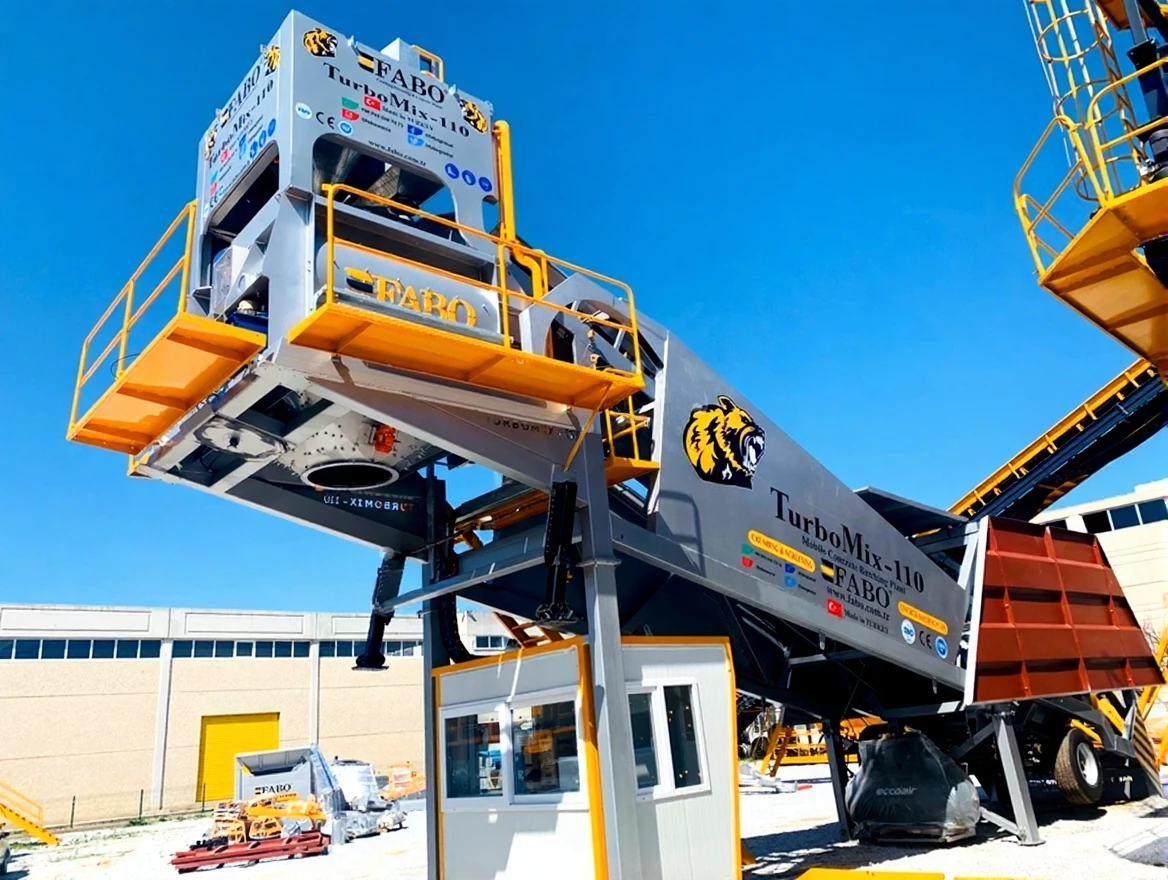

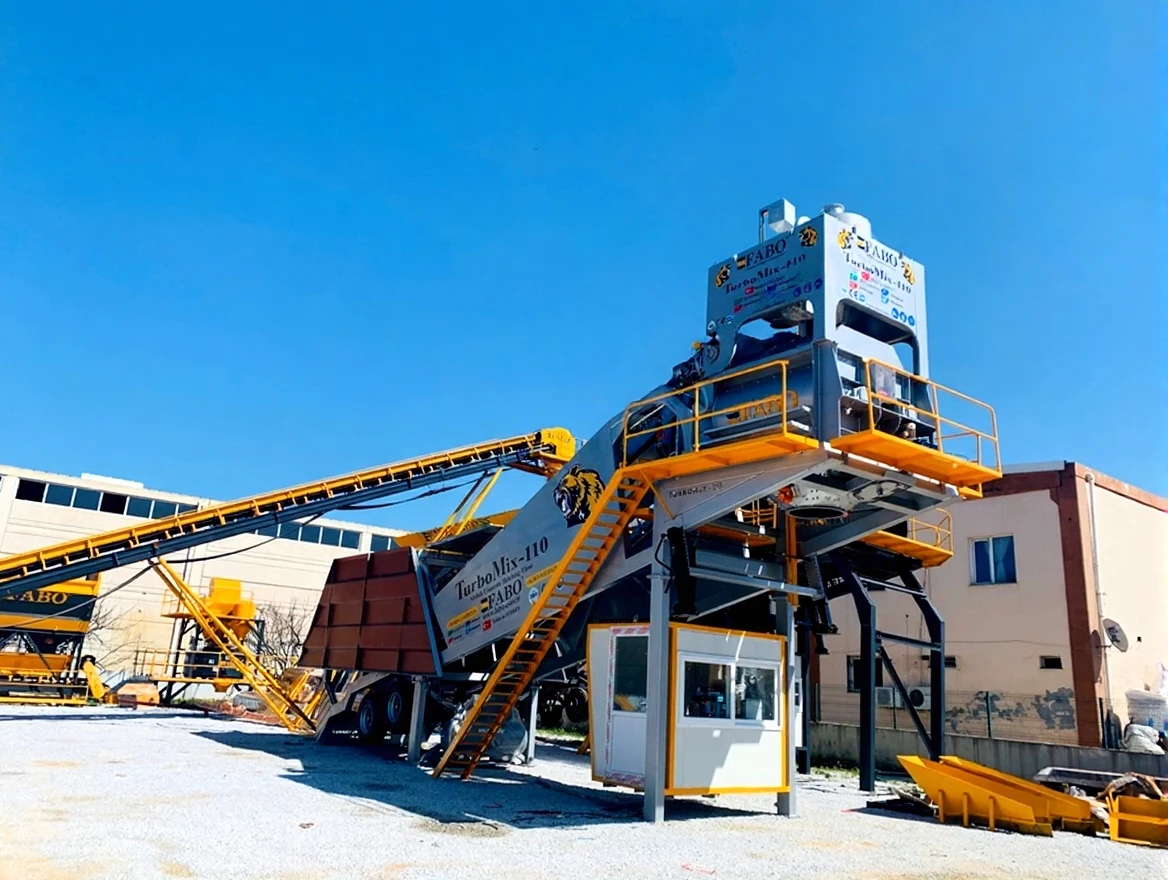

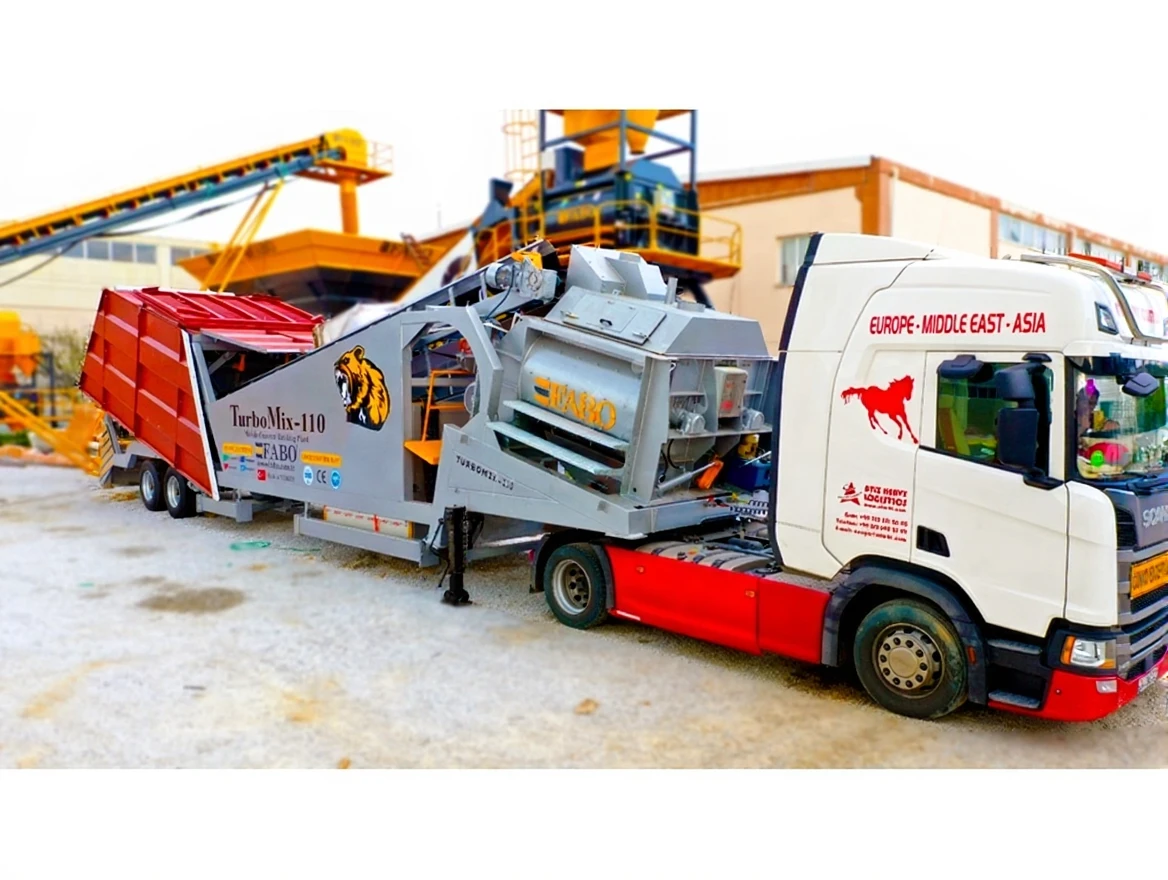

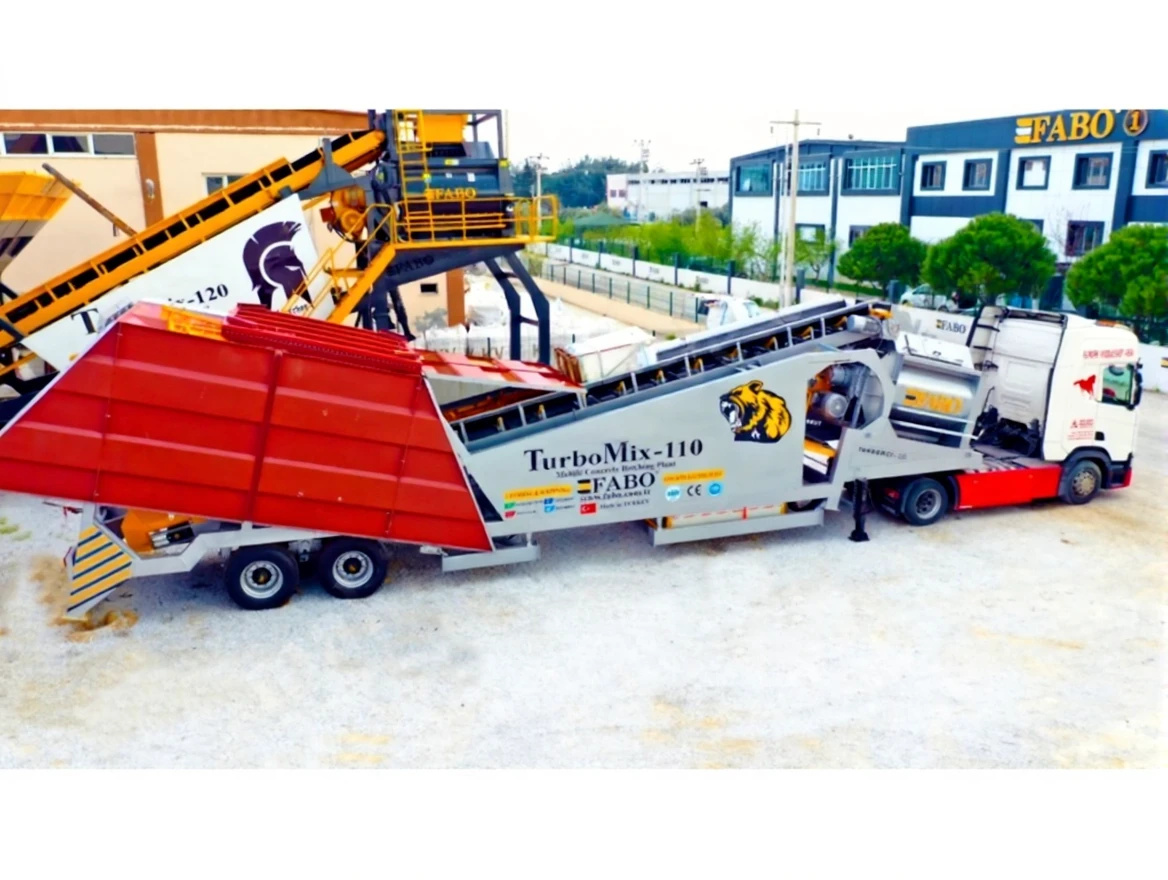

Fabo Machine Turbomix-110 100 m3 / Hour Mobile Concrete Plant

FABO TURBOMIX Fully Automatic Mobile Concrete Plants are an ideal solution for projects requiring short-term and tight space. Since all the equipment of the concrete plant is mounted on a single mobile chassis, the plant can be easily moved with just a truck head. The efficiency of TURBOMIX mobile concrete plants ranges from 30 m3 / h to 150 m3 / h.

FABO TURBOMIX series mobile concrete plants have automatic control of aggregate materials and additives, static/dynamic Load Cell Weighing. Our concrete plants have a high-capacity quality and powerful concrete mixer that provides a homogeneous mixture.

TECHNICAL SPECIFICATIONS:

Model: TURBOMIX 110

Production capacity: 100 m3

Dimensions (length x width x height): 16300 x 3200 x 4500 mm

Mixer type: Twinshaft – 2.2 m3

Aggregate Bunker: 4×17 m3

Transfer conveyor: 6250 kg

Cement weighing: 1300 kg

Weighing additives: 40 kg

Water weighing: 750 lt

Total weight: 27550 kg

Total motor power: 105 kW

Cement silo is optional.

Turbomix 110 consists of:

• Total Storage Bin

• Aggregate Weighing Bin

• Total Transfer Conveyor

• Twinshaft Mixer

• Mixer Chassis, Walking Platforms, Ladder

• Water Weighing Bin

• Cement Weighing Bin

• Additive Weighing Bin

• Air compressor

• Cement Screw Conveyor

• Bolted Cement Silo

• Upper Filter, Safety Valve and Accessories

• Control Cabin Network

• PC and Automation System

• Control and Power Panel
