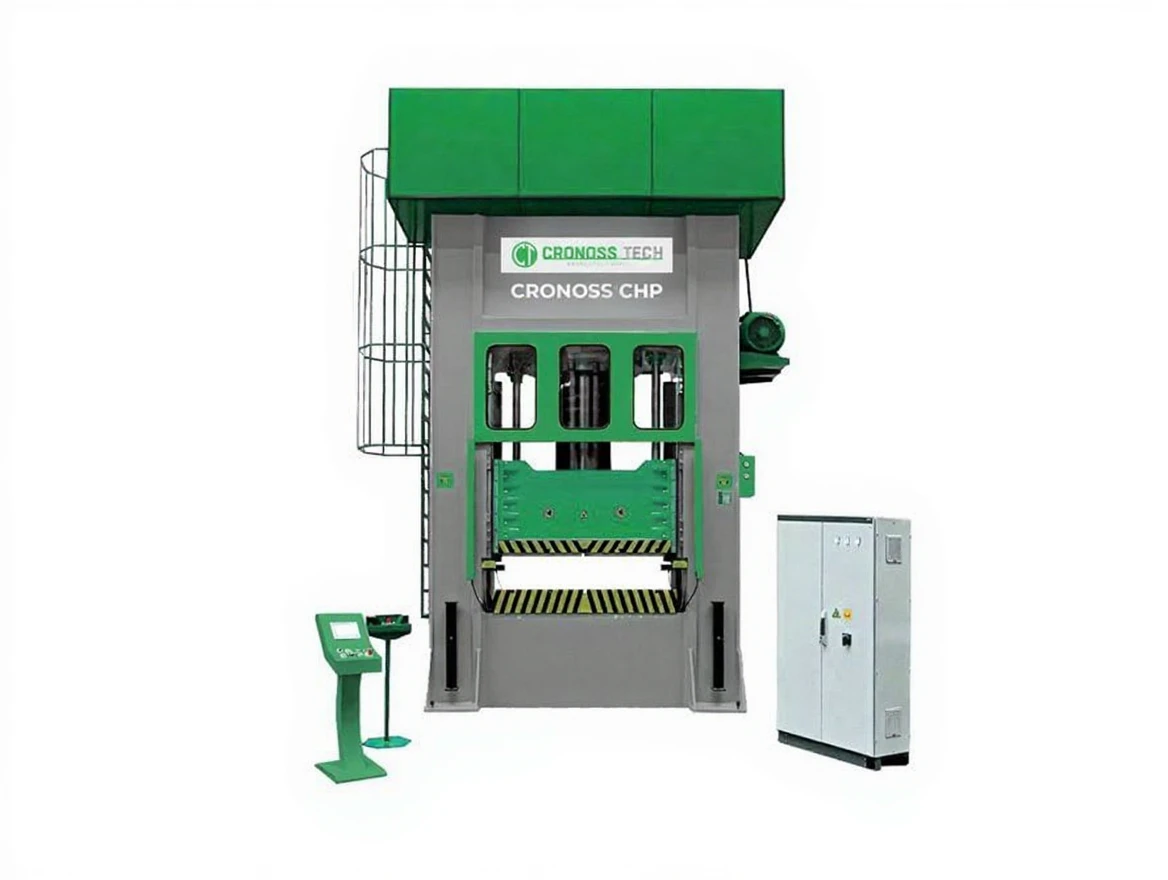

100 Ton H Type Single Effect Hydraulic Press

CHP – H Type Single Effect Hydraulic Press | 100 Tons

STANDARD FEATURES

• Steel construction body and parts with stress / welding stress relieved by vibration method

• 8-surface slide / bedding for high precision and long-life use

• PLC control system and touch operator panel

• Argon welding application for fixing elements and steel draw tubes

• Accredited by TÜRK-AK WPQR and WPS approval
  EN ISO 15614-1:2017 welding application certificate
  (Welding applications are audited by welding coordination engineers certified according to EN ISO 14731)

• Parallelism and perpendicularity tolerances according to ISO and DIN standards
  (≤ 120 microns per meter)

• PARKER / REXROTH hydraulic unit

• SIEMENS / SCHNEIDER electrical consumables

• Automatic central lubrication system

• Dual hand control system

OPTIONAL FEATURES

• CE compliance

• Safety PLC (SIEMENS Failsafe / PILZ PNOZ Multi)

• Beam barriers (LEUZE, PILZ or SICK – 2 pieces)

• Traceable feedback valves (REXROTH or PARKER – 3 pieces)

• Hydraulic ram lock system (1 piece)

• Proportional speed and pressure application
  (Different speeds, stops, and pressure values are entered at different points of the pressing process,
  minimizing the impact of material and mold deformations on the work being done)

TECHNICAL SPECIFICATIONS

• Press Type: Steel construction, 8-slide H-type press body

• Body Material: St52 – ERDEMİR

• Slide Bedding: Bronze Zr14

• Press Capacity (Ram): 100 Tons

• Moving Table Size: 800 x 1000 mm

• Fixed Table Size: 800 x 1000 mm

• Parallelism Tolerance: 120 microns per mt.

• Perpendicularity Tolerance: 60 microns per mt.

• Ram Stroke Distance: 500 mm

• Minimum Clearance: 100 mm

• Maximum Clearance: 600 mm

• Maximum Working Pressure: 250 bar

• Total Motor Power: 11 kW – IE3

• Main Pump: 22 cm³ – REXROTH or PARKER

• Moving Table Rapid Descent Speed: 150 mm/s

• Moving Table Pressing Speed: 12 mm/s

• Moving Table Return Speed: 170 mm/s

• Main Cylinder Inner Diameter: Ø 230 mm – Ck45

• Assistant Acceleration Cylinders: 2 pieces

• Press Approximate Height: 3400 mm

• Press Approximate Width: 2950 mm

• Press Approximate Depth: 2000 mm

• Lower Table Height: 1250 mm

• Front Fill Valve: NG 100

• Cooling System: EMMEGI – CIESSE – PARKER

• Off-line Filtration: REXROTH or PARKER

• Air Filter: 10 micron permeability

• Return Filter: 25 micron permeability

• Filter Contamination Warning: Electronically controlled

• Lubrication Type: Automatic (adjustable from the screen)

• Ram Stroke Adjustment: Adjustable from the screen

• Ram Tonnage (Pressure) Adjustment: Adjustable from the screen

• System Error / Press Status Information: Viewable on the screen

• Mold Memory: Available

• Hydraulic Oil Temperature Information: Viewable on the screen

• Linear Distance Scale: NOVATECHNIK or TURCK

• PLC: DELTA

• Touch Panel: DELTA 7″

• Approximate Weight: 6.5 tons
