1000 Kg Capacity Powerful Vacuum Marble Ceramic Glass Lifting System
| Brand | Single Lift |
|---|---|
| Model Type |
SL-PVL-1000V |

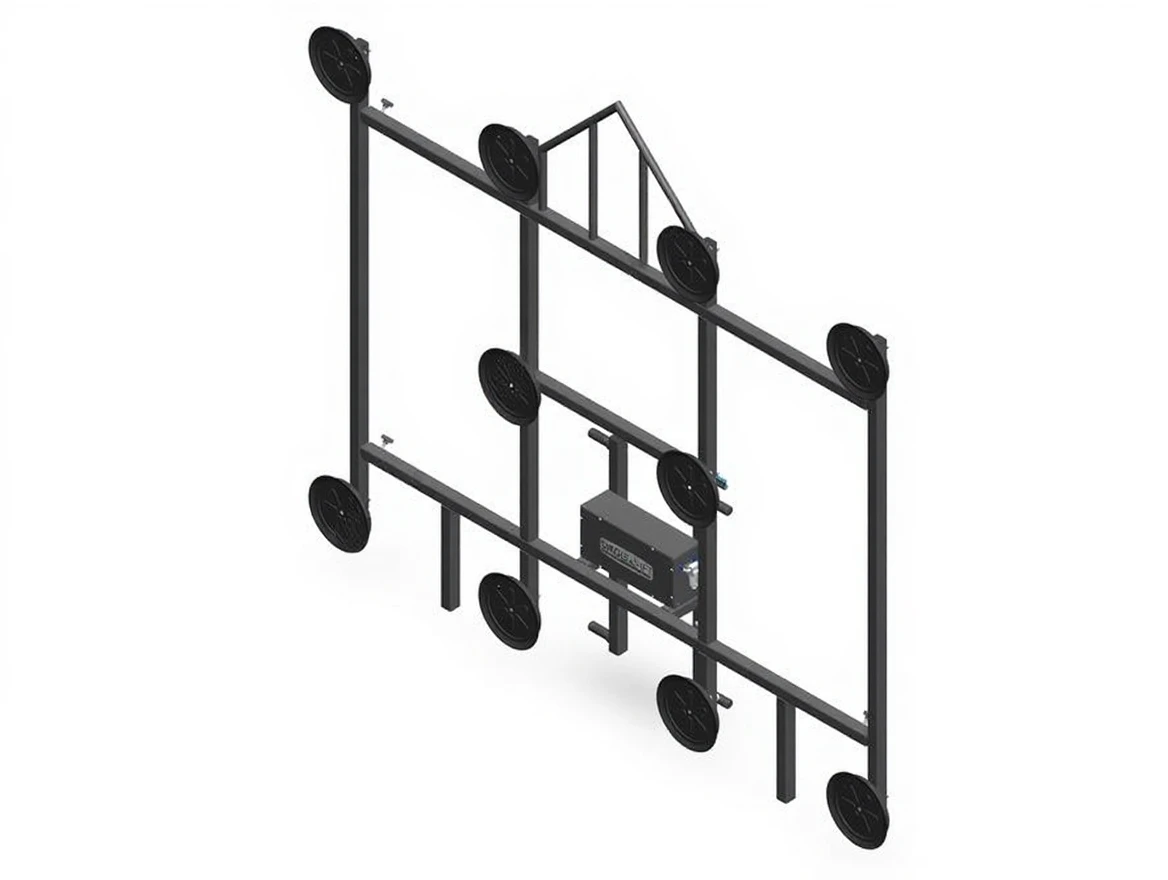

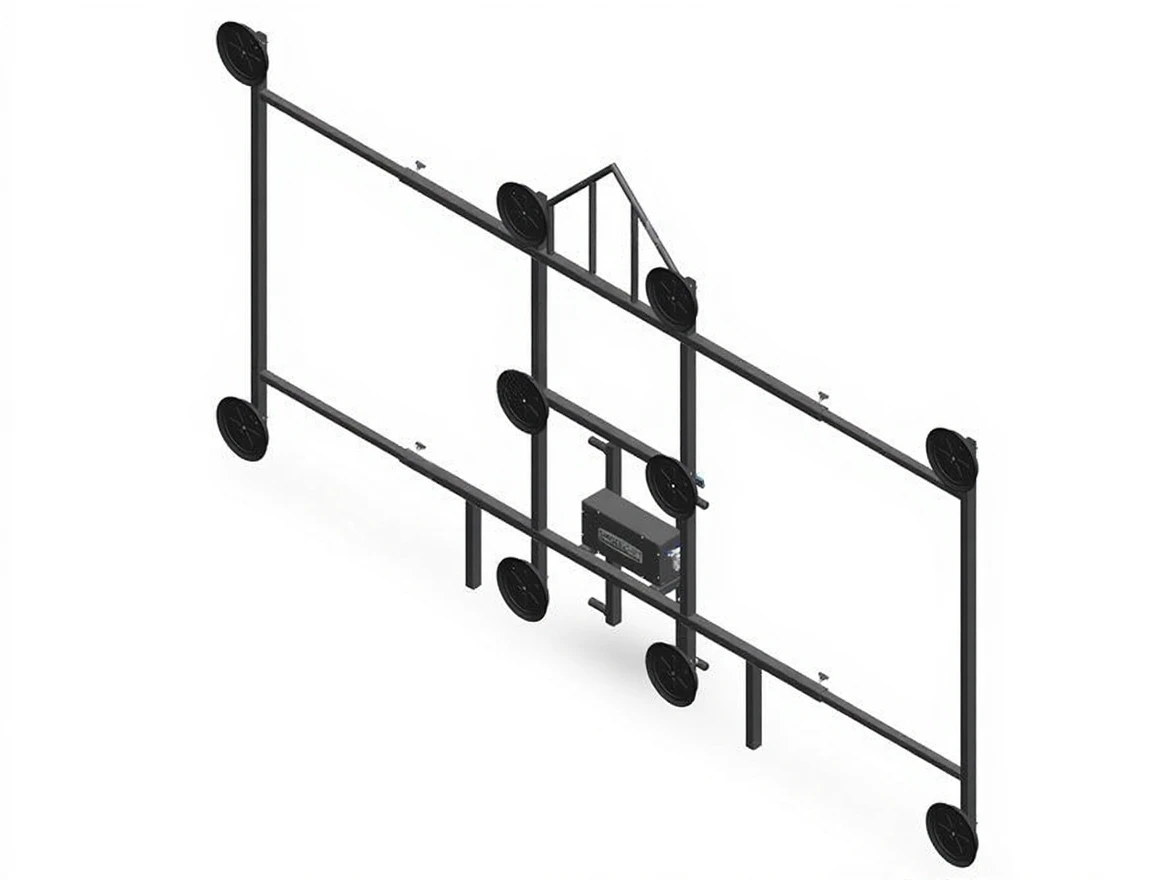

SL-PVL-1000V – 1000 Kg Capacity Powerful Vacuum Lifting System
Specially designed for safe and easy transportation of heavy glass, panels, marble, and similar sensitive surface materials, this is a high-capacity vacuum lifting system. With a carrying capacity of up to 1000 kg, this model is an excellent solution for large-scale production and assembly applications.
The device has a total of 10 vacuum pads, 6+4. Each pad, 290 mm in diameter, securely grips the surface, providing strong and balanced hold for maximum safety. The PVL-1000V is ideal for long-term use with its 12V 28Ah capacity electric system.
Due to its modular structure, it can be easily adapted to different surface and material sizes. It operates effectively on construction sites, production lines, or assembly points. It reduces the workload for operators with both its ergonomic design and lifting power.
Technical Specifications
| Feature | Value |
|---|---|
| Box Dimensions (L x W x H) | 640 x 860 x 1680 mm |
| Box Weight | 38 ± 2 kg |
| Machine Weight | 160 ± 3 kg |
| Number of Vacuum Pads | 6 + 4 |
| Pad Diameter | 290 mm |
| Electric System | 12V – 28Ah |
| Maximum Carrying Capacity | 1000 kg |
-
Glass and panel installation
-
Transportation of marble, ceramic, and granite
-
Vertical transportation in facade applications
-
Lifting of heavy and large-surface materials
-
Lifting solutions for construction sites and factory interiors
