1000 Kg / Day Block Ice Machine
| Brand | Mayso Soğutma |
|---|---|
| Model Type |
MYBZ-BLK / 1 T |
1000 Kg / Day Block Ice Machine

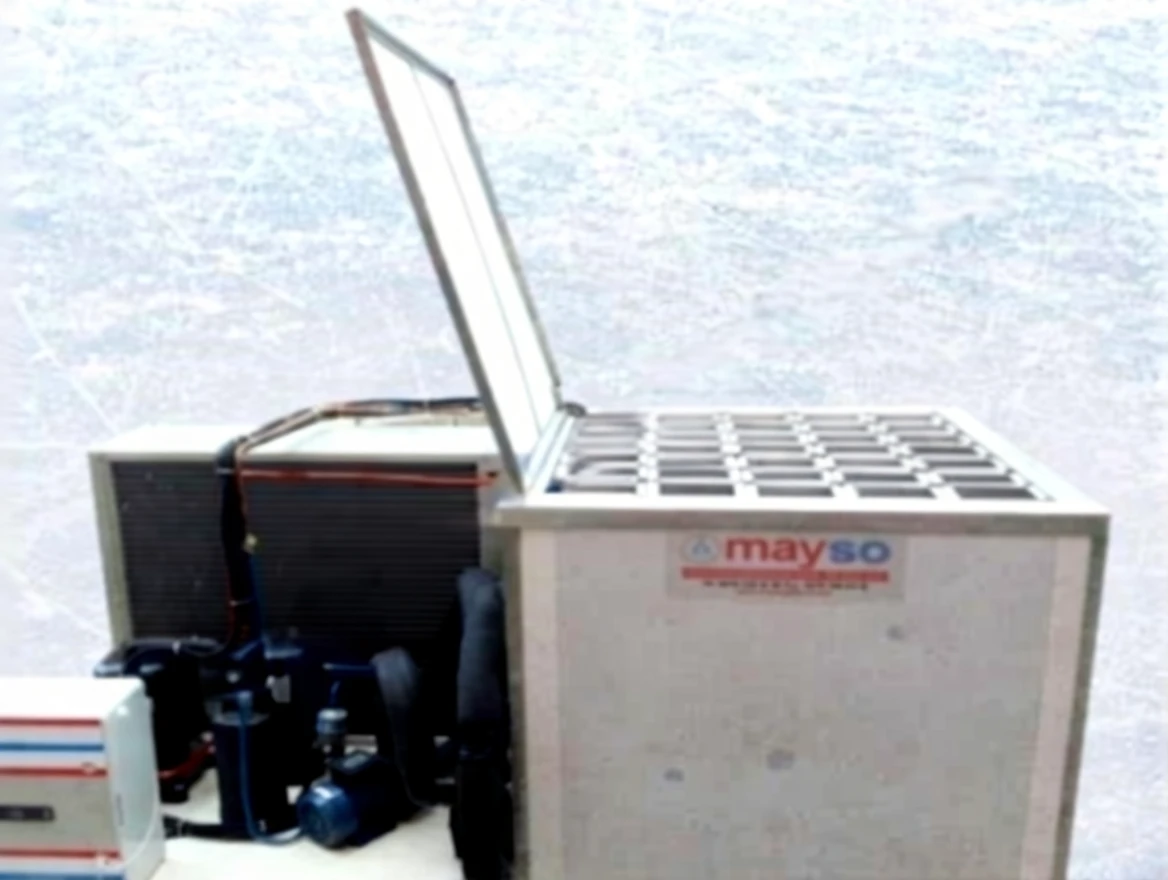

The MYBZ-BLK / 1 T model Block Ice Machine produced by Mayso Cooling produces high-quality block ice with a capacity of 1000 kg/day. These machines, which operate with fresh water, produce block ice using water cooled to -15°C in brine tanks.
Features:
-
Capacity: Ideal for businesses of suitable size with a capacity of 1000 kg/day.
-
Block Ice Production: Ice is produced at -15°C using fresh water in brine tanks.
-
Energy and Water Savings: Mayso Cooling offers savings by providing low energy and water consumption in block ice machines.
-
Efficient Operation: Operates with high efficiency in all climate conditions, offering efficient solutions in energy and resource use.
Technical Specifications:
-
Capacity: 1000 kg/day ice production capacity
-
Ice Type: Block Ice
-
Water Type: Operates with fresh water
-
Cooling System: Ice production is realized using a brine cooling system
Advantages:
-
Energy Efficiency: Reduces costs by providing electricity savings.
-
Water Savings: Environmentally friendly solution with low water consumption.
-
Durability: High-efficiency operation in various climate conditions.
-
Environmentally Friendly: Environmentally conscious operation with efficient resource use.
Areas of Use:
-
Food Sector: In the cooling of fresh food and seafood.
-
Fishing and Seafood: Used in the preservation of fish and seafood.
-
Industrial Cooling: Suitable for industrial facilities with high cooling needs.
Block Ice Machines stand out with energy efficiency and water savings. This model with a capacity of 1000 kg/day offers an ideal solution for small and medium-sized enterprises. You can contact us for detailed information and price quotes.
Mayso Cooling MYBZ-BLK / 1 T Technical Specifications
|
Machine Model |
MYBZ-BLK / 1 T |
|---|---|
|
Daily Ice Capacity |
1000 Kg / 24h |
|
Block Ice Weight |
10 Kg |
|
Number of Molds |
35 |
|
Daily Number of Ice Molds |
105 Pieces |
|
Ice Production Time |
6 Hours |
|
Ice Exit Temperature |
-10 / -12 °C |
|
Ice Color |
White Matte |
|
Water Inlet Temperature |
20 °C |
|
Cooling Capacity |
6500 Watt |
|
Refrigerant |
R404A |
|
Compressor Type |
Hermetic |
|
Total Power Consumption |
4.7 kW |
|
Compressor Power |
3.6 kW |
|
Condenser Fan Power |
0.6 kW |
|
Mixer Motor Power |
0.6 kW |
|
Energy Input |
3P/380V/50Hz or else |
|
Total Current Draw |
9 Amp |
|
Evaporator Type |
Copper Coil Immersion |
|
Evaporator Temperature |
-20 °C |
|
Condenser Temperature |
45 °C |
|
Condenser Cooling Type |
Air Cooled |
|
Ice Freezer Type |
Brine Water |
|
Machine Dimensions |
104x221x85 cm |
|
Machine Weight |
550 kg |
