1000 Kg / Day Fresh Water Flake Ice Machine
| Brand | Mayso Soğutma |
|---|---|
| Model Type |
MYBZ-FW / 1 T |

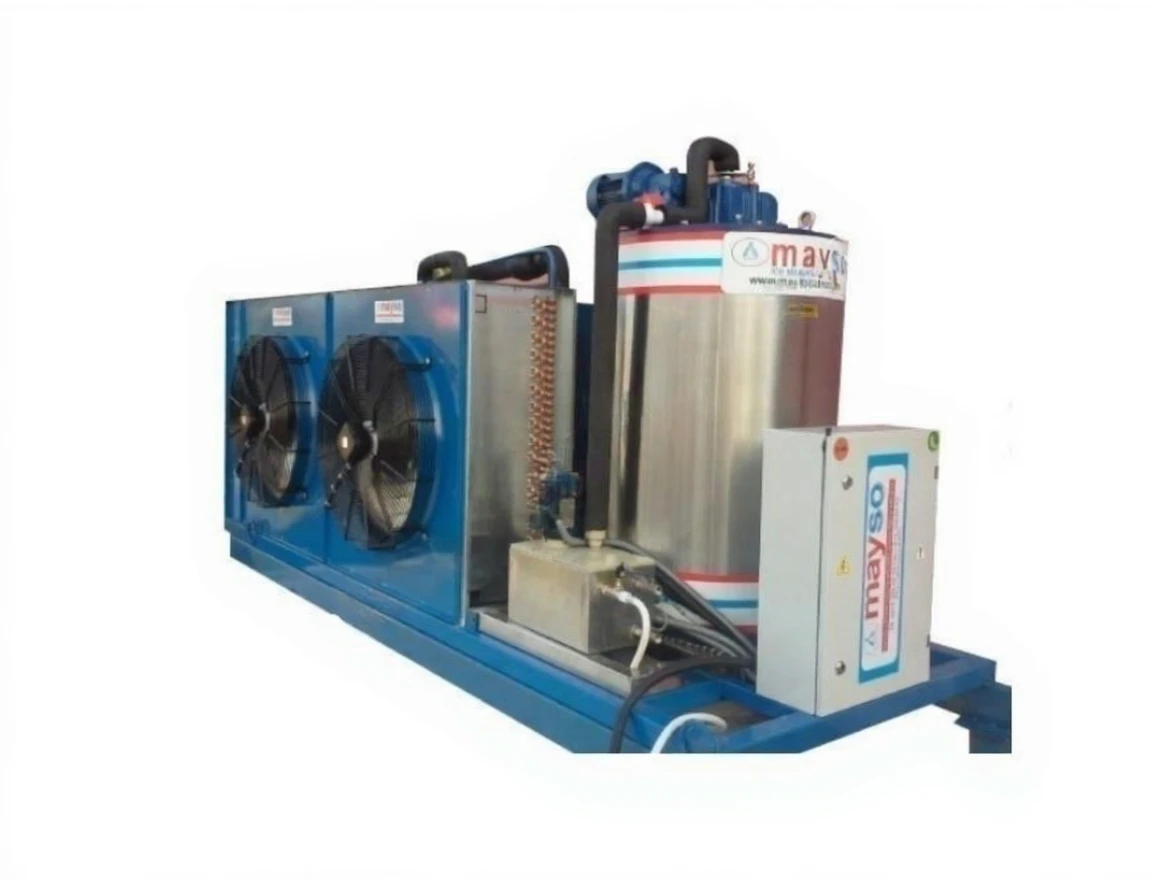

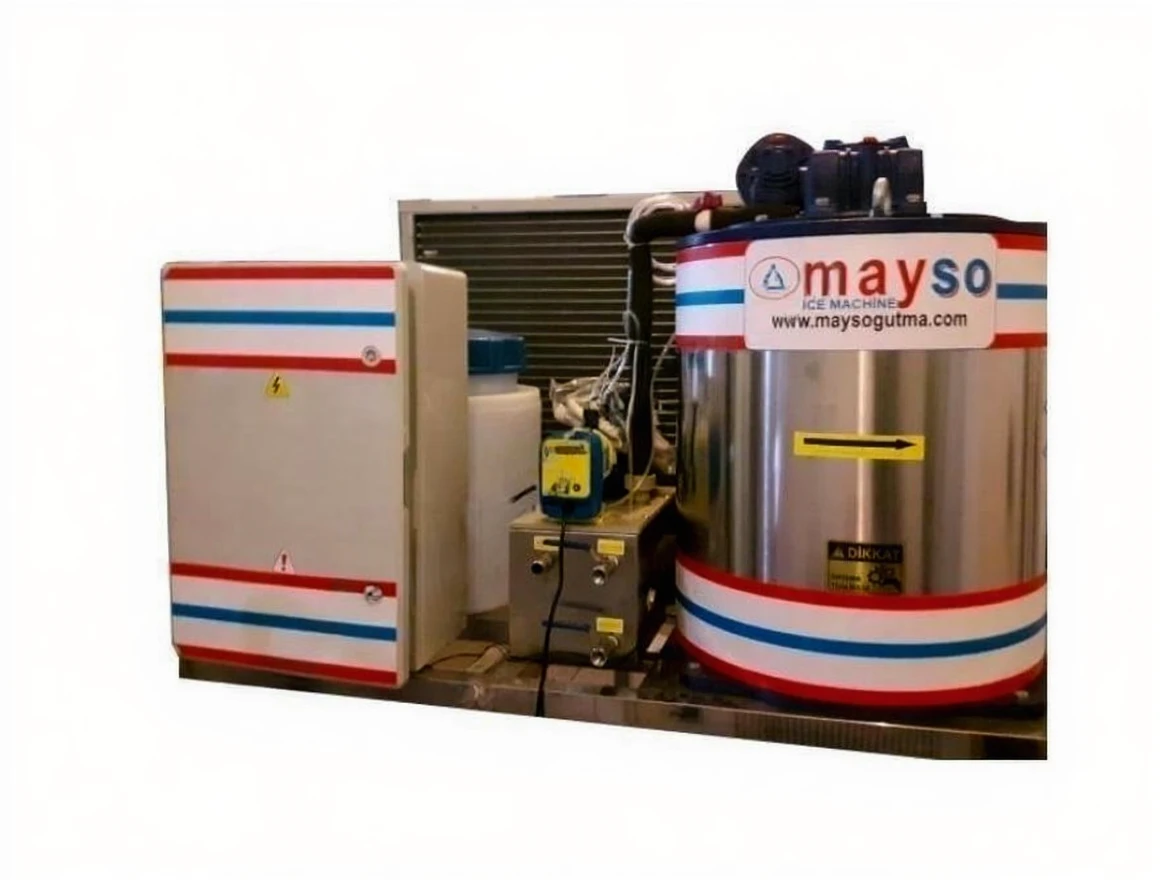

1000 Kg / Day Fresh Water Flake Ice Machine
The MYBZ-FW / 1 T model Fresh Water Flake Ice Machine produced by Mayso Cooling provides high-efficiency ice production with a capacity of 1,000 kg per day. These machines, which operate with fresh water, stand out with their ability to work efficiently in all climate conditions.
Features:
-
High Capacity: Suitable for medium-sized enterprises with a capacity of 1,000 kg/day.
-
Climate Compatible Performance: Our machines perform excellently in all weather conditions, including tropical climates.
-
Efficient Ice Production: Reduces operating costs with high energy efficiency.
-
Vertical and Horizontal Evaporator Options: Vertical or horizontal type evaporators are available according to user demands.
-
Operation with Fresh Water: Ice production is achieved with environmentally friendly and low-cost fresh water.
Technical Specifications:
-
Capacity: 1,000 kg/day ice production capacity
-
Ice Type: Flake Ice (Crushed Ice)
-
Water Type: Operation with fresh water
-
Evaporator Type: Vertical and horizontal type options available.
Advantages:
-
Energy Efficiency: Energy consumption is reduced with efficient production technology.
-
Efficient Operation in Any Climate: Performs flawlessly even in hot climates.
-
Various Capacity Options: Offers solutions suitable for your business needs with capacity options ranging from 500 kg to 30,000 kg.
-
Long Lasting and Durable: Provides trouble-free use for many years with high-quality materials and robust construction.
Areas of Use:
-
Food and Beverage Industry: Cooling and food processing applications.
-
Pharmaceutical and Medical Sector: Cooling and storage needs.
-
Industrial Cooling: Large-scale cooling requirements.
Fresh Water Flake Ice Machines offer capacity options ranging from 500 kg to 30,000 kg, providing solutions suitable for every sector. For more information and offers, you can contact us.
Mayso Cooling MYBZ-FW / 1 T Technical Specifications
|
Machine Model |
MYBZ-FW / 1 T |
|---|---|
|
Daily Ice Capacity |
1000 Kg / Day 500kg / 24h |
|
Cooling Capacity |
5600 Watt |
|
Refrigerant |
R404A |
|
Compressor Type |
Hermetic |
|
Total Power Consumption |
4.3 2kW |
|
Compressor Power |
3.5 kW |
|
Condenser Fan Power |
0.45 kW |
|
Reducer Power |
0.18 kW |
|
Water Pump Power |
0.12 kW |
|
Dosage Pump Power |
0.016 kW |
|
Energy Input |
380V/50Hz/3P |
|
Total Current Draw |
7.5A |
|
Cooling Type |
Air Cooled |
|
Evaporator Channel |
Spiral channel |
|
Evaporator Temperature |
-20°C |
|
Condenser Temperature |
45°C |
|
Ice Output Temperature |
-4 / -8 °C |
|
Ice Thickness |
1.5-2.2mm |
|
Water Supply Pressure |
0.1Mpa-0.5Mpa |
|
Water Inlet Pipe Diameter |
5/8" |
|
Operating Ambient Temperature |
25°C |
|
Water Inlet Temperature |
18°C |
|
Evaporator Unit Weight |
150 kg |
|
Evaporator Unit Dimensions |
810*580*875 |
|
Machine Operating Water Type |
FRESH WATER |
