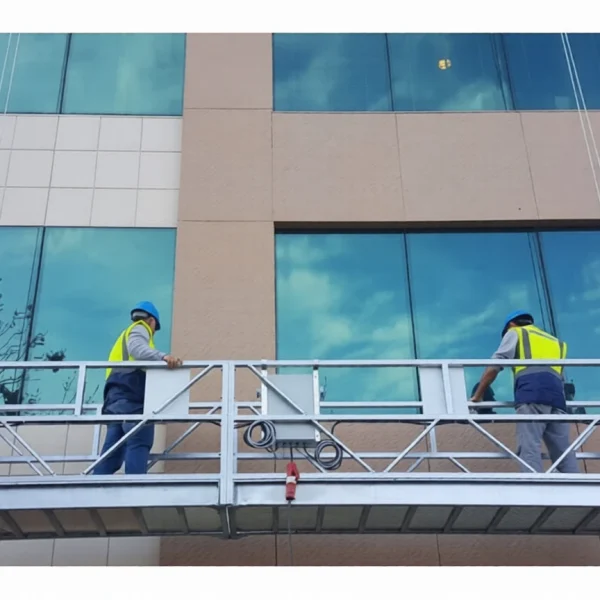

1000 Kg Electric Suspended Scaffold
| Brand | Bmunit |
|---|---|
| Model Type |
STM 1000 |
1000 Kg Electric Gantry System
It offers multi-purpose use for tasks such as cladding, painting, plastering, [ URL HIDDEN ] the exterior wall of the building. Thanks to the practical installation and easy repositioning features of the gantry systems, it saves time and labor. Electric gantry systems are modular platforms that can be divided into 1-6 meters according to the building facade. Lifting speed is 7 meters per minute.
Since it is a system moving on a rope, it provides infinite working distance. Special working platforms suitable for your building can be produced according to your request. Platforms are protected with a motor brake and block stop brake system. There is a second rope system for the safety of the worker and platform. It can be manually lowered in case of a power cut. Our products come with a 2-year warranty. All our products are in compliance with European standards and have CE conformity certificates.
Safety Standards
• Speed-sensitive parachute brake system
• Electromagnetic brake system
• Emergency stop button
• Platform lower and upper limit stop system
• Final mast for stopping at the final height
• Audible warning system during up and down movement
• Stopping operation when the door is open
• Warning system for telescopic extensions
• Motor fault warning system
• Phase error warning system
• Connection with anchor every 6 meters
• Railing and guardrail safety system
• Automatic level system for double use
• Manual lowering system in case of emergency
• Balance setting system with movable legs
• Easy transport system with polyamide wheels
• 220 V socket on the panel
• Air and fixed chassis production is done according to your request.
• The mechanical movements that occur during the use of all our platforms are provided by the driver (speed control system).
• Balance switches are used in double platforms to prevent mechanical shrinkage and level faults.
• The inspection and control of all our products are provided online from our production center.
• Mobile chassis production is done according to demand as standard.
• Anti-corrosion system thanks to hot-dip galvanizing
Technical Specifications:
| TECHNICAL SPECIFICATIONS | STM 300 | STM 500 | STM 800 | STM-2500 |
|---|---|---|---|---|
| Lifting Capacity | 300 | 500 | 800 | Not Specified |
| Motor Power and Quantity | 1.1 kW (1 Unit) | 2.2 kW (2 x 1.1 kW) | 2.5 kW (2 x 1.25 kW) | 3 – 5 kW (2 x 1.5 kW) |
| Climbing Speed | 7 m/min | 7 m/min | 7 m/min | 7 m/min |
| Platform Dimensions (cm) | 100 x 66 x 110 / 600 x 66 x 110 | 200, 300, 400, 500, 600, 700 x 66 x 110 | 200, 300, 400, 500 | 200, 300, 400, 500, 700 |
| Safety System | Electromechanical Brake / 1 Block Stop | Electromechanical Brake / 2 Block Stop | Electromechanical Brake / 2 Block Stop | Electromechanical Brake / 2 Block Stop |
| Rope Thickness & Length | 8 mm (6 x 19) Galvanized | 8 mm (6 x 19) Galvanized | 10 mm (6 x 19) Galvanized | 10 – 12 mm (6 x 19 – 5 x 26) Galvanized |
| Voltage | 380 V | 380 V | 380 V | 380 V |
