1000 Kg Standard Welding Positioner
| Brand | YKS |
|---|---|
| Model Type |
BSRPOZ 1000 |

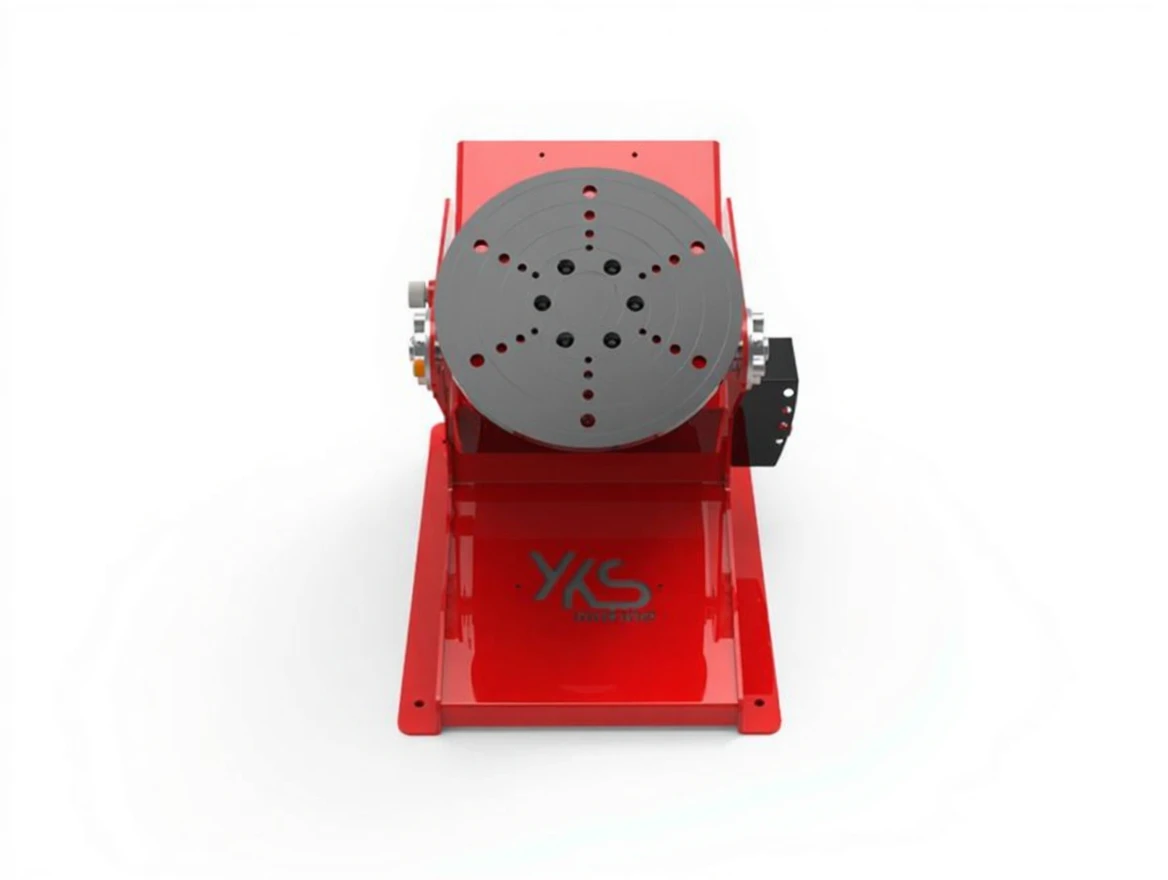

YKS BSRPOZ 1000 Standard Welding Positioner
YKS BSRPOZ 1000 is a standard type welding positioner designed to move work pieces up to 1000 kg in a safe, controlled and correct angle. This model, which is frequently preferred in light and medium-sized metal processing, manufacturing, maintenance and welding workshops, increases operator efficiency with its robust body and precise positioning ability.
Welding positioners are generally produced in different capacity ranges from 250 kg to 30,000 kg. All models use optimized configurations so that the table can rotate and tilt forward and backward. In YKS standard series; The body, engine group, table rotating and tilting mechanisms, electrical panel and remote control unit are combined under a durable structure.
For heavy workpieces, it is recommended to fix the positioner to the floor. There are standard or optional T-slot channels on the table. This structure allows workpieces to be fastened quickly and safely. Table rotating and tilting movements are carried out by a long-lasting steel spur gear transmission system.
The operator can practically adjust the table rotation speed via the 5-meter cable remote control. In more advanced production lines, PLC automation system can be optionally applied in all models.

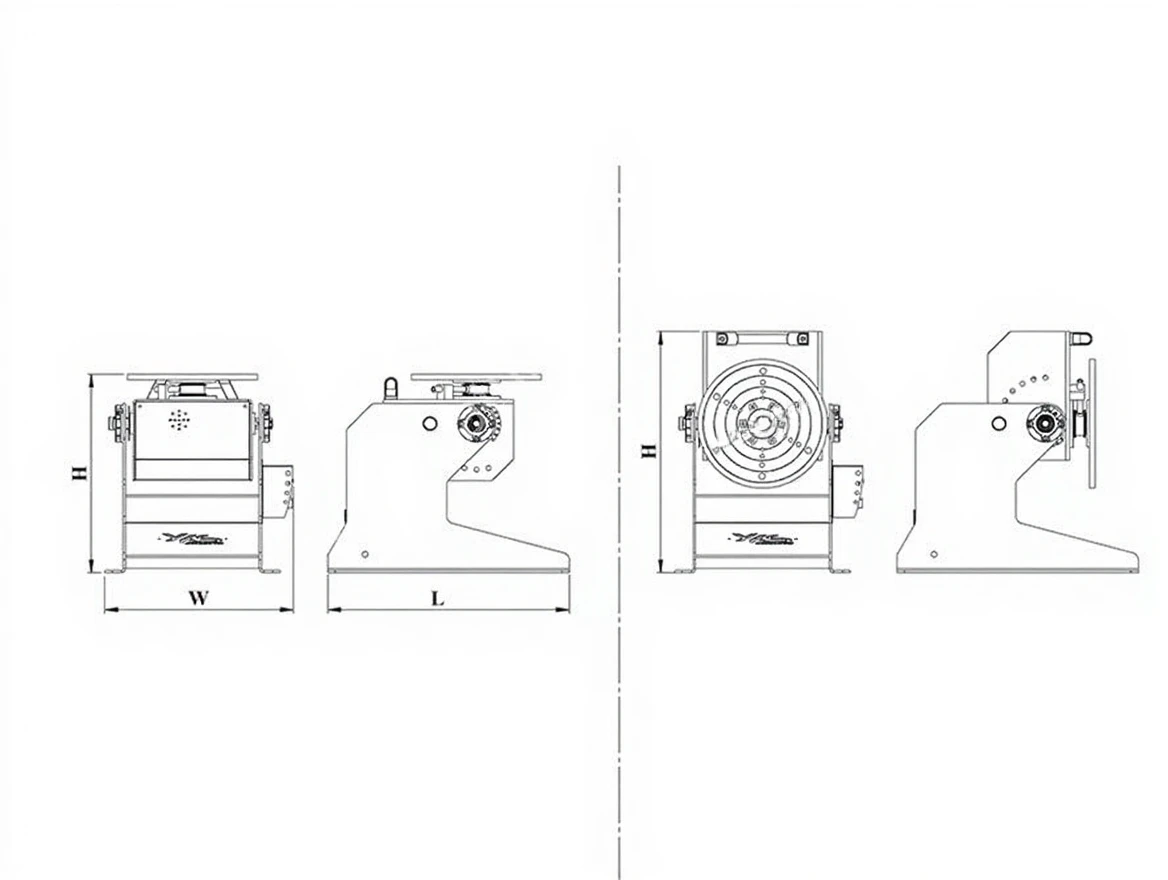

YKS BSRPOZ 1000 Technical Specifications
The table below shows all technical data of BSRPOZ models from 150 kg to 3000 kg.
Data of the BSRPOZ 1000 model are marked in bold in the table.
|
Model |
Load Capacity (kg) |
Center of Gravity (mm) |
Eccentricity (mm) |
Table Rotation Angle |
Tilt Angle |
Input Power |
Rotary Table Motor (kW) |
Tilting Motor (kW) |
Rotation Speed (RPM) |
Tilting Speed (sec) |
Table Diameter (mm) |
Connection Channels |
Horizontal Turning Height (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BSRPOZ 050–150 |
150 |
150 |
150 |
360° |
120° |
1×230V 50Hz |
0.25 |
0.18 |
1.6–16 |
15 |
400 |
12×M10 hole |
690 |
|
BSRPOZ 250 |
250 |
150 |
150 |
360° |
120° |
1×230V 50Hz |
0.37 |
0.18 |
0.4–4 |
30 |
600 |
20×M12 hole |
550 |
|
BSRPOZ 500 |
500 |
150 |
150 |
360° |
120° |
1×230V 50Hz |
0.37 |
0.25 |
0.2–2 |
45 |
700 |
20×M12 hole |
640 |
|
BSRPOZ 1000 |
1000 |
150 |
150 |
360° |
120° |
1×230V 50Hz |
0.55 |
0.55 |
0.15–1.5 |
60 |
1150 |
M16×4 T-slot |
1000 |
|
BSRPOZ 3000 |
3000 |
150 |
150 |
360° |
120° |
1×230V 50Hz |
1.1 |
0.75 |
0.1–1 |
90 |
1250 |
M16×4 T-slot |
1100 |
Featured Advantages
-
Wide usage area with 1000 kg carrying capacity
-
360° table rotation capability
-
Optimum working position with 120° tilt angle
-
Fast and safe clamping with T-slot table
-
Steel spur gear transmission mechanism
-
Precise speed control with remote control
-
Optional PLC integration
-
High strength, long service life and low maintenance requirement
