1000 kN Double Test Area Hydraulic Universal Testing Machine
| Brand | İbertest |
|---|---|
| Model Type |
IBMU2 Serisi |

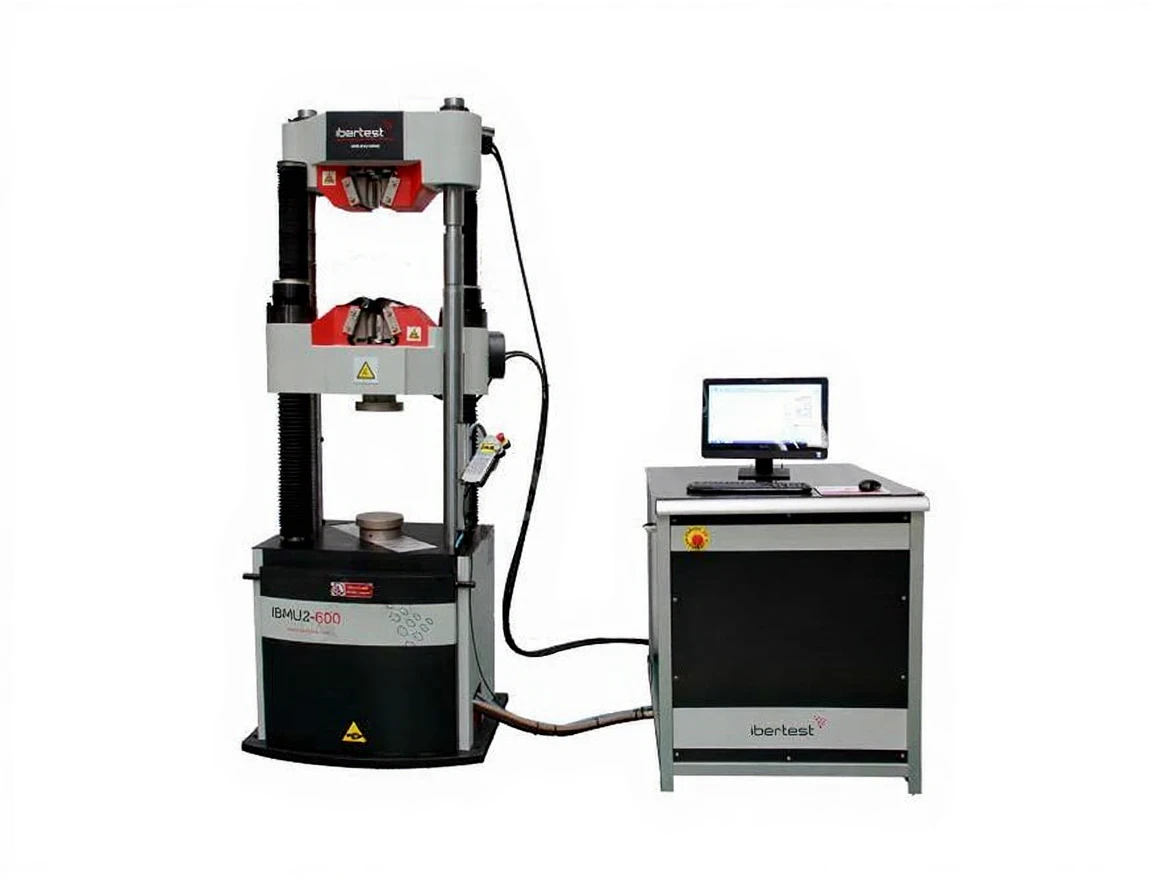

Ibertest IBMU2 Series 1000 kN Double Test Area Hydraulic Universal Testing Machine

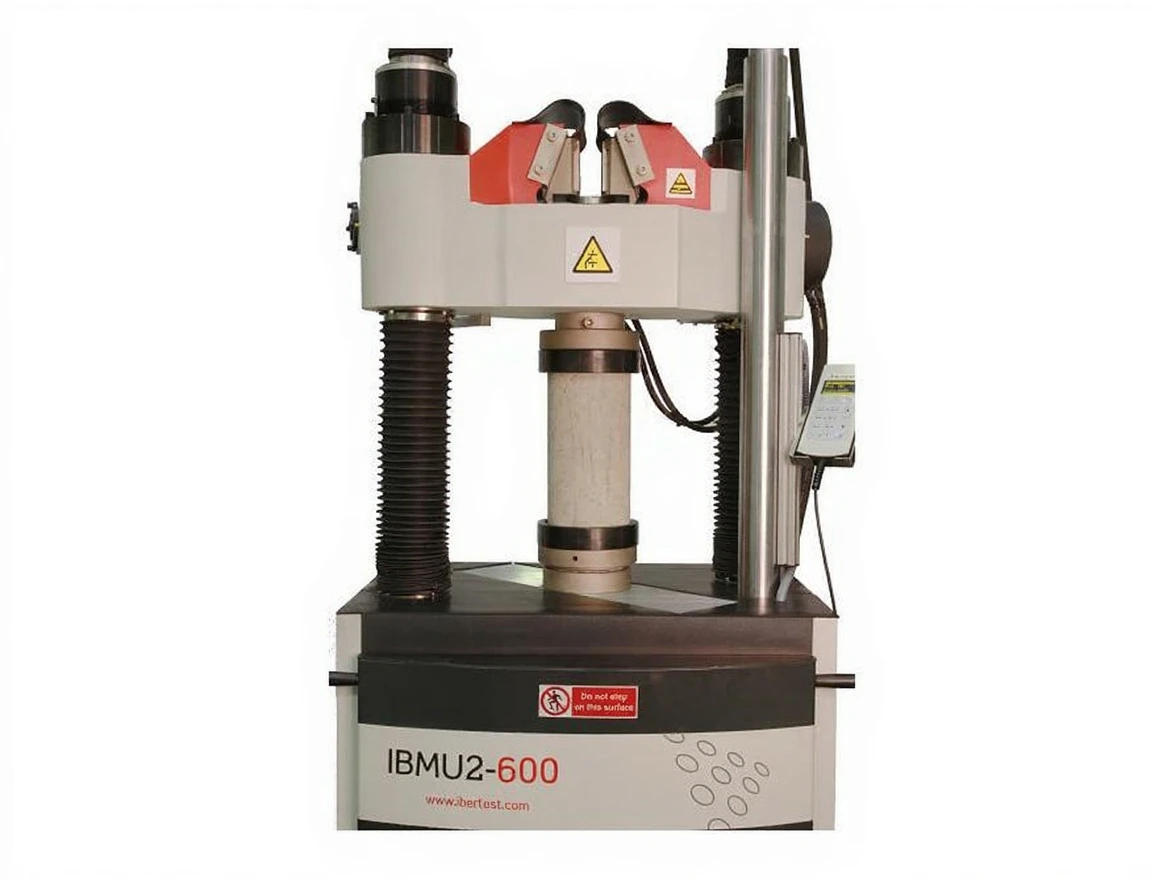

Double test area is ideal for varying users for quick tensile and compression tests, bending tests, etc. A test area is set up for the tensile test, and the second test area is configured for compression or bending tests, eliminating the need for changing test accessories over time.
Compact design allows testing of high capacities without excessive height in the laboratory.

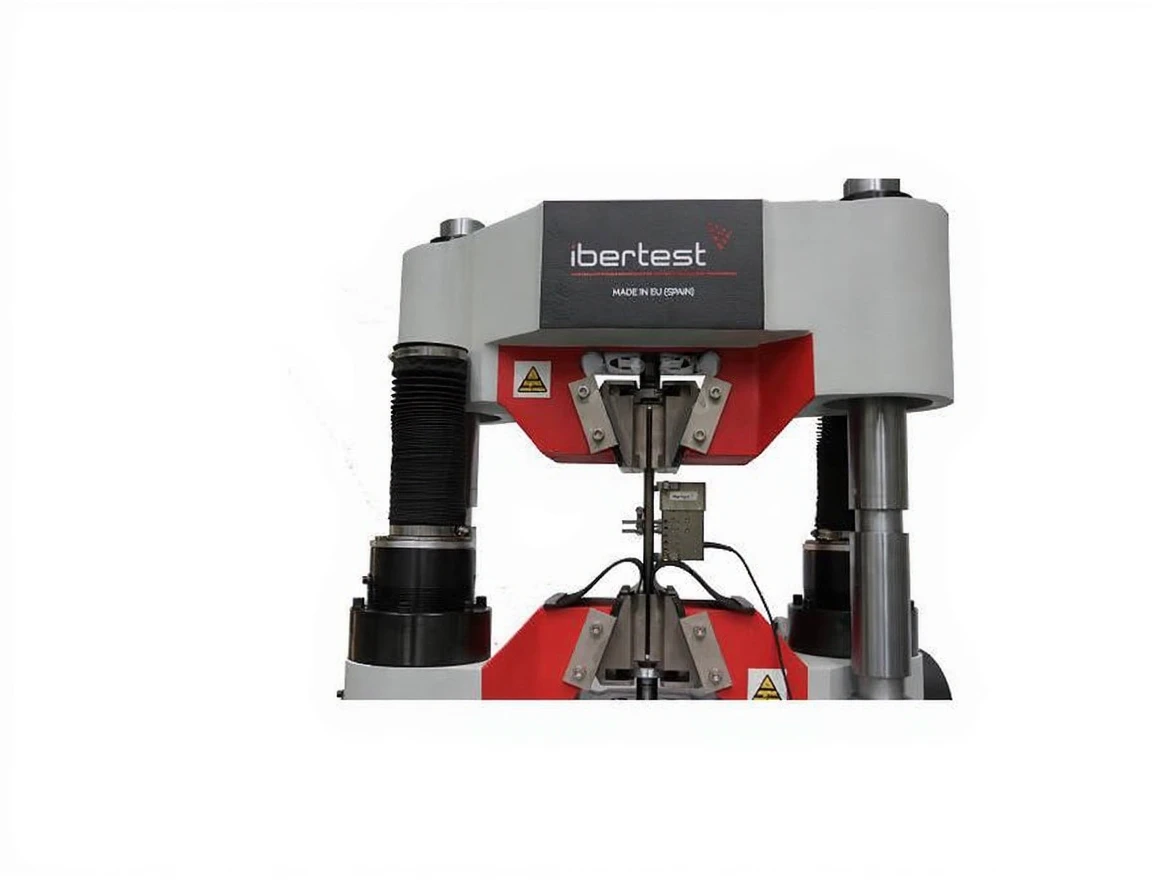

Hydraulic gripping heads embedded in the intermediate crossbar for remote control. Opening and closing of remote-controlled jaws and positioning of the intermediate crossbar.
|
MODEL |
IB-MU2-300 |
IB-MU2-600 |
IB-MU2-1000 |
|
Maximum load |
300 kN |
600 kN |
1000 kN |
|
Class according to ISO 7500-1 |
Class 0.5 |
||
|
Load measurement |
Strain-gage load cell |
||
|
Measurement range |
From 2% to 100% of the load cell nominal capacity |
||
|
Load resolution |
5 digits with floating point |
||
|
Load cell repeatability |
Better or equal to ± 0.05 % |
||
|
Columns nº (diameter) |
2 |
||
|
Screw drivers nº (diameter) |
2 |
||
|
Piston stroke |
250 mm |
||
|
Maximum loading speed |
80 mm/min |
50 mm/min |
|
|
[ URL HIDDEN ] between tensile gripping heads |
700 mm |
800 mm |
650 mm |
|
Max. distance between compression plates |
600 mm |
700 mm |
600 mm |
|
Displacement resolution |
0.001 mm |
||
|
Testing frame dimensions (mm) |
900 x 730 x 2265 |
905 x 730 x 2325 |
1070 x 850 x 2530 |
|
Testing frame approx. weight |
2000 kg |
2500 kg |
3300 kg |
|
Hydraulic workframe dimensions (mm) |
550 x 550 x 1410 mm |
||
|
Approx. weight of the hydraulic workframe |
100 kg |
||
|
Power supply |
Three-phase 380 V plus neutral and earth, 50/60 Hz (to specify) |
||
|
Safety |
Emergency stop button placed on the testing frame and on working table |
||

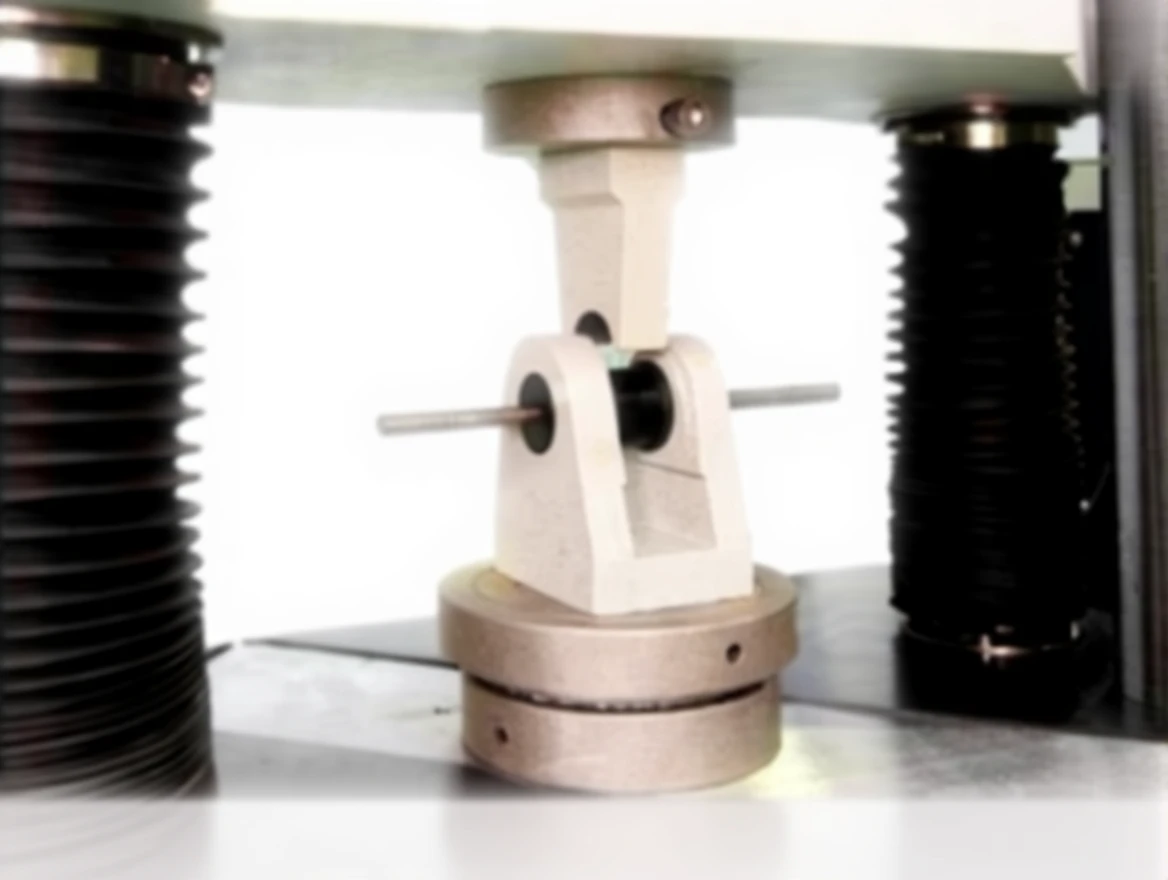

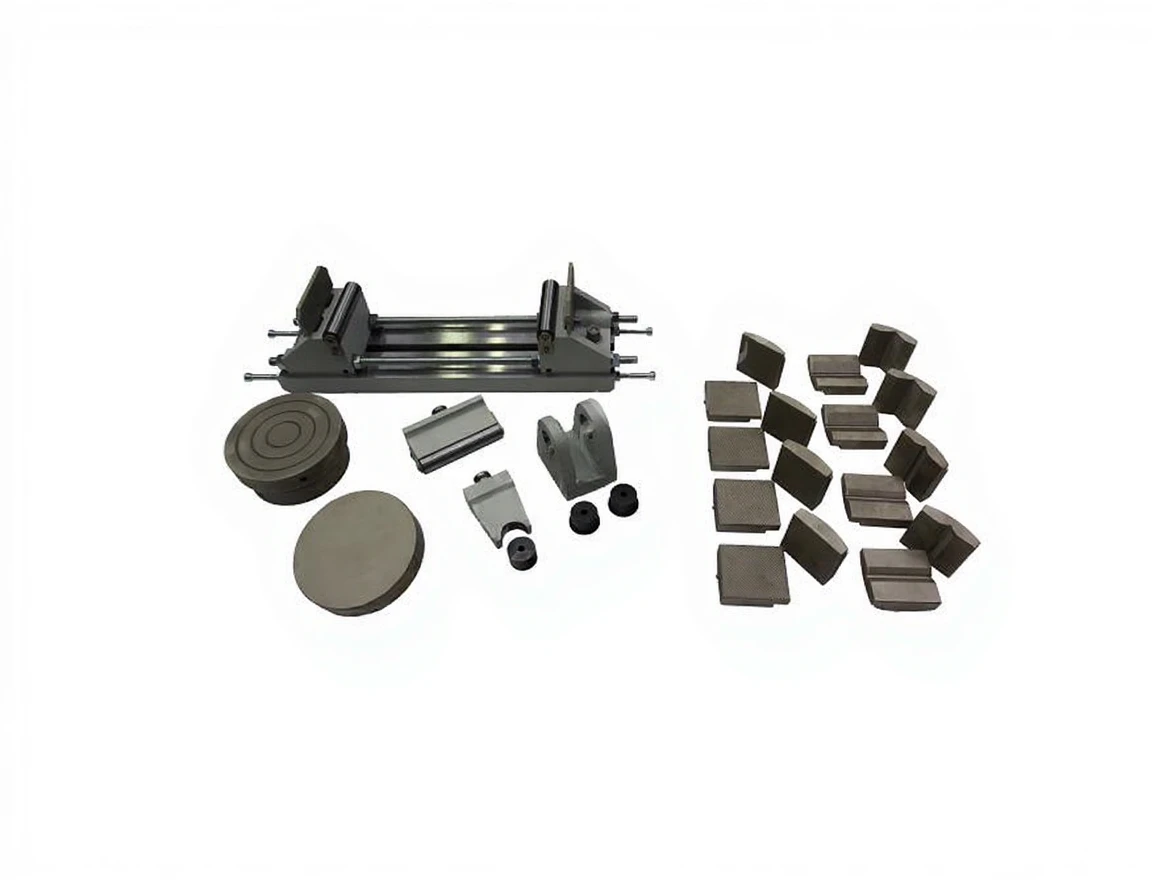

Includes bending and compression devices within standard feeding.
