1000 Liter Piston Air Compressor

SINGLE STAGE TYPES ARE DESIGNED FOR 8 BAR PRESSURE, TWO STAGE TYPES ARE DESIGNED FOR 12 BAR PRESSURE.

Option to start with monophase electric motors for types up to 4 kW power

Parts such as the compressor head, cylinder, valve and crank are cast.

Lubrication is provided with the help of a rod integrated into the connecting rod.

There is a mini ball valve integrated into the body that allows easy discharge of the compressor oil. A removable blind plug is installed at the outlet of this valve against the risk of oil discharge.

Air-cooled: Cooling is provided by intercoolers and post-coolers and the air flow created by the fan.

The oil condition can be easily monitored thanks to the sight glass integrated into the compressor head.

Pressure status is monitored with a manometer.

Operation control (idle-load operation) is provided by the pressure switch.

The system is secured against excessive pressure with the safety valve set to 1 bar for the compressor operating pressure.

The air filter element is placed in a plastic filter case that allows easy replacement.

The safety of the belt-pulley system is ensured by a closed enclosure in accordance with CE norms.

The compressor unit is mounted on the air tank and can also be mounted outside the tank.

A ball valve is installed at the air outlet of the air tanks. Additionally, a mini ball valve is used to drain condensate water under the tanks.

SAFETY SYSTEMS

• Solenoid relief valve for unloaded starting (on models above 7.5 kW)
• pressure switch
• check valve
• Belt-pulley guard
• Safety valve
• Manometer

Compressors are engine-powered machines used to compress air or other gases to higher pressures than atmospheric pressure.

In addition to providing air support in environments where compressed air is required, it is also used for cooling purposes in systems operating with ammonia.

The working system of the compressor is intended to use the air taken from outside by increasing it to high pressures. In addition to the advantages of compressed air, as the pressure level produced by the compressor increases, it causes an increase in electricity consumption and also an increase in the cost.

Nowadays, different types of compressors are used in businesses. Although piston compressors were common in the past, piston compressors are being replaced by screw compressors due to their noisy operation and the need for more air at pressure, as well as the working principle and efficiency. Screw compressors are easier to use and their efficiency is higher than piston compressors.

FACTORS TO BE CONSIDERED WHEN SELECTING A COMPRESSOR

• operating pressure
• Amount of air used
• Compressor type
• No-load power consumption

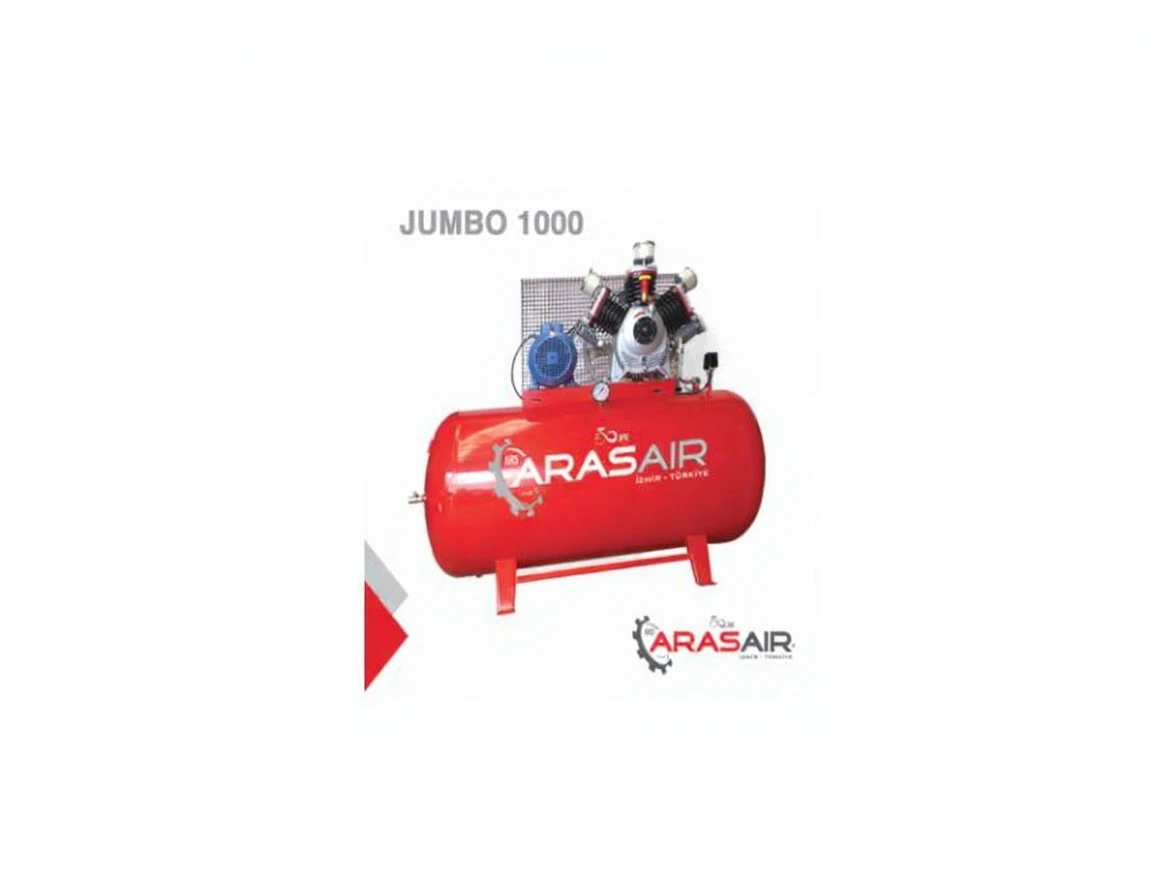

Aras Air Jumbo 1000 Technical Specifications

Aras Air Jumbo 1000With its high air suction capacity, durable structure and CE certification, it is an ideal solution to meet the air compressor needs in large industrial facilities. For businesses looking for safe use, high performance and efficiency, this model offers cost advantage and reliability together.
