1000-Liter Sponge Drying Horizontal Glass Washing Machine

Brand

Model Type

GM-1000S

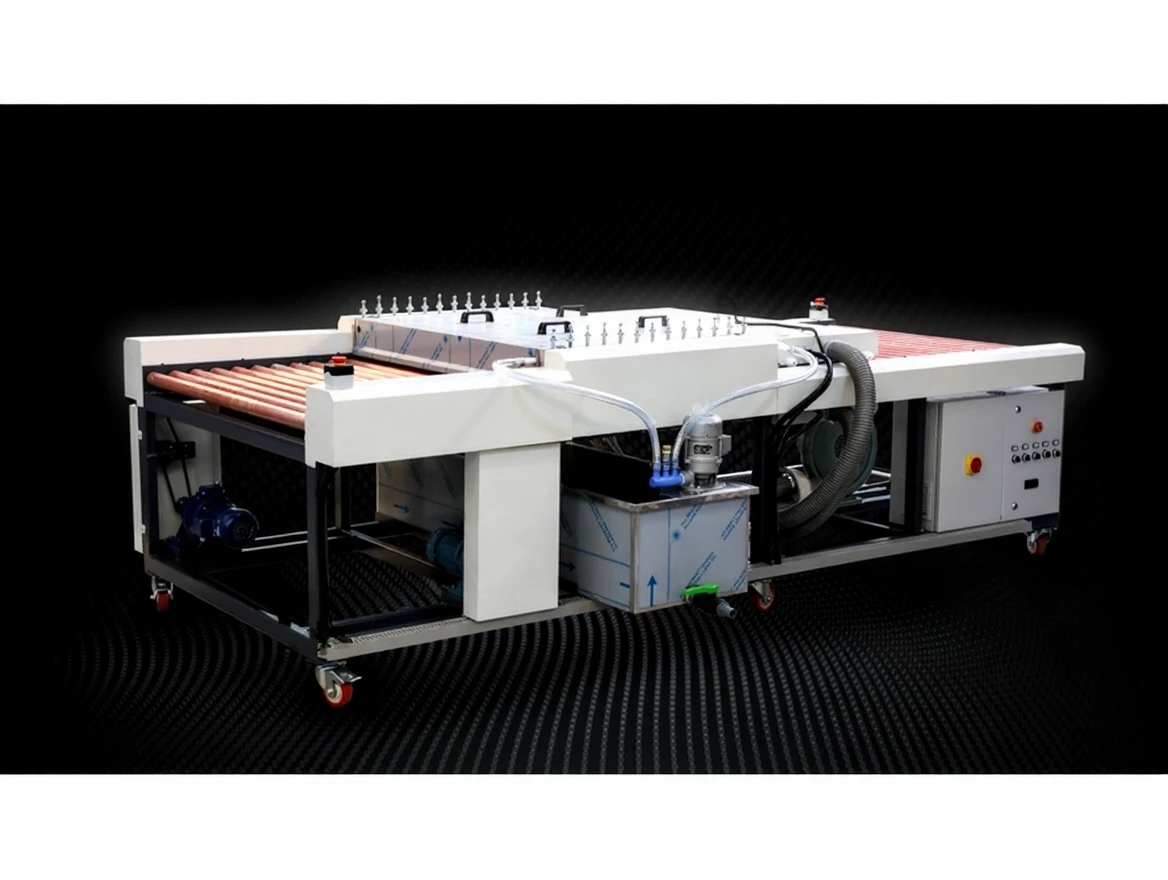

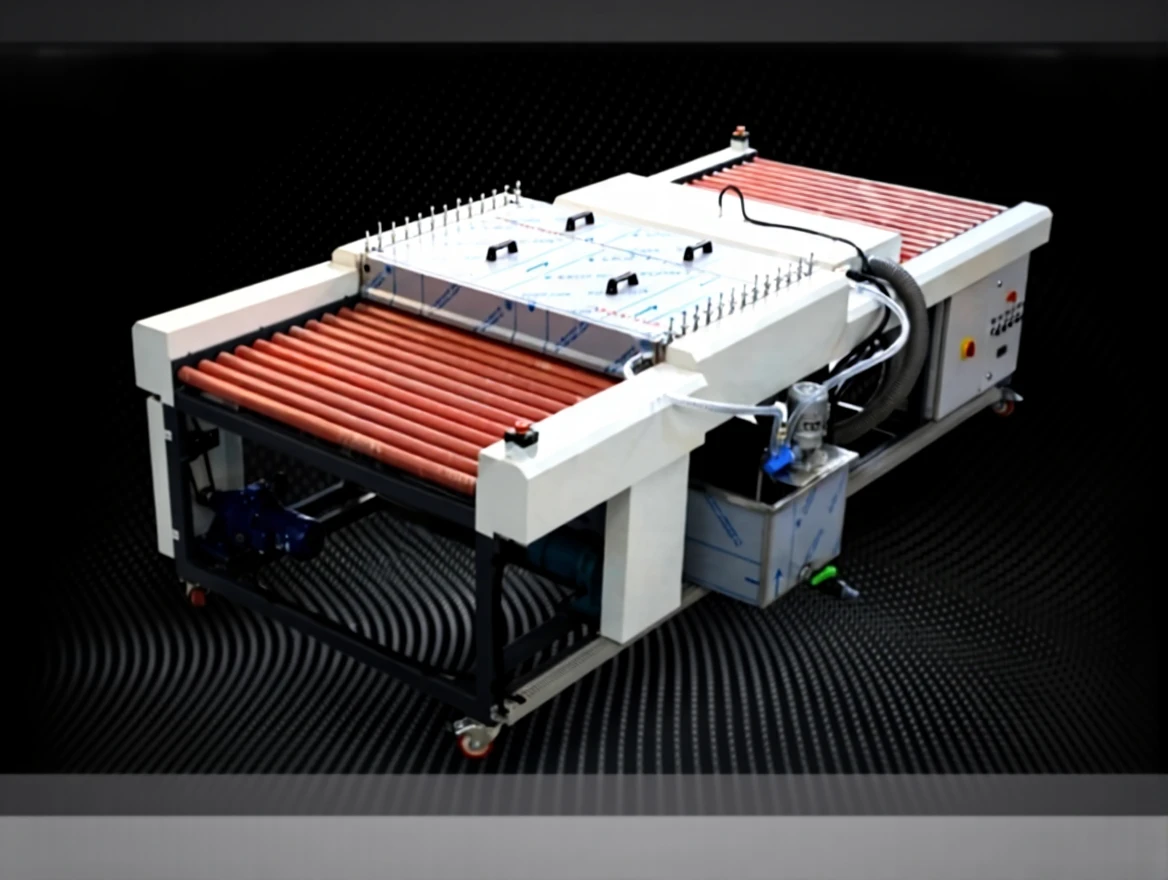

Girmaksan GM-1000S 1000-Liter Horizontal Glass Washing Machine

The 1000-liter Horizontal Glass Washing Machine is a special glass washing machine used for washing and drying flat and mirror glass. It consists of glass loading, pre-washing brushing, clean water rinsing, sponge stick water suction, cold/hot air drying, and exit conveyor sections. All surfaces in contact with water are made of stainless material. The conveyor belt speed is adjustable by the driver.

The horizontal glass washing machine is a special glass washing machine used for washing and drying flat and mirror glasses. It consists of glass loading, pre-washing brushing, clean water rinsing, sponge stick water suction, cold/hot air drying, and exit conveyor parts. All surfaces in contact with water are made of stainless material. The conveyor belt speed is adjusted by the driver.

TECHNICAL DETAILS	GM-600S	GM-800S	GM-1000S	GM-1200S	GM-1400S	GM-1600S
Working Speed	0.5-5 M/min.	0.5-5 M/min.	0.5-5 M/min.	0.5-5 M/min.	0.5-5 M/min.	0.5-5 M/min.
Max. Glass Width	600 mm	800 mm	1000 mm	1200 mm	1400 mm	1600 mm
Min. Glass Width	50 mm	100 mm	100 mm	150 mm	180 mm	200 mm
Glass Thickness Range	2-4 mm	3-6 mm	3-6 mm	3-8 mm	3-8 mm	3-10 mm
Brush Part Count & Diameter	8 pcs./40 mm	8 pcs./60 mm	8 pcs./60 mm	8 pcs./70 mm	8 pcs./80 mm	8 pcs./80 mm
Sponge Part Count & Diameter	6 pcs./40 mm	6 pcs./55 mm	6 pcs./55 mm	8 pcs./55 mm	8 pcs./70 mm	8 pcs./70 mm
Total Power	8.5 kw	8.5 kw	8.5 kw	11.5 kw	11.5 kw	11.5 kw
Machine Dimensions (W) – (L) – (H)	100018501100 mm	125028501150 mm	145028501150 mm	165035001200 mm	185035001200 mm	235045001200 mm
Machine Weight	600 kg	680 kg	750 kg	900 kg	1050 kg	1200 kg
Air Heater
Blower
Water Filter

Brand	Girmaksan
Model Type	GM-1000S

Category: Glass Processing Machines

Description

TECHNICAL DETAILS	GM-600S	GM-800S	GM-1000S	GM-1200S	GM-1400S	GM-1600S
Working Speed	0.5-5 M/min.	0.5-5 M/min.	0.5-5 M/min.	0.5-5 M/min.	0.5-5 M/min.	0.5-5 M/min.
Max. Glass Width	600 mm	800 mm	1000 mm	1200 mm	1400 mm	1600 mm
Min. Glass Width	50 mm	100 mm	100 mm	150 mm	180 mm	200 mm
Glass Thickness Range	2-4 mm	3-6 mm	3-6 mm	3-8 mm	3-8 mm	3-10 mm
Brush Part Count & Diameter	8 pcs./40 mm	8 pcs./60 mm	8 pcs./60 mm	8 pcs./70 mm	8 pcs./80 mm	8 pcs./80 mm
Sponge Part Count & Diameter	6 pcs./40 mm	6 pcs./55 mm	6 pcs./55 mm	8 pcs./55 mm	8 pcs./70 mm	8 pcs./70 mm
Total Power	8.5 kw	8.5 kw	8.5 kw	11.5 kw	11.5 kw	11.5 kw
Machine Dimensions (W) – (L) – (H)	100018501100 mm	125028501150 mm	145028501150 mm	165035001200 mm	185035001200 mm	235045001200 mm
Machine Weight	600 kg	680 kg	750 kg	900 kg	1050 kg	1200 kg
Air Heater
Blower
Water Filter
