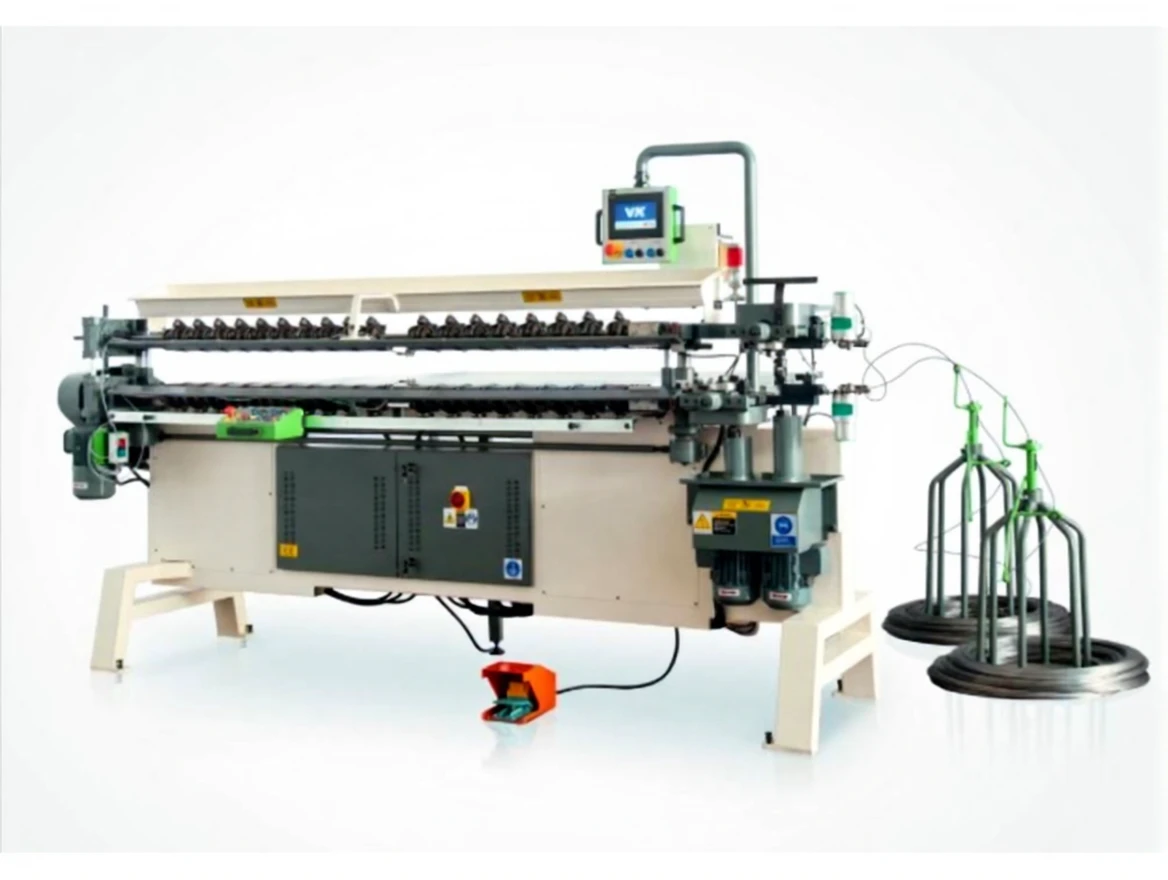

1000 Mm Bonel Mattress Spring Stitching Machine
| Brand | Veysel Kütüklü |
|---|---|
| Model Type |
VKD 1000 |
Veysel Kütüklü VKD 1000
1000 mm Bonel Mattress Spring Stitching Machine
VKDx Series Outstanding Features
VKDx machines, accepted as the new standard of bonel stitching machines, are designed to achieve the highest efficiency in bonel carcass production. The automatic lubrication system, easy transition to different carcass widths, and precise encoder system provide you with the best experience in all types of bonel carcass production.
The VKDx Series, made with the highest quality materials in every detail, has a simple and robust machine structure.
Outstanding Features
Automatic Lubrication System
+ The automatic lubrication system provides periodic lubrication at two points on the machine
+ Lubrication of the wire feeding roller ensures smooth feeding of the spiral wire into the machine
+ Time intervals for periodic lubrication can be easily adjusted from the screen
Precise Encoder System
+ The length of the spiral wire is measured with maximum precision
+ The system gives a warning signal when the wire is tight
Carcass Width Easily Changed
+ Transition between different carcass widths is achieved in a very short time
Transparent Production Quantity Control
+ The production tracking counter shows the daily production quantities of bonel carcasses
Easy Use with Touch Screen
+ The user-friendly touch screen provides the best experience for the machine operator
Additional Jaws for Tighter Carcasses
+ Additional jaws can be added to increase the number of springs in the carcass
+ The maximum jaw capacity is 25
+ The machine has 18 jaws as standard
VKD Series Automatic Bonel Stitching Machine
Outstanding Features of VKD Series
The VKD Series is a machine used by mattress and carcass manufacturers for the bonel spring stitching process.
These machines are designed to achieve the highest efficiency in bonel carcass production. Easy transition to different carcass widths and user-friendly touch screen provide the best experience in all types of bonel carcass production.
The VKD Series has a simple design and robust structure with the highest quality materials used in every detail.
Outstanding Features
Easy Use with Touch Screen
+ The user-friendly touch screen provides the best experience for the machine operator
Carcass Width Easily Changed
+ Transition between different carcass widths is achieved in a very short time
Transparent Production Quantity Control
+ The production tracking counter shows the daily production quantities of bonel carcasses
Additional Jaws for Tighter Carcasses
+ Additional jaws can be added to increase the number of springs in the carcass
+ The maximum jaw capacity is 25
+ The machine has 18 jaws as standard
Carcass Width Easily Changed
+ Transition between different carcass widths is achieved in a very short time
Veysel Kütüklü VKD 1000 Technical Information
|
|
VKD 1000/x |
VKD 1800/x |
VKD 2000/x |
|
Spring Type |
Bonel |
Bonel |
Bonel |
|
Performance (Approx) |
28,500 springs / 8 hours |
28,500 springs / 8 hours |
28,500 springs / 8 hours |
|
Spring Outer Diameter |
70 mm – 96 mm |
70 mm – 96 mm |
70 mm – 96 mm |
|
Spring Middle Diameter |
40 mm – 55 mm |
40 mm – 55 mm |
40 mm – 55 mm |
|
Spring Height |
75 mm – 200 mm |
75 mm – 200 mm |
75 mm – 200 mm |
|
Wire Diameter |
1.9 mm – 2.4 mm |
1.9 mm – 2.4 mm |
1.9 mm – 2.4 mm |
|
Spiral Wire Diameter |
1.3 mm – 1.4 mm |
1.3 mm – 1.4 mm |
1.3 mm – 1.4 mm |
|
Working Width |
1000 mm |
1800 mm |
2000 mm |
|
Standard Jaw |
7 |
16 |
18 |
|
Maximum Jaw |
10 |
17 |
23 |
|
Power Consumption |
Approximately 3.5 kW |
Approximately 3.5 kW |
Approximately 3.5 kW |
|
Power Requirement |
Three-phase 380V Frequency: 50-60 Hz, Input Fuse: 63 A Cable: 4 x 4 mm² |
Three-phase 380V Frequency: 50-60 Hz, Input Fuse: 63 A Cable: 4 x 4 mm² |
Three-phase 380V Frequency: 50-60 Hz, Input Fuse: 63 A Cable: 4 x 4 mm² |
|
Working Temperature |
0° C – 40° C |
0° C – 40° C |
0° C – 40° C |
|
Weight |
Approximately 750 kg |
Approximately 1,050 kg |
Approximately 1,150 kg |
|
Wire Basket Capacity |
2×500 kg |
2×500 kg |
2×500 kg |
|
Machine Dimensions (LxWxH) |
250 x 240 x 190 cm |
330 x 240 x 190 cm |
350 x 240 x 190 cm |
|
Control System |
Mitsubishi PLC Control System |
Mitsubishi PLC Control System |
Mitsubishi PLC Control System |
