Ø1000 mm Concrete Chimney and Base Machine
| Brand | Yontar |
|---|---|
| Model Type |
YBTA – 600 |
Yontar YBTA 600 Ø1000 mm Concrete Chimney and Base Machine
Yotar YBTA – 600 Product Details
-
Prefabricated chimney base machine; It consists of vibration table, chimney base inner and outer molds, inlet and outlet pallets, fiber caps and concrete conveyor bunkers.
-

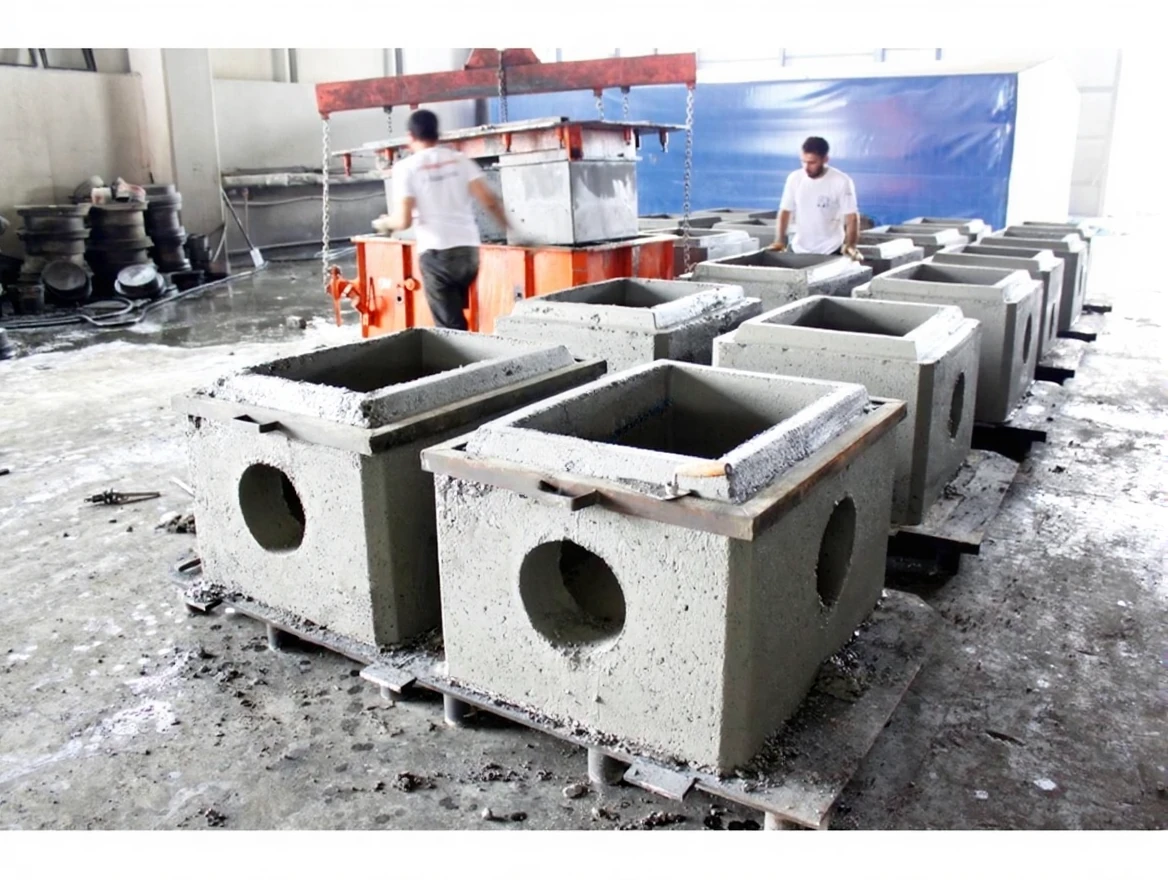

The chimney bases produced by this machine are manufactured to provide a sealed fit into 1000 and 1200 mm diameter concrete chimneys.
-
Prefabricated chimney base machines with various diameters in four directions provide fast and economical production with easy production technique.
-
The vibrator table is level-adjusted in the vertical direction.
-

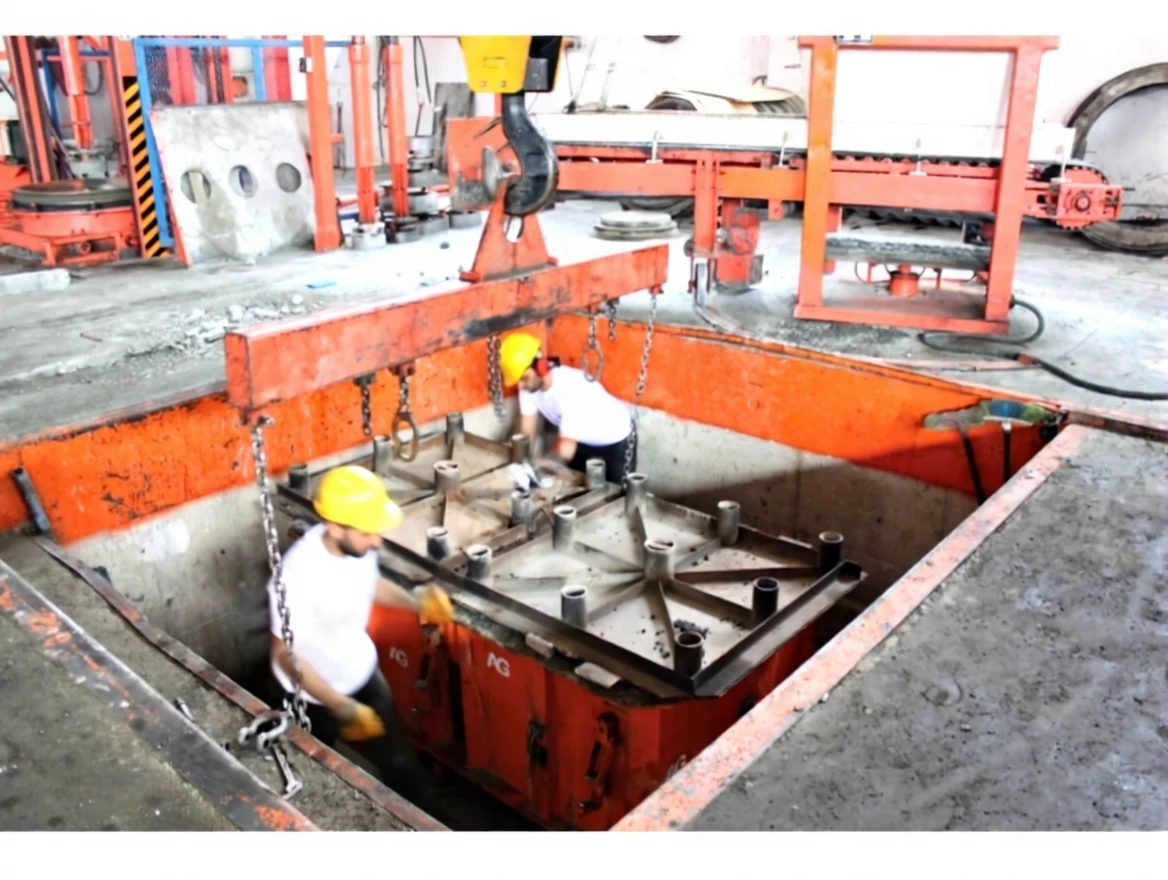

The inner and outer molds are first locked together and then locked onto the table and filled with the seating surface of the base element (wide side).
-
Inner molds are made of fiber material of sufficient strength.
Yontar YBTA – 600 Technical Details
|
Table size |
1650mm x 1650mm x 30mm |
Number of vibrators |
2 pieces |
||
|
vibrator motor |
2 x 4 Kw |
Concrete delivery bunker capacity |
1600 liters |
||
|
Concrete conveyor bunker electric motor power |
4 Kw |
Total electric motor power |
12 Kw |
||
