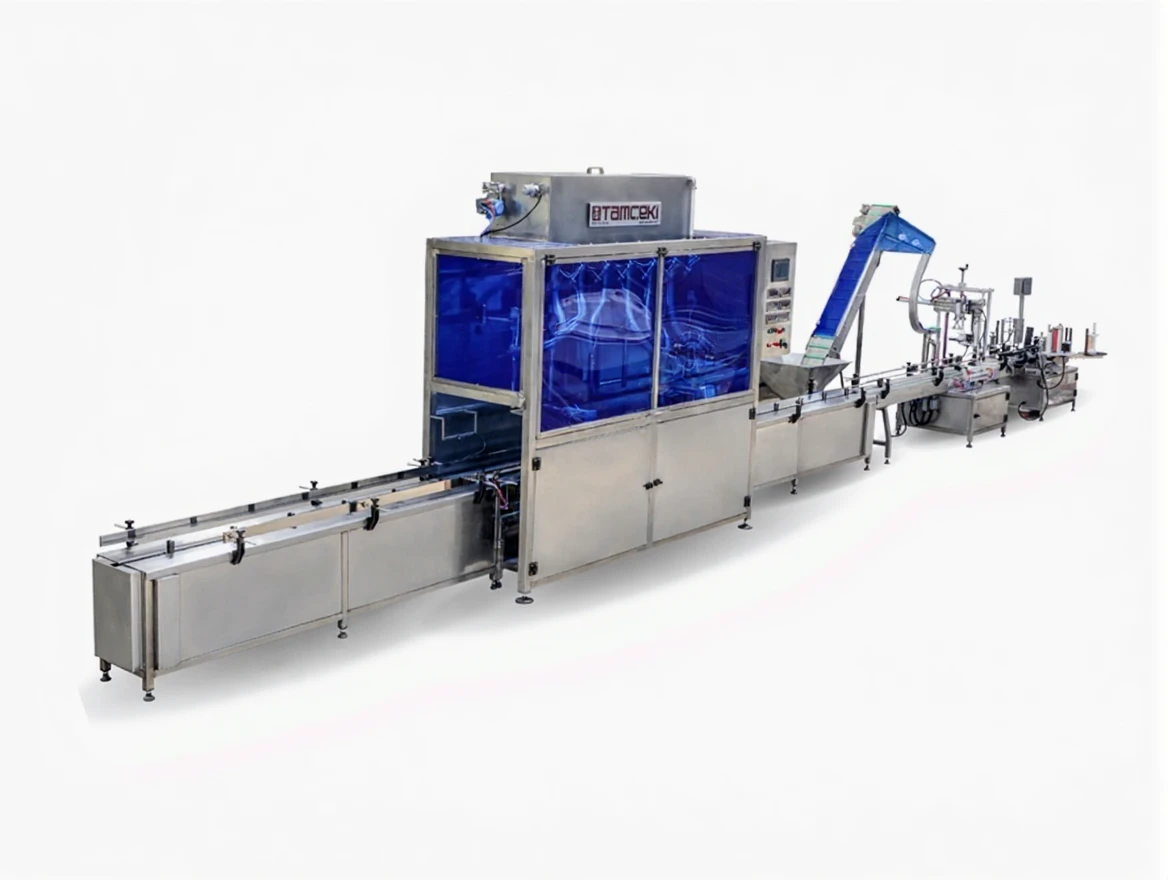

1000 Pieces/Hour Automatic Can Filling Machine

Complete T8/PRO 1000 Pieces/Hour Automatic Can Packaging Filling Machine

Model T/PRO Series; Used in the food industry for products such as olive oil, sunflower oil, soybean oil, corn oil, turnip juice, and lemon juice, and in industrial environments for filling products like paint, thinner, varnish, various mineral oils, chemical liquids, liquid soap, etc.

AUTOMATIC CAN FILLING MACHINE TECHNICAL SPECIFICATIONS

• The conveyor chassis is made of 304 Cr. material.

• The conveyor is driven by a 1.5 HP motor with a reducer.

• The guardrails are made of 304 Cr. material and can be adjusted in width.

• The material property does not change during filling.

• 50 kg load cells are used on the weighing platforms.

• There is a weighing platform for each filling nozzle.

• There is one cap closing unit that operates with pneumatic impact.

• PLC and filling indicator are placed inside a panel.

• The filling indicator can be set from 3 kg to 30 kg.

• The maximum error rate of the measurement system varies between ± 5 gr. and ± 20 gr.

• The minimum division of the measurement system is 10 gr.

• The operational air pressure of the machine is 6-8 atmospheres.
