1000 Plate Dishwashing Machine

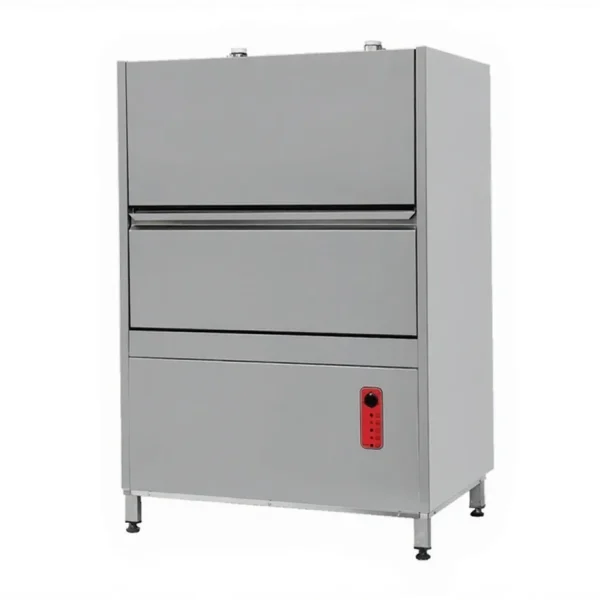

Portabianco PBW1000 Guillotine Type Dishwasher

• Aesthetic design,
• Body made of stainless steel,
• Easy to use control panel,
• Special lid and spring design,
• 82°C rinse water fixed for hygienic washing with 9 kW boiler resistance,
• 3 liters of water consumption in each wash,
• Specially designed washing and rinsing arm for best washing,
• Special alloy plastic parts,
• 3 programs (Short 90 sec, Medium 120 sec, Long 180 sec),
• Desired dish washing cleanliness with specially designed waste water drainage system,
• Low spare part cost.

Technical Specifications

• Capacity: 40 Baskets/Hour
• Width: 718 mm
• Depth: 793 mm
• Max. Height: 1929 mm
• Basket Size: 500×500 mm
• Number of Basket Plates: 18 pieces
• Open Lid Height: 420 mm
• Noise Level <70 db
• Number of Programs: 3 pieces
• Short Washing Program P1: 90 seconds
• Medium Washing Program P2: 120 seconds
• Long Washing Program P3: 180 seconds
• Water Entry Diameter: 1/2"
• Water Entry Pressure: 2-4 bar
• Rinse Water Consumption: 3 liters
• Operating Electric Voltage: 380-415 V
• Operating Electric Frequency: 50 Hz
• Max. Power: 14.1 kW
• Boiler Resistance: 4.5 kW
• Boiler Capacity: 9 kW
• Washing Motor Power: 0.7 kW
• Washing Pump Flow Rate: 356 lt/min
• Tank Capacity: 45 liters
• Boiler Capacity: 7 liters
• Washing Water Temperature: 55&deg;C
• Rinse Water Temperature: 82&deg;C
• Net Weight: 80 Kg
• Gross Weight: 115 Kg
