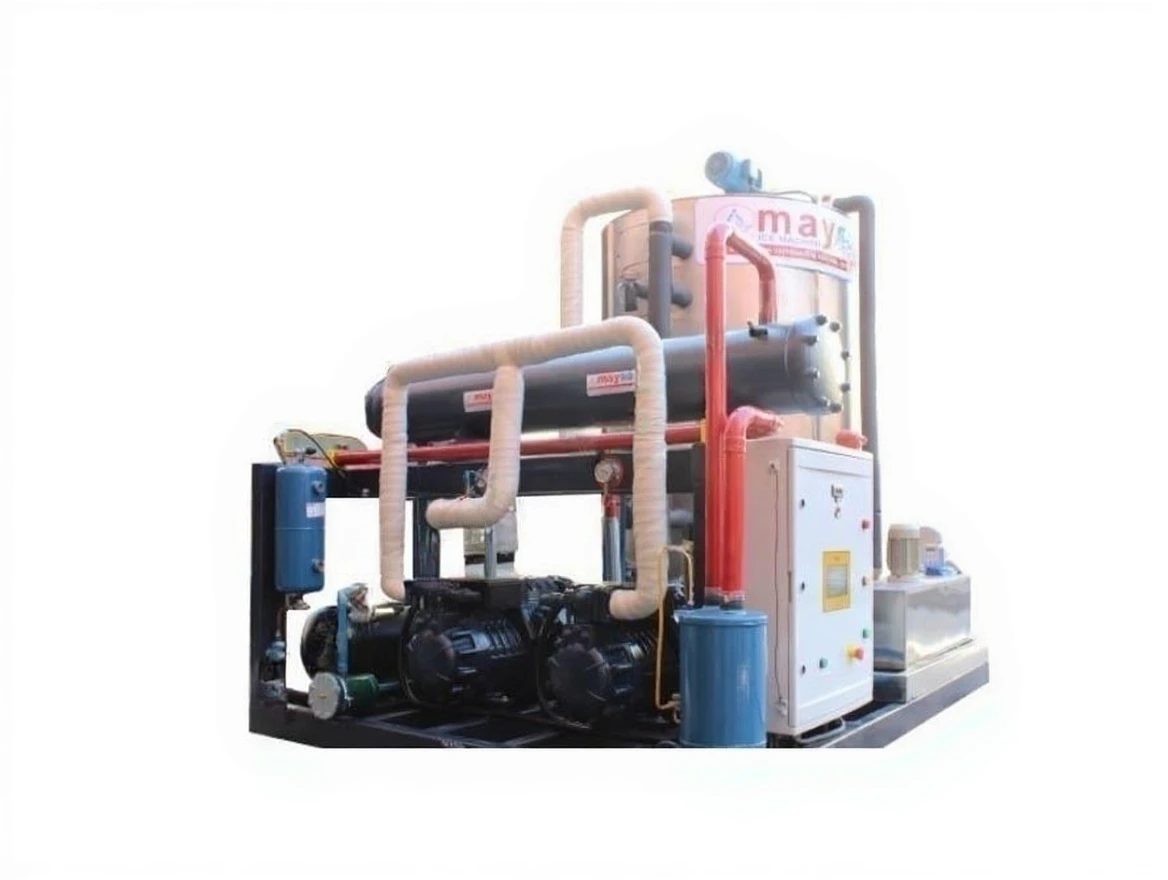

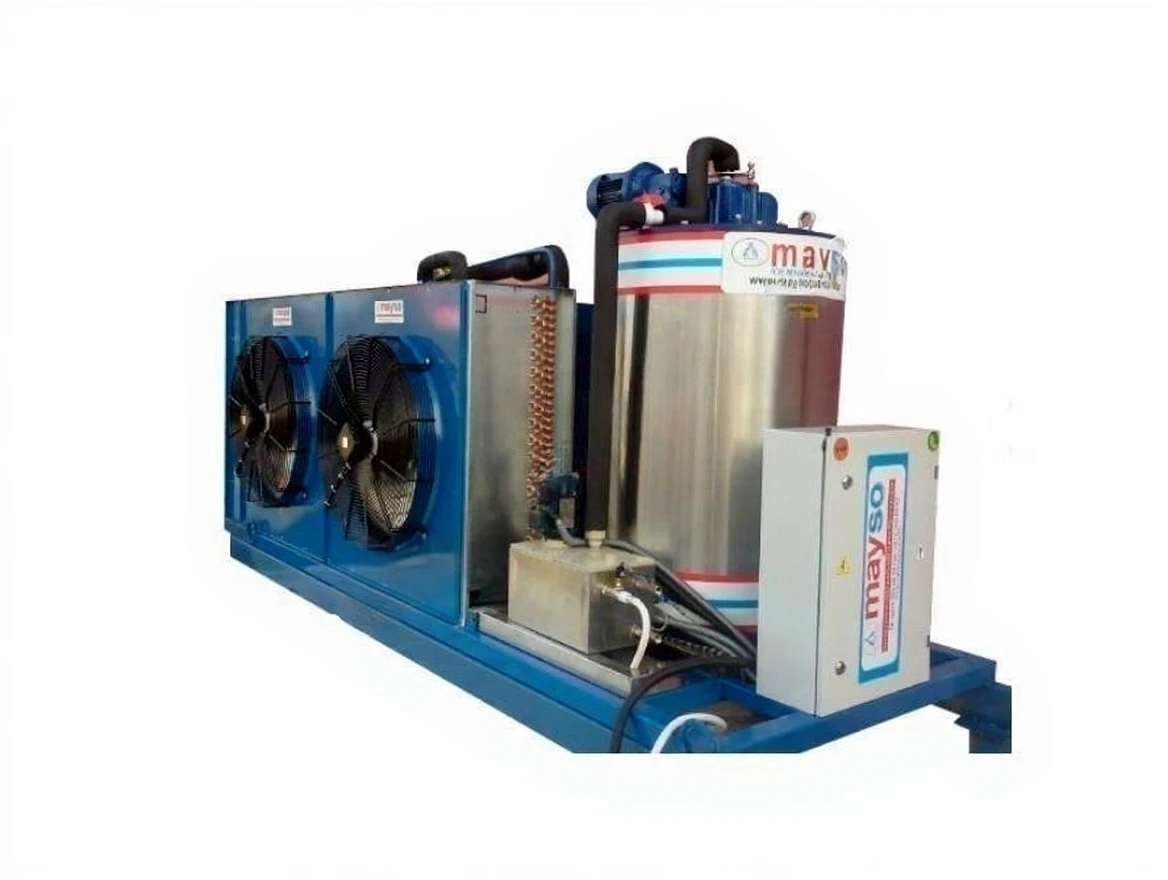

10,000 Kg / Day Fresh Water Flake Ice Machine
| Brand | Mayso Soğutma |
|---|---|
| Model Type |
MYBZ-FW / 10 T |
10,000 Kg / Day Fresh Water Flake Ice Machine
Produced by Mayso Cooling, the MYBZ-FW / 10 T model offers a high-efficiency and durable solution with a daily capacity of 10,000 kg for Fresh Water Flake Ice Machine. This machine, which operates with fresh water, continues to work with excellent efficiency despite challenging weather conditions and tropical climate conditions.
Features:
-
High Capacity: An ideal solution for medium-sized enterprises with a 10,000 kg/day ice production capacity.
-
Climate Compatible Performance: Efficient operation in all weather conditions, including hot climates.
-
Efficient Ice Production: Provides energy savings with high efficiency.
-
Vertical and Horizontal Evaporator Options: Flexible solutions with vertical and horizontal evaporators according to needs.
-
Operation with Fresh Water: Ice production with fresh water is cost-effective and environmentally friendly.
Technical Specifications:
-
Capacity: Production capacity between 500 kg and 10,000 kg/day
-
Ice Type: Flake Ice (Crushed Ice)
-
Water Type: Operation with fresh water
-
Evaporator Type: Vertical and horizontal type options are available.
Advantages:
-
Efficiency: Provides energy savings thanks to high-efficiency production technology, reducing operating costs.
-
Tropical Climate Performance: Offers high performance even in hot and humid climate conditions.
-
Capacity Options: Offers suitable solutions for every need with optional capacity options between 500 kg and 30,000 kg.
-
Durability: Ensures trouble-free and long-lasting use thanks to quality materials and long-lasting design.
Areas of Use:
-
Food Industry: Safe ice production in cooling, food processing, and transportation operations.
-
Medical and Pharmaceutical Fields: Used in sectors requiring high reliability for cooling processes.
-
Industrial Cooling and Storage: Suitable for meeting high-capacity cooling needs.
Fresh Water Flake Ice Machines meet the needs in the industry with wide capacity options and durable structure. It offers customized solutions according to needs with flexible production capacity between 500 kg and 30,000 kg. You can contact us for detailed information and offers.
Mayso Cooling MYBZ-FW / 10 T Technical Specifications
|
Machine Model |
MYBZ-FW / 10 T |
|---|---|
|
Daily Ice Capacity |
10,000kg / 24h |
|
Cooling Capacity |
51,800 Watt |
|
Refrigerant |
R404A |
|
Compressor Type |
Semi-Hermetic |
|
Total Power Consumption |
34 kW |
|
Compressor Power |
29 kW |
|
Condenser Fan Power |
4 kW |
|
Reducer Power |
0.75 kW |
|
Water Pump Power |
0.18 kW |
|
Dosage Pump Power |
0.016 kW |
|
Energy Input |
380V/50Hz/3P |
|
Total Current Draw |
60 A |
|
Cooling Type |
Air-Cooled |
|
Evaporator Channel |
Spiral channel |
|
Evaporator Temperature |
-20°C |
|
Condenser Temperature |
45°C |
|
Ice Output Temperature |
-4 / -8 °C |
|
Ice Thickness |
1.5-2.2mm |
|
Water Supply Pressure |
0.1Mpa-0.5Mpa |
|
Water Inlet Pipe Diameter |
1″ |
|
Operating Ambient Temperature |
25°C |
|
Water Inlet Temperature |
20°C |
|
Evaporator Unit Weight |
1,150 kg |
|
Evaporator Unit Dimensions |
1750×1280*1740 |
|
Machine Operating Water Type |
FRESH WATER |
