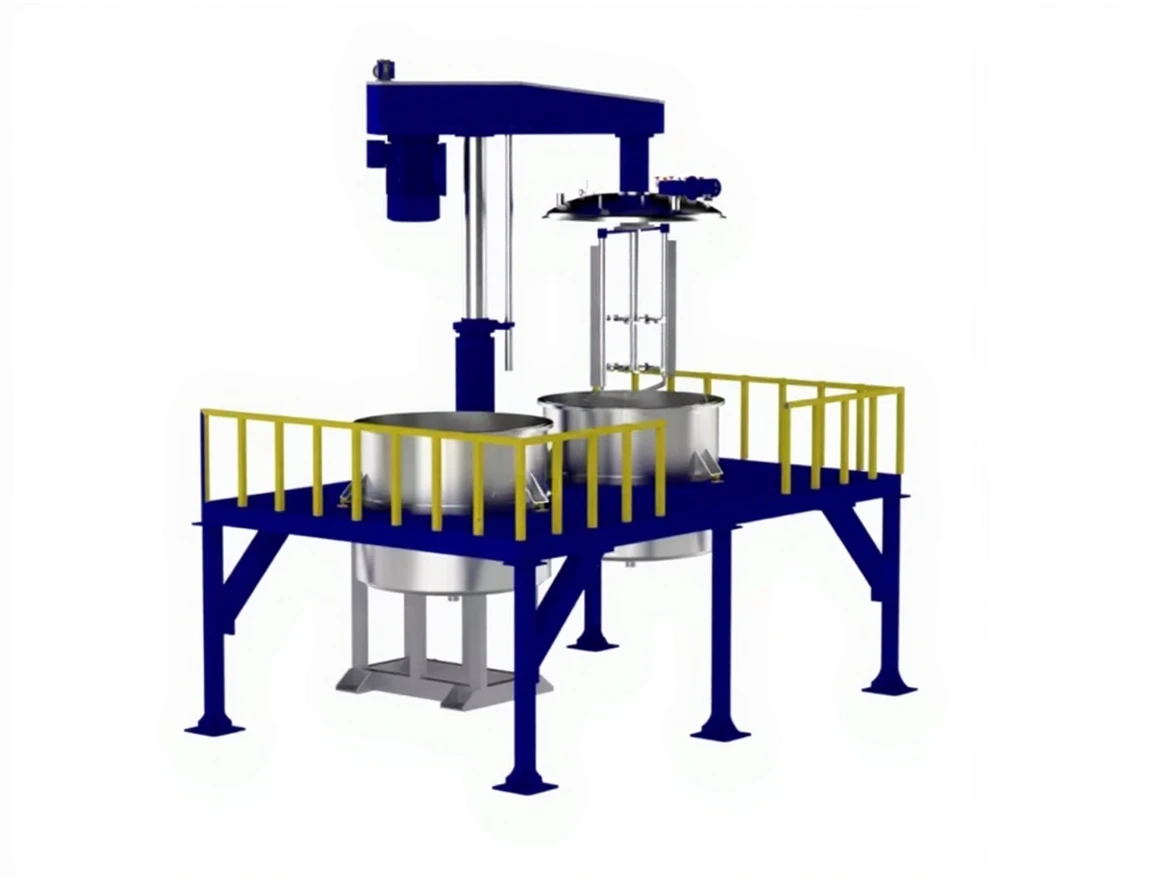

10,000 Lt Platform Type Paint Mixer

İtas Machine DPD10000: 10,000 Lt Platform Type Paint Mixer

The machine has a hydraulic lift and descent feature and allows for fully automatic, stepless speed change via a frequency inverter. It offers mixing capability at the desired height during the lift and descent. The mixing shaft and paddle of the machine are made from AISI 304 stainless steel, ensuring durability and long service life. The initial start-up speed is always set to 100 rpm or can be adjusted to a desired speed. The low start-up speed is important for the overall machine design and electrical safety, and necessary safety measures are in place. The mixing speed can be increased by turning the button, if desired.

Applications:

These machines are used especially where dispersion and homogeneous mixing are required. Solvents suitable for different viscosities are effective in the production of paints, inks, varnishes, pigment paste, and petrochemical products.

Variable Speed:

In addition to mono speed, the speed is also controlled by a frequency inverter. The mixing rotation is set to 0 rpm – 1500 rpm as per standard factory settings.

Hydraulic Lifting:

The machine can mix at any desired height. The electro-hydraulic system on the body structure facilitates operations and ensures safety. Some models can rotate 360 degrees and serve surrounding tanks.

Optional Features for Safer and More Efficient Operations:

• ATEX Zone 1 EEx dIIB T4 Explosion-Proof Systems: Meets industrial safety standards.
• Vacuum Application: Reduces environmental impact, making operations cleaner and more efficient.
• Tank Scraper: Improves product quality and ensures more homogeneous mixing of materials.
• Semi or Fully Automatic Control System: Provides more consistent process control.
• PLC Control System: Automates precise operations and provides more control.
• Automatic Lifting and Lowering System Based on Product Level in the Tank: Increases operational efficiency.
• Speed Control: Provides a more precise and controllable mixing process.

İtas Machine DPD8000 Technical Specifications:

Model: DPD10000
Max. Volume (Lt.): 10000
Operating Speed (rpm): 600
Main Motor (Kw): 250
