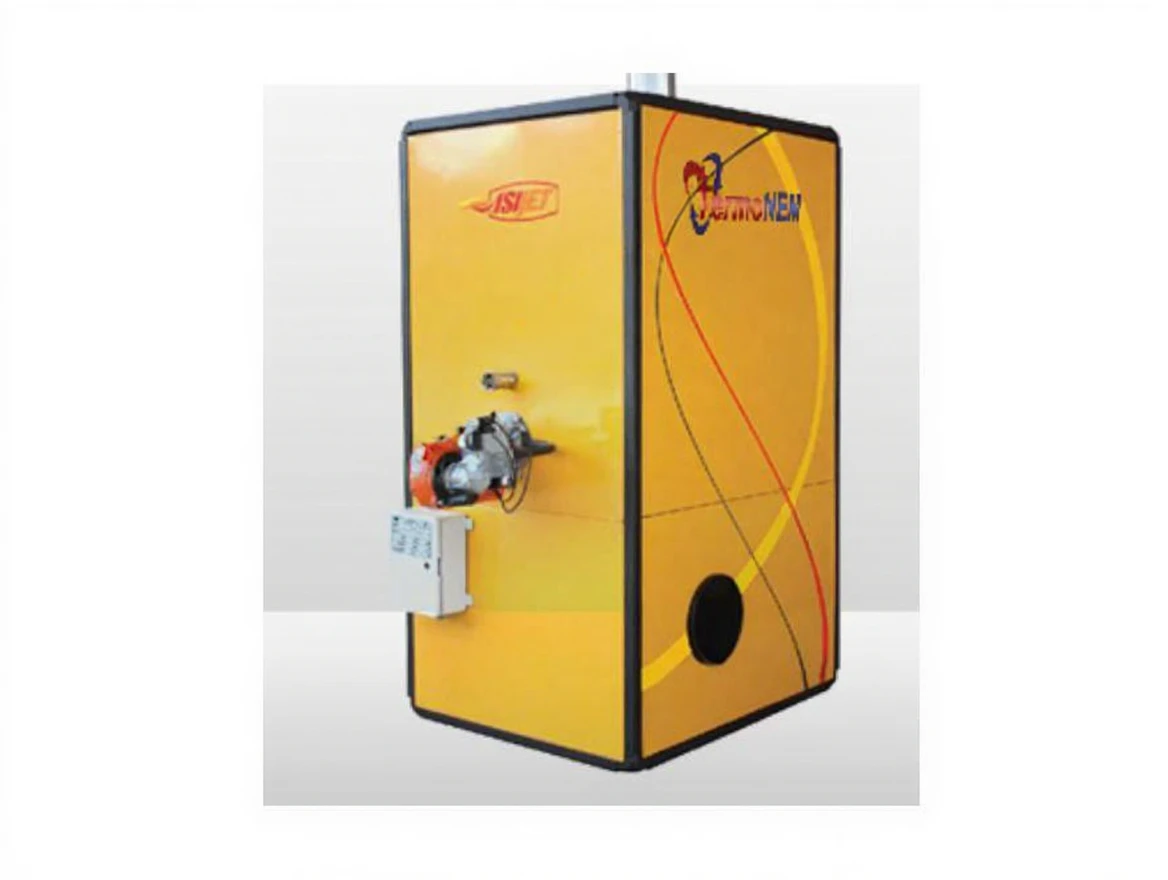

100,000 kCal/h External Burner Hot Air Generator

Brand

Model Type

RX 100

100,000 kCal/h External Burner Hot Air Generator

Termonem RX 100 Features

Simple installation and fuel connection
Instant hot air production
Gas or liquid fuel burner system
High volume radial fan
Safety flame and overheat control
Electronic and automatic ignition system
High heat insulation on all devices
Safety and fan thermostats
Combustion boiler and exchanger made of high-quality stainless steel
Automatic cooling of the combustion boiler after combustion
Highly efficient combustion and low emission values thanks to the suitable design
Completely clean hot air with combustion gases unmingled by the chimney system
Quiet operation system and electrostatic painted, durable body
Option for ventilation only in summer months
Possibility to direct hot air as desired with air ducts
Electric panel including electronic control units
Easy assembly and disassembly for easy transport according to usage needs

Usage Areas

Technical Specifications

Model	Capacity		Flow Rate m³/h	Fuel Consumption Kg/h (Diesel)	Motor kw	Voltage Frequency	Dimensions (Width x Length x Height) mm	Delta T Δ T ° C	Chimney
Model	kCal/h	kW	Flow Rate m³/h	Fuel Consumption Kg/h (Diesel)	Motor kw	Voltage Frequency	Dimensions (Width x Length x Height) mm	Delta T Δ T ° C	Chimney
RX 30	30,000	34.9	2,300	3.5	0.55	220 V – 50 HZ	540 x 740 x 1,150	45	ø 130
RX 50	50,000	58.1	3,850	5.75	0.75	220 V – 50 HZ	620 x 850 x 1,550	45	ø 150
RX 80	80,000	93	6,150	9.2	2.2	220/380 V – 50 HZ	750 x 950 x 1,800	45	ø 180
RX 100	100,000	116.3	7,700	11.5	3	220/380 V – 50 HZ	950 x 1,150 x 2,300	45	ø 220
RX 200	200,000	232.6	15,400	22.9	2×3.0	230/380 V – 50 HZ	1,350 x 1,780 x 2,300	45	ø 280
RX 300	300,000	348.8	23,100	33.8	2×4.0	230/380 V – 50 HZ	1,560 x 2,000 x 2,400	45	ø 300

Brand	Termonem
Model Type	RX 100

Category: Heating Systems

Model	Capacity		Flow Rate m³/h	Fuel Consumption Kg/h (Diesel)	Motor kw	Voltage Frequency	Dimensions (Width x Length x Height) mm	Delta T Δ T ° C	Chimney
Model	kCal/h	kW	Flow Rate m³/h	Fuel Consumption Kg/h (Diesel)	Motor kw	Voltage Frequency	Dimensions (Width x Length x Height) mm	Delta T Δ T ° C	Chimney
RX 30	30,000	34.9	2,300	3.5	0.55	220 V – 50 HZ	540 x 740 x 1,150	45	ø 130
RX 50	50,000	58.1	3,850	5.75	0.75	220 V – 50 HZ	620 x 850 x 1,550	45	ø 150
RX 80	80,000	93	6,150	9.2	2.2	220/380 V – 50 HZ	750 x 950 x 1,800	45	ø 180
RX 100	100,000	116.3	7,700	11.5	3	220/380 V – 50 HZ	950 x 1,150 x 2,300	45	ø 220
RX 200	200,000	232.6	15,400	22.9	2×3.0	230/380 V – 50 HZ	1,350 x 1,780 x 2,300	45	ø 280
RX 300	300,000	348.8	23,100	33.8	2×4.0	230/380 V – 50 HZ	1,560 x 2,000 x 2,400	45	ø 300
