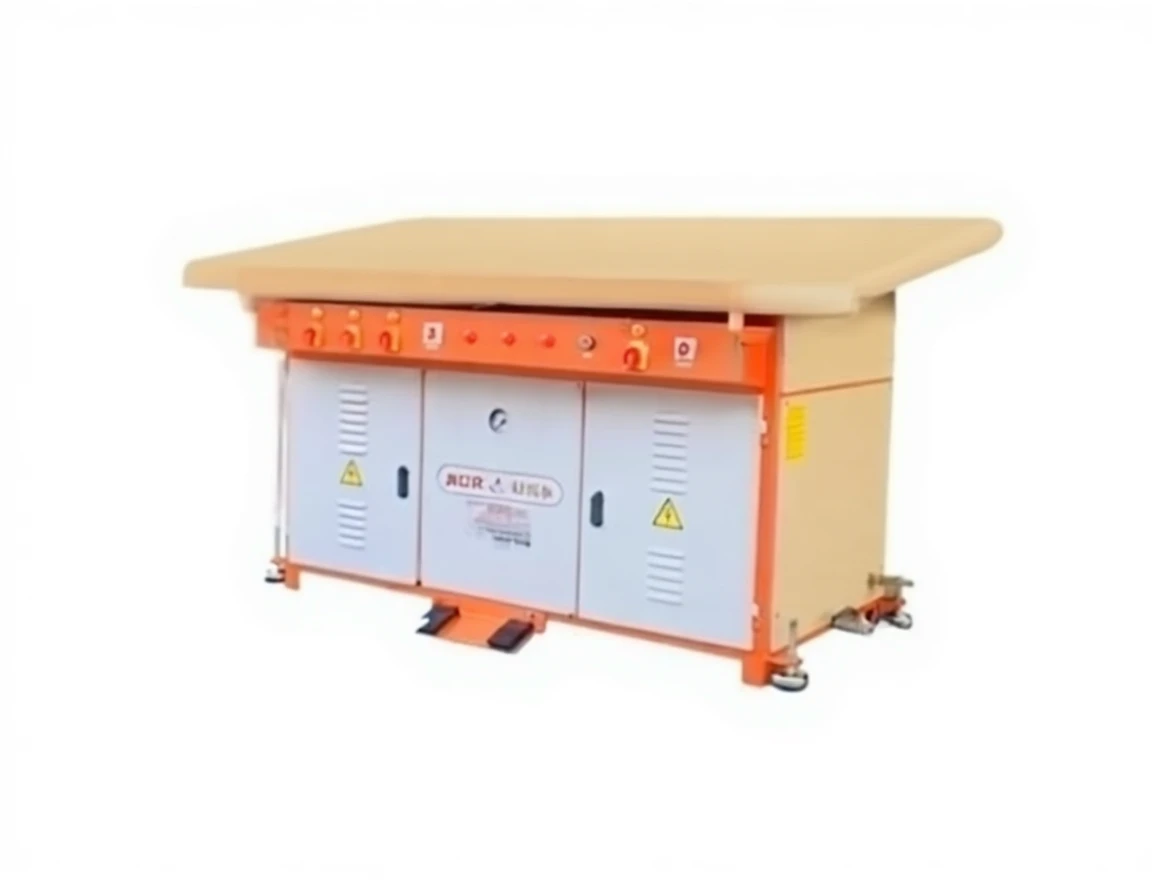

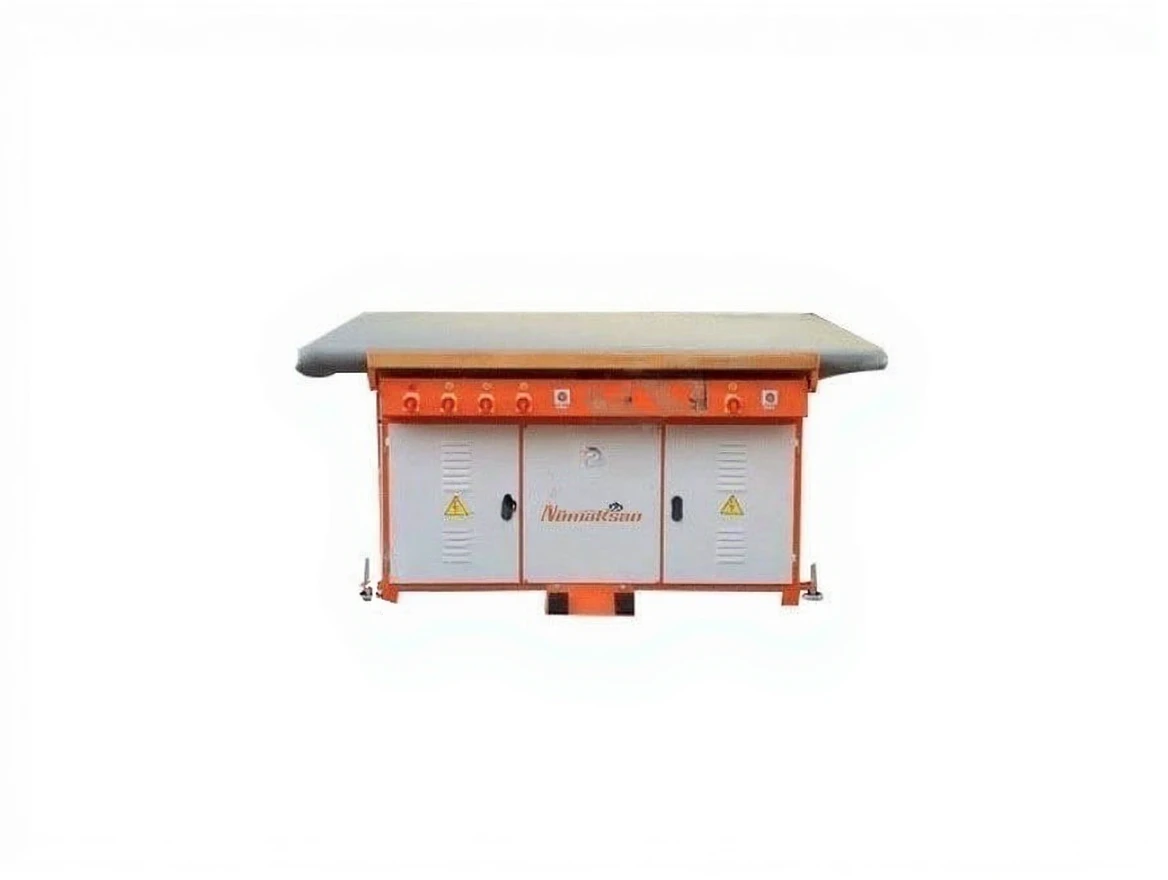

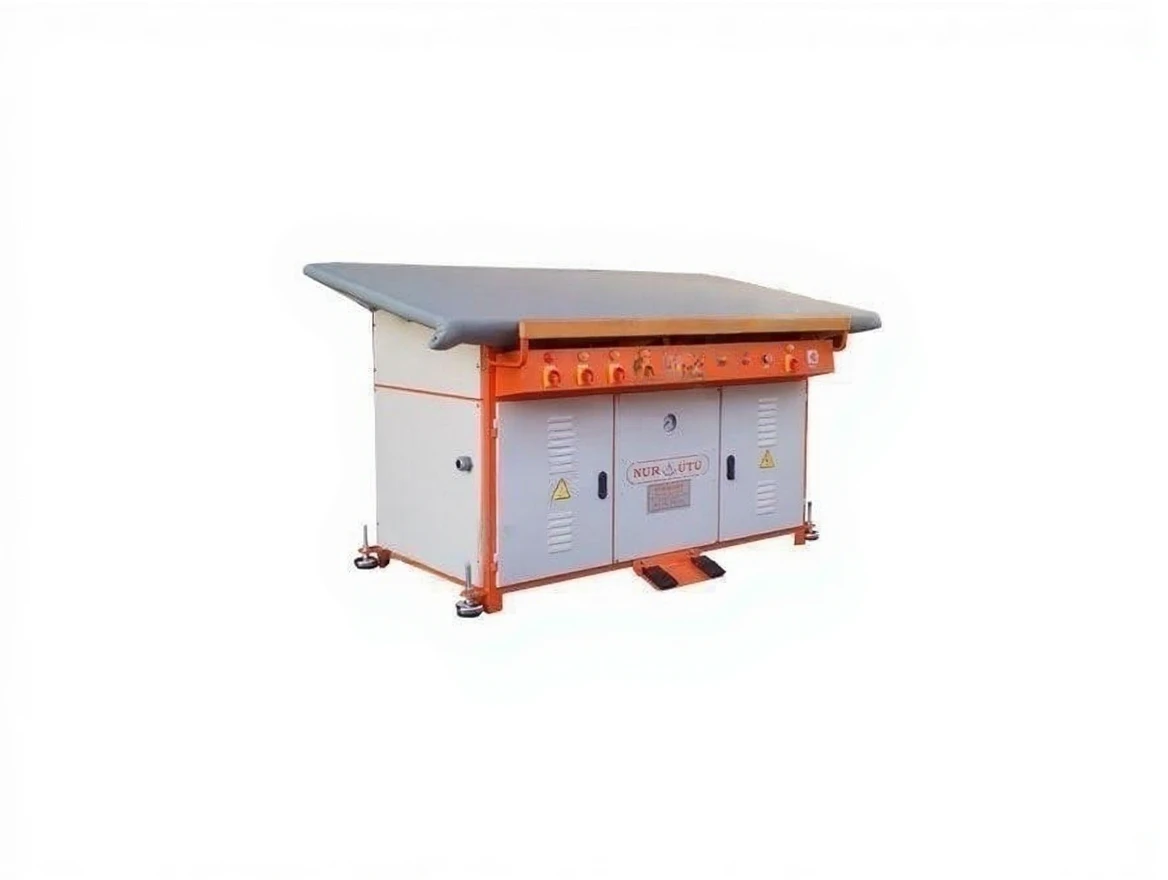

1000*1850 mm Flat Boiler Knitting Ironing Machine
| Brand | Nümaksan |
|---|---|
| Model Type |
DK-01 |
Category: Ironing and Ironing Machines
Description
1000×1850 mm Flat Boiler Knitting Ironing Machine
This is a professional knitting ironing machine produced to carry out the intermediate and final ironing processes of all types of knitted fabrics in every branch of the textile industry.
Although the table dimensions are 1000×1850 mm, it is the most compact machine in its class.
Thanks to the homogeneous steam distribution and powerful vacuum system, it offers high ironing performance. It operates fully automatically. The steam release and vacuuming processes are carried out pneumatically. These processes can be controlled automatically with a timer or manually.
Technical Specifications
| Feature | Unit | Value |
|---|---|---|
| Working Table Dimensions | mm | 1000 × 1850 |
| Electric Power | kW | 30.5 |
| Average Consumption | kW/h | 15 |
| Steam Consumption | kg/h | 30 |
| Air Consumption | l/min | 90 |
| Steam Pressure | bar | 4 |
| Air Pressure | bar | 6 |
| Machine Dimensions | mm | 1000 × 1850 × 850 |
| Net Weight | kg | 540 |
