Ø 1000mm Vertical Shaft Crusher

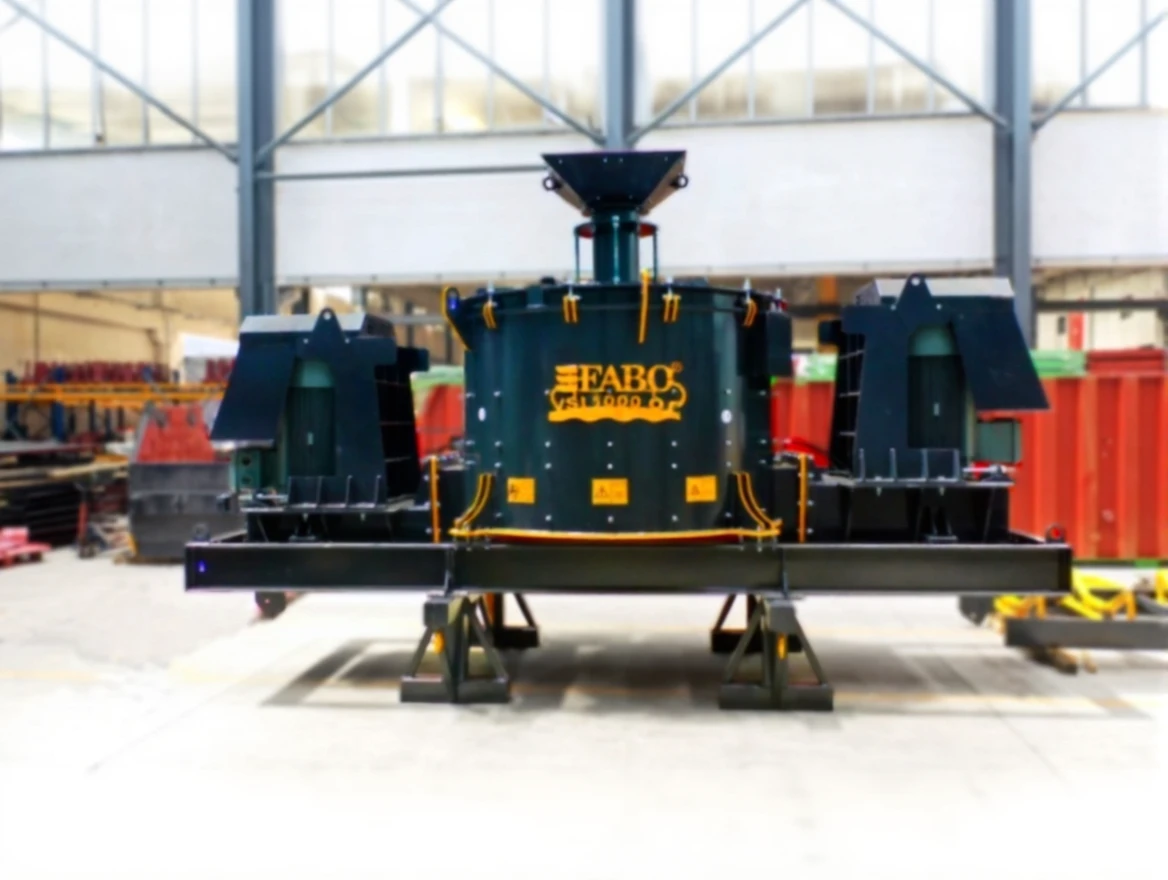

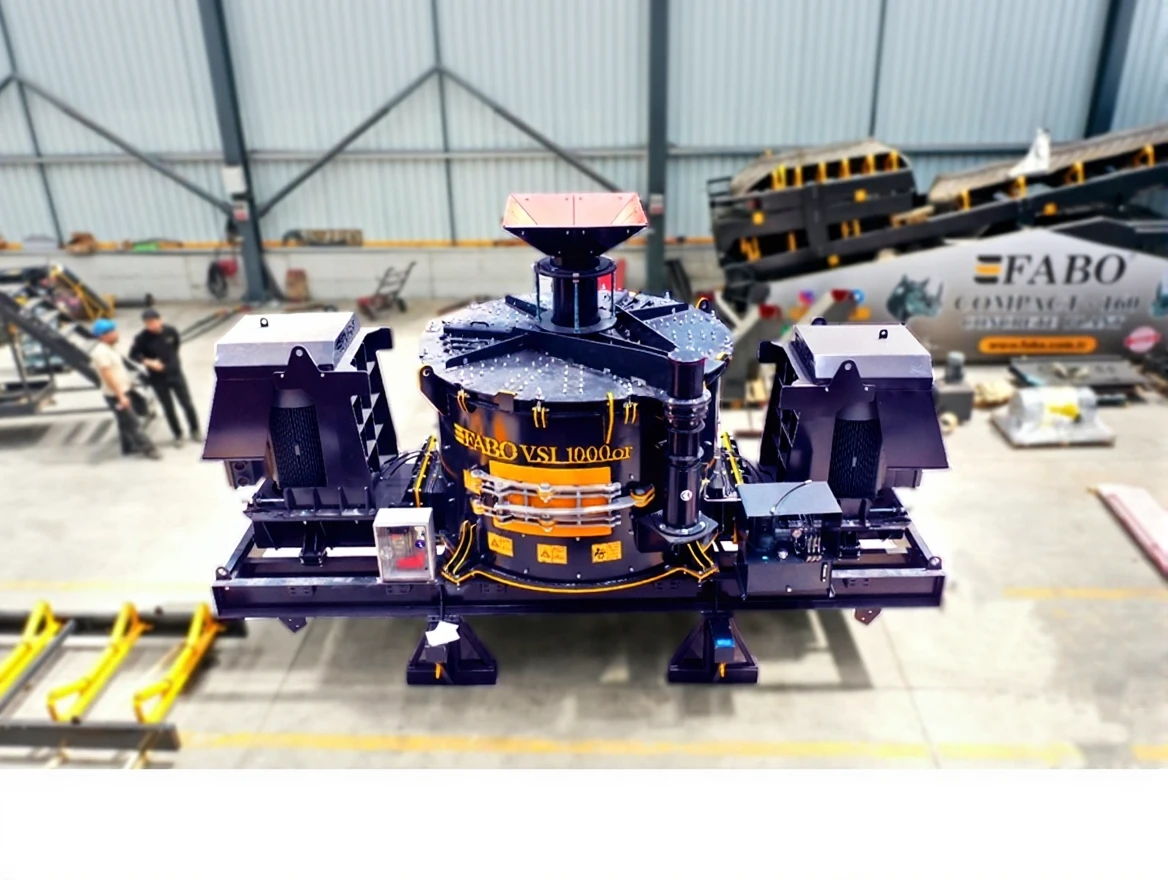

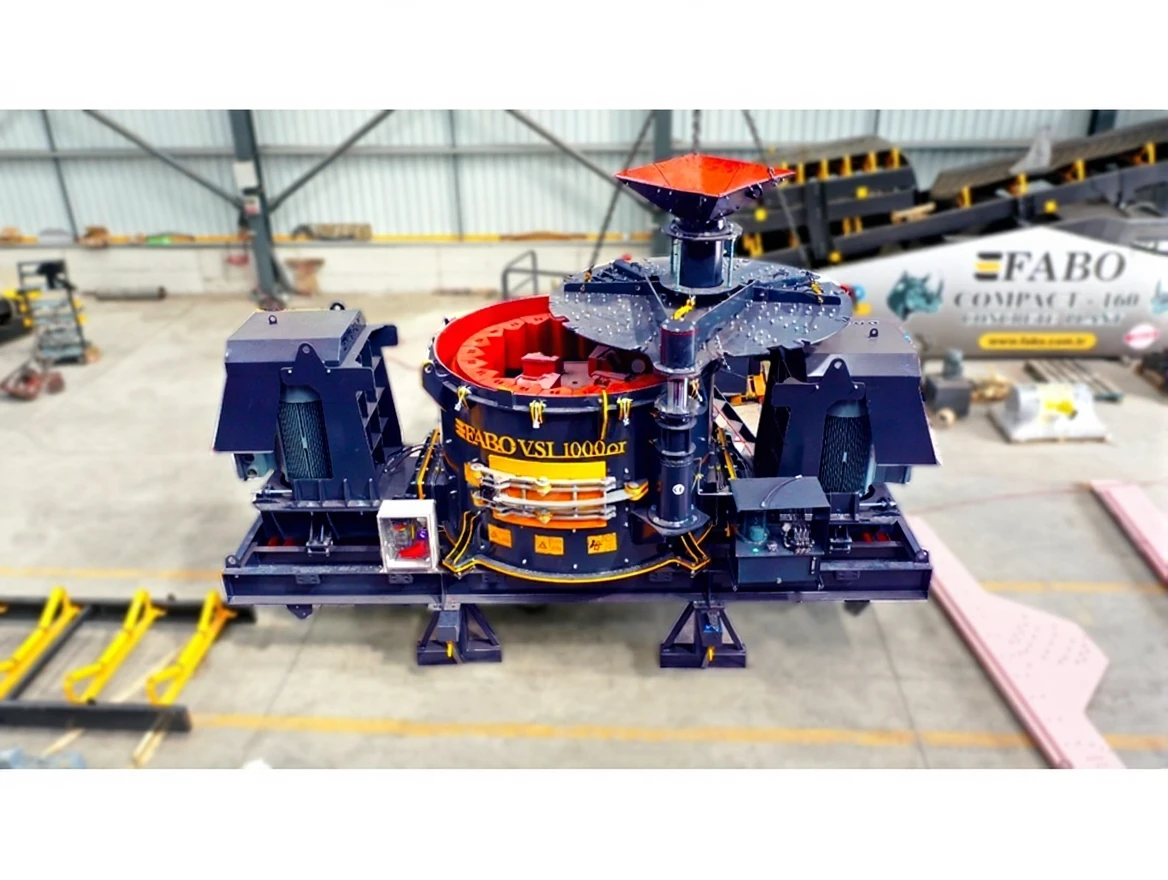

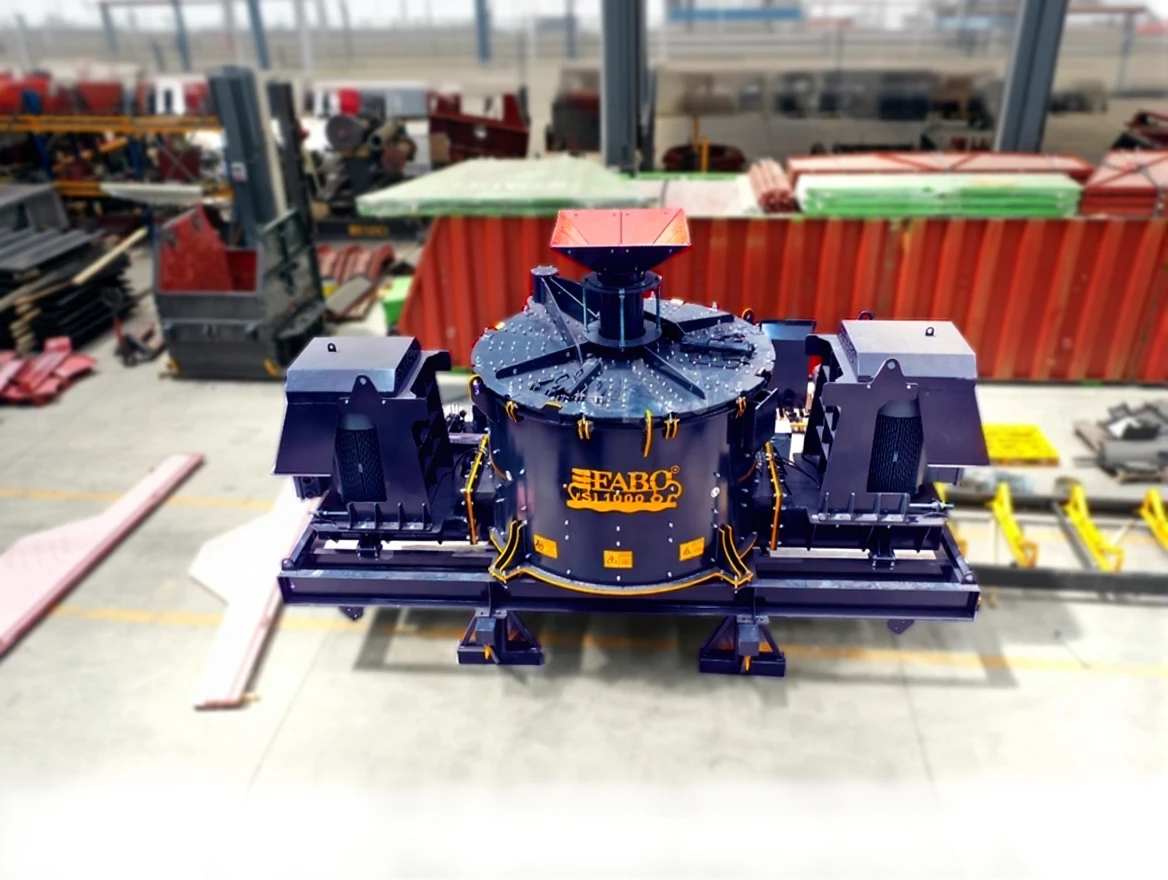

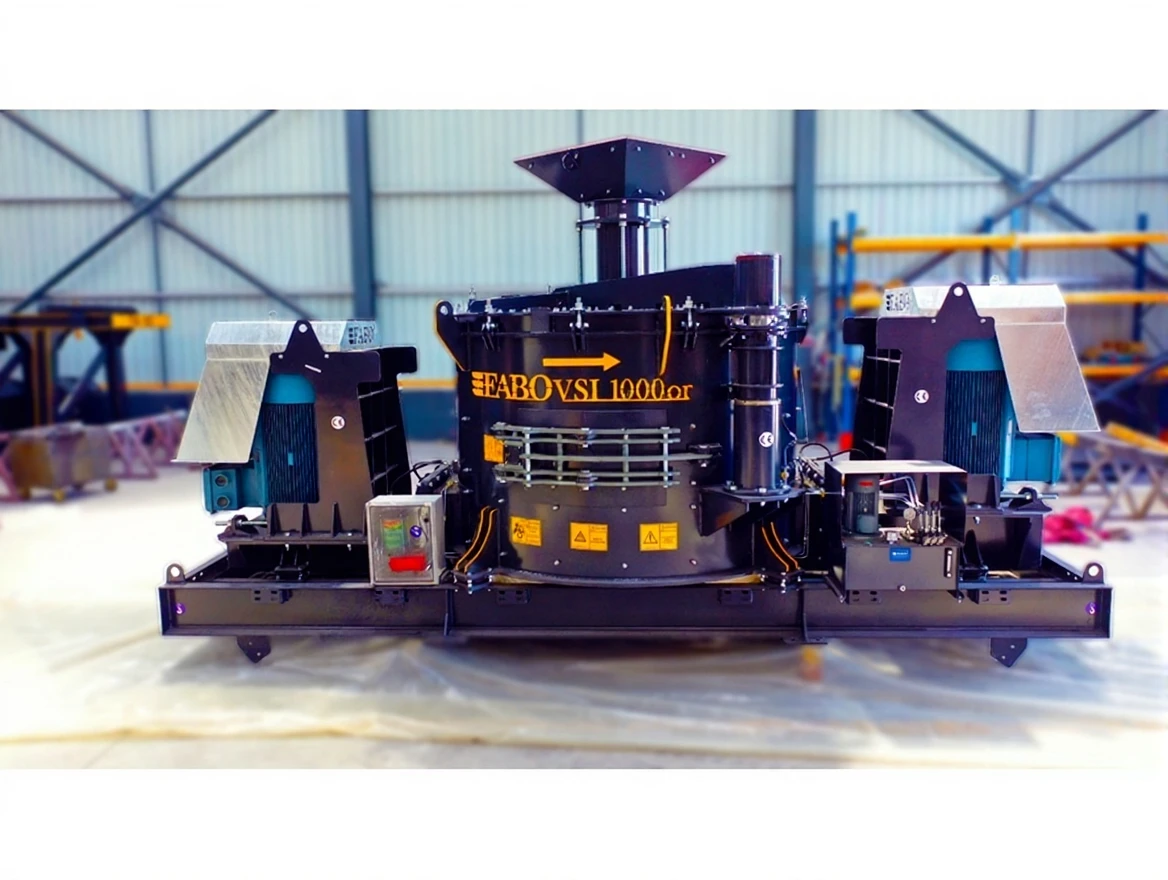

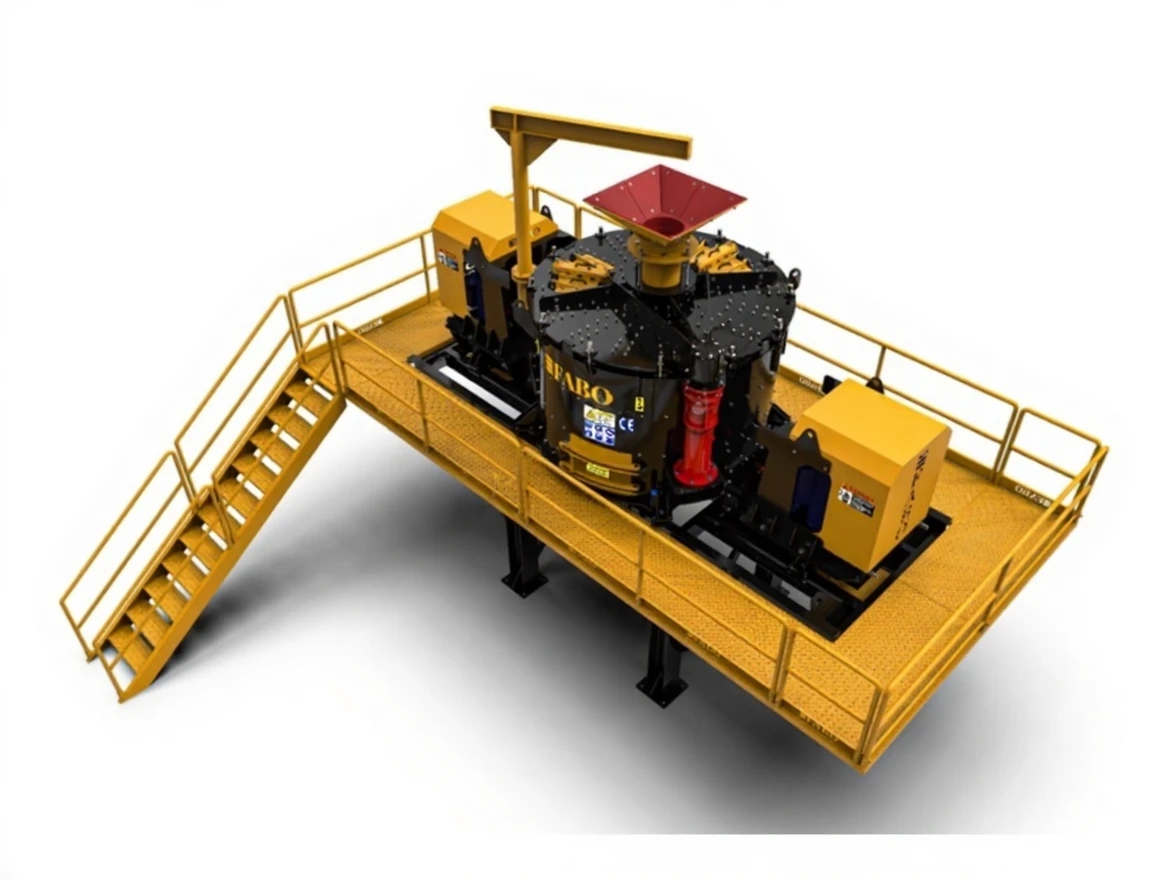

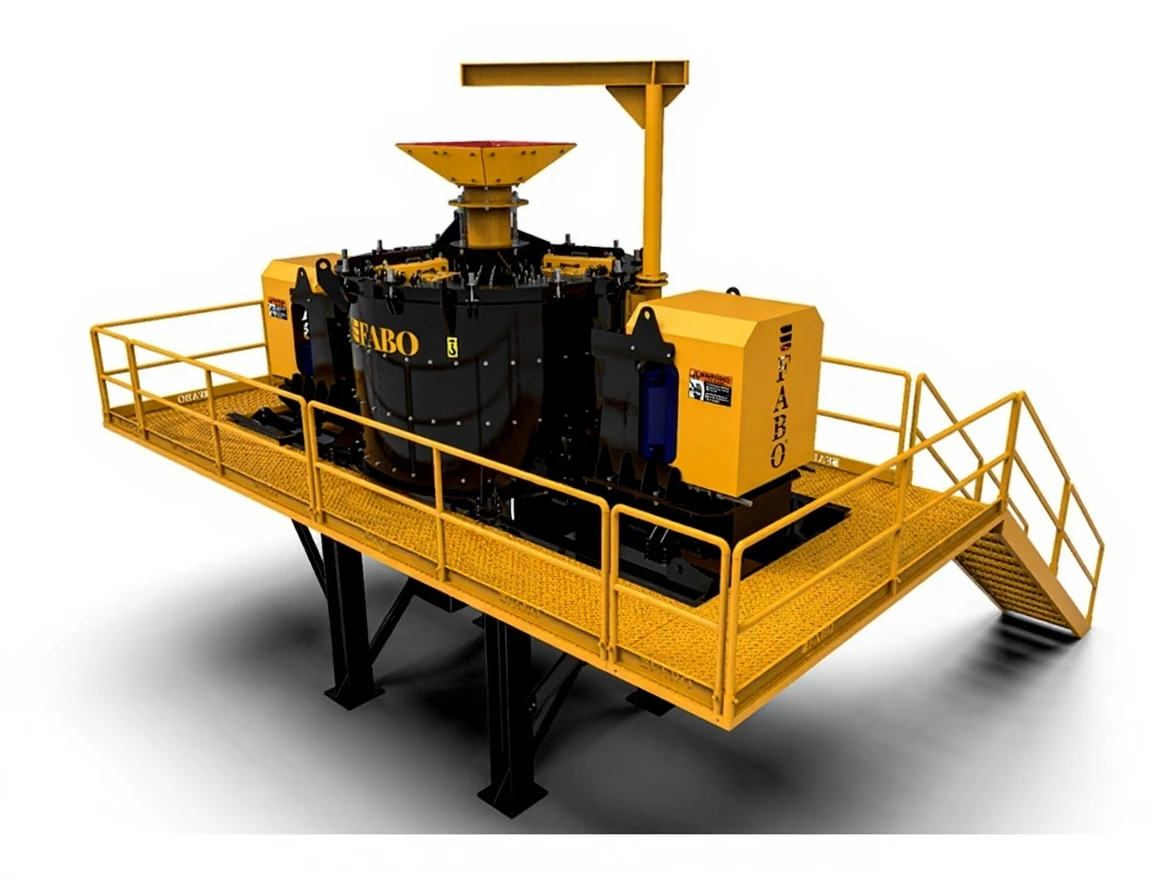

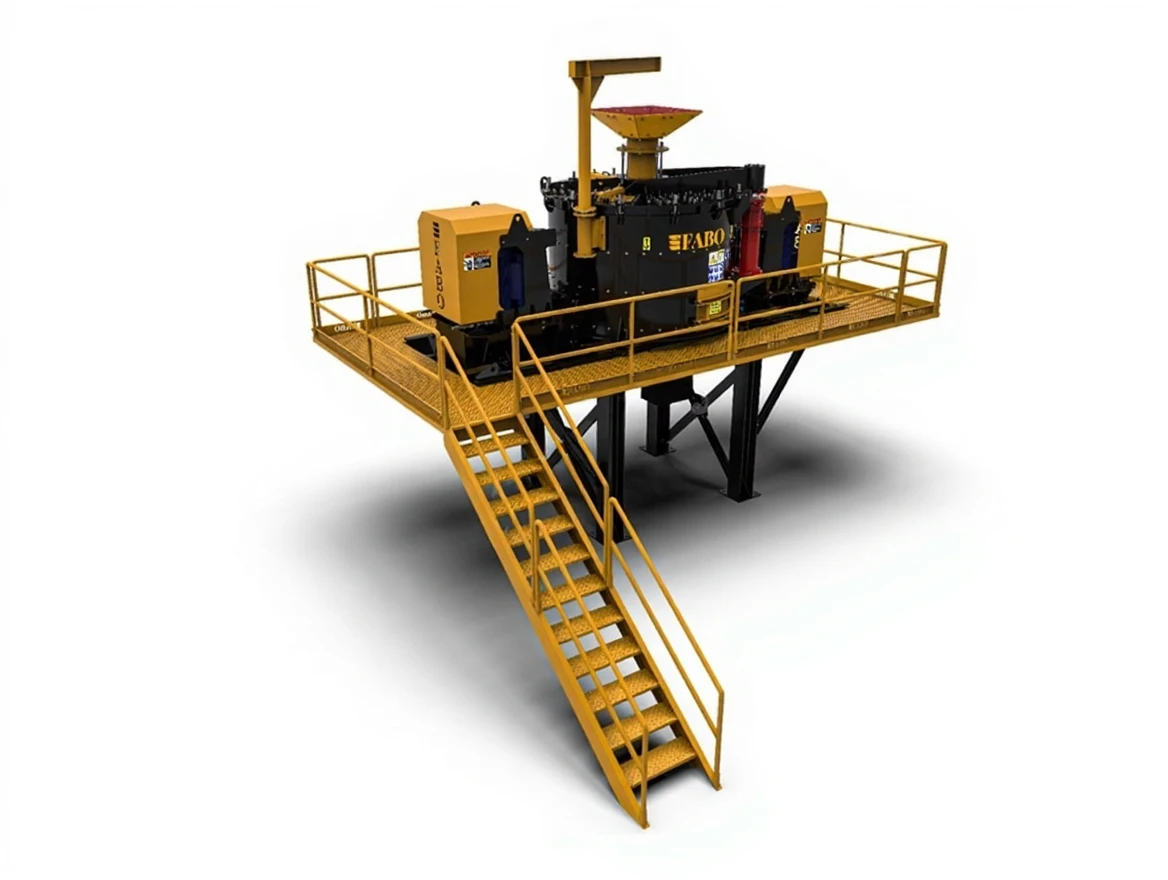

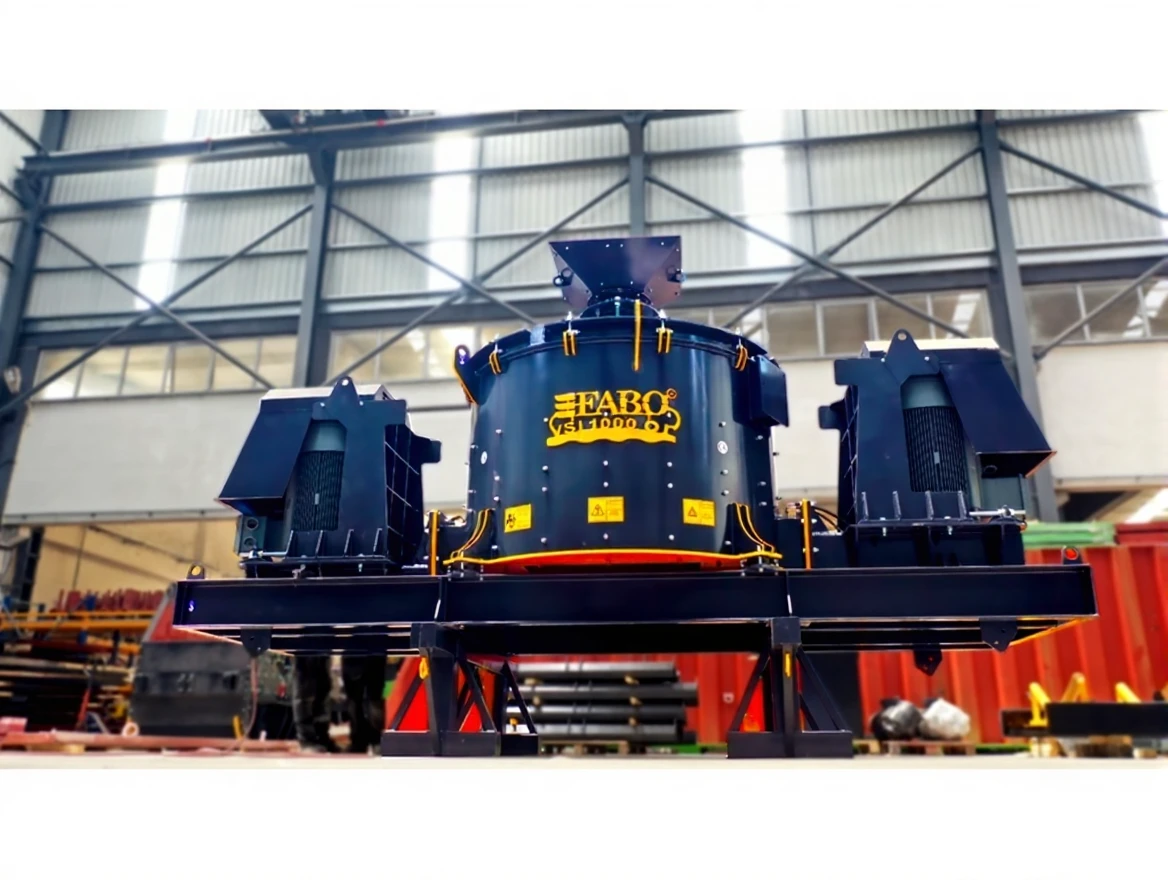

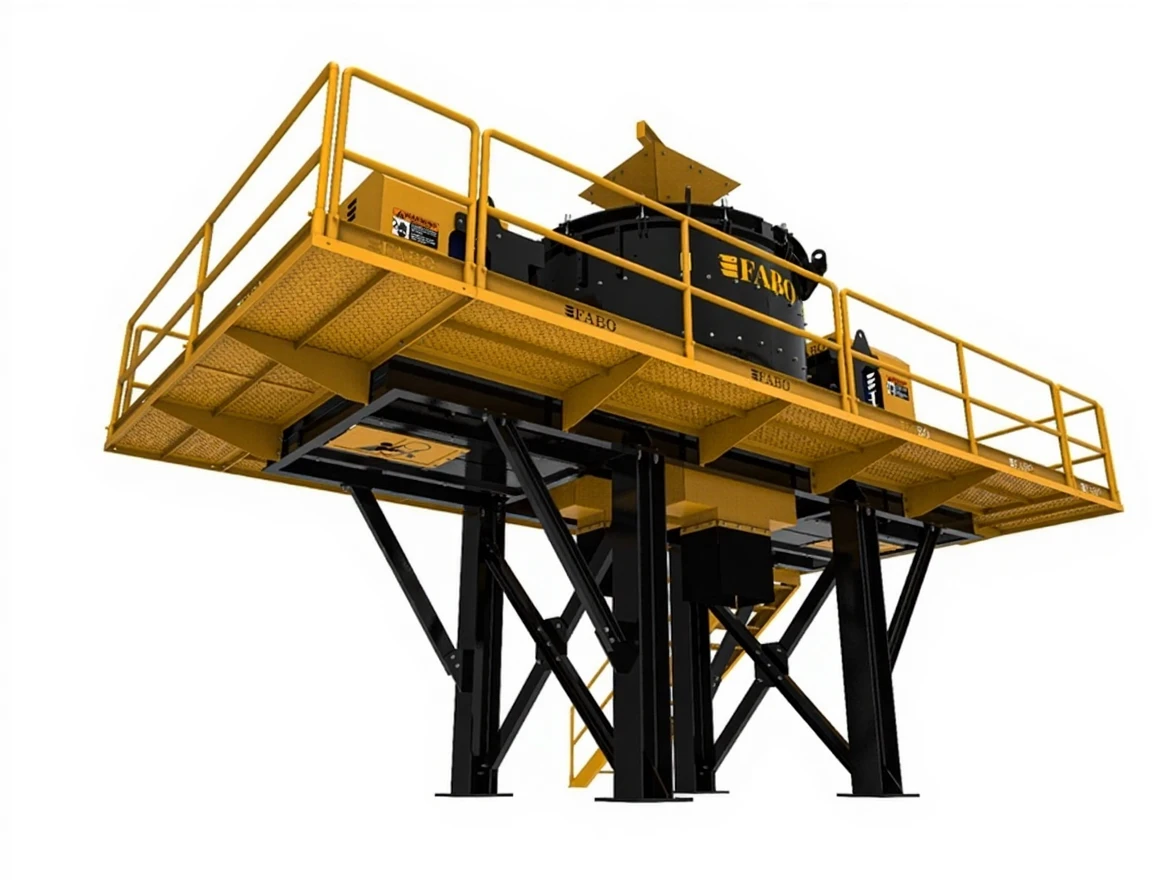

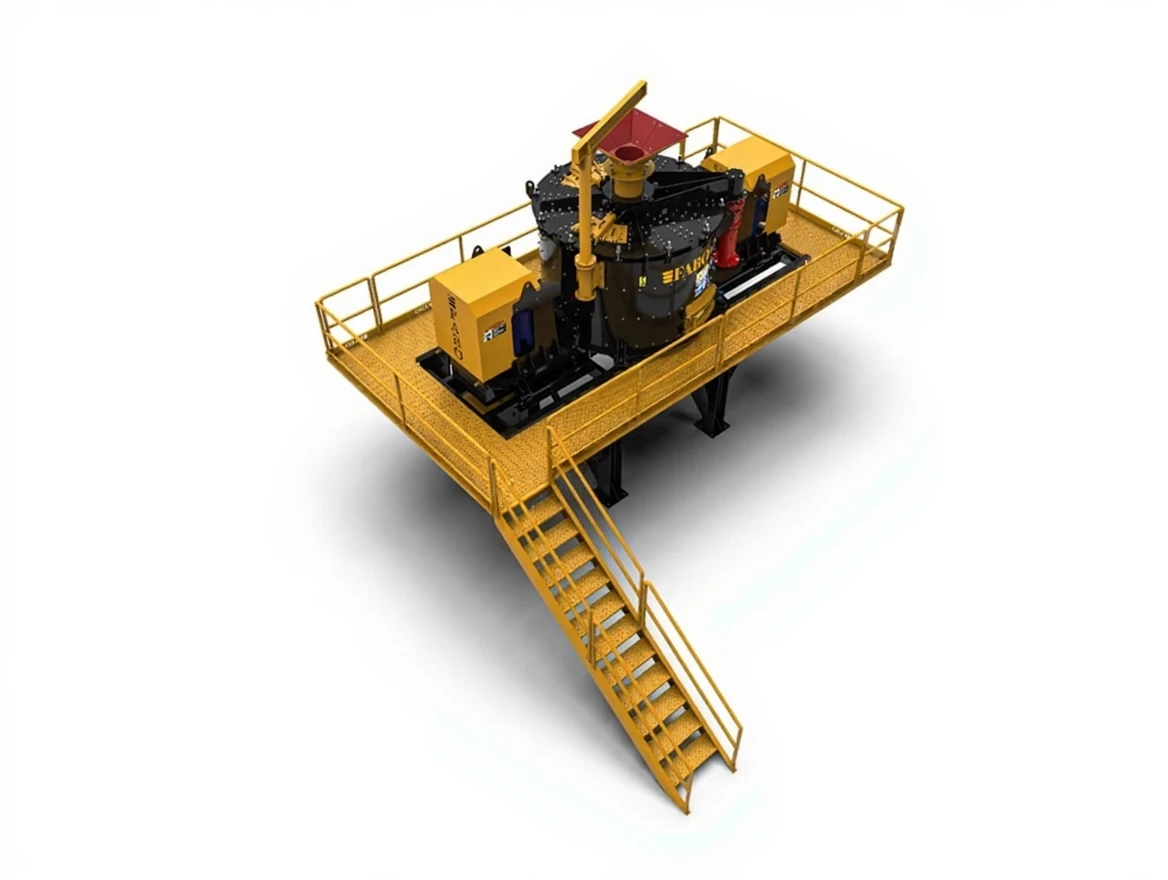

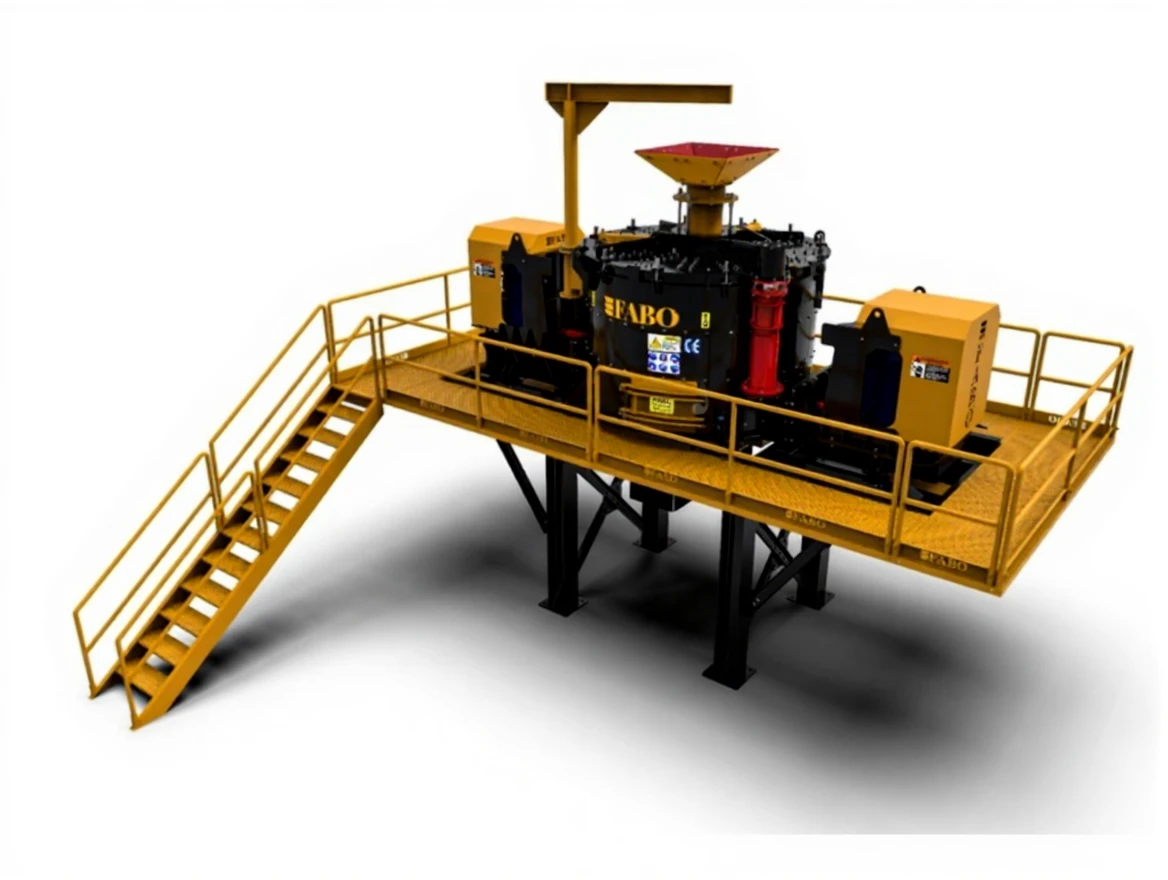

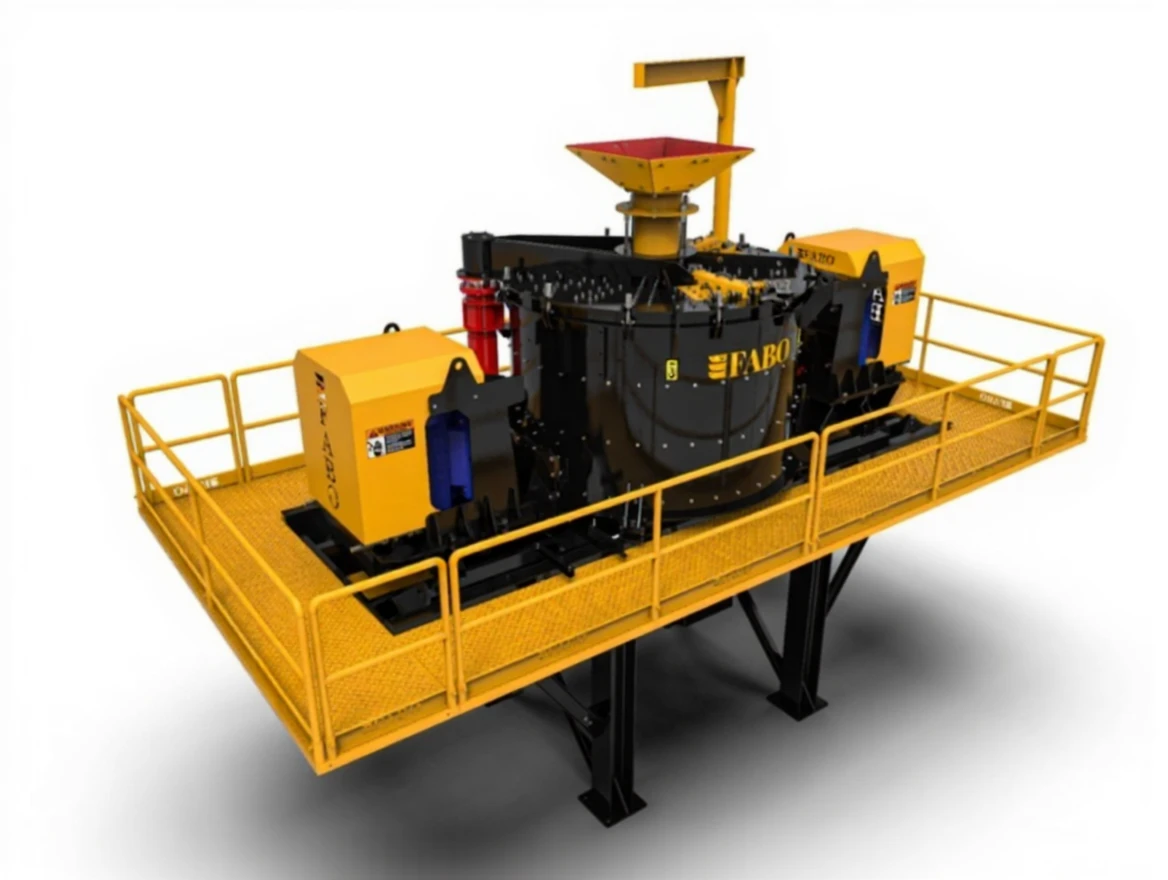

Fabo Machine VSI-1000 Ø 1000mm Vertical Shaft Crusher

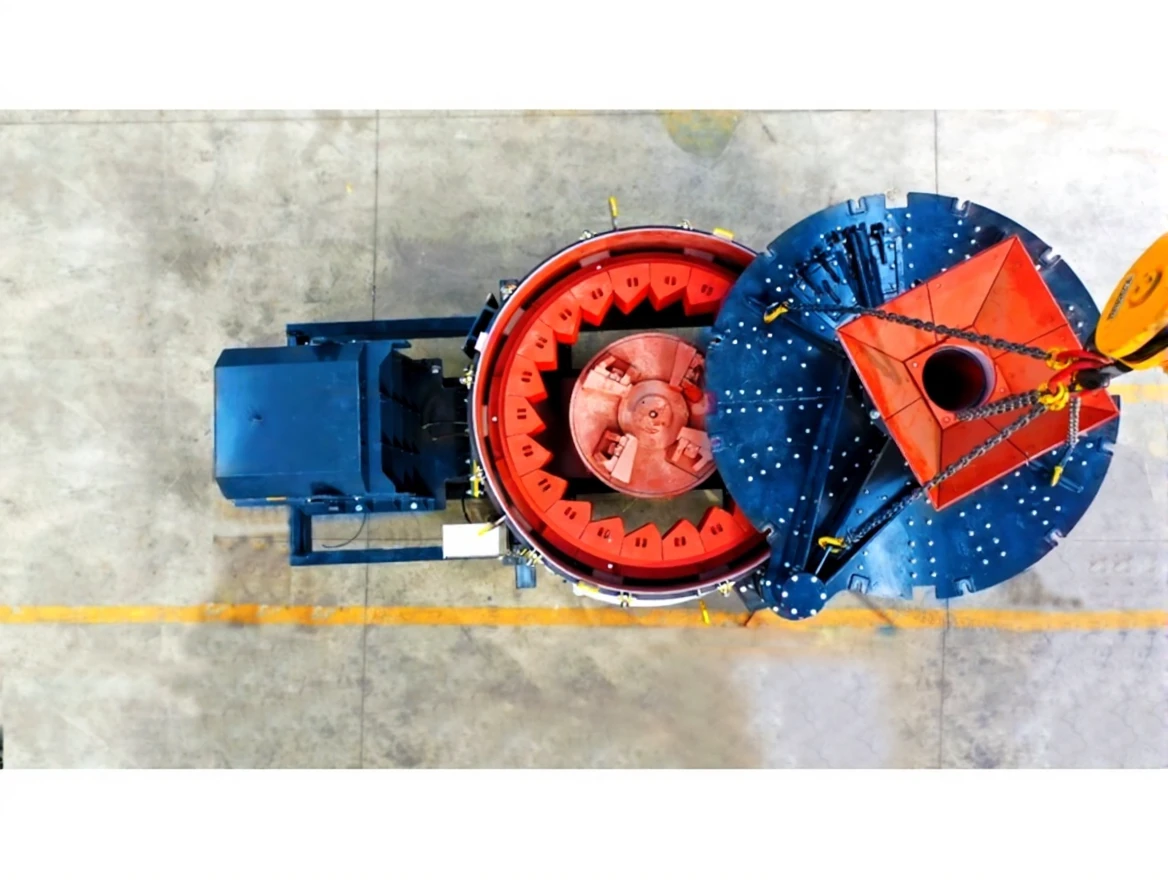

These high-speed crushers are produced in two different combinations, open rotor and closed rotor. Vertical shaft impact crushers (VSI) are designed with a unique rock-on-rock crushing principle that offers superior cubic shape for the production of high-quality fine aggregates while significantly reducing wear costs. It shortens service needs and times, increasing crushing performance with low investment costs.
VSI-1000 technical specifications:

Model: VSI-1000 OR
Capacity: 300-350 T/Hour
Rotor Size: Ø 1000mm
Maximum Feed: 100mm
Motor Power: 2 x 250 kW
Speed: 50 – 70 m/s
Weight: 20,000 kg
General Features and Futures:
– Good product, low wear cost, cubic shape, application flexibility, and ease of maintenance.
– Rotor and crushing chamber with stress-reduced welding
– The inner surfaces of the crusher are lined with wear-resistant liner plates.
– Hydraulic opening cover
– Automatic lubrication system
