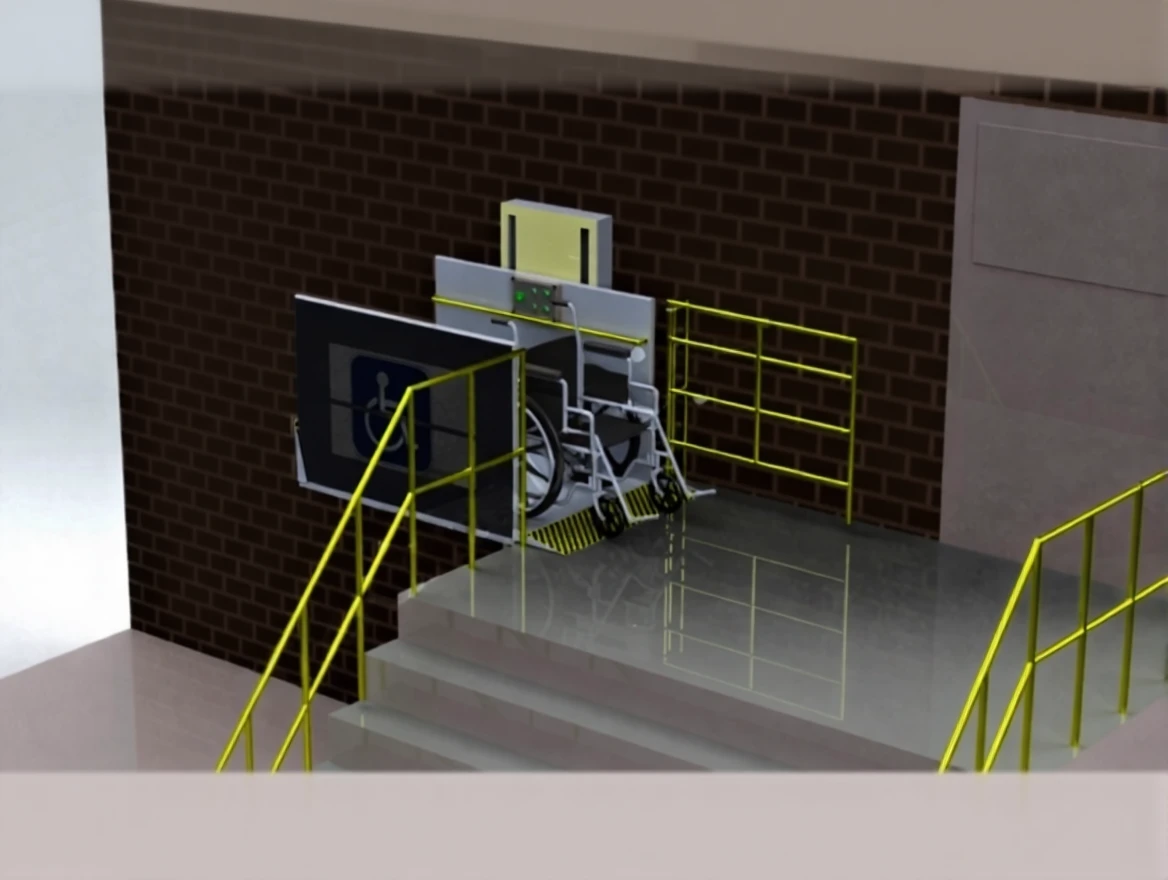

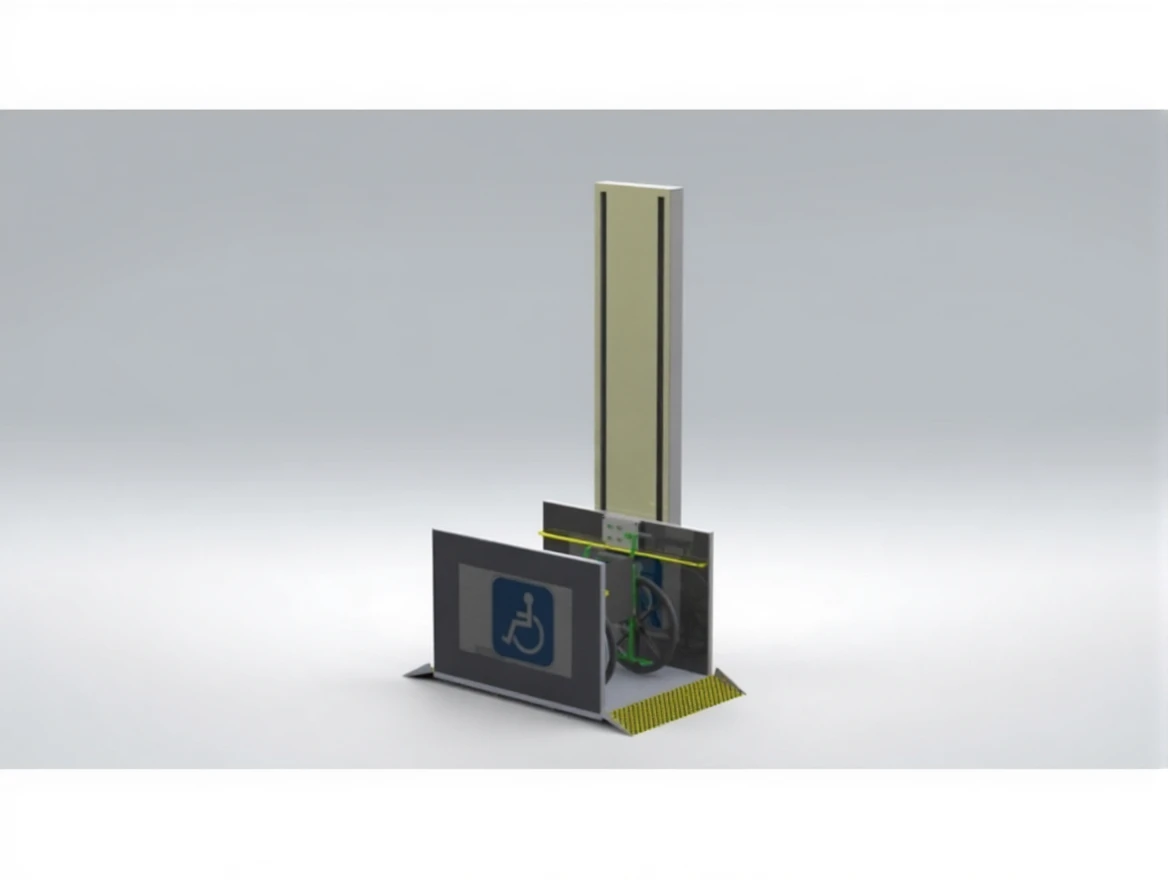

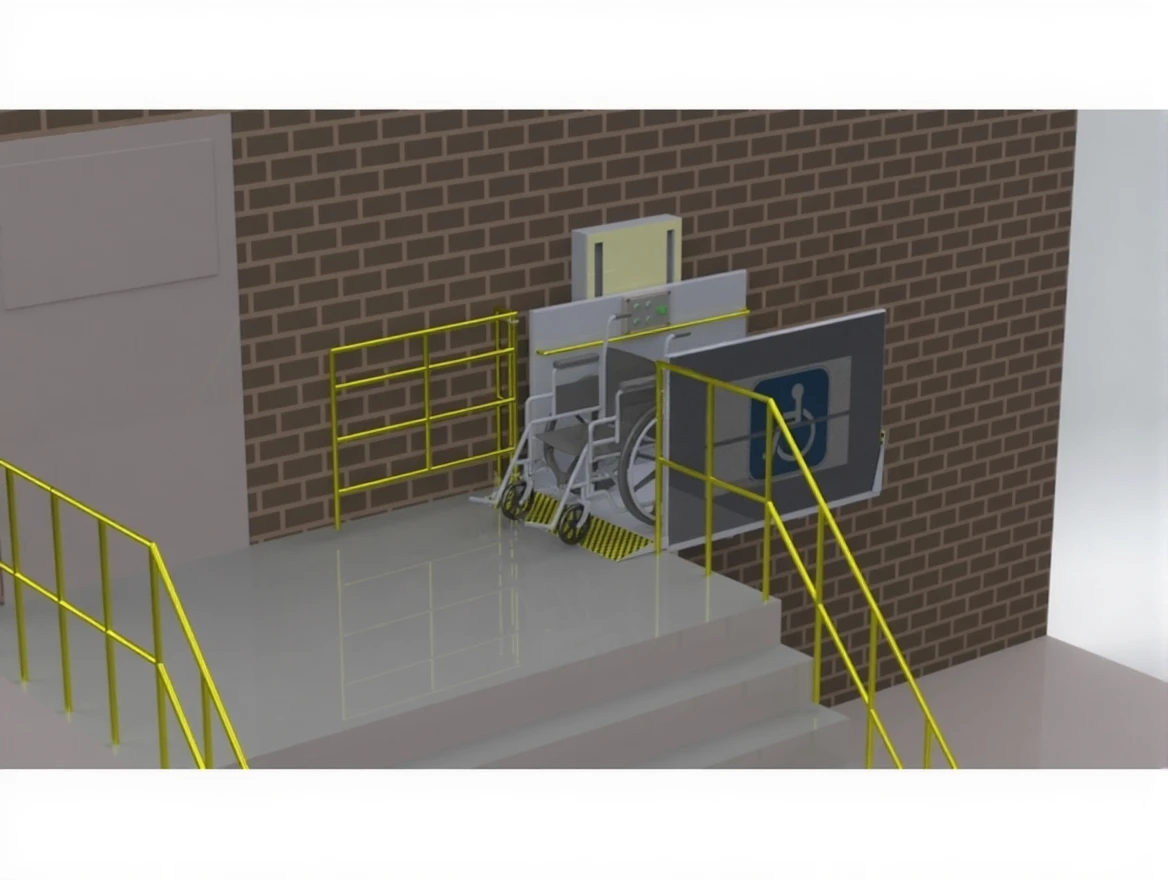

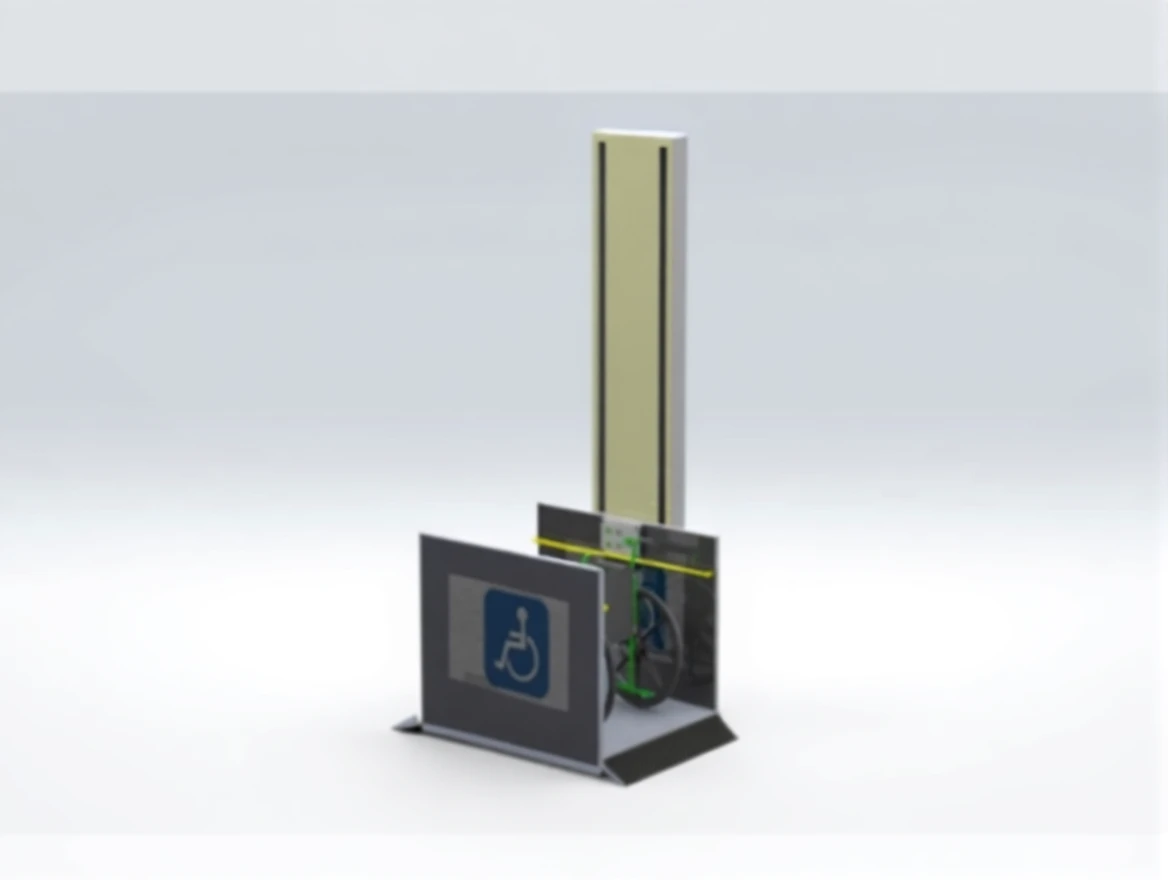

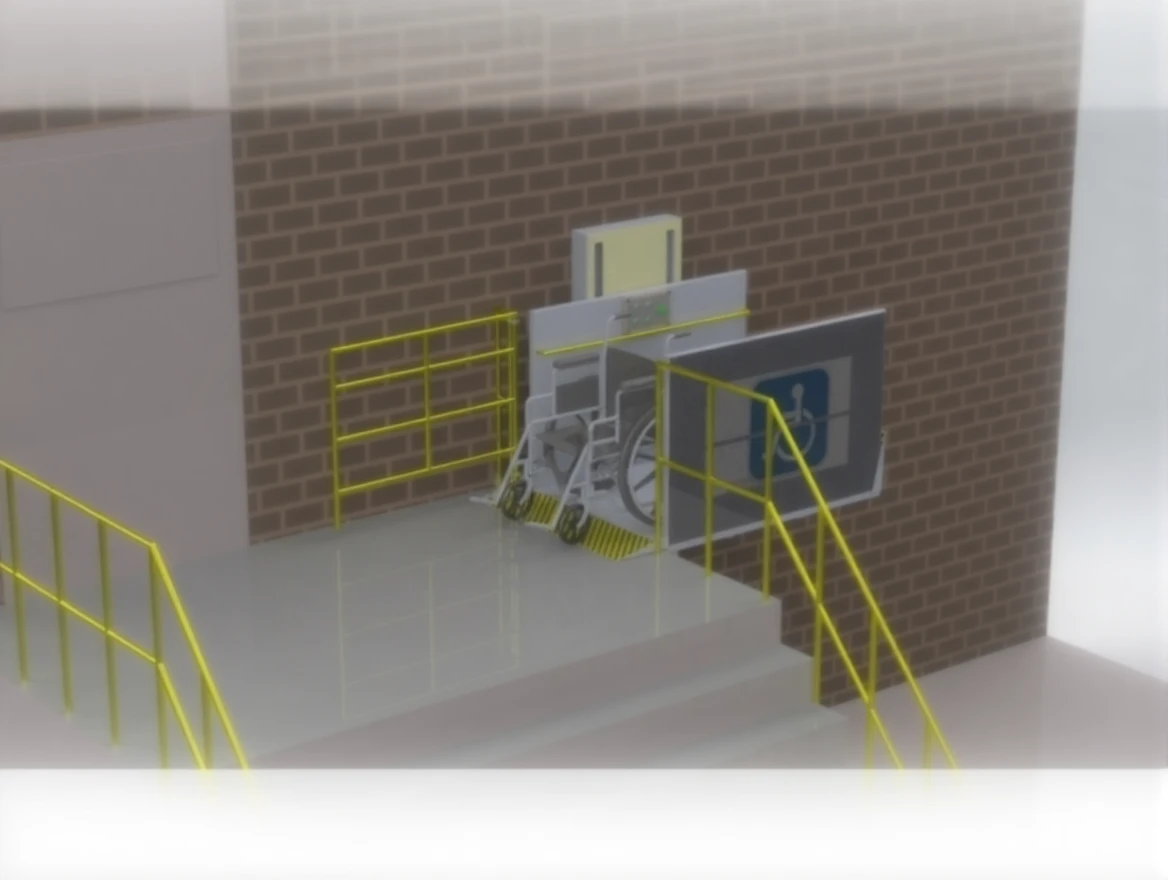

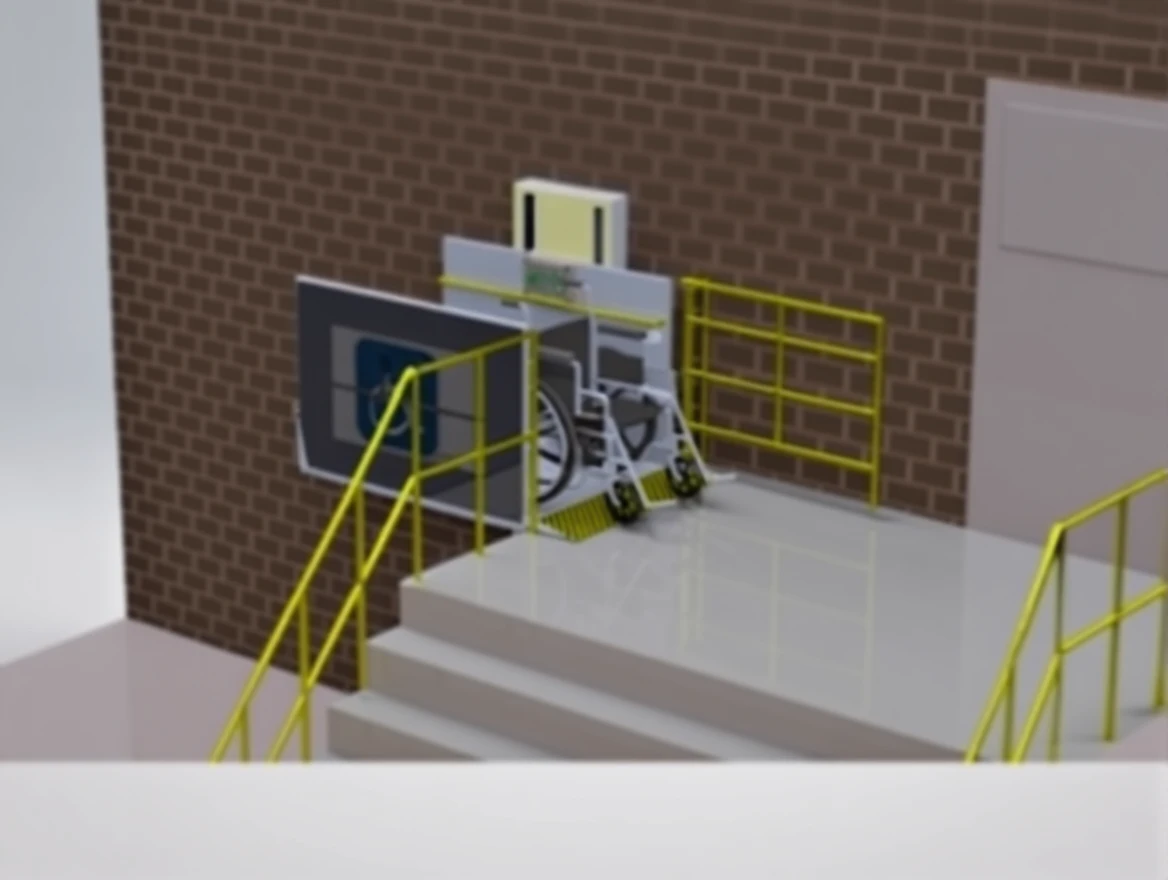

1000×1300 mm Platform Hydraulic Handicap Elevator

Brand Expert Lifting
Model Type

EEP-H

Description

1000×1300 mm Platform Hydraulic Handicap Elevator

GENERAL DEFINITION OF DISABLED PLATFORM

Individuals with physical disabilities in social life

     to eliminate some of the obstacles they encounter in their lives

      Vertical moving platforms designed for.

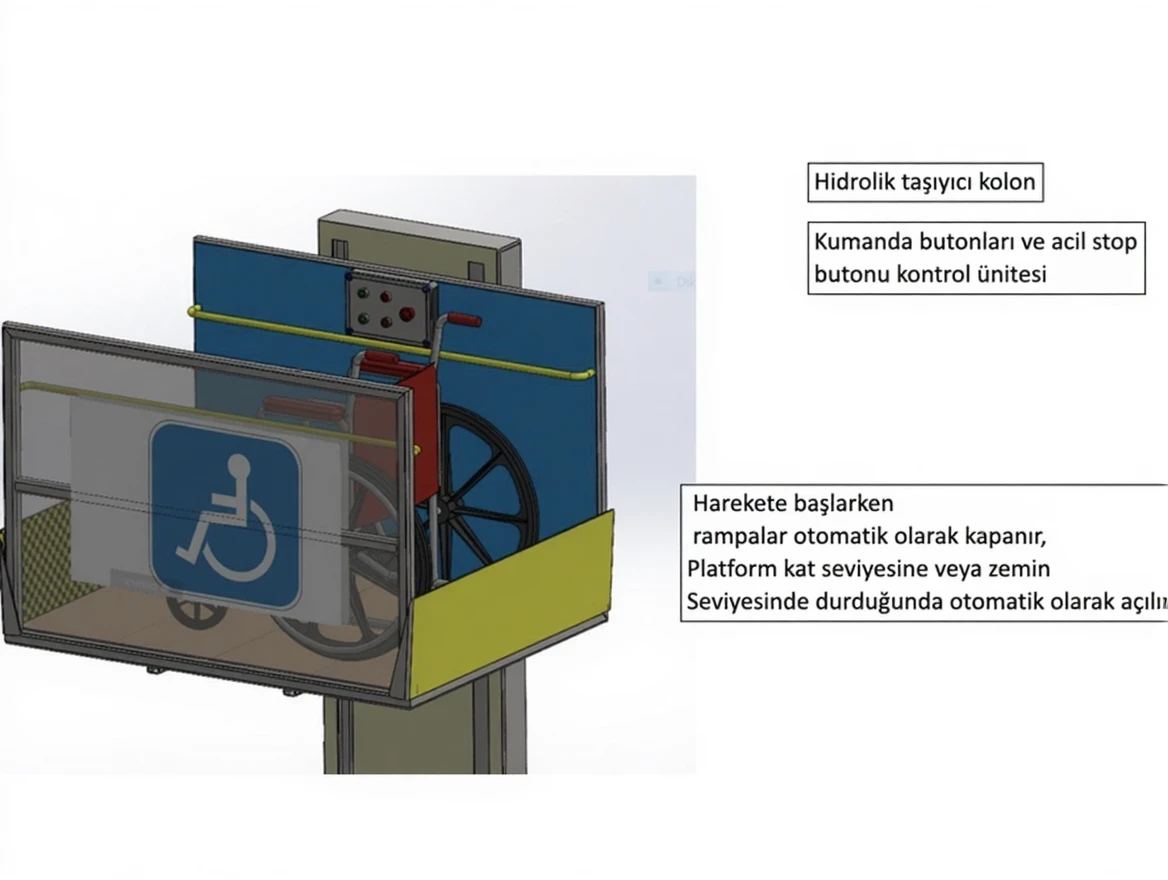

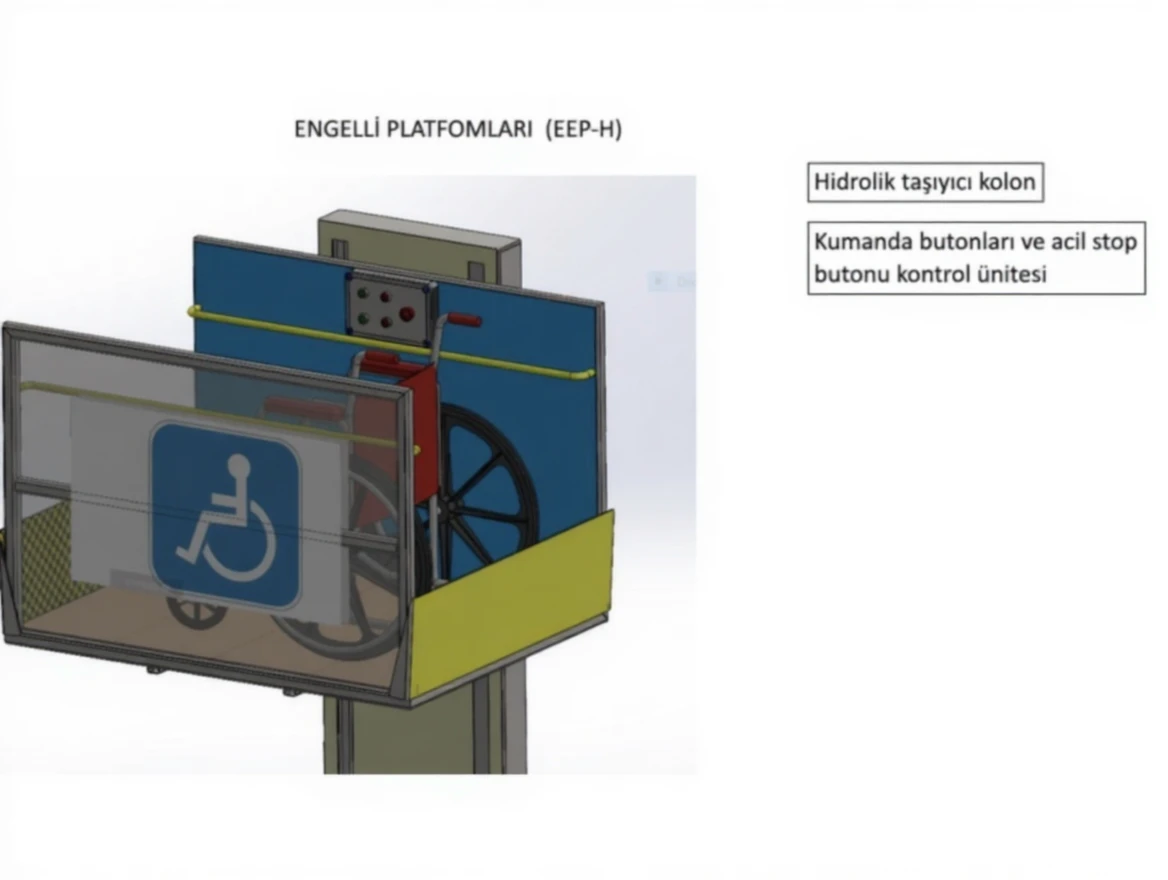

Movable ramps located at the entrance and exit of the platform open automatically when the platform reaches the ground or floor.

While the platform is in motion, the ramps always close automatically, preventing any unintentional wheelchair movement.

Disabled platforms can be designed for both the interior and exterior of the building.

Disabled platforms can be built up to a maximum height of 3m in private properties and 2m in public areas.

MODEL

PRODUCT DESCRIPTION

CABIN INTERIOR
WIDTH
(mm)

CABIN INTERIOR
LENGTH (mm)

CABIN
HEIGHT (mm)

CRUISE HEIGHT
(mm)
MAX.

ENGINE
POWER
(kw)

EEP-H

HYDRAULIC
DISABLED PLATFORM

950

1300

900

3000

1,1
