100W Fiber Laser Marking Machine

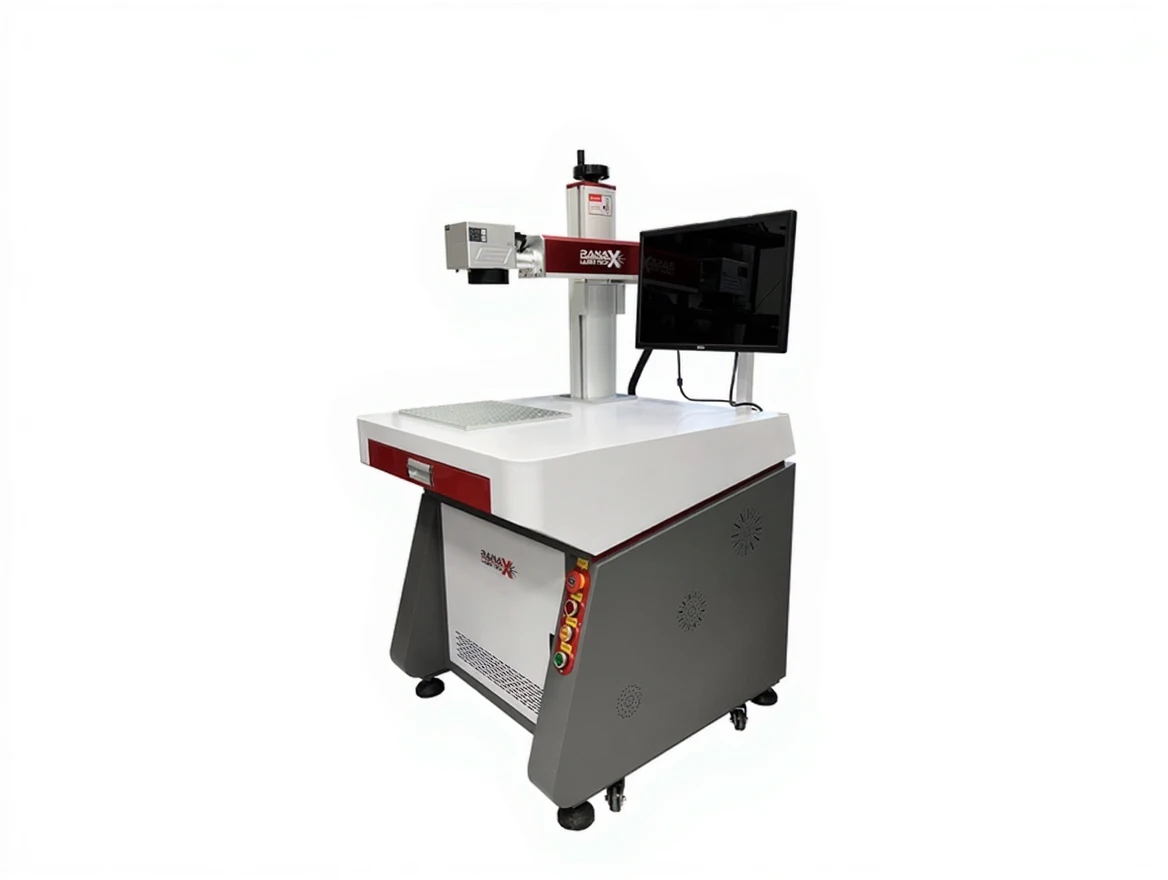

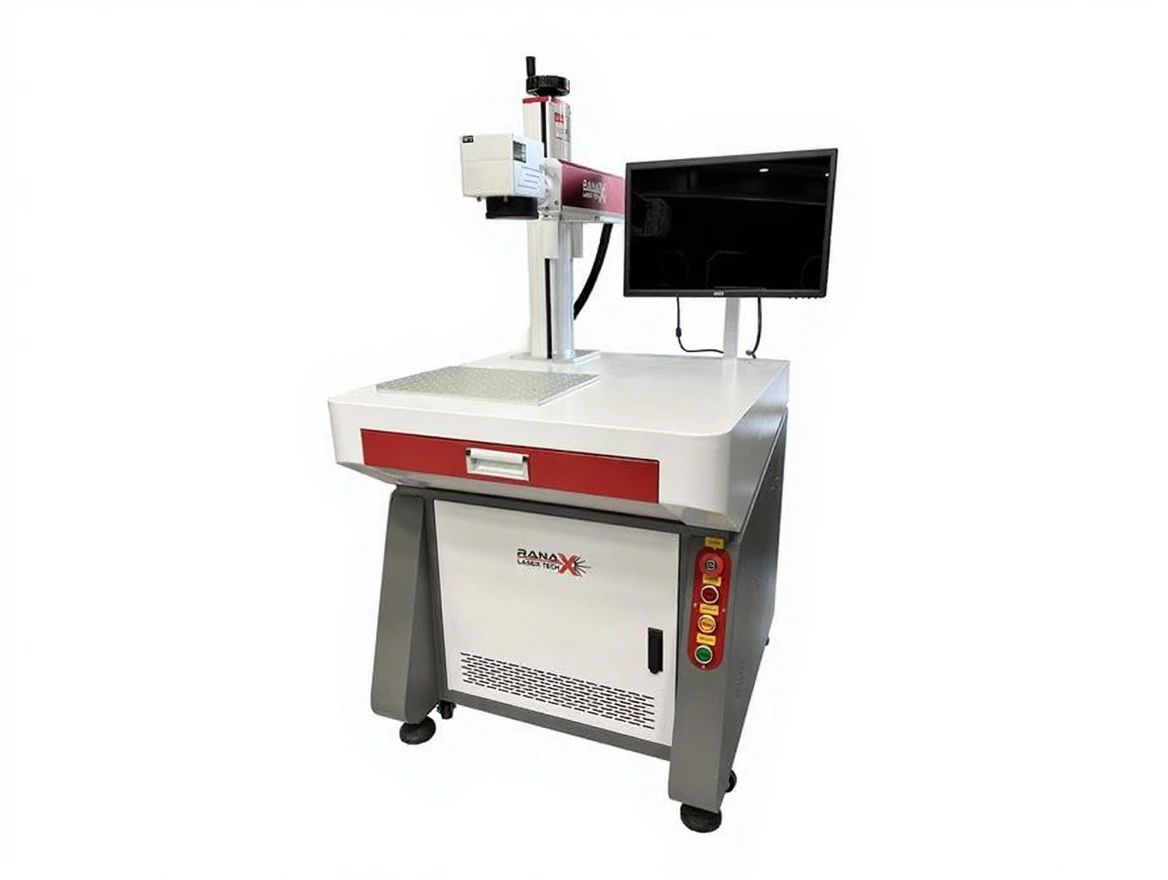

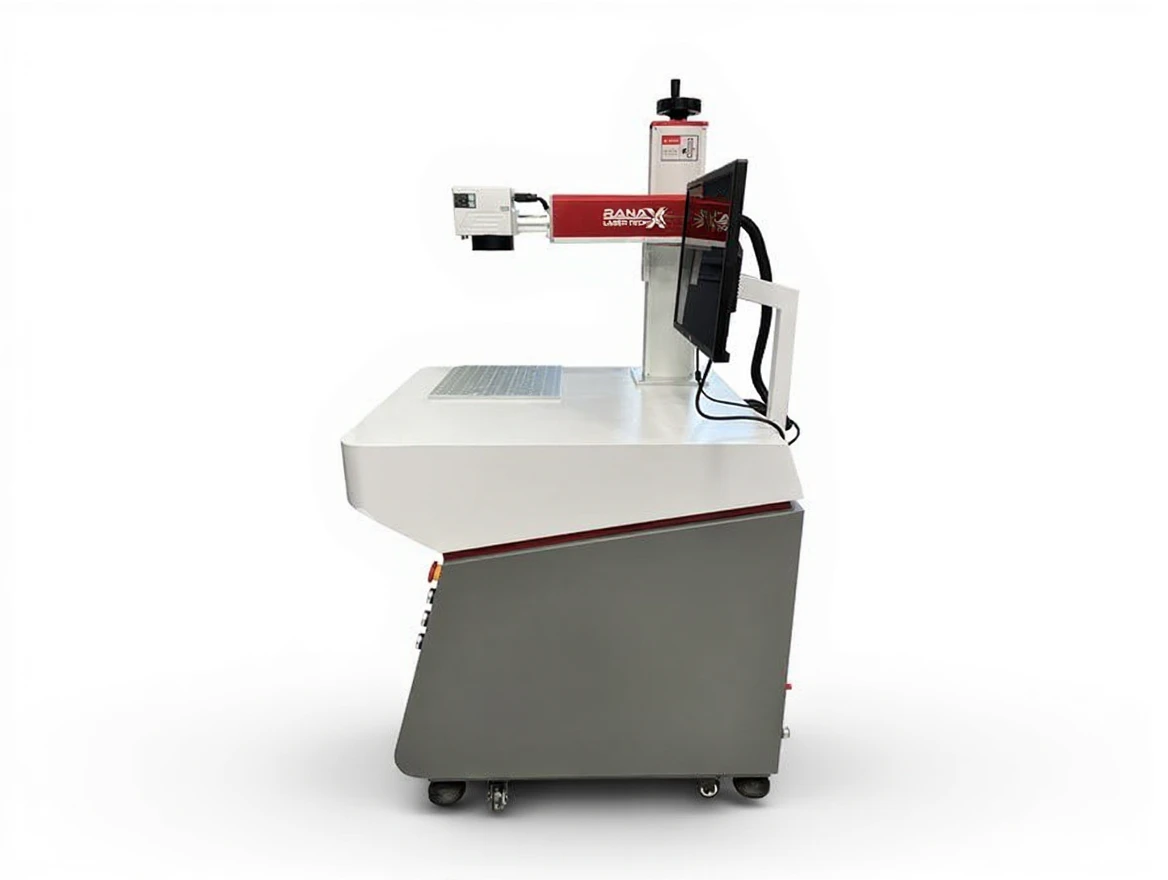

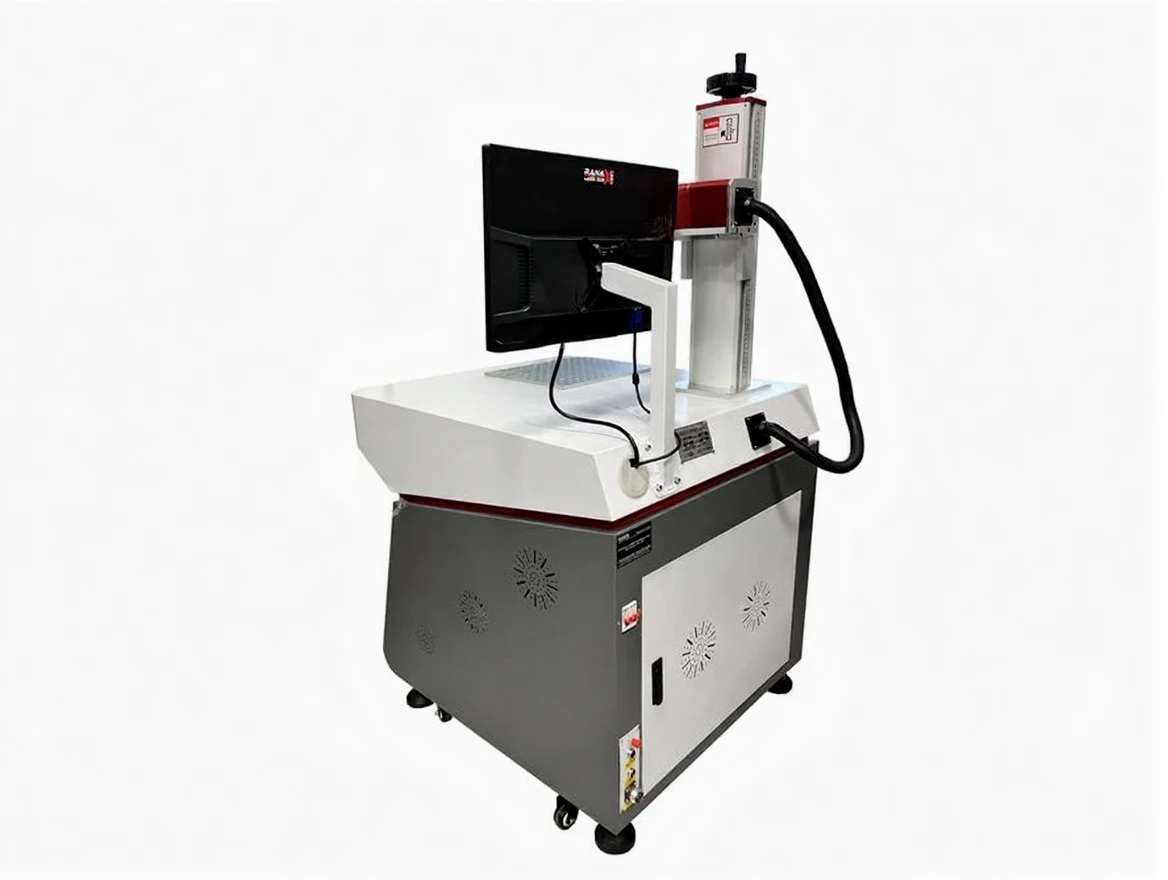

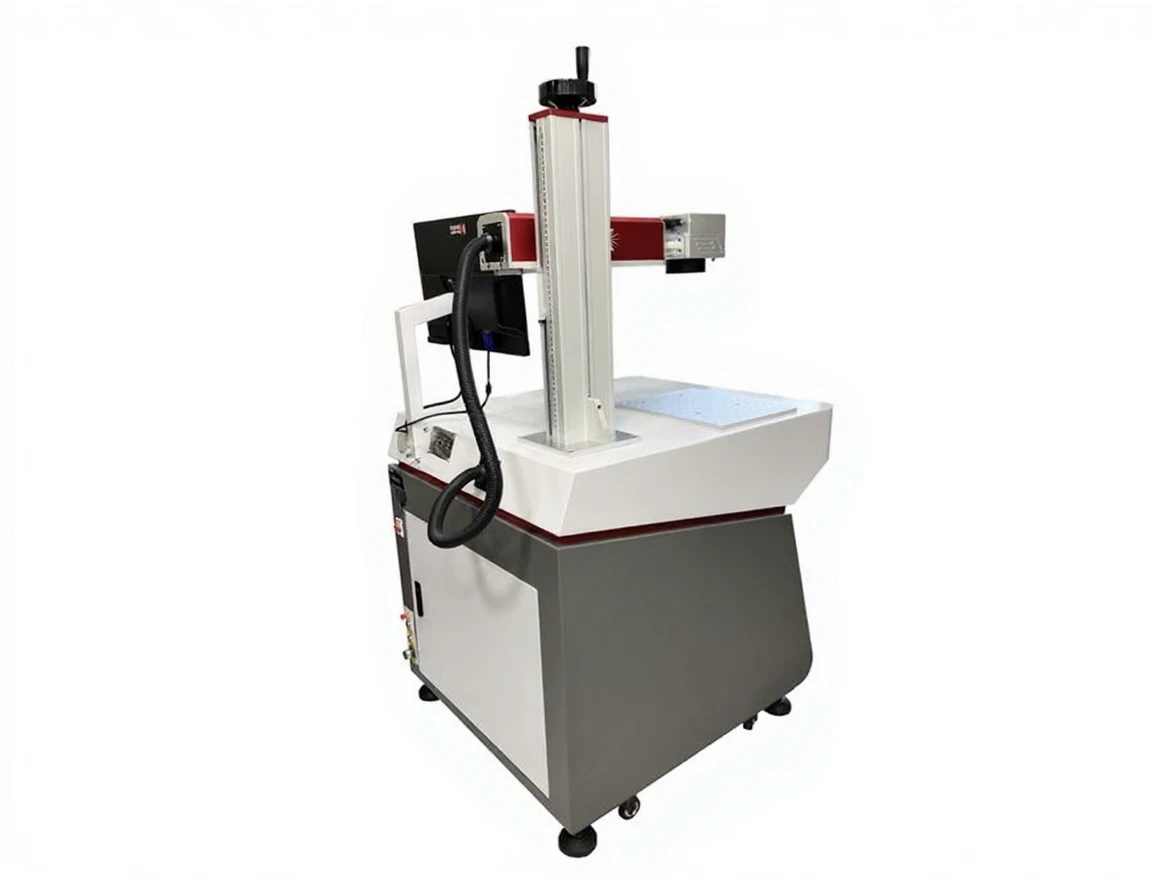

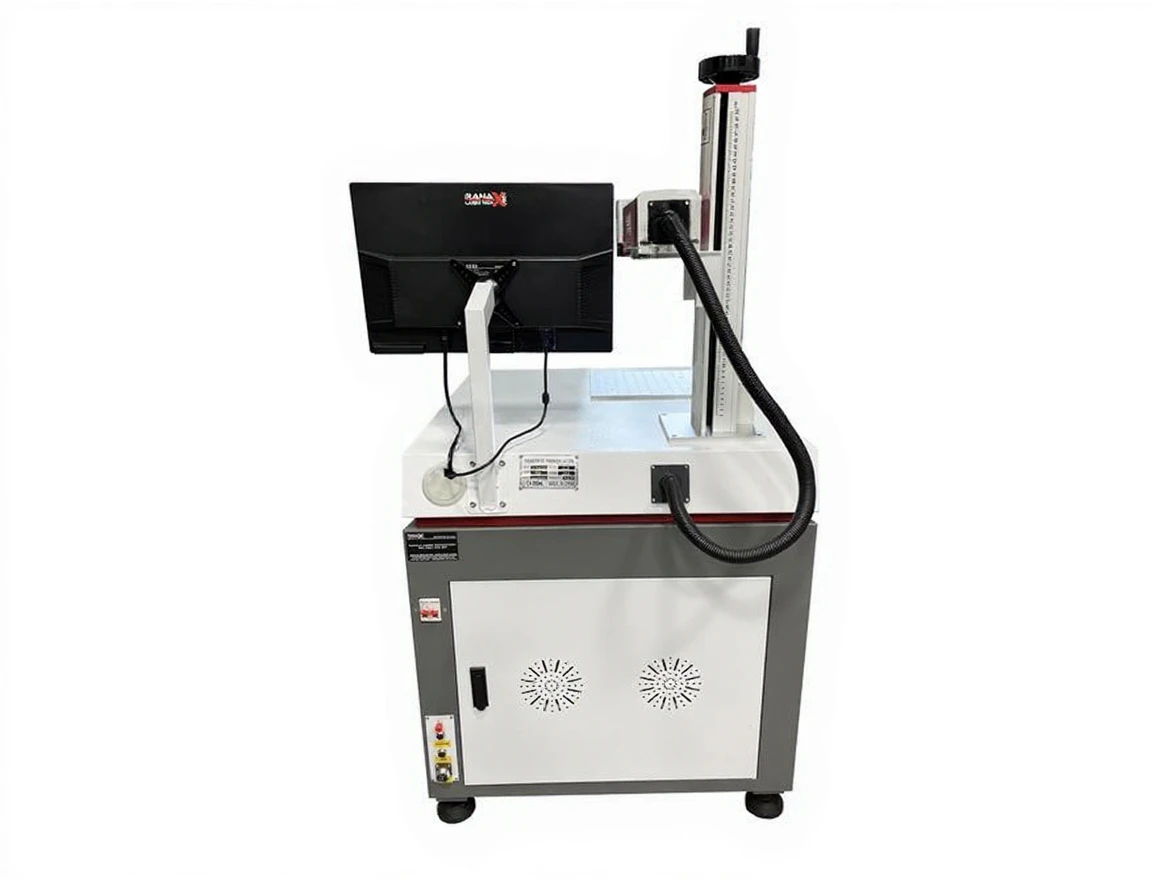

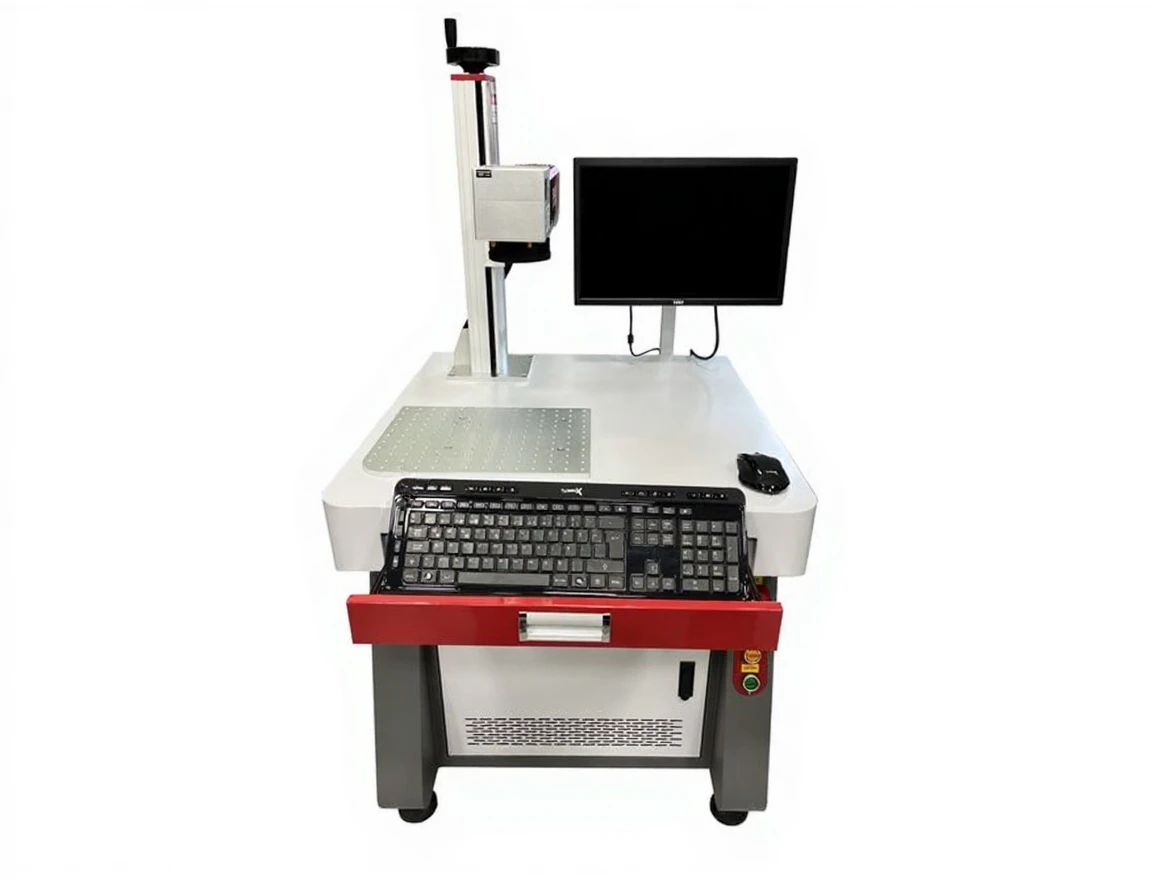

100W Raycus Fiber Laser Marking Machine (With Integrated Computer – RNM100W)

TRAINING and TRANSPORTATION ARE FREE

For detailed technical information, references, and sales information, feel free to contact us.
We would be pleased to welcome you at our Istanbul office.

2-YEAR WARRANTY

• Original Raycus Series Source

• JCZ Ezcad2 Control Board (Turkish)

• Sino Galvo

12-Month Installment Payment Option Available

APPLICATION AREAS

All Metal Types (Silver, Gold, Platinum, Copper, Aluminum, etc.), Key Restoration, MDF, Parquet, Leather, Various Plastic Types, Circuit Boards, Plaques, Promotional Products, Mirrored and Acrylic Plexiglass, Phone Cases, Painted Products, Bank Cards, Carbon-based Materials, etc.

GENERAL FEATURES AND INSTALLATION CONTENT

• More than 25,000 Patterns and Drawings

• Professional Drawing Software

• Protective Glasses

• Foot Pedal

• Raycus QB Series Source

• 70×70 – 110×110 – 150×150 – 175×175 – 200×200 – 300×300 mm Lens Options

• Manual Focus

• Sino Galvo

• With Table Model

• 100,000 Hours Laser Life

• Low Energy Consumption

• Dual Red Pointer

• Turkish Software

24/7 Free Service and Spare Part Support Anywhere in Turkey

Contact us for prices on Dividers and Additional Equipment.

5-Year Spare Part Warranty

DETAILED TECHNICAL SPECIFICATIONS

• Laser Power: 100W

• Supported Graphic Formats: PLT, BMP, JPG, PNG, AI, PCX, TGA, ICO, DXF

• Beam Quality: M2<2

• Power Stability: (8)<+1% rms

• Pulse Repetition Frequency: 20KHZ—100KHZ

• Power Consumption: <1680W

• Minimum Character: 0.01mm

• Laser Wavelength: 1064nm

• Working Area: 70×70 – 110×110 – 150×150 – 175×175 – 200×200 – 300×300 mm

• Total Machine Power: 865W

• Cooling Method: Air-cooled

• Operating Voltage: 110/220V + 10%, 50/60Hz

• Operating Temperature Range: -35°C to +50°C

• Red Marker: Dual Laser Marker

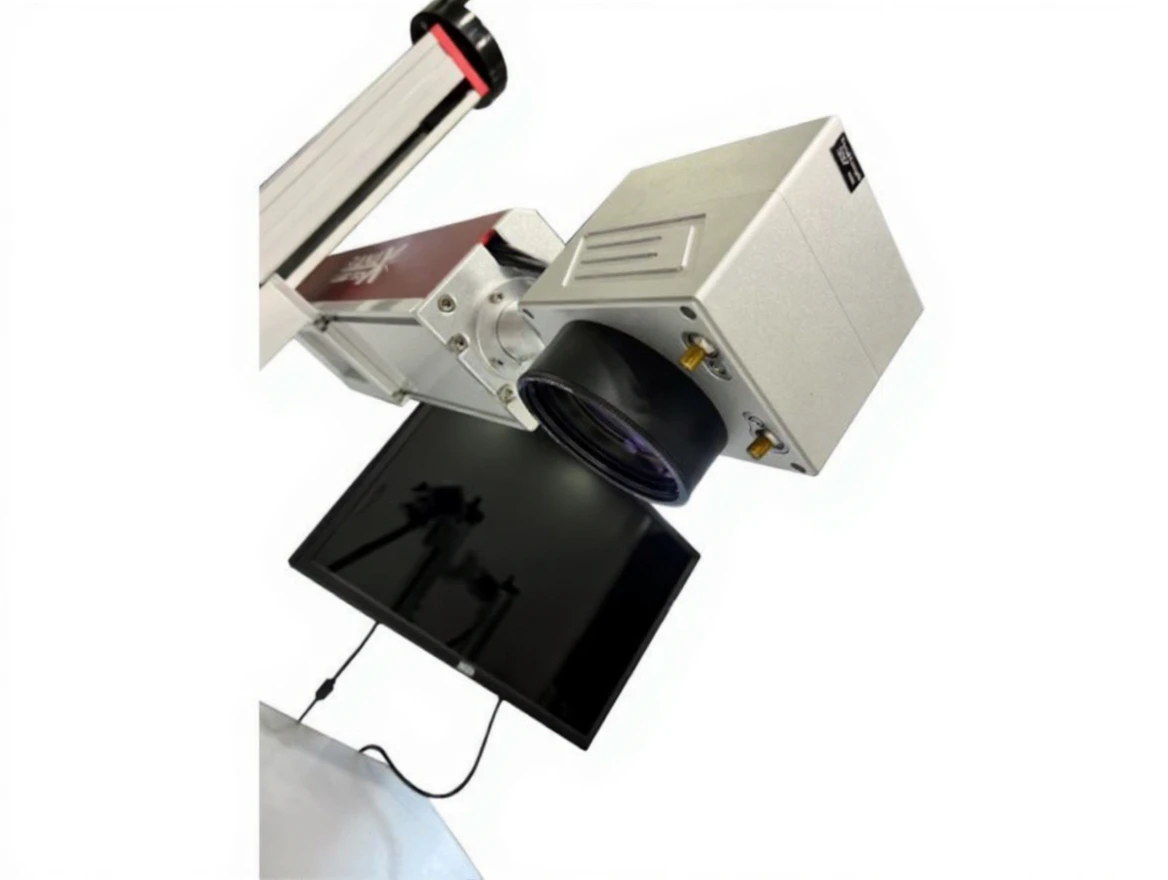

• Galvanometer: Sino Galvo

• Laser Source: Raycus QA Series

• Control Board: JCZ Ezcad2 Turkish Software
