1150 mm Shock Absorber Rotary Basket High Pressure Washing Machine
| Brand | Wespy |
|---|---|
| Model Type |
DHS-1250 |
Description

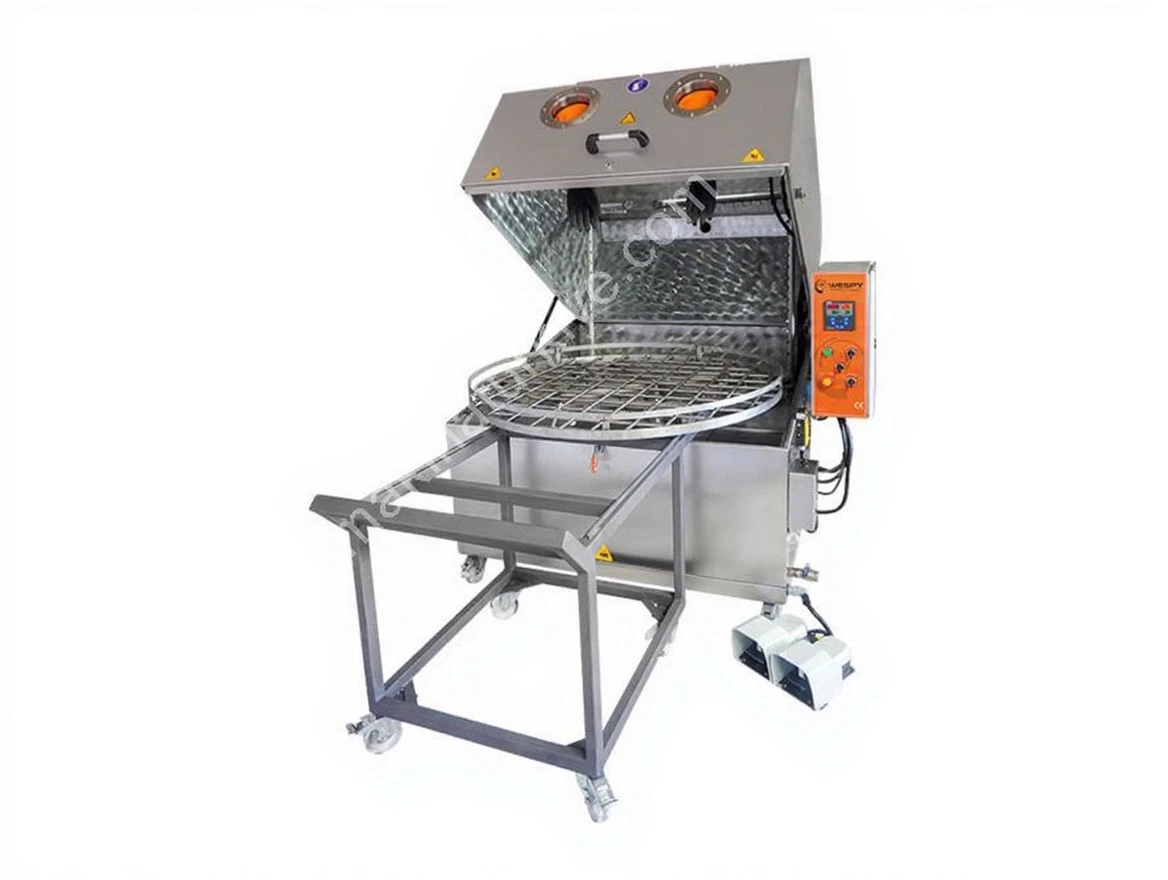

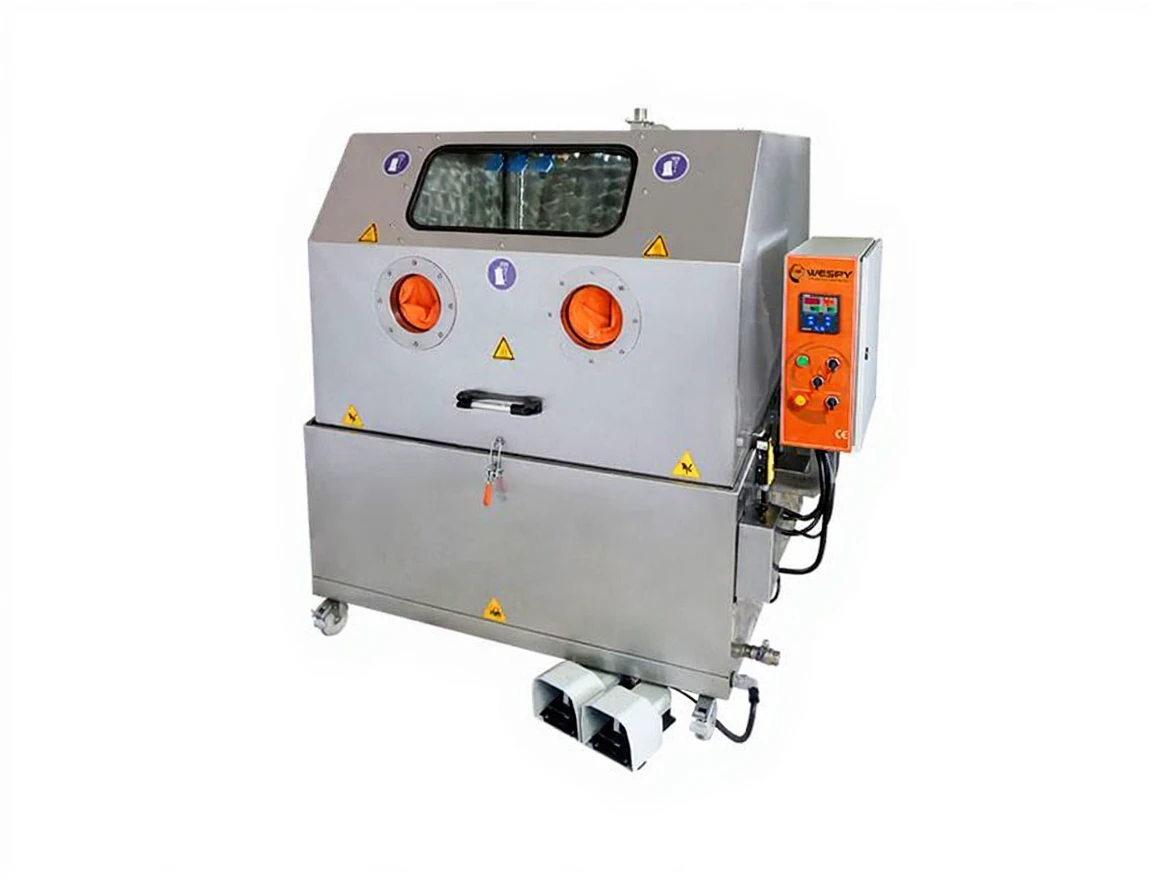

Wespy DHS-1250 Shock Absorber Rotary Basket High Pressure Washing Machine

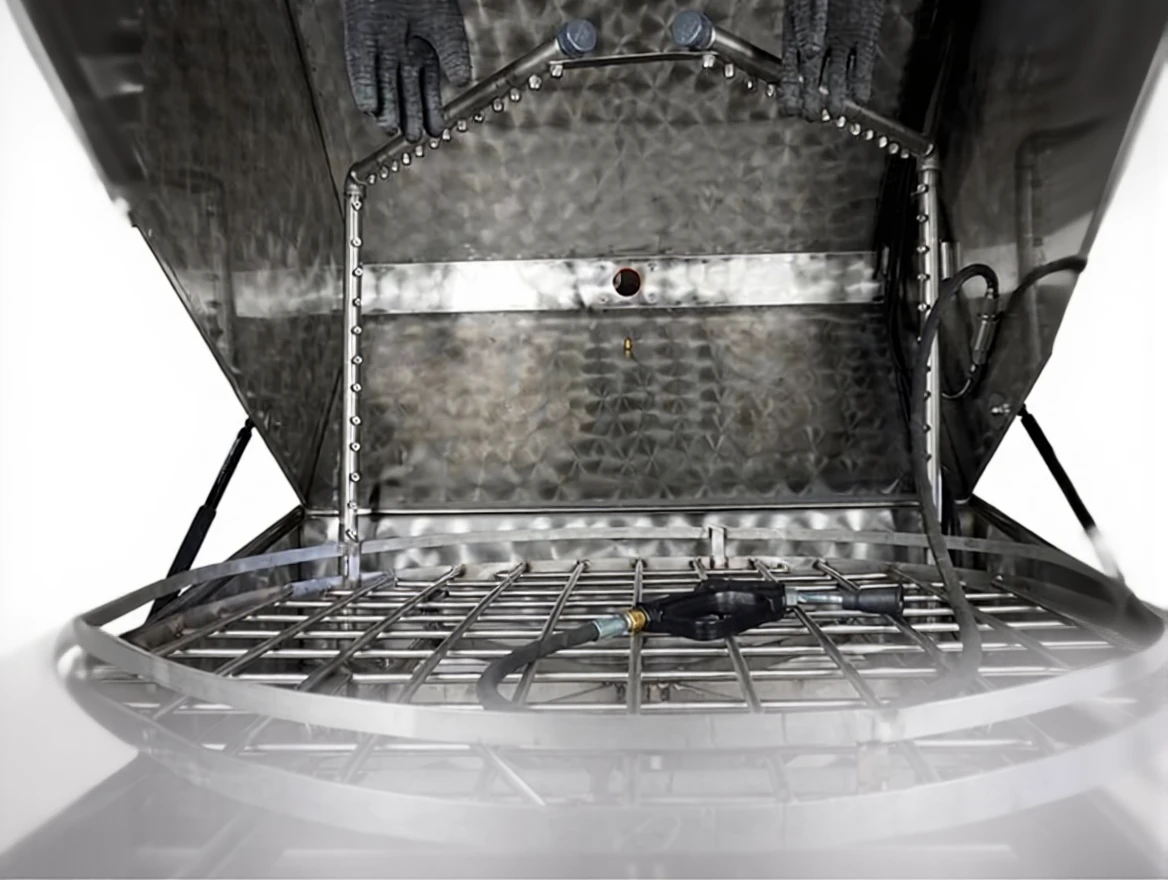

A closed cabin is used to place the parts to be washed on a basket placed on a stainless rotating platform with a sliding system, subjected to rotary basket washing with high-pressure detergent and water.
According to the structure of the part and the level of dirt, washing is performed to clean oil, chips, dirt, and waste from dirty surfaces at different angles through time-controlled pressurized water nozzles. With the circulation system, water is filtered, and the consumption of water, detergent, electricity, and time (work power) is designed to minimize waste during part washing.
| Feature | DHS-1250 | DHS-1500 |
|---|---|---|
| Basket Diameter Ø | 1150 mm | 1350 mm |
| Loading Height | 550 mm | 650 mm |
| Basket Capacity | 400 kg | 550 kg |
| Tank Capacity | 200 lt | 250 lt |
| Pump Pressure | 2.8 bar | 2.8 bar |
| High Pressure Pump | 0-150 bar | 0-150 bar |
| Electricity (V/Phase) | 220 – 380 | 220 – 380 |
| Heater (kW) | 15 kW | 15 kW |
| Thermostat | 0.90 °C | 0.90 °C |
| Timer | 0-100 min | 0-100 min |
| Body Structure | 304-430 (AISI) | 304-430 (AISI) |
| Loading Trolley | Standard | Standard |
| Machine Dimensions | 130016001450 mm | 150017501500 mm |
