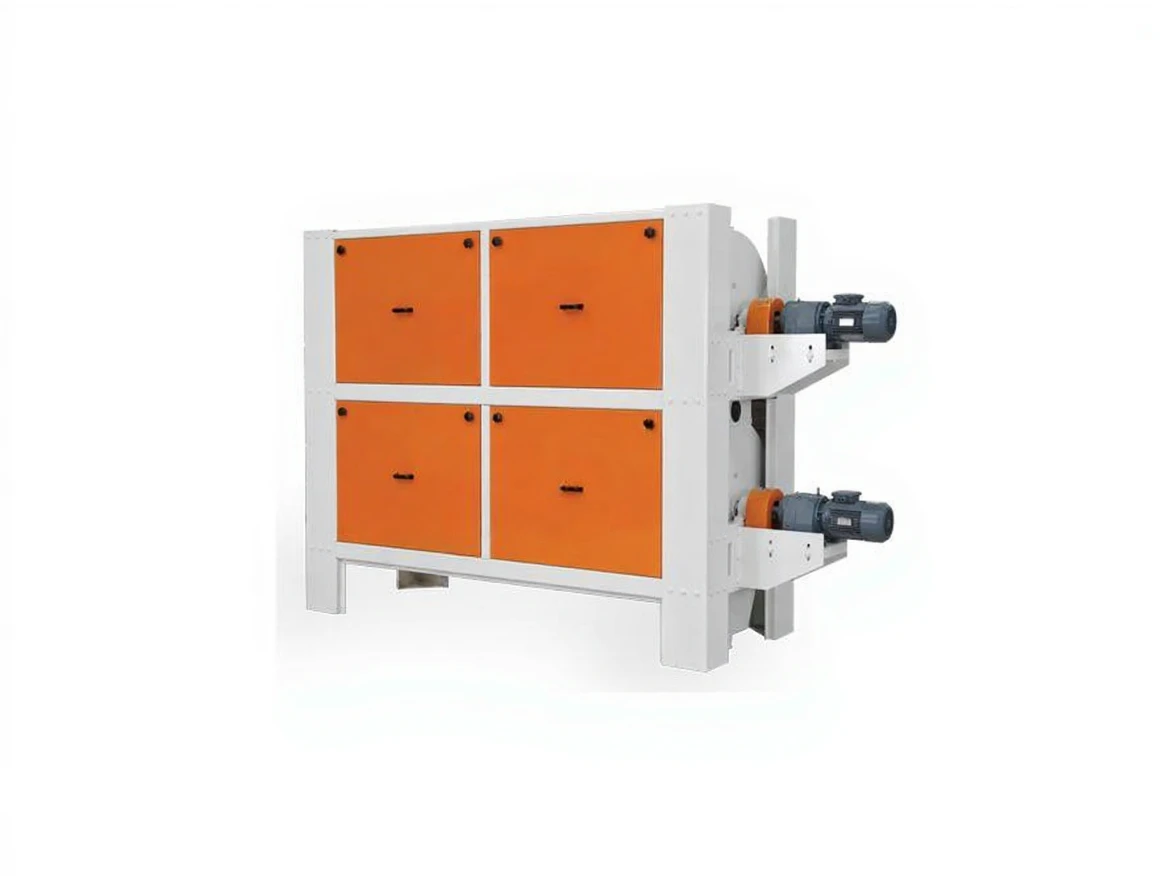

12-14 Ton Per Hour Long Grain (Trieur) Grain Screening Machine
| Brand | Milleral |
|---|---|
| Model Type |
MTR 92x300x3 |
Description
Milleral MTR 92x300x3
12-14 Ton Per Hour Long Grain (Trieur) Grain Screening Machine

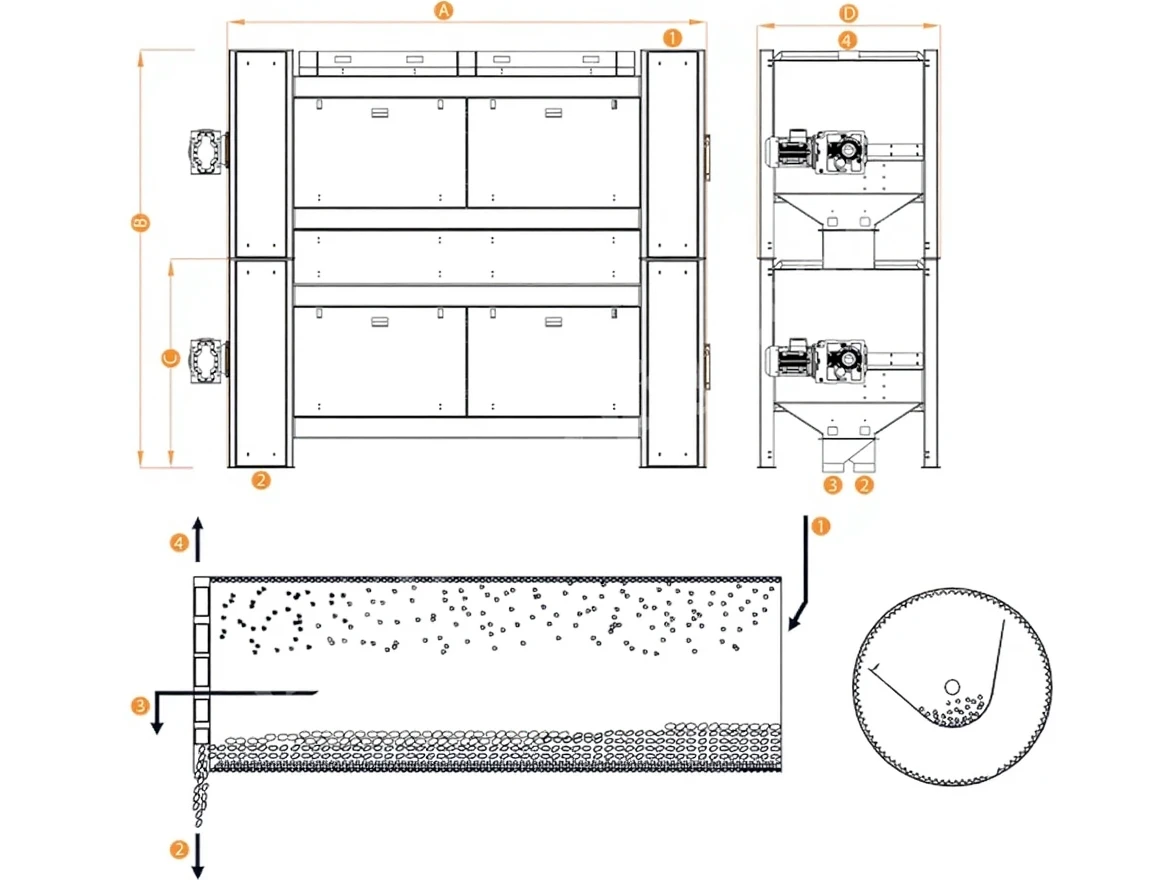

| Model | A | B | C | D | Capacity (t/h) | Air Requirement m³/Min | Motor (kW) | Weight (kg) | |
| Long Grain | Broken Grain | ||||||||
| MTR 63x200x1 | 2720 | – | 1115 | 970 | 1-3 | 3-4 | 8 | 1.5 | 630 |
| MTR 63x200x2 | 2720 | 1900 | 1115 | 970 | 4-6 | 6-8 | 12 | 2×1.5 | 1260 |
| MTR 63x200x3 | 2720 | 2530 | 1115 | 970 | 7-9 | 9-12 | 16 | 3×1.5 | 1890 |
| MTR 73x200x1 | 2720 | – | 1240 | 1100 | 2-4 | 4-5 | 10 | 2.2 | 960 |
| MTR 73x200x2 | 2720 | 2150 | 1240 | 1100 | 5-7 | 8-10 | 14 | 2×2.2 | 1900 |
| MTR 73x200x3 | 2720 | 3000 | 1240 | 1100 | 8-10 | 12-14 | 20 | 3×2.2 | 2850 |
| MTR 92x300x1 | 3780 | – | 1450 | 1250 | 4-6 | 8-9 | 12 | 3 | 1450 |
| MTR 92x300x2 | 3750 | 2420 | 1450 | 1250 | 9-10 | 12-14 | 16 | 2×3 | 2870 |
| MTR 92x300x3 | 3780 | 3515 | 1450 | 1250 | 12-14 | 18-20 | 24 | 3×3 | 4305 |
