Ø12-16 mm Electric Pneumatic Riveting Press

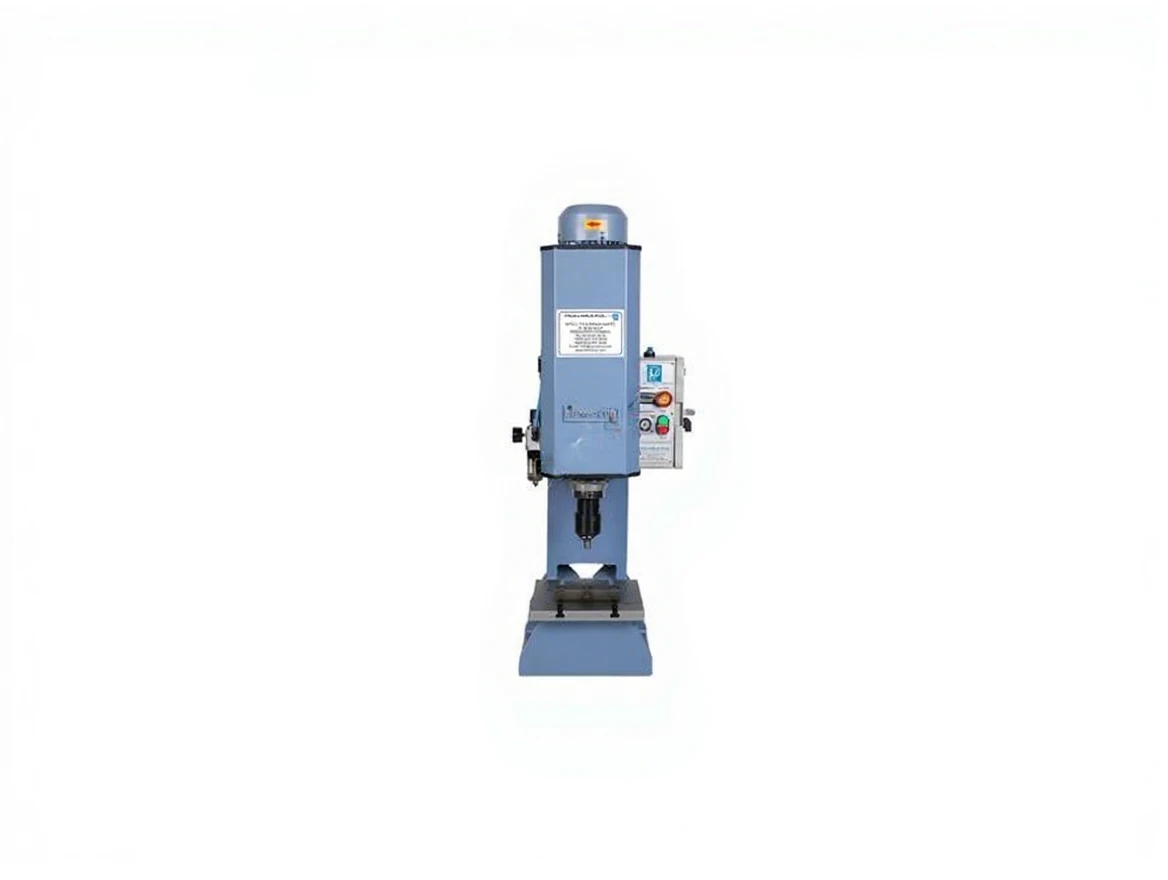

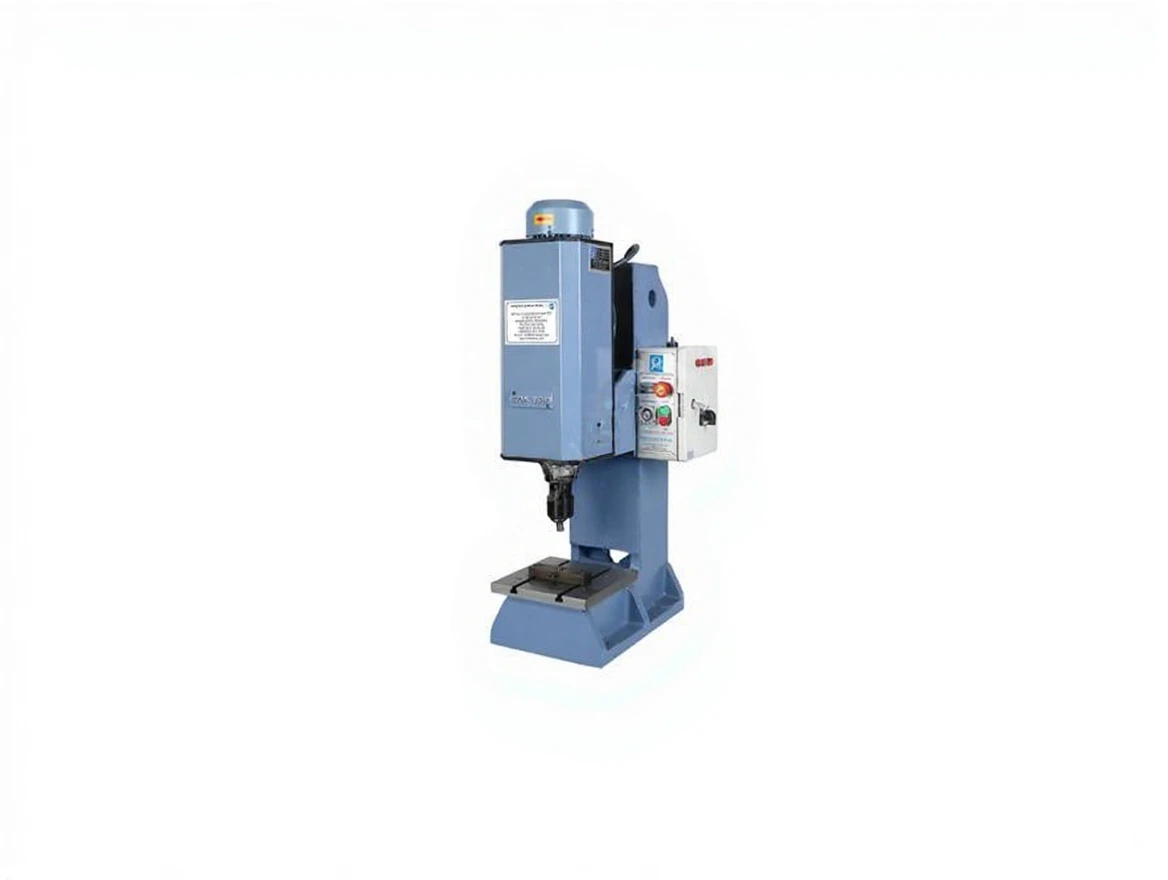

Ron Mikron EPM 2000 Ø12-16 mm Electric Pneumatic Riveting Press

ALL STANDARD MODELS

• The working stroke can be adjusted with a precision of 0.05 mm.

• A stroke counter is available.

• Although the control is with an electric foot pedal, a dual hand control button can be installed if desired.

• An air conditioner is available.

• The processing speed can be adjusted thanks to the air restrictor.

• Body height adjustment is available.

• If desired, the riveting unit can be independently mounted in different positions and automation systems that require accessibility.

Ron Mikron EPM 2000 TECHNICAL FEATURES

Riveting Capacity (Ø, mm) (st [ PHONE HIDDEN ] mm

Air Pressure (Bar) 5 – 6 Bar

Working Stroke 0 – 30 mm

Riveting Time 0.5 – 6 sec

Motor Power 0.75 kW – 1400 rpm

Electrical Feed (V,Hz) 380 V – 50 Hz

Weight (kg) 235 Kg

EPM 2000 SIZE

A 480mm

B 510 mm

C 210 mm

H 1300 mm (max)

Z (min-max) 70-350 mm

Box 500x550x1100
