12/24 Volt Battery Test Device

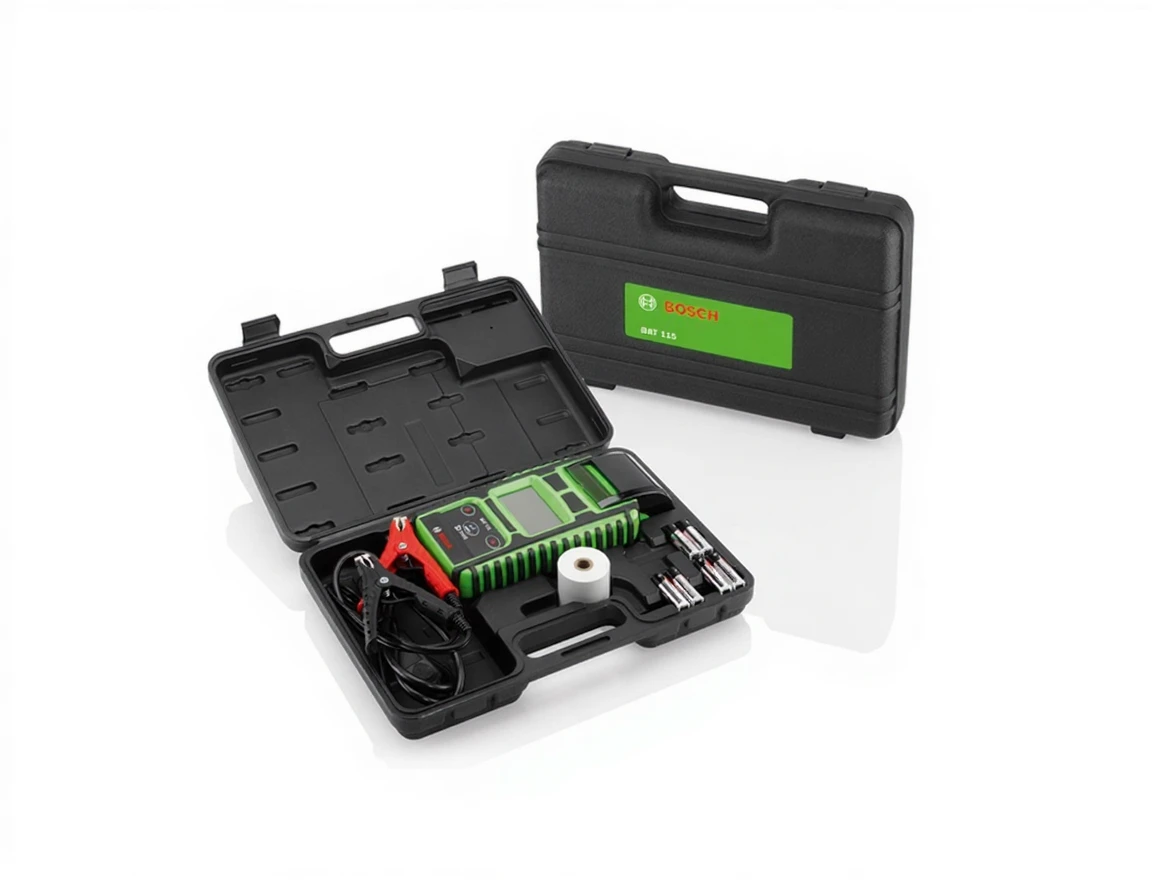

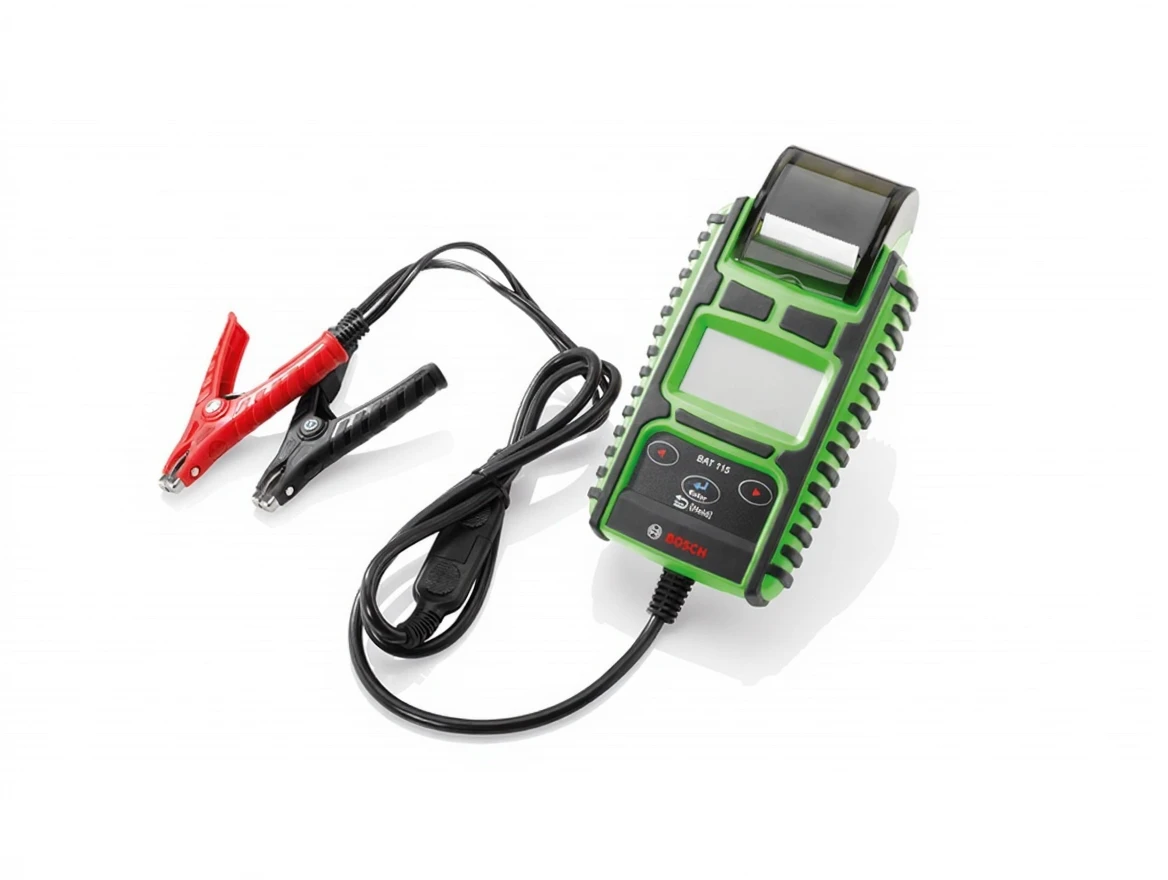

Bosch BAT 115 12/24 Volt Battery Test Device

The BAT 115 device, developed for mobile use, is a portable and network-independent device for testing high-performance 6 Volt and 12 Volt starting batteries (wet batteries, AGM flat plate and spiral batteries, gel batteries, and EFB batteries). It is used to test the starting systems of passenger vehicles, marine vehicles, motorcycles, and light commercial vehicles with 12/24 Volt starting systems.

Batteries can be tested whether they are mounted in the vehicle or not. This device is equipped with a printer that allows test results to be seen directly on the screen and printed out.

Other Functions:

• Detection of faulty battery cells

• Reverse polarity connection protection

• Testing of discharged batteries

• Testing procedures according to EN, EN2, DIN, SAE, IEC, JIS, MCA standards

• Multilingual user interface

In order for the BAT 115 device to evaluate a battery, the correct information of the battery type, cold-cranking amperes (CCA), and battery standard (EN, EN2, DIN, SAE, IEC, JIS, MCA) must be entered accurately.

The device quickly provides an overall status of the battery and related information with the assurance of producing accurate battery power even under normal circumstances.
