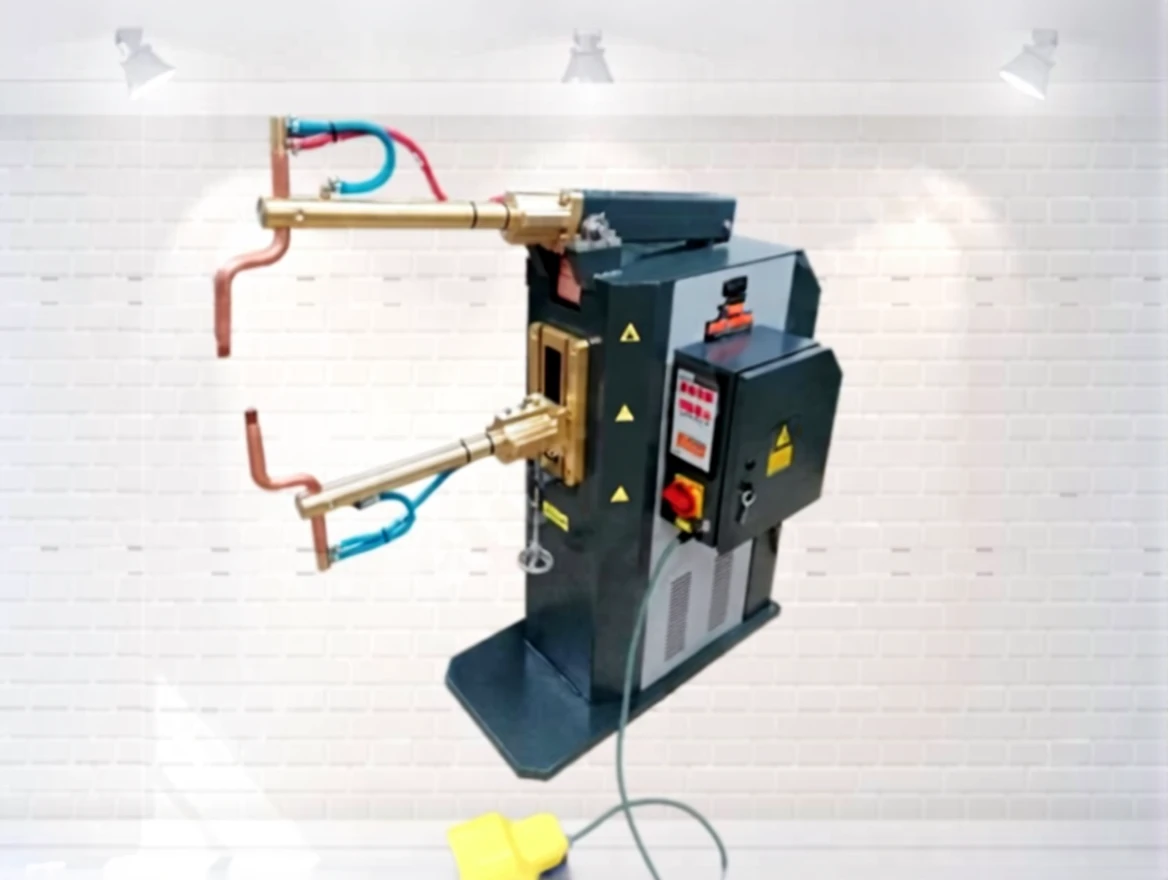

12 kVA Steel Appliance Type Pneumatic Spot Welding Machine
| Brand | Fast Makina |
|---|---|
| Model Type |
FMCET – 12KVA |
Description
Fast FMCET – 12KVA
12 KVA Steel Furniture Type Pneumatic Spot Welding Machine
Pneumatic, microprocessor-controlled, water-cooled 2-phase 400v/50Hz Steel Furniture Type Spot Welding Machines
Fields of use:
- Ventilation
- Home appliances
- Chandelier products
- Electric heaters and stoves
- Panels
- Shelf industry
- Special electrodes are made according to the work to be done on the machine.
FMCET – 12KVA Technical Specifications
| Model | FMCET – 12KVA | FMCET – 20KVA | FMCET – 30KVA | FMCET – 60KVA |
|---|---|---|---|---|
| Rated Power (%50) | 12 KVA | 20 KVA | 30 KVA | 60 KVA |
| Rated Current | 30 A | 50 A | 75 A | 150 A |
| Secondary Voltage | 2.7 V | 3.3 V | 5.5 V | 5.9 V |
| Arm Length | 600 mm | 600 mm | 600 mm | 600 mm |
| Piston Diameter | ø63 | ø80 | ø80 | ø100 |
| Electrode Pressure Force | 115 daN | 185 daN | 185 daN | 300 daN |
| Air Pressure | 2/8 bar | 2/8 bar | 2/8 bar | 2/8 bar |
| Cooling Water Inlet Pressure | 2/5 bar | 2/5 bar | 2/5 bar | 2/5 bar |
| Cooling Water Inlet Temperature | 15/25 °C | 15/25 °C | 15/25 °C | 15/25 °C |
| Cooling Water Inlet Flow Rate | 15 l/min | 15 l/min | 15 l/min | 15 l/min |
| Delayed Network Fuse | 63 A | 80 A | 80 A | 100 A |
| Power Cable (up to 5 meters) | 2×6+6 | 2×10+6 | 2×16+6 | 2×35+6 |
| Machine Dimensions (LxWxH) | 600X1400X1500 | 600X1400X1500 | 600X1400X1500 | 600X1400X1500 |
| Weight | 200 kg | 260 kg | 310 kg | 380 kg |
