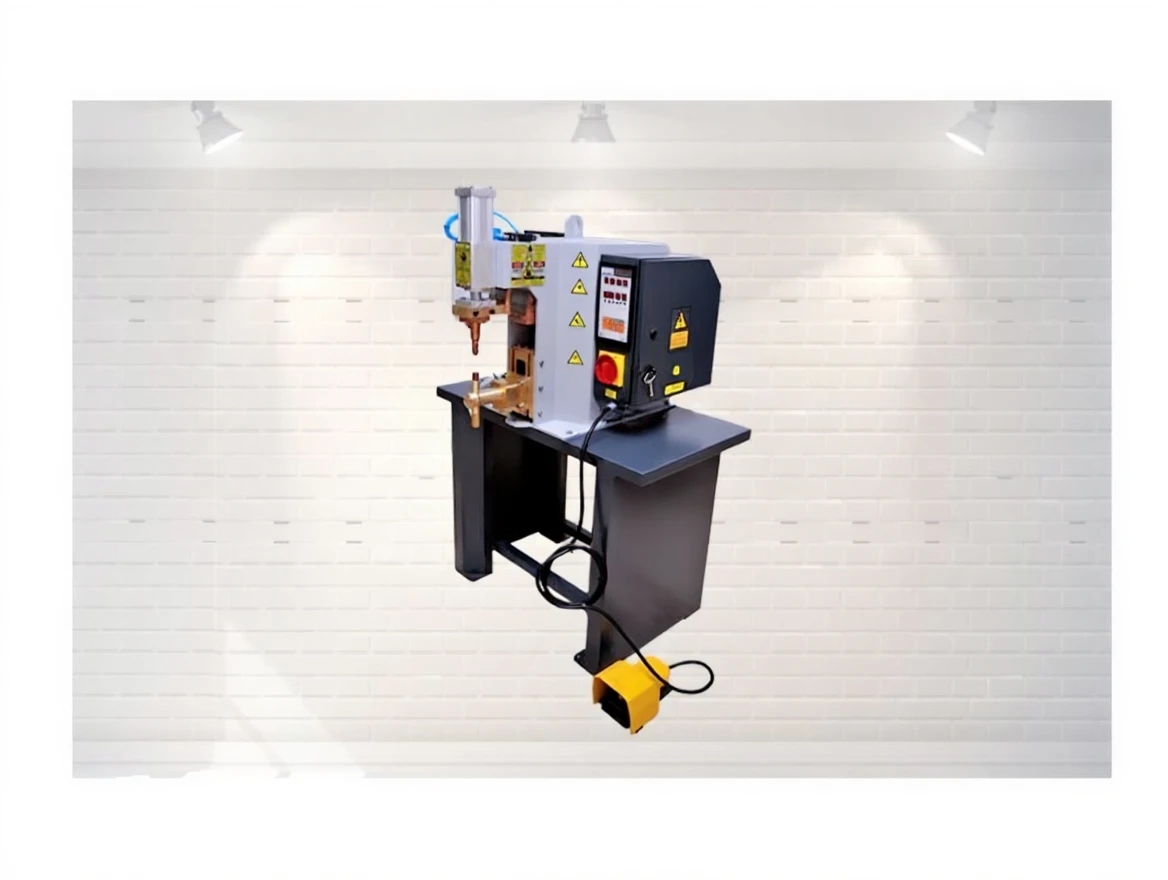

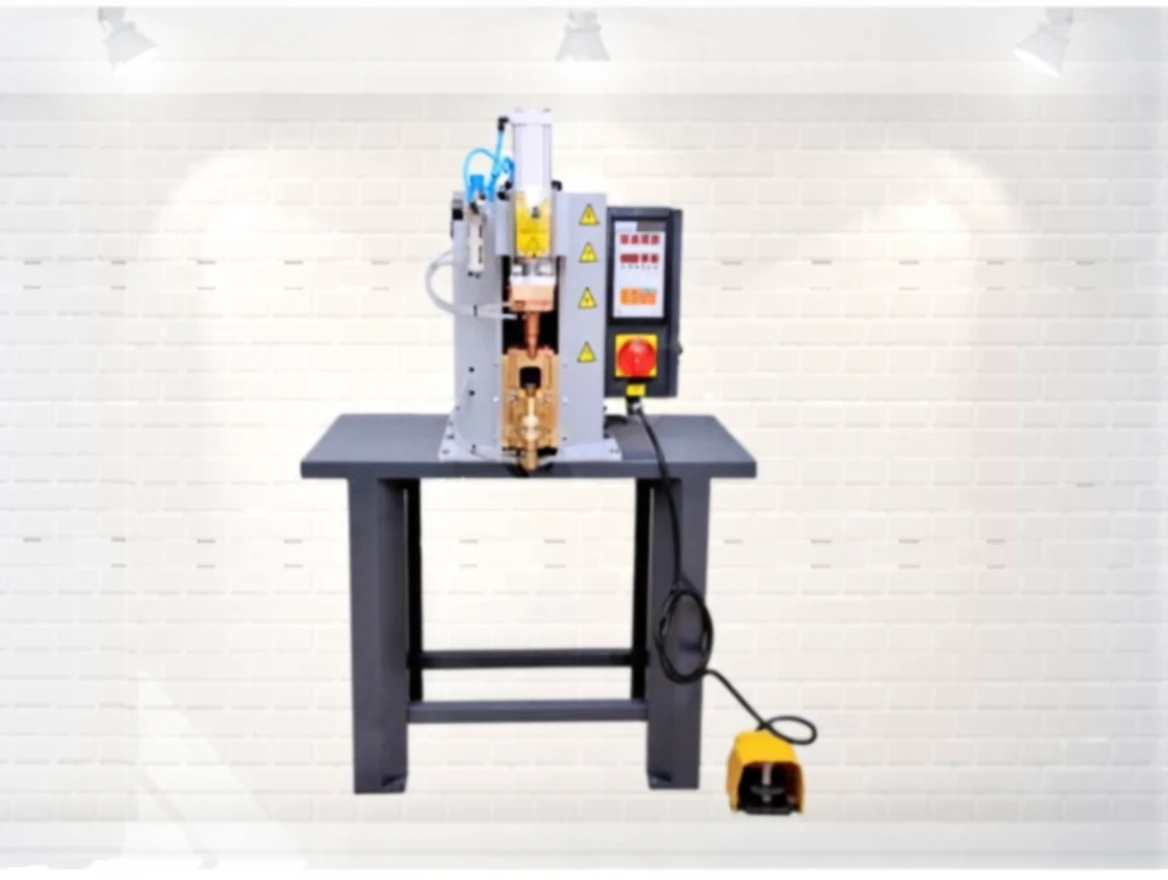

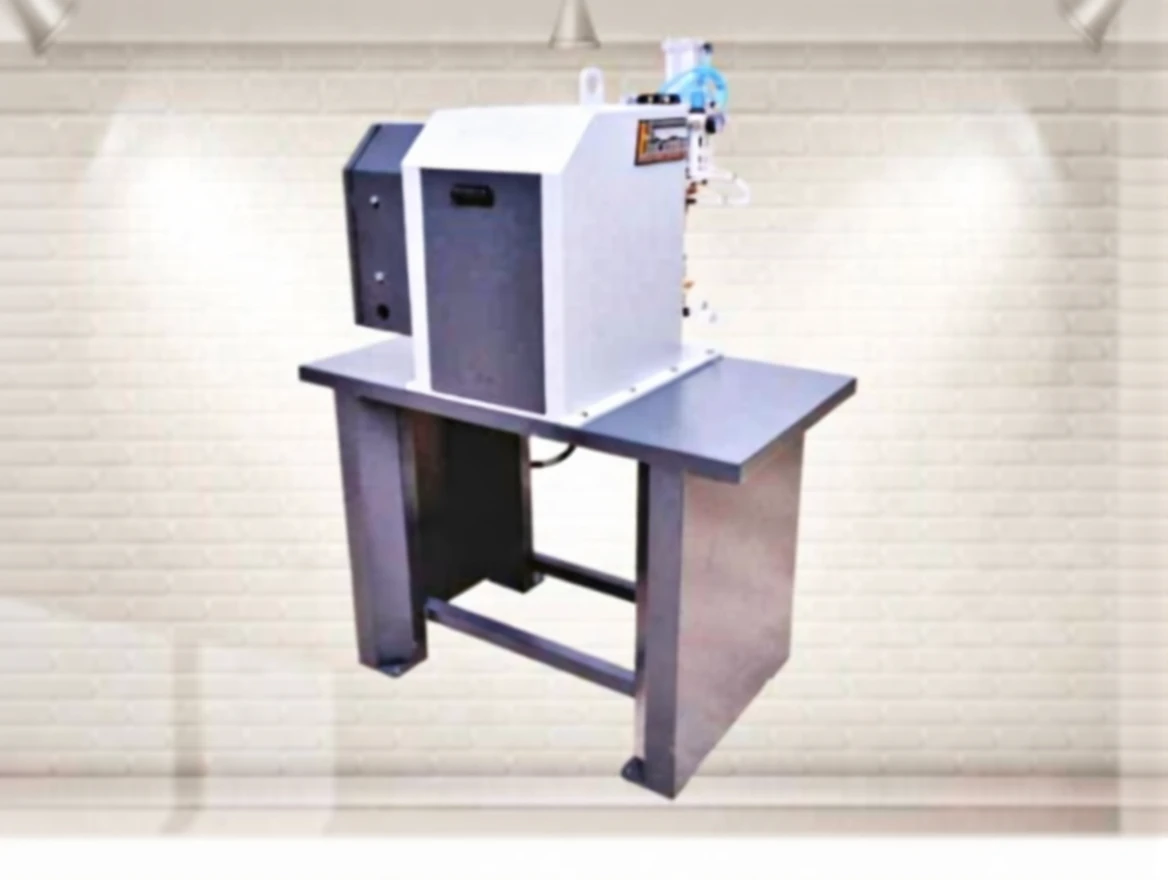

12 kVA Table Type Spot Welding Machine
| Brand | Fast Makina |
|---|---|
| Model Type |
FMPT – 12KVA |
Description
Fast Machinery FMPT – 12KVA
12 kVA Table Type Spot Welding Machine
Fast Machinery's 12 kVA table-type spot welding machines are equipped with pneumatic systems and microprocessor technology, operating with a 2-phase 400V/50Hz power supply. These machines offer efficient solutions across various industries.
Applications:
- Electrical sector
- Lighting production
- Production of decorative items
- Accessory manufacturing
The machine integrates with custom fixtures and molds designed for specific tasks, supporting the production process.
Fast Machinery FMPT – 12KVA Technical Specifications:
| Model | FMPT – 12KVA | FMPT – 20KVA | FMPT – 30KVA | FMPT – 60KVA |
|---|---|---|---|---|
| Rated Power (%50) | 12 kVA | 20 kVA | 30 kVA | 60 kVA |
| Rated Current | 30 A | 50 A | 75 A | 150 A |
| Secondary Voltage | 2.7 V | 3.3 V | 5.5 V | 5.9 V |
| Arm Length | 200 mm | 200 mm | 200 mm | 240 mm |
| Piston Diameter | ø50 | ø63 | ø63 | ø80 |
| Electrode Pressure Force | 115 daN | 185 daN | 185 daN | 300 daN |
| Air Pressure | 2/8 bar | 2/8 bar | 2/8 bar | 2/8 bar |
| Cooling Water Input Pressure | 2/5 bar | 2/5 bar | 2/5 bar | 2/5 bar |
| Cooling Water Input Temperature | 15/25 °C | 15/25 °C | 15/25 °C | 15/25 °C |
| Cooling Water Input Flow Rate | 15 lt/min | 15 lt/min | 15 lt/min | 15 lt/min |
| Delayed Network Fuse | 63 A | 80 A | 80 A | 100 A |
| Power Cable (up to 5 meters) | 2×6+6 | 2×10+6 | 2×16+6 | 2×35+6 |
| Machine Dimensions (WxDxH) | 780x1000x1450 | 780x1000x1450 | 780x1000x1450 | 780x1000x1450 |
| Weight | 200 kg | 260 kg | 310 kg | 380 kg |
Standard Machine Features:
- Microprocessor-controlled circuit board
- Air conditioner
- Air tank
- T-electrode
- Protected foot pedal
- Emergency stop button
- Special bearing piston
- Lower table lifting jack
Optional Features:
- Current-reading control unit
- Proportional pressure regulator
- Two-hand button
- Debris protection curtain
- Light barrier
- Custom molds
- Approaching piston
- Special electrodes
