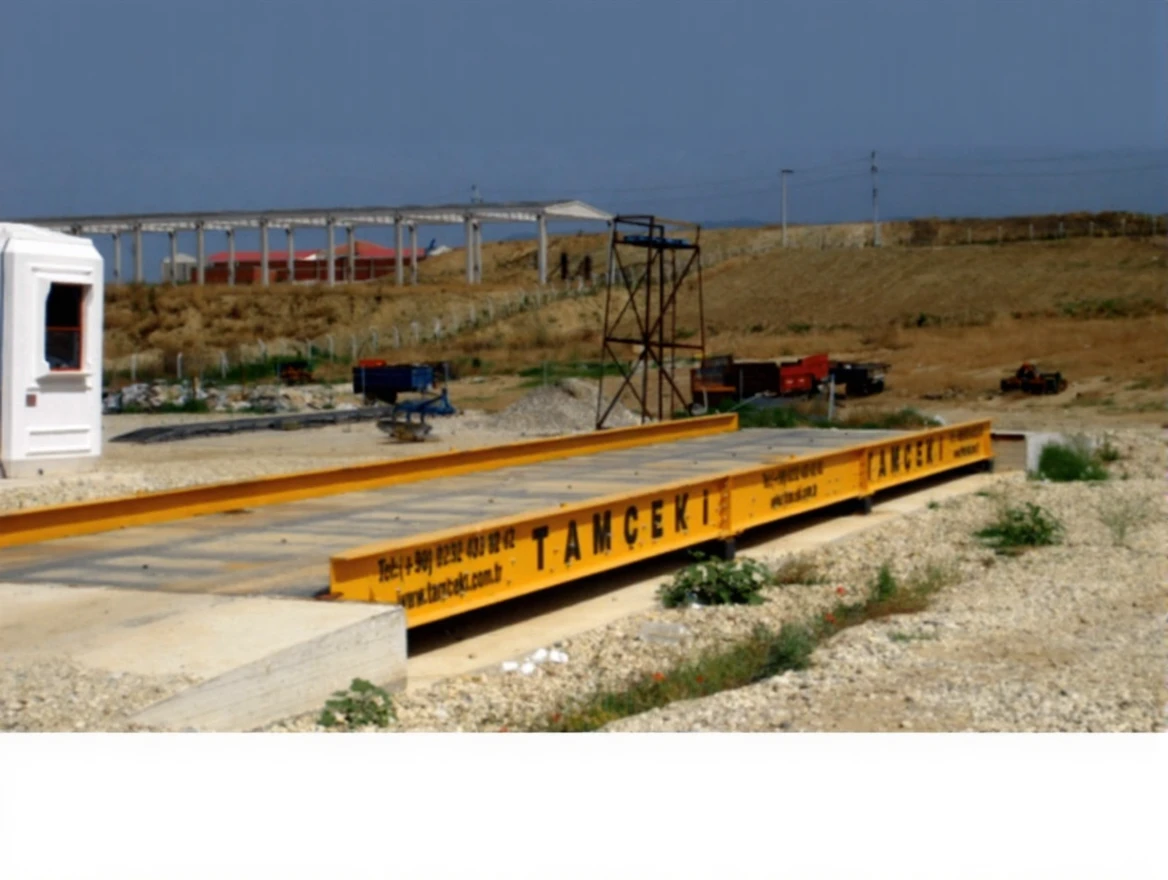

12 Meter Steel Platform Vehicle Scale

Model: Column Type
Material: Main Load-Bearing System
Protection: 2 coats of primer, 1 coat of finish paint

Model/Class: Powerload / C3
Operation Type: Compression / Press Type
Body: Entirely Steel

Model: TA-200 Series
Protection: IP65
Division Count: 4000

Processor: Intel
Software: Windows (Licensed)
Printer: Dot Matrix, 3 Copies of Weight Slip

Model: JB Series
Protection: IP65
Connection: Non-Flush Type

EXTERNAL INDICATOR
Allows the weight information of the vehicle being weighed to be read from outside. Provides ease of use with a 6-digit 75mm digit height and red LED display.

TRAFFIC LIGHT
Traffic lights preferred by companies experiencing heavy vehicle traffic regulate the entry and exit timing of vehicles to the scale with commands received from our weighing program.

BARRIER
Barriers mounted at the entrance and exit of the scale are used to prevent the weighed vehicle from leaving before the process is completed and to prevent waiting vehicles from entering the scale.

CAMERA
Camera systems preferred for weighing security help record vehicles during weighing and store their photos in the system.

CARD-BASED VEHICLE RECOGNITION SYSTEM
With the panel mounted at the entrance or exit of the scale, vehicles can perform the weighing process using specially introduced cards without needing an operator.

CP/12

60 t / 20 kg.

3 x 12 m.

4 Units / 30 t.
